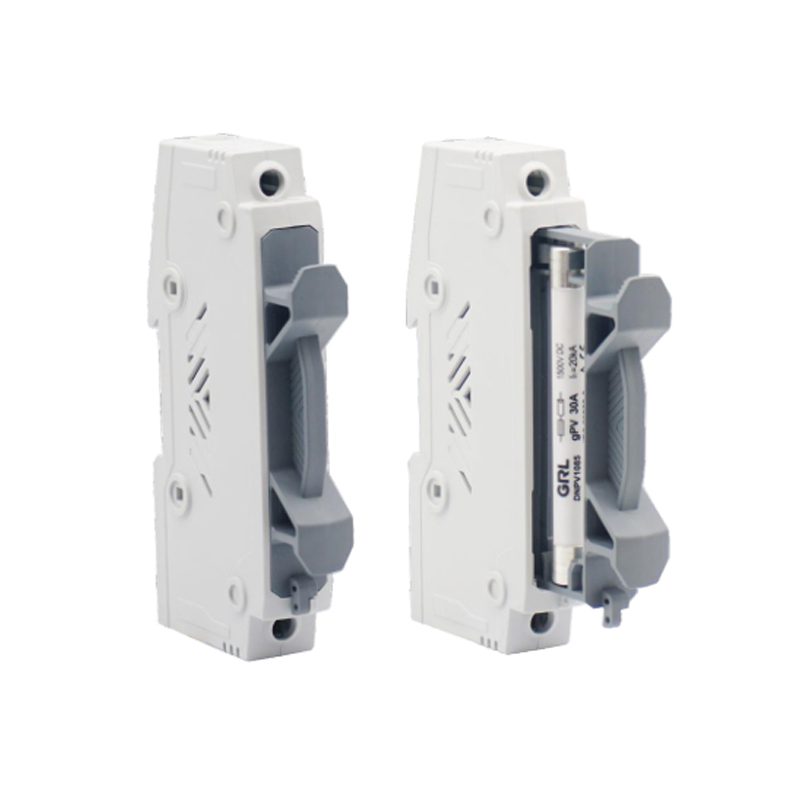

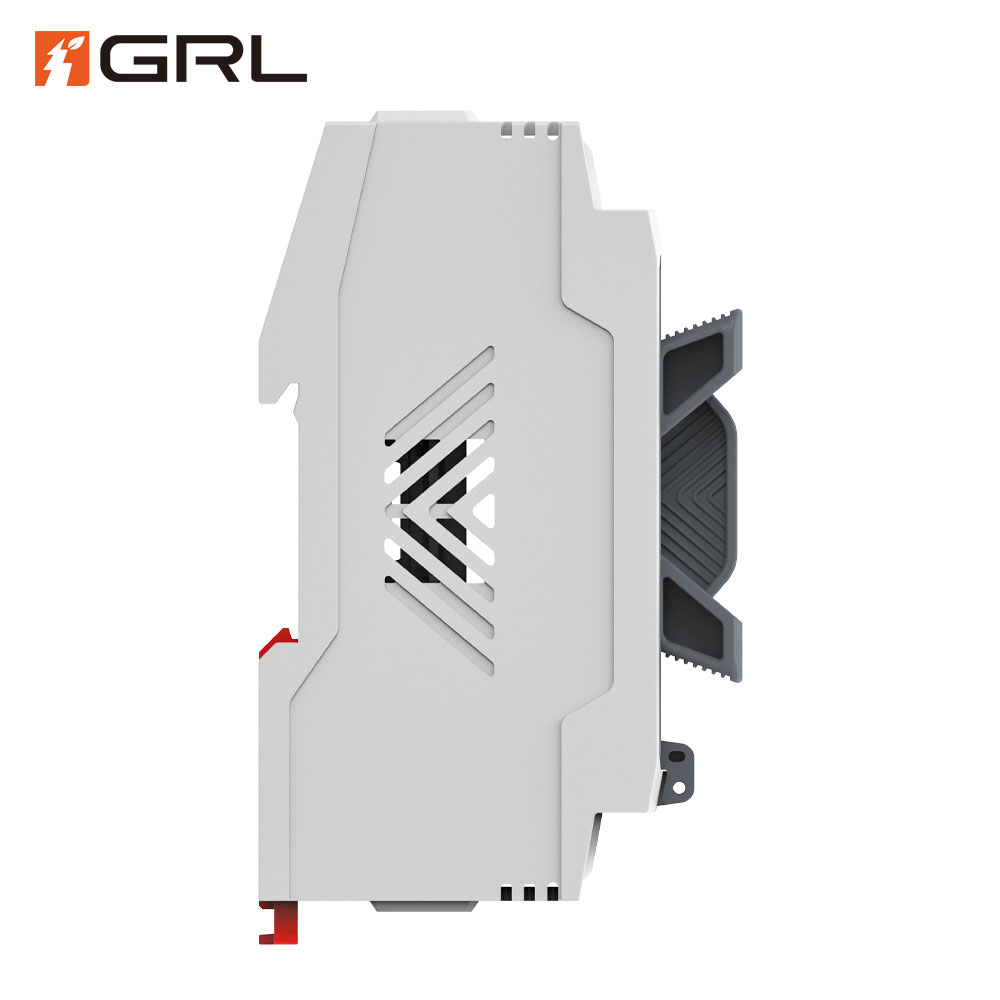

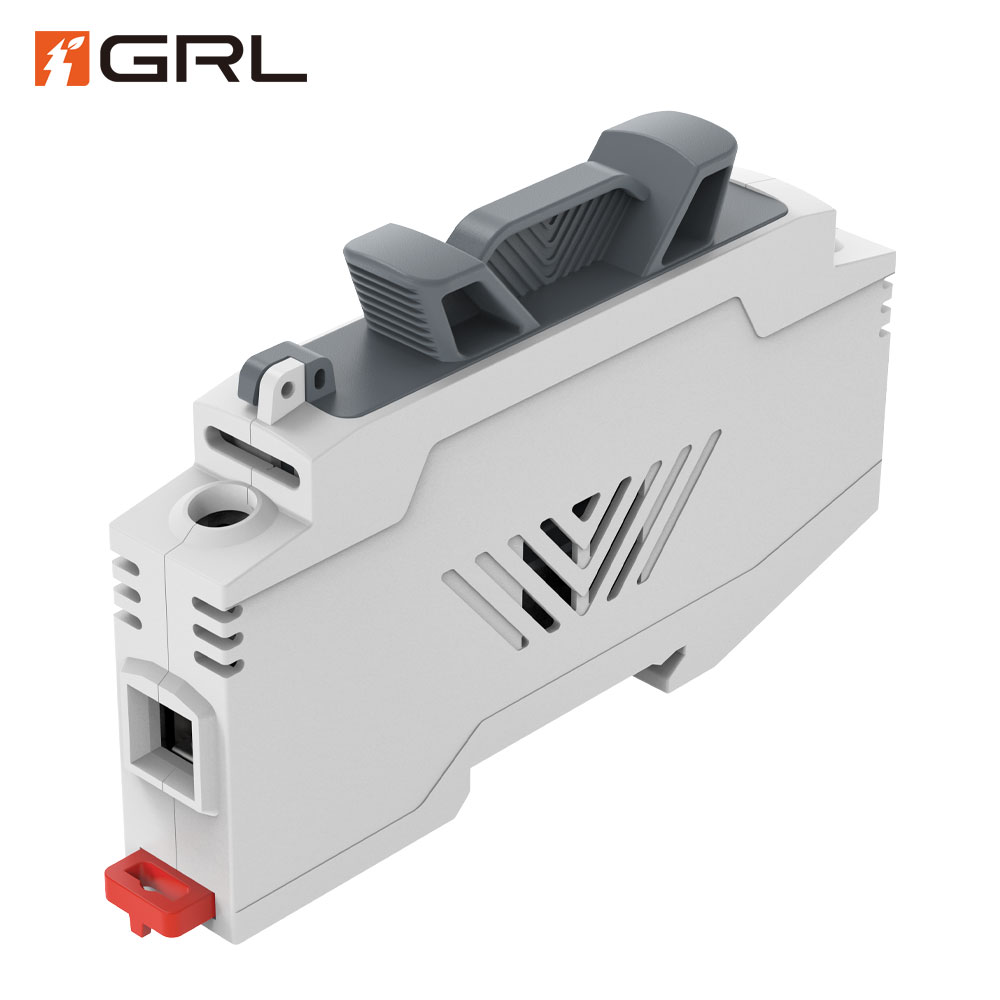

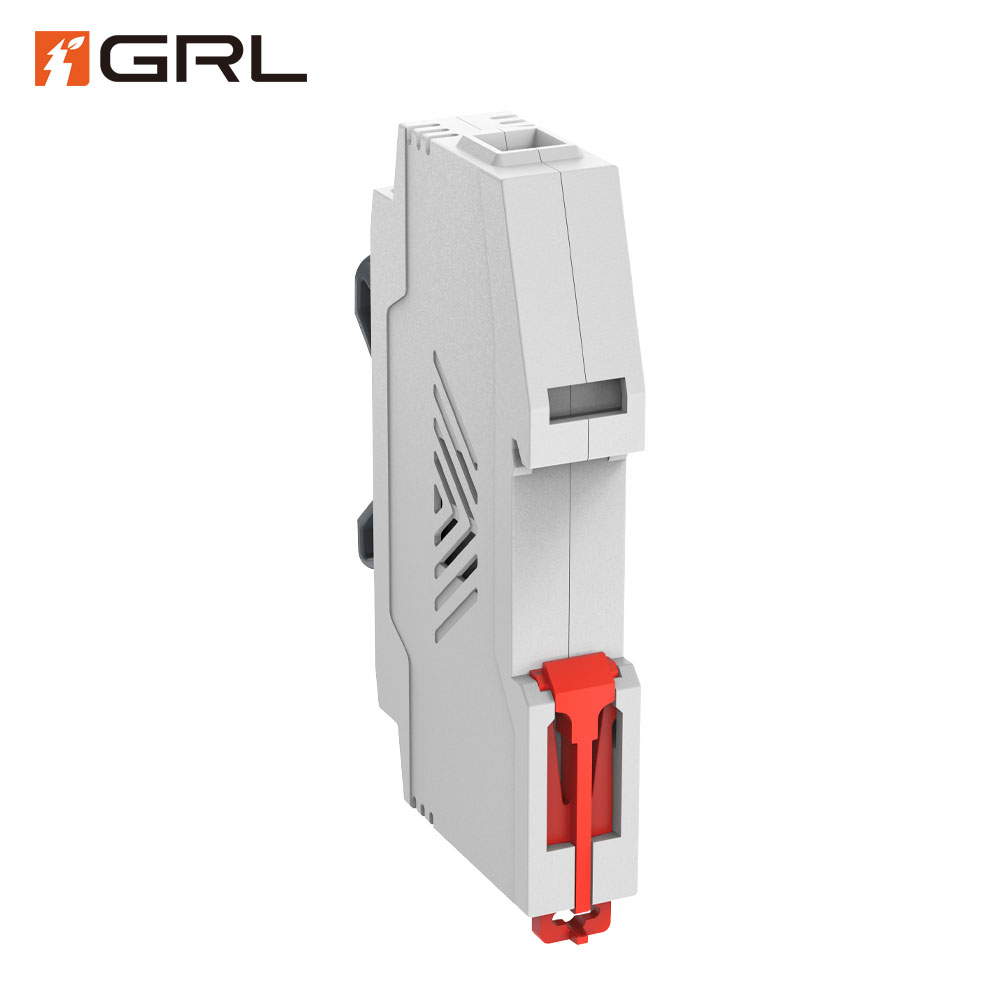

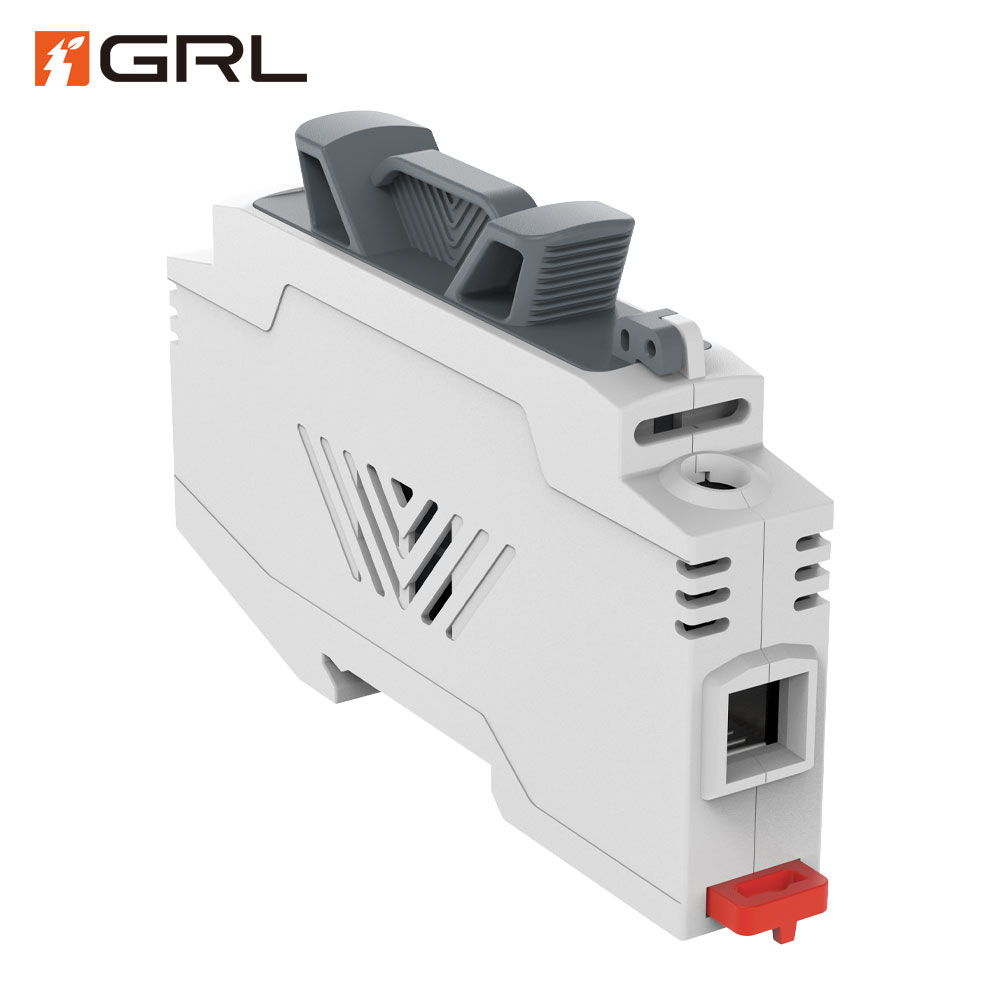

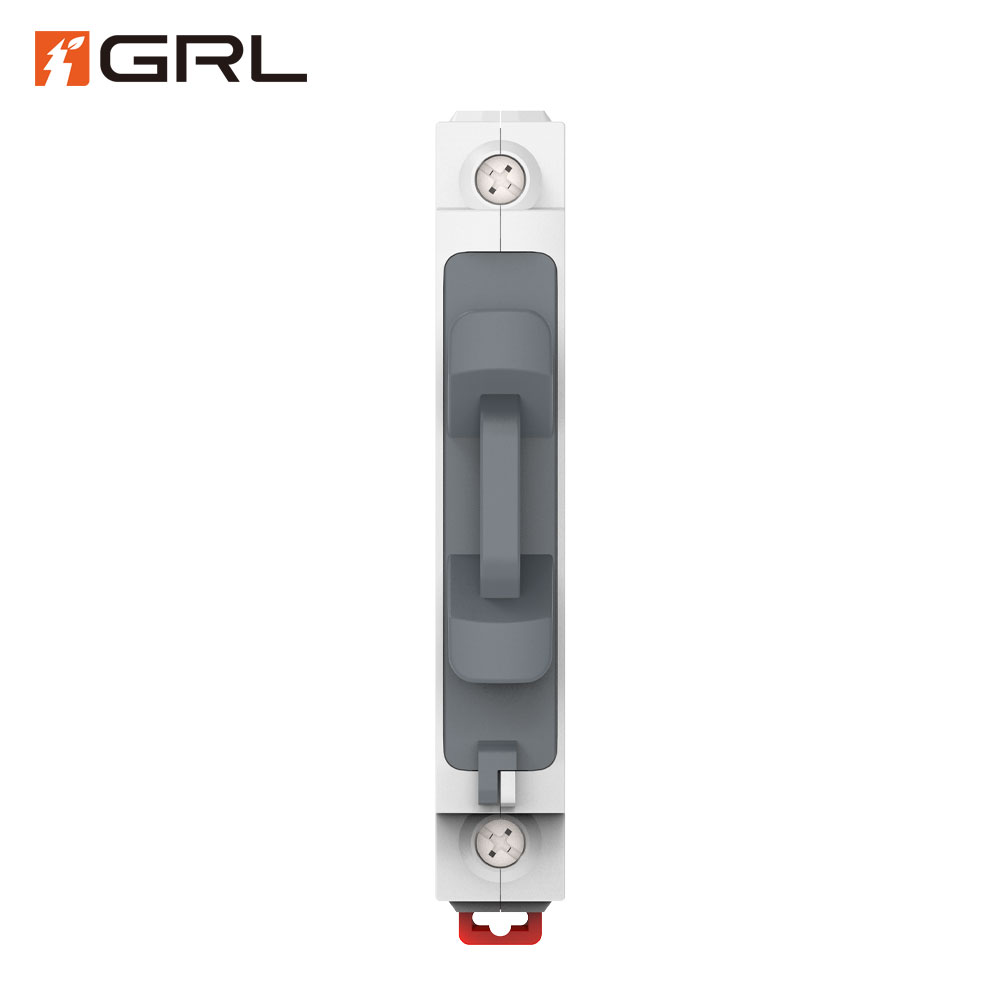

Mode：DNPVF1-32L
Order Number：DN53432
Pole：1p
Current：30A
Voltage：DC1500V
Size：W*H*D：22*129*69
Rated impulse withstand voltage：6kV
Standard：IEC 60947-3
GB/T 14048.3
Certificate：CE，CB
Email: [email protected]
1.Product Drawings
2.Parameters
3.The Components
4.Certificate

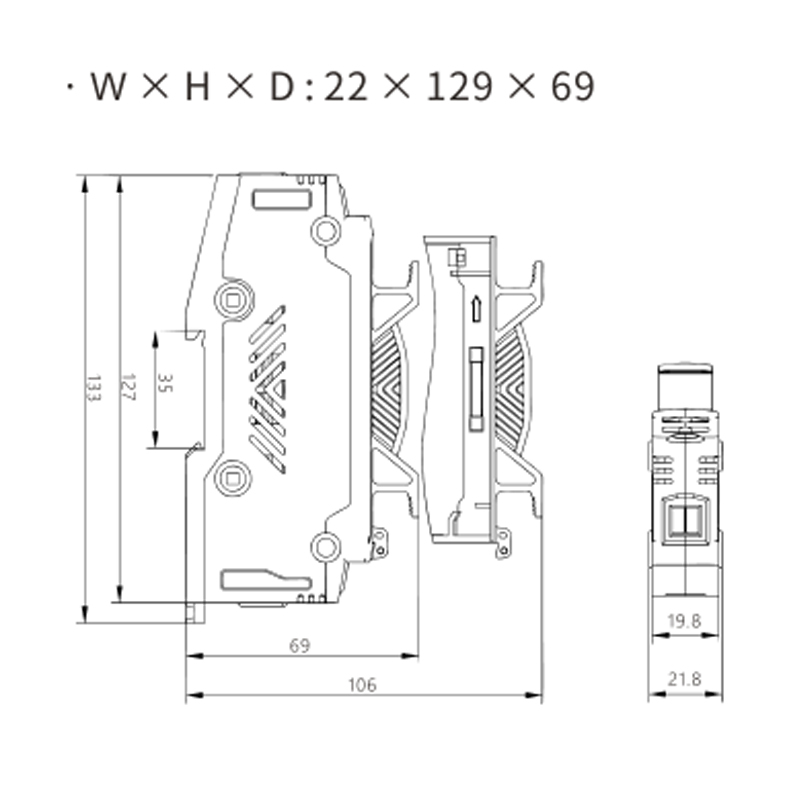

DNPVF1-32L 1500VDC 10*85 Fuse Holder Product Drawings
DNPVF1-32L 1500VDC 10*85 Fuse Holder Product Parameters
DNPVF1-32L 1500VDC 10*85 Fuse Holder Product Parameters|
Proudct model |
DNPVF1-32L |
|
Description |
Photovoltaic fuse holder |
|
Pole |
1P |
|
Mounting Method |
Din rail installation |
|
Wiring range |
0.75-25mm² |
|
Fuse Size |
10*85mm/14*85mm |
|
Rated operational current le |
32A |
|
Rated operational voltage Ue |
DC1500V |
|
Rated insulation voltage Ui |
DC1500V |
|
Rated impulse withstand current Ipk |
8kV |
|
Breaking Capacity with fuse |
30kA |
|
Utilization Category |
DC-PV0 |
|
IP |
IP20 |
|
Reference Standard |
IEC 60947-3 GB/T 14048.3 |
The Features of the NPVF1-32L 1500VDC 10*85 Fuse Holder
——Conduct material is T2 copper with silver- plating.
——High silica quartz sand.
——Short circuit breaking speed is fast .
——Long life, high reliability, high stability .
——Global accreditation .
Selection Help
—— Utilization category :gPV
—— Size : 10*85mm and 14*85mm
—— Indicator /Signalling : none
—— Contact type : cylindrical
—— Voltage: 1500V d.c.
