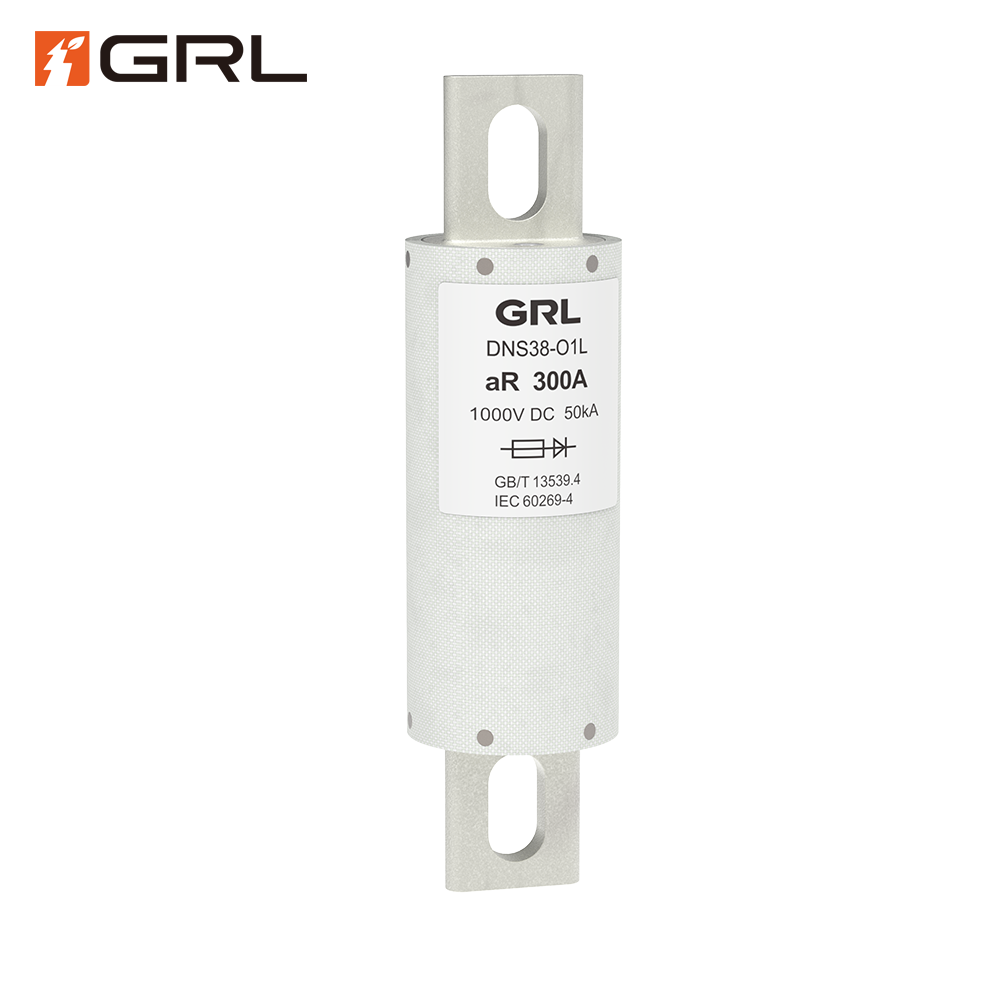

DNS38-O1L Semiconductor Fuse Overview
The GRL DNS38-O1L Semiconductor Fuse Link is the definitive ultra-rapid protection solution for the next generation of high-voltage DC Power Systems. Engineered specifically for the demanding requirements of New Energy infrastructure, this high-performance fuse provides aR protection for sensitive power electronics protection, including high-cost IGBTs and MOSFETs, operating up to DC 1000V.As the industry pivots toward higher voltages and greater power density, the need for instantaneous fault clearance becomes non-negotiable. The DNS38-O1L meets this challenge head-on, delivering reliable high-speed DC protection that ensures operational continuity and preserves your critical component investment.
DNS38-O1L Semiconductor Fuse Features
The DNS38-O1L is constructed with quality and performance in mind:
- Robust ϕ38 Cylindrical Fuse Body: The high-strength ceramic construction provides exceptional harsh environment durability, offering resistance to thermal shock, high-intensity vibration, and current surges common in mobile and outdoor applications [Keyword: Cylindrical Fuse].
- M10 Screw Mounting: The secure screw-mounted fuse connections ensure minimal contact resistance and optimal thermal transfer, which is vital for maintaining the fuse’s performance integrity at high currents.
- Ultra-Rapid Response (The aR Difference): The fuse is designed with a minimal pre-arcing time. When selecting a Semiconductor Fuse Link, engineers must ask: “How quickly can the fuse limit the fault energy?” The DNS38-O1L answers this with its core advantage: extremely low I2t (let-through energy) [Keyword: Low I2t Fuse]. This current limiting fuse action cuts off the fault current before it reaches the component’s destructive energy threshold. This IGBT protection capability is non-negotiable in DC Power Systems.
GRL DNS38-O1L Semiconductor Fuse Advantages
Choosing the GRL DNS38-O1L directly reduces risk and operational expenditure:
- Guaranteed Component Longevity: The superior low I2t characteristic provides the best defense for high-value silicon, drastically extending the service life of IGBTs and MOSFETs.
- Minimized Downtime: The 50kA breaking capacity ensures that even catastrophic faults are cleared safely and instantly, preventing expensive system-wide cascade failures and ensuring system uptime.
- Optimal Fuse Selection DC: By using a dedicated DC 1000V Fuse with a 10-15ms time constant, you eliminate the risk of arc restrike inherent when misapplying AC-rated fuses in DC circuits. (This directly addresses a common customer query: “Is this fuse suitable for DC?” Yes, it is specifically designed for it.)
- Compliant and Certifiable: Full compliance with IEC 60269-4 simplifies system design and certification processes globally [Keyword: IEC 60269-4].
GRL DNS38-O1L Semiconductor Fuse Applications
DNS38-O1L Semiconductor Fuse FAQs
1. What is the GRL DNS38-O1L primarily designed to protect?
Answer: The DNS38-O1L is an aR (Semiconductor Protection) fuse link primarily designed to protect high-value, sensitive power electronic components like IGBTs, MOSFETs, and Diodes from destructive short-circuit faults and high transient currents. It is optimized for high-voltage DC Power Systems.
2. What is the rated voltage of the DNS38-O1L, and what applications is this critical for?
Answer: The fuse is rated for DC 1000V. This high rating is critical for modern New Energy applications, including high-voltage Battery Energy Storage Systems (BESS), utility-scale Solar PV Inverters, and high-speed EV Charging Infrastructure.
3. Why is the low I2t value of the DNS38-O1L so important for semiconductor protection?
Answer: The I2t value (let-through energy) is the most critical factor. Semiconductors fail extremely fast under excessive heat. The DNS38-O1L has an ultra-low I2t, meaning it clears the fault and limits the current’s energy flow before the heat generated can exceed the semiconductor’s damage threshold, thus preventing thermal failure and ensuring component longevity.
