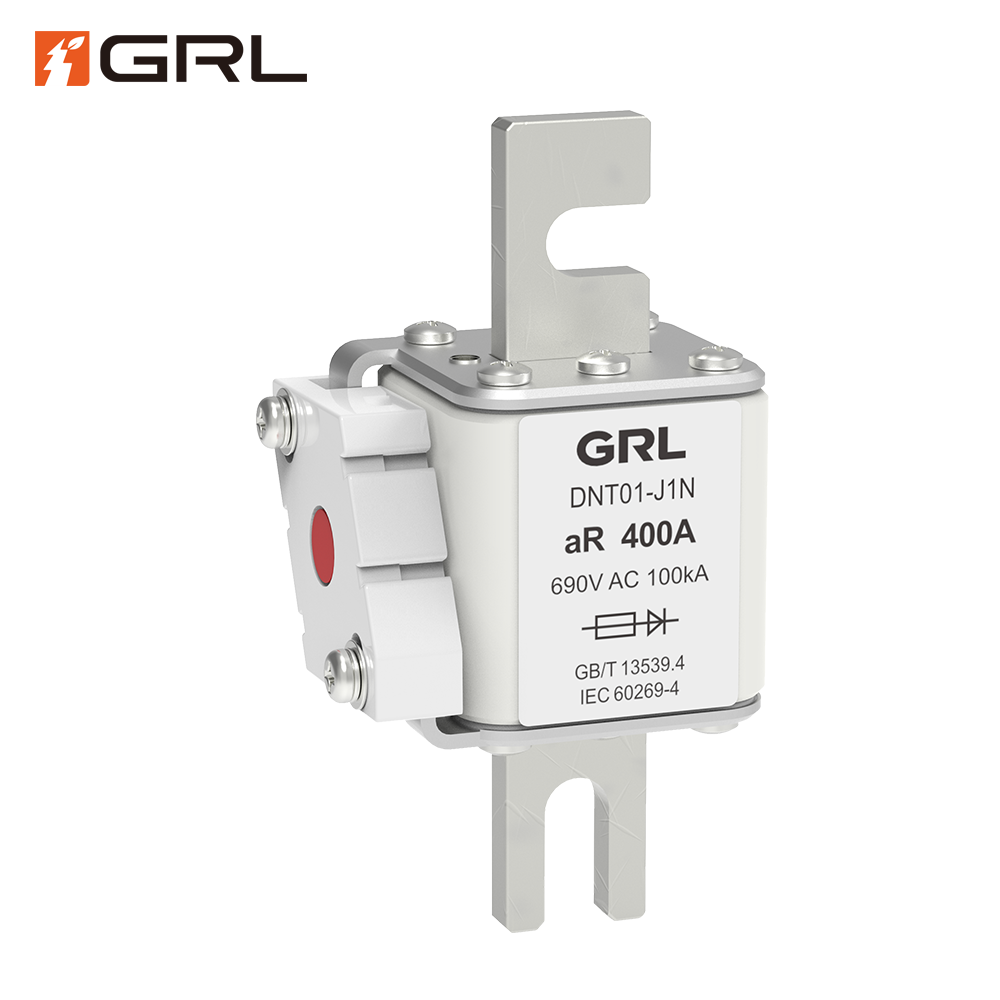

DNT01-J1N Semiconductor Fuse Overview
In the demanding field of power electronics, microseconds define the difference between safe operation and catastrophic equipment failure. The GRL DNT-J1N Series Ultra-Rapid aR Fuse Links are engineered as the essential safety layer for today’s most advanced and expensive power semiconductor components. Specifically designed for AC 690V systems, this Semiconductor Fuse provides lightning-fast short-circuit protection for sensitive devices such as IGBTs, Thyristors, and Power Diodes.
As a high-performance Current Limiting Fuse, the DNT-J1N excels by achieving an Extremely Low $I^2t$ Value—the absolute measure of energy let-through during a fault. This minimal energy passage guarantees that transient faults are cleared before they can inflict thermal damage on sensitive components, dramatically increasing system reliability and maximizing equipment uptime. When you choose GRL’s High-Speed Fuse technology, you are investing in the longevity of your entire power conversion infrastructure.
DNT01-J1N Semiconductor Fuse Features
The DNT-J1N Square Body Fuse is manufactured using GRL’s proprietary technology, which combines cutting-edge materials with precision engineering to ensure definitive protection.
- Optimized Fuse Element Design: The core uses a pure silver element with precisely defined constrictions. This design is crucial for achieving the ultra-rapid response characteristic necessary for IGBT Protection. When a severe short circuit occurs, these elements vaporize in a controlled, sub-millisecond fashion.
- High-Strength Ceramic Body: Encased in a robust, high-density ceramic casing, the fuse can withstand the extreme internal pressures and thermal shock generated during a high-current interruption event. This stable construction guarantees reliable performance and enhances safety within dense power electronics enclosures.
- Advanced Arc-Quenching: The interior is filled with high-purity quartz sand. This arc-quenching medium rapidly cools and extinguishes the arc formed during interruption, enabling the Semiconductor Fuse to achieve its impressive 100kA High Interrupting Capacity while maintaining its Low $I^2t$ Value.
DNT01-J1N Semiconductor Fuse Advantages
Maximize your operational efficiency and minimize your maintenance budget with the GRL DNT-J1N Low Voltage Fuse.
- Definitive Component Preservation: By offering the lowest possible $I^2t$ and voltage peak on the market, the DNT-J1N series provides the best available Thyristor Protection and IGBT safeguarding, extending the life of your most sensitive and expensive devices.
- Reduced Downtime and Maintenance Costs: Rapid fault clearance prevents cascaded failure across the power circuit. By limiting damage to the immediate fault location, the fuse minimizes the scope of repairs, leading to significant savings and maximum production continuity.
- Global Standard and Compliance: Compliance with IEC 60269-4 ensures these fuses meet international quality and performance benchmarks, making them a safe and reliable choice for integration into equipment destined for global markets.
- Versatile and Compact Installation: The Square Body Fuse design with bolt-fixing connections is ideal for busbar mounting in tight power conversion cabinets, offering a robust mechanical connection across the entire 100A to 1600A range. This ease of installation boosts the efficiency of any industrial electrical system.
DNT01-J1N Semiconductor Fuse Applications
The DNT-J1N Series AC 690V Semiconductor Fuse is the ideal solution for protecting the demanding power stages in next-generation industrial and new energy systems:
- Industrial Automation: Variable Frequency Drives (VFDs), Soft Starters, and industrial rectifiers/inverters, where reliable motor control is paramount.
- Renewable Energy: Protection for high-power inverters in solar (PV) and wind turbine converters, ensuring efficient and safe grid synchronization.
- E-Mobility Infrastructure: Critical EV Charging Station Protection, particularly within high-power DC fast-charging units that rely on robust power conversion circuits. Essential for E-Mobility safety.
- Power Quality and Storage: Uninterruptible Power Supply (UPS Systems), Energy Storage System (ESS) Fuse banks, and power filters requiring precise, high-speed fuse operation.
- Industrial Heating: Protection of large thyristor-controlled industrial heating, welding, and furnace systems, offering reliable short-circuit protection.
DNT01-J1N Semiconductor Fuse FAQs
Q: Why do I need an Ultra-Rapid fuse for my IGBTs when I already have a circuit breaker?
A: Standard circuit breakers and conventional fuses (Low Voltage Fuse) are too slow to protect sensitive semiconductor fuse devices like IGBTs. A short-circuit fault can destroy an IGBT in less than 10 milliseconds. The DNT-J1N is an Ultra-Rapid Fuse designed to clear the fault in a fraction of that time, offering sub-millisecond protection. This dedicated High-Speed Fuse technology is the only effective defense against catastrophic failure in power electronics.
Q: How does the DNT-J1N’s Low $I^2t$ Value specifically benefit my system?
A: The Low $I^2t$ Value signifies the fuse’s ability to limit the destructive thermal energy ($I^2t$) delivered to the circuit during the fault-clearing process. By minimizing this energy, the DNT-J1N ensures that the temperature rise in the protected power semiconductor protection component remains below its damage threshold. This is the core function of a true Current Limiting Fuse.
Q: Are there different sizes in the DNT-J1N series, and how do I select the right one?
A: Yes, the DNT-J1N Series encompasses a wide range of current ratings from 100A to 1600A, using standardized international dimensions (e.g., Size 1, Size 2, Size 3, etc.) for its Square Body Fuse format. To select the right Semiconductor Fuse, you must match the fuse’s $I^2t$ pre-arcing characteristic to the device’s $I^2t$ withstand capability, and ensure the continuous current rating is appropriately derated for your operating conditions. Consult our technical data sheets for detailed selection curves.
