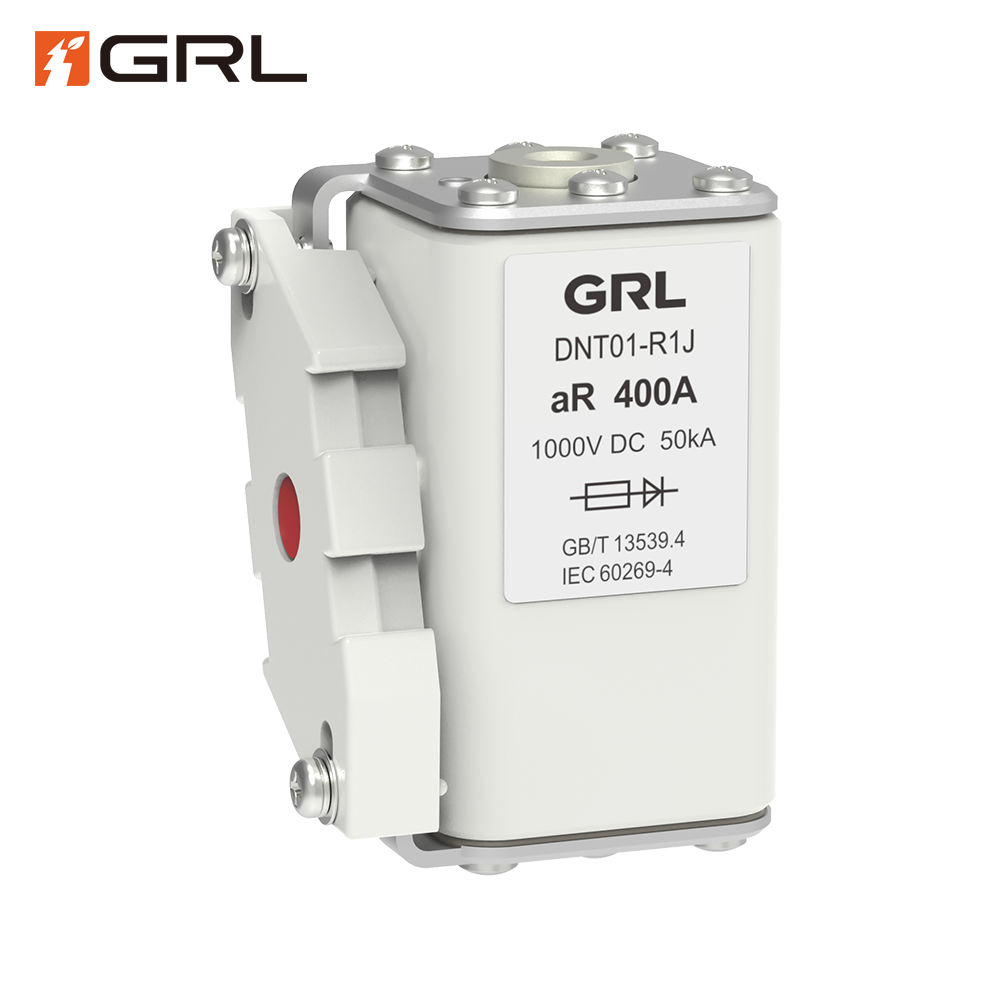

DNT01-R1J Semiconductor Fuse Overview
The GRL DNT01-R1J is a high-performance, specialized Semiconductor Fuse engineered to provide unmatched ultra-rapid circuit protection for next-generation power electronics operating in demanding environments. As systems transition to higher voltages for increased efficiency, the need for robust protection above the 1000V threshold becomes paramount.
The DNT01-R1J fuse link meets this critical demand with a superior rated voltage of 1300V AC. Classified as an aR fuse—meaning it provides instantaneous short-circuit protection—it is the indispensable safety component for high-cost semiconductor components such as IGBTs, Thyristors, and Diodes. By strictly adhering to the IEC 60269-4 standard, the DNT01-R1J guarantees system reliability and prevents catastrophic equipment damage in sensitive medium-voltage applications.
DNT01-R1J Semiconductor Fuse Features
The defensive capabilities of the DNT01-R1J fuse are rooted in its meticulous design, optimized specifically for the thermal fragility of power electronics.
- Extremely Low I²t for IGBT Protection: This is the most critical feature. The fuse’s element is designed to minimize the total energy allowed to pass through the circuit during a fault, ensuring the fault current is cut off before the junction temperature of the protected IGBTs reaches destructive limits. This translates directly to superior IGBT protection.
- Ultra-Rapid Action: The ultra-rapid fuse characteristic means the fuse initiates and completes the fault clearing process in milliseconds, providing the speed necessary to protect low thermal capacity semiconductor components.
- Optimized Power Loss: Constructed with low-resistance materials and engineered for efficient thermal dissipation, the fuse operates with minimal power loss under normal load, enhancing overall system efficiency and reducing heat buildup within enclosed cabinets.
- Robust Bolt-Down Design: The bolt-down fuse contacts ensure a secure, low-resistance connection that maintains optimal performance even under mechanical stress, such as vibration found in Industrial Control and traction applications.
DNT01-R1J Semiconductor Fuse Advantages
Choosing the GRL DNT01-R1J provides an immediate competitive advantage in system design and operation:
- Maximum Investment Protection: By providing unparalleled short-circuit protection and the lowest possible I²t, this fuse significantly extends the lifespan of expensive Industrial Inverters and Variable Frequency Drives (VFDs), reducing maintenance and replacement costs.
- Future-Proofing for High-Power Systems: The 1300V AC rating offers an essential voltage margin, making it ideal for new generations of equipment that exceed standard 1000V DC bus designs, crucial in high-power Renewable Energy and traction applications.
- Guaranteed Fault Isolation: The High Breaking Capacity ensures the fuse can safely clear major faults without failure, confining the damage and maintaining system reliability for the rest of the electrical network.
DNT01-R1J Semiconductor Fuse Applications
The GRL DNT01-R1J Ultra-Rapid Semiconductor Fuse is vital for any application requiring high-speed high-voltage protection of solid-state devices.
- Industrial Drives and Control: Essential for protecting the rectifier and inverter sections in large Variable Frequency Drives (VFDs), motor soft starters, and high-power Industrial Inverters that control heavy machinery.
- Renewable Energy Systems: Core protection in the power conversion stages of solar (PV) and wind power inverters, and high-voltage Power Rectifiers used in utility-scale systems.
- Power Quality Equipment: Safeguarding components within Uninterruptible Power Supplies (UPS) and Static Var Compensators (SVCs) to ensure clean, continuous power.
- Traction and Rail: Providing robust protection against high fault currents in traction power supplies and auxiliary converters in modern rail transportation systems.
DNT01-R1J Semiconductor Fuse FAQs
Q: What is the significance of the 1300V AC rating for this High Speed Fuse?
A: The 1300V AC rating allows the fuse to operate safely in systems where the transient voltages or nominal AC line voltage exceed the common 1000V level. This extra voltage margin is increasingly necessary for medium-voltage drives and Renewable Energy applications to prevent arcing failure across the fuse terminals during and after interruption.
Q: How do I ensure proper IGBT Protection using the DNT01-R1J?
A: Fuse selection must be based on I²t coordination. The total clearing I²t value of the chosen DNT01-R1J (found in the product data sheet) must be significantly lower than the maximum fault energy withstand I²t rating of the specific IGBT protection module you are using. This safety margin guarantees the ultra-rapid fuse operates first, sacrificing itself to save the costly semiconductor device.
Q: Does the aR fuse also protect against overloads?
A: No. The aR fuse classification means the device is designed exclusively for short-circuit protection—high current faults. It is not intended to protect against minor, sustained overloads. For full-range protection (including overloads), the system must coordinate the DNT01-R1J with other protective devices, such as circuit breakers or full-range fuses (gR/gS type).
