Semiconductor Fuse Overview

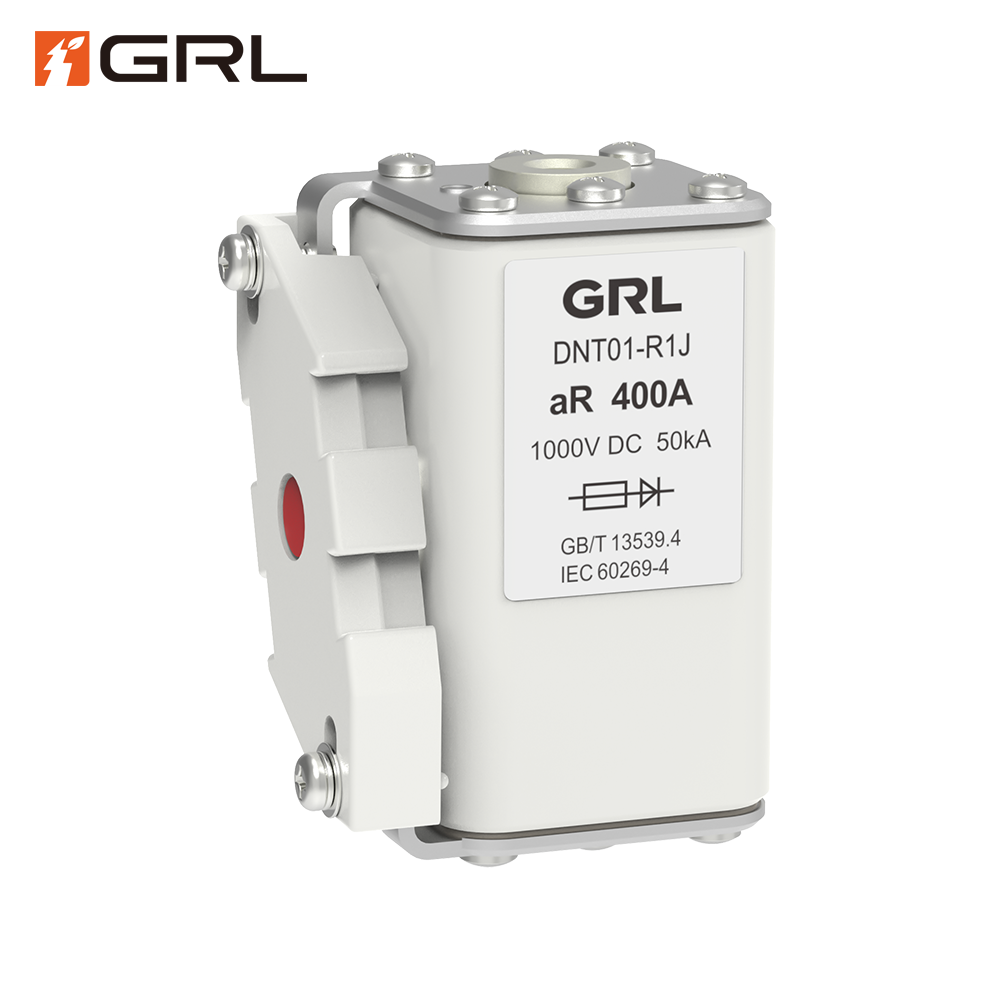

The GRL DNT01-R1J is a high-performance, specialized Semiconductor Fuse engineered to provide unmatched ultra-rapid circuit protection for next-generation power electronics operating in demanding environments. As systems transition to higher DC voltages for increased efficiency, the need for robust protection at the DC 1000V level becomes paramount.
The DNT01-R1J fuse link meets this critical demand with a superior rated voltage of 1000V DC. Classified as an aR fuse—meaning it provides instantaneous short-circuit protection—it is the indispensable safety component for high-cost semiconductor components such as IGBTs, Thyristors, and Diodes. By strictly adhering to the IEC 60269-4 standard, the DNT01-R1J guarantees system reliability and prevents catastrophic equipment damage in sensitive high-voltage DC bus applications.
Semiconductor Fuse Features
The defensive capabilities of the DNT01-R1J fuse are rooted in its meticulous design, optimized specifically for the thermal fragility of power electronics.
- Extremely Low I2t for IGBT Protection: This is the most critical feature. The fuse’s element is designed to minimize the total energy allowed to pass through the circuit during a fault, ensuring the fault current is cut off before the junction temperature of the protected IGBTs reaches destructive limits. This translates directly to superior IGBT protection.
- Ultra-Rapid Action: The ultra-rapid fuse characteristic means the fuse initiates and completes the fault clearing process in milliseconds, providing the speed necessary to protect low thermal capacity semiconductor components.
- Optimized Power Loss: Constructed with low-resistance materials and engineered for efficient thermal dissipation, the fuse operates with minimal power loss (I2R) under normal load, enhancing overall system efficiency and reducing heat buildup within enclosed cabinets.
- Robust Bolt-Down Design: The bolt-down fuse contacts ensure a secure, low-resistance connection that maintains optimal performance even under mechanical stress, such as vibration found in Industrial Control and traction applications.
Semiconductor Fuse Advantages
Choosing the GRL DNT01-R1J provides an immediate competitive advantage in system design and operation:
- Maximum Investment Protection: By providing unparalleled short-circuit protection and the lowest possible I2t, this fuse significantly extends the lifespan of expensive Industrial Inverters and Variable Frequency Drives (VFDs), reducing maintenance and replacement costs, particularly in the DC link stage.
- Future-Proofing for High-Power Systems: The 1000V DC rating makes it ideal for new generations of equipment that utilize high-voltage DC architectures, crucial in Battery Energy Storage, Solar PV, and DC traction applications.
- Guaranteed Fault Isolation: The High Breaking Capacity ensures the fuse can safely clear major faults without failure, confining the damage and maintaining system reliability for the rest of the electrical network.
Semiconductor Fuse Applications
The high-voltage rating and aR characteristics of the DNT01-R1J make it an essential safety component across several critical medium-to-high voltage industries:
Q: What is the significance of the 1000V DC rating for this High Speed Fuse?
A: The 1000V DC rating allows the fuse to operate safely in high-efficiency systems where the nominal DC bus voltage is at or near the 1000V level. This is the common high-voltage standard for modern photovoltaic installations and large battery systems, ensuring reliable arc interruption for the difficult-to-clear DC fault currents.
Q: How do I ensure proper IGBT Protection using the DNT01-R1J?
A: Fuse selection must be based on I2t coordination. The total clearing I2t value of the chosen DNT01-R1J (found in the product data sheet) must be significantly lower than the maximum fault energy withstand I2t rating of the specific IGBT protection module you are using. This safety margin guarantees the ultra-rapid fuse operates first, sacrificing itself to save the costly semiconductor device.
Q: Does the aR fuse also protect against overloads?
A: No. The aR fuse classification means the device is designed exclusively for short-circuit protection—high current faults. It is not intended to protect against minor, sustained overloads. For full-range protection (including overloads), the system must coordinate the DNT01-R1J with other protective devices, such as circuit breakers or full-range fuses (gR/gS type).
