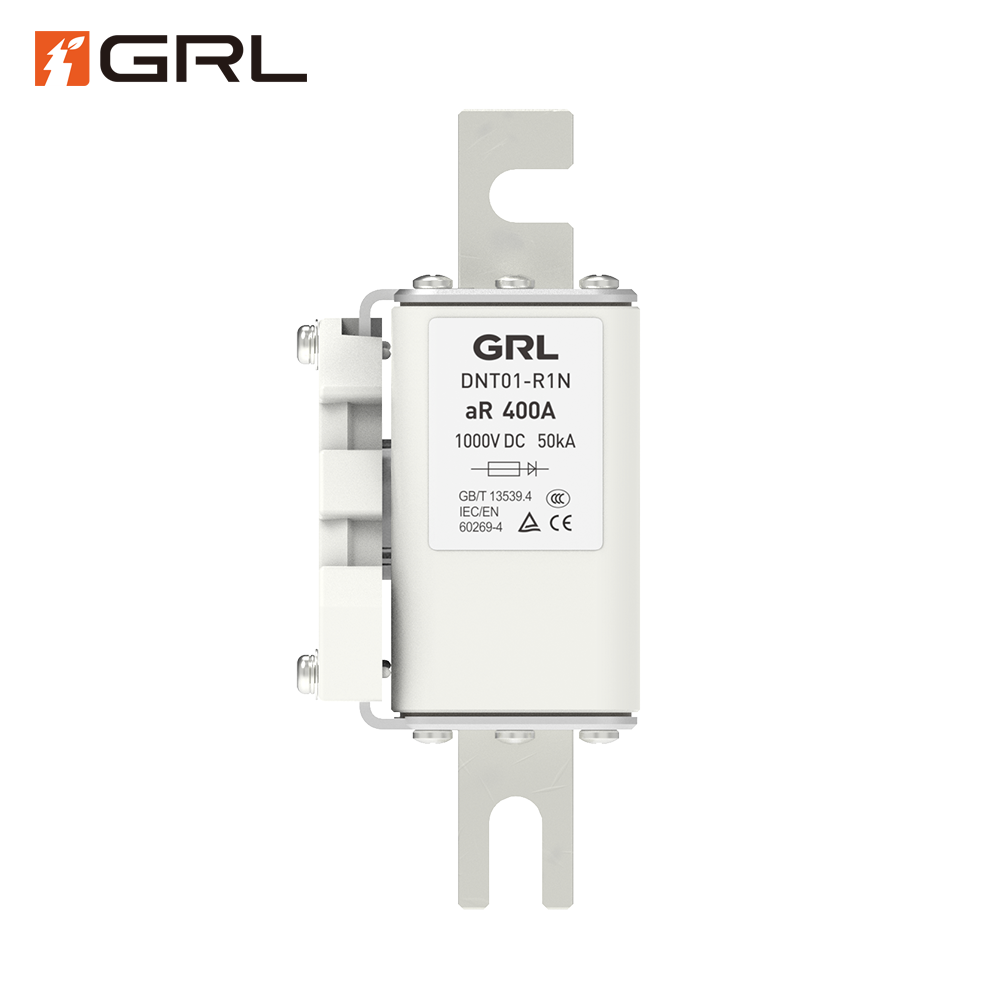

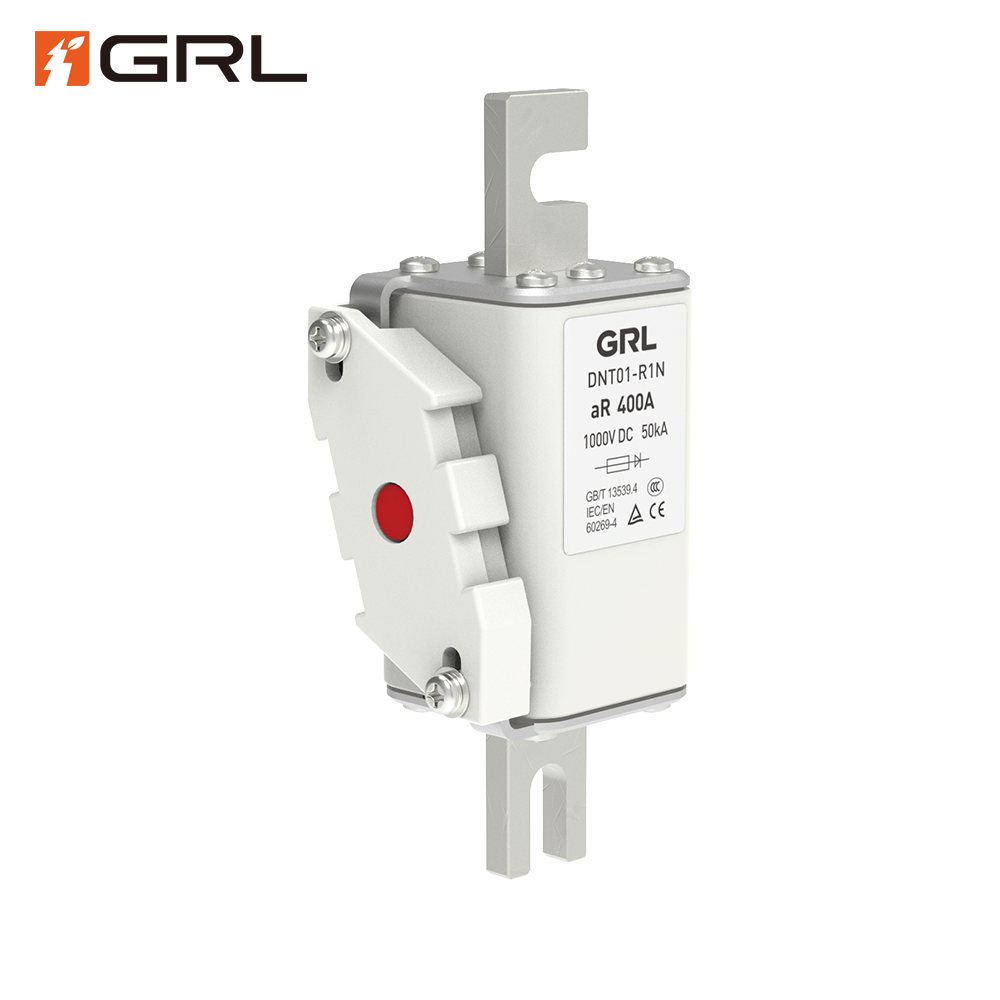

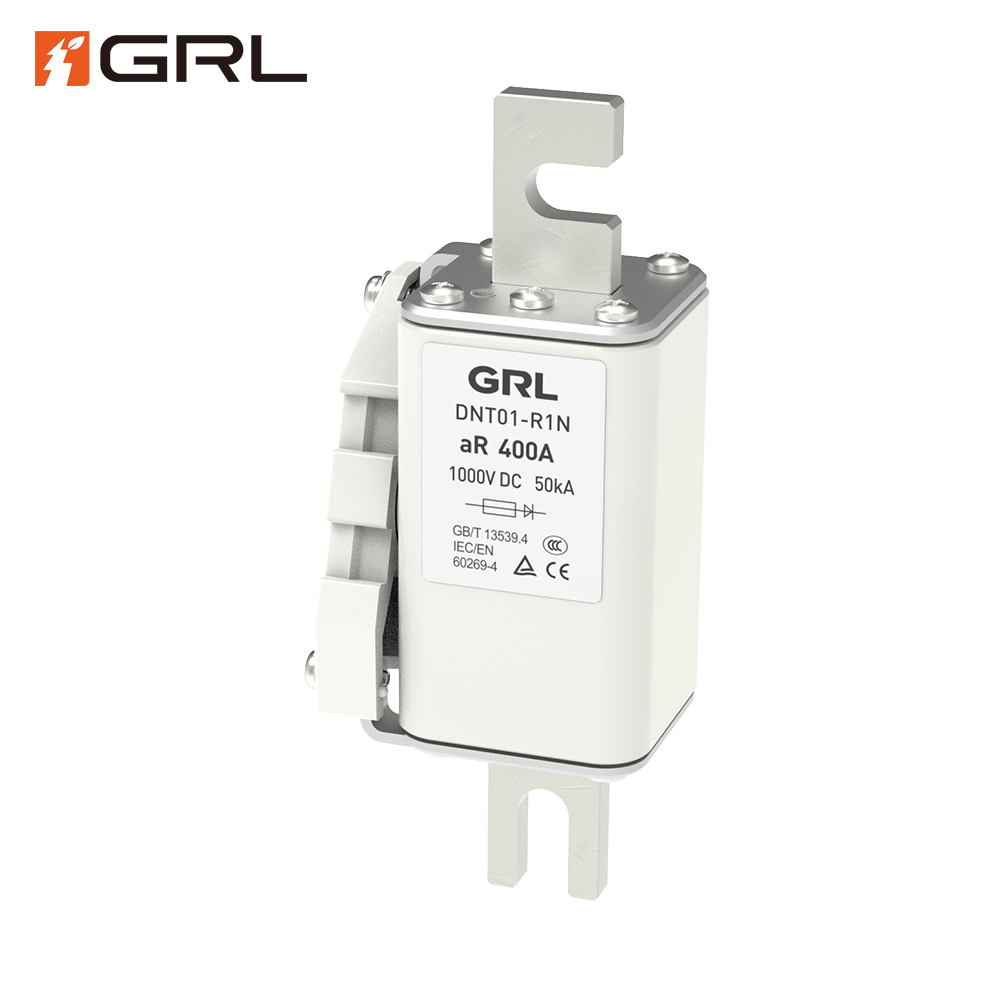

DNT01-R1N Semiconductor Fuse Overview
In modern power conversion and control systems, Power Semiconductor Devices, such as IGBTs (Insulated Gate Bipolar Transistors) and Thyristors, are essential yet incredibly sensitive components. When a severe Short-Circuit Fault occurs, the failure can be instantaneous and catastrophic, leading to costly system downtime and replacement. Standard fuses simply cannot react fast enough.
GRL ELECTRIC introduces the DNT01-R1N Fuse Link, a cutting-edge device engineered specifically to solve this critical protection challenge. This Ultra-Rapid Fuse belongs to the aR Fuse Link protection category, a designation for devices dedicated to pure Short-Circuit Protection. The DNT01-R1N is designed with an extremely low melting energy integral (Low I²t), guaranteeing that it interrupts the dangerous Fault Current in milliseconds, thereby limiting damage and ensuring the longevity of your valuable electronics. Choose the GRL DNT01-R1N for the most reliable electronic guardianship of your critical infrastructure.
DNT01-R1N Semiconductor Fuse Features
The DNT01-R1N is built using a modern Square Body Fuse design, which offers superior thermal dissipation and a robust construction ideal for high-power, industrial applications.
- Advanced Fusible Element: The internal element is crafted from pure or silver-plated copper with a unique geometric profile, ensuring an exceptionally Fast-Acting Fuse response to overcurrent events.
- High-Purity Arc-Quenching Medium: The fuse body is filled with high-purity quartz sand, providing excellent arc-extinguishing properties that swiftly suppress the arc and ensure a high Breaking Capacity.
- Low I²t Performance: The core feature is its ability to significantly reduce the energy let-through. This low I²t value protects sensitive Power Semiconductor Devices from the damaging Thermal Stress and mechanical forces associated with high-level fault currents.
DNT01-R1N Semiconductor Fuse Advantages
Core Benefit (Selling Point)：Value Proposition (Why Buy DNT01-R1N)
Ultimate Ultra-Rapid Response：Ensures the circuit is cleared before irreversible damage occurs to the sensitive semiconductors.
Superior Current Limitation：Drastically limits the Peak Let-Through Current to protect downstream components and busbars from catastrophic electromechanical stress.
High Reliability and Durability：Built upon GRL ELECTRIC’s decades of expertise, ensuring a dependable GRL Fuse quality standard.
Global Standard Compliance：Fully compliant with IEC 60269-4, making it ideal for worldwide integration into any electrical system.
DNT01-R1N Semiconductor Fuse Applications
The DNT01-R1N Semiconductor Protection Fuse is engineered for high-power, high-voltage, and high-frequency circuits, making it the preferred choice across various critical applications:
- Renewable Energy: Essential for protecting the sensitive electronics within Solar Inverters and wind turbine converters in Photovoltaic Systems.
- Industrial Drives: Used in the protection of AC/DC Drives, soft starters, and servo systems in industrial automation.
- Power Quality & Storage: Critical protection for high-capacity UPS Systems, battery Energy Storage Systems (BESS), and DC Common Bus circuits.
- Power Conversion: Safeguarding Power Converters and Rectifiers in railway, electric vehicle (EV), and large industrial power supplies.
DNT01-R1N Semiconductor Fuse FAQs
Q: What exactly is an aR fuse and how does it differ from a general-purpose fuse (gG)?
A: An aR Fuse Link is a specialized, partial-range protection fuse primarily designed for Short-Circuit Protection of Power Semiconductor Devices. Its primary function is to react incredibly fast to high fault currents. A general-purpose fuse (gG/gL) is a full-range fuse, providing protection against both overload and short circuits, but its response speed is typically too slow to protect delicate components like IGBTs from a sudden, high-energy fault. The DNT01-R1N’s Ultra-Rapid Fuse characteristic makes it mandatory for semiconductor safety.
Q: Why is the Low I²t value of the DNT01-R1N so important?
A: The I²t (Ampere-squared seconds) is the measure of the thermal energy permitted to pass through the fuse during a fault. A low I²t value, like that guaranteed by the DNT01-R1N, is critical because it directly dictates the amount of Thermal Stress imposed on the protected semiconductor. By minimizing the I²t and the Peak Let-Through Current, the DNT01-R1N prevents thermal runaway and catastrophic failure, dramatically increasing the reliability and operational lifespan of your entire system.
