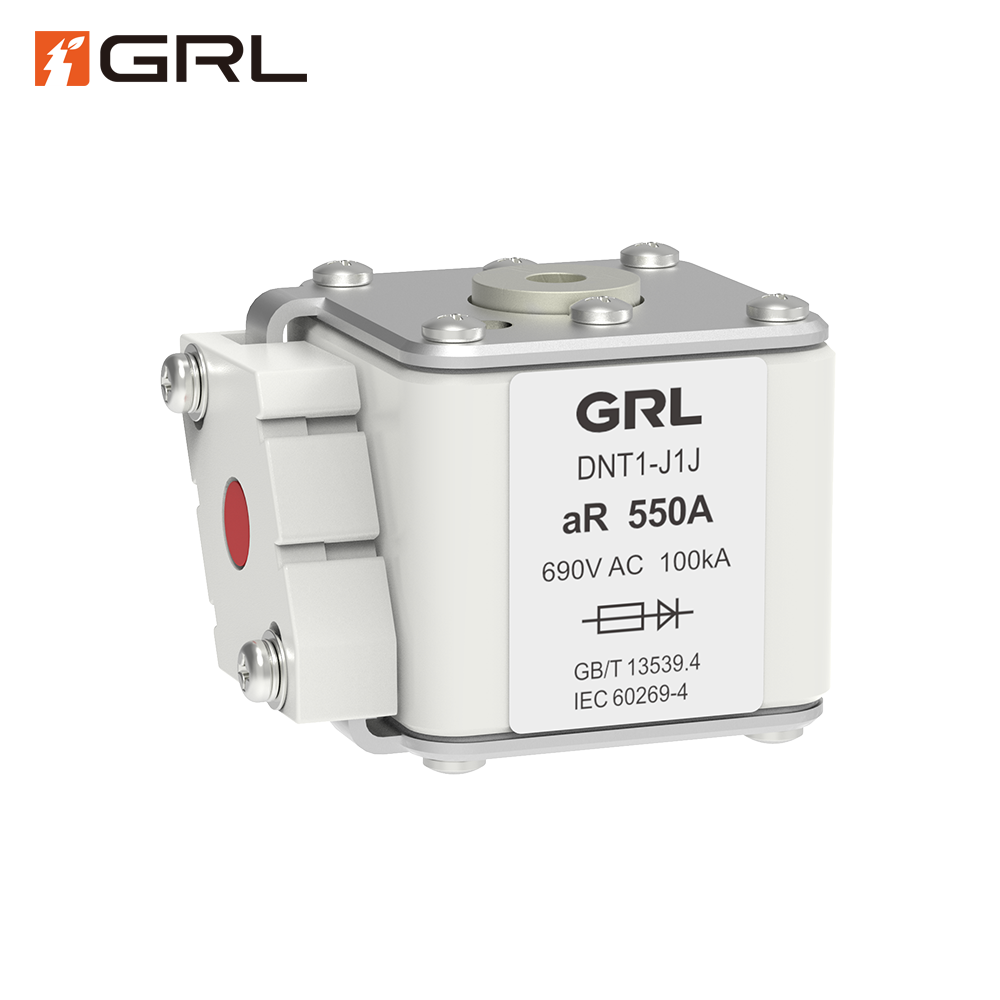

DNT1-J1J Semiconductor Fuse Overview
In the volatile environment of Power Electronics, swift action is mandatory to prevent catastrophic failure. The GRL DNT1-J1J Series Ultra-Rapid aR Fuse Links are engineered as the definitive safety barrier for high-value Power Semiconductor components, such as IGBTs (Insulated Gate Bipolar Transistors) and Thyristors. Specifically rated for robust AC 690V systems, the DNT1-J1J provides lightning-fast Short-Circuit Protection that preserves the integrity of your most sensitive devices.
As a true Current Limiting Fuse, the DNT1-J1J’s supreme performance is defined by its Extremely Low $I^2t$ Value—the minimum energy let-through during a fault condition. By minimizing this energy, the fuse clears the fault before the semiconductor’s short-time thermal rating is exceeded. Choosing the GRL DNT1-J1J High-Speed Fuse ensures superior System Reliability, extended component lifespan, and critical minimization of equipment downtime.
DNT1-J1J Semiconductor Fuse Features
The DNT1-J1J Square Body Fuse incorporates GRL’s patented design and material science to guarantee fast, reliable protection:
- Optimized Fuse Element: Features a pure silver melting element with precise constrictions. This design is paramount for achieving the ultra-rapid response required for effective IGBT Protection—ensuring vaporization occurs in sub-millisecond timeframes under severe fault currents.
- High-Density Ceramic Housing: Encased in a robust ceramic tube, the fuse withstands the extreme internal pressure and thermal shock generated during a high-current interruption, ensuring safety and integrity within the compact space of Power Electronics enclosures.
- Advanced Arc Quenching: The interior is filled with high-purity quartz sand, which acts as a superior arc-quenching medium. This process rapidly cools and extinguishes the arc, allowing the fuse to achieve its high-performance 100kA Breaking Capacity while maintaining the critical Low $I^2t$ Value.
DNT1-J1J Semiconductor Fuse Advantages
Maximize operational efficiency and safeguard capital investment with the GRL DNT1-J1J AC 690V Fuse:
- Unmatched Device Preservation: By limiting the peak current and thermal energy ($I^2t$) to the absolute minimum, the DNT1-J1J provides the industry’s best Thyristor Protection and IGBT safeguarding, significantly extending the operational life of expensive components.
- Guaranteed Production Continuity: The fuse’s ultra-rapid clearing time minimizes fault damage, preventing cascading failures across the circuit. This reduces repair scope, cutting down on unexpected downtime and maximizing Production Continuity.
- Global Compliance and Quality: Full adherence to IEC 60269-4 standards confirms the fuse meets stringent international benchmarks for performance and safety, simplifying integration into globally distributed equipment.
- Robust and Secure Installation: The Square Body Fuse form factor with bolt-fixing contacts offers a mechanically stable and high-conductivity connection, essential for handling high currents in demanding VFD Protection and rectifier systems.
DNT1-J1J Semiconductor Fuse Applications
DNT1-J1J Semiconductor Fuse FAQs
Q: Why is an Ultra-Rapid fuse like the DNT1-J1J necessary for IGBTs?
A: Standard circuit protection, like a circuit breaker or conventional Low Voltage Fuse, is simply too slow. A severe short circuit can destroy an IGBT in just a few milliseconds. The DNT1-J1J is an Ultra-Rapid Fuse engineered to clear the fault in a fraction of that time, offering sub-millisecond defense—the only effective form of Power Semiconductor Protection.
Q: How does the Extremely Low $I^2t$ Value translate to component safety?
A: The Low $I^2t$ Value is the key metric. It quantifies the thermal energy allowed through the fuse during the fault. By minimizing this energy, the DNT1-J1J Current Limiting Fuse ensures the temperature of the protected semiconductor component remains below its damage threshold. This is the difference between an isolated, quick fix and a total module replacement.
Q: Is the DNT1-J1J compliant with global standards, and where can I find the selection guide?
A: Yes, the DNT1-J1J series fully complies with IEC 60269-4—the international standard for aR Fuse Links. For selection, matching the fuse’s $I^2t$ pre-arcing characteristic to the device’s $I^2t$ withstand capability is crucial. You can download our detailed technical data sheet from our website’s resource section for precise sizing and integration guidance.
