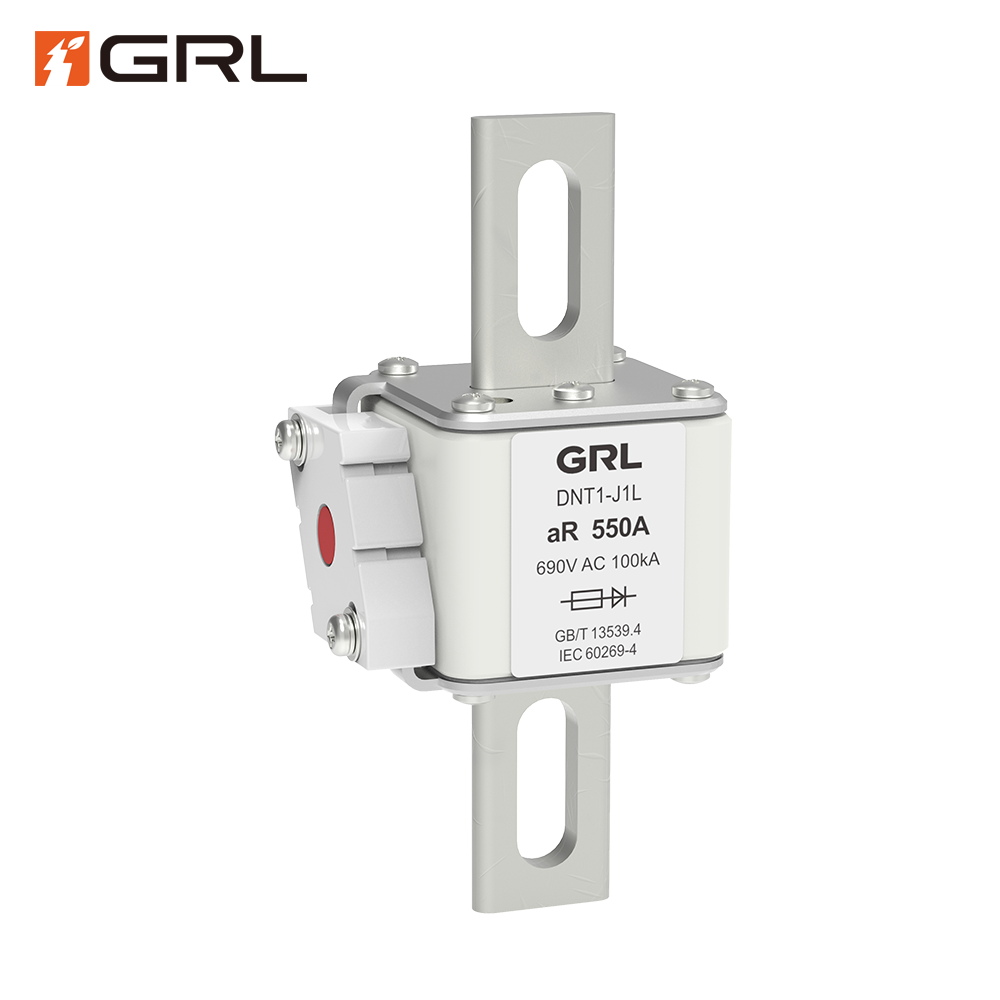

DNT1-J1L Semiconductor Fuse Overview
In today’s fast-paced, high-power applications, conventional fuses simply don’t offer the speed required to protect semiconductors from catastrophic failure. The DNT1-J1L operates in the aR Fuse class, meaning it provides pure, high-performance Current Limiting Fuse action designed to interrupt major short circuits in milliseconds. This dedication to ultra-fast Fault Clearing ensures the integrity of your most valuable components, drastically increasing overall System Reliability and minimizing expensive Downtime. When searching for the definitive AC 1000V Fuse, the DNT1-J1L is the reliable choice for robust Industrial Protection.
DNT1-J1L Semiconductor Fuse Features
The design of the GRL DNT1-J1L is optimized for thermal efficiency and rapid fault response in high-voltage environments.
- Extremely Low I^2t Value: This is the critical factor in High Speed Fuse performance. The DNT1-J1L is built with precision-engineered silver melting elements that minimize the thermal energy (I^2t) let through during a fault, often clearing the circuit before the peak current is reached. This is the ultimate guarantee of IGBT protection.
- Robust Square Body Construction: The ceramic Square Body Fuse offers superior mechanical strength and excellent heat dissipation properties, maintaining optimal performance even in continuous high-current operation. The bolted connection ensures low contact resistance, reducing power losses and heat buildup.
- Controlled Overvoltage: The specialized arc-quenching filler material rapidly extinguishes the arc upon interruption. This mechanism is crucial for minimizing transient Overvoltage peaks, which are highly detrimental to Thyristor Protection and IGBT gates.
- Indicator Compatibility: Available with a visual indicator or a standard striker pin, allowing easy integration with Fuse Monitoring systems for immediate remote status signaling.
DNT1-J1L Semiconductor Fuse Advantages
Choosing the DNT1-J1L is an investment in Downtime reduction and operational efficiency for your high-power assets.
- Guaranteed Semiconductor Survival: The Ultra-Rapid speed and Extremely Low I^2t value provide the fastest protection available, directly translating into extended lifespan and reduced replacement costs for expensive power modules.
- Optimized for High Efficiency: Low power losses due to optimized construction mean less heat generated, which contributes to lower overall system operating temperatures and higher System Reliability.
- Simplified Maintenance: As a bolted High Voltage Fuse, its design is robust and easy to install or replace, streamlining maintenance procedures and reducing maintenance costs.
- Standards-Compliant Confidence: Full compliance with IEC 60269-4 ensures predictable performance and global acceptance for international projects.
DNT1-J1L Semiconductor Fuse Applications
DNT1-J1L Semiconductor Fuse FAQs
Q: Why is an “aR” fuse necessary for my power semiconductors?
A: The aR Fuse class is specifically designed for the instantaneous interruption of short-circuit currents, offering the quickest Fault Clearing time compared to general-purpose fuses (like gG). This extreme speed is critical because semiconductors (like IGBTs) have almost no thermal overload capacity. The DNT1-J1L acts as a High Speed Fuse, ensuring that fault current is cut off before the semiconductor junction temperature can reach a damaging level.
Q: Is the DNT1-J1L suitable for both AC and DC applications?
A: While the DNT1-J1L is rated for AC 1000V, many Power Semiconductor Fuses of this type are dual-rated. For example, a 1000V AC rating often correlates to a common high DC voltage rating. You must consult the specific GRL datasheet for the verified DC Link Protection voltage rating to ensure it meets your system requirements for Renewable Energy Fuse applications.
Q: How does the Square Body design benefit my installation?
A: The Square Body Fuse design is the industry standard for high-power, bolted applications. It offers a compact footprint, superior thermal contact for heat transfer to busbars, and is mechanically robust, making it the most reliable mounting option for high-vibration and high-current environments like Electric Vehicle Infrastructure and industrial motors.
