DNT1-J1N Semiconductor Fuse Overview
In the world of high-power electronics, speed and precision are not just features—they are survival requirements. The GRL DNT1-J1N Series stands as GRL’s flagship Ultra-Rapid Fuse engineered for the extreme demands of modern Power Conversion systems. Specifically designed for AC 690V applications, this Semiconductor Fuse provides uncompromising Short-Circuit Protection for your most valuable components, including IGBTs (Insulated-Gate Bipolar Transistors), Thyristors, and Diodes.
What truly sets the DNT1-J1N apart is its class aR Fuse operating characteristic, which guarantees fault clearing at maximum current limitation. This high-speed interruption capability is critical for preventing catastrophic failures and maximizing the service life of sensitive Power Electronics Protection circuits. If you are seeking to minimize downtime and ensure system reliability in high-voltage industrial and energy systems, the DNT1-J1N is the definitive solution.
DNT1-J1N Semiconductor Fuse Features

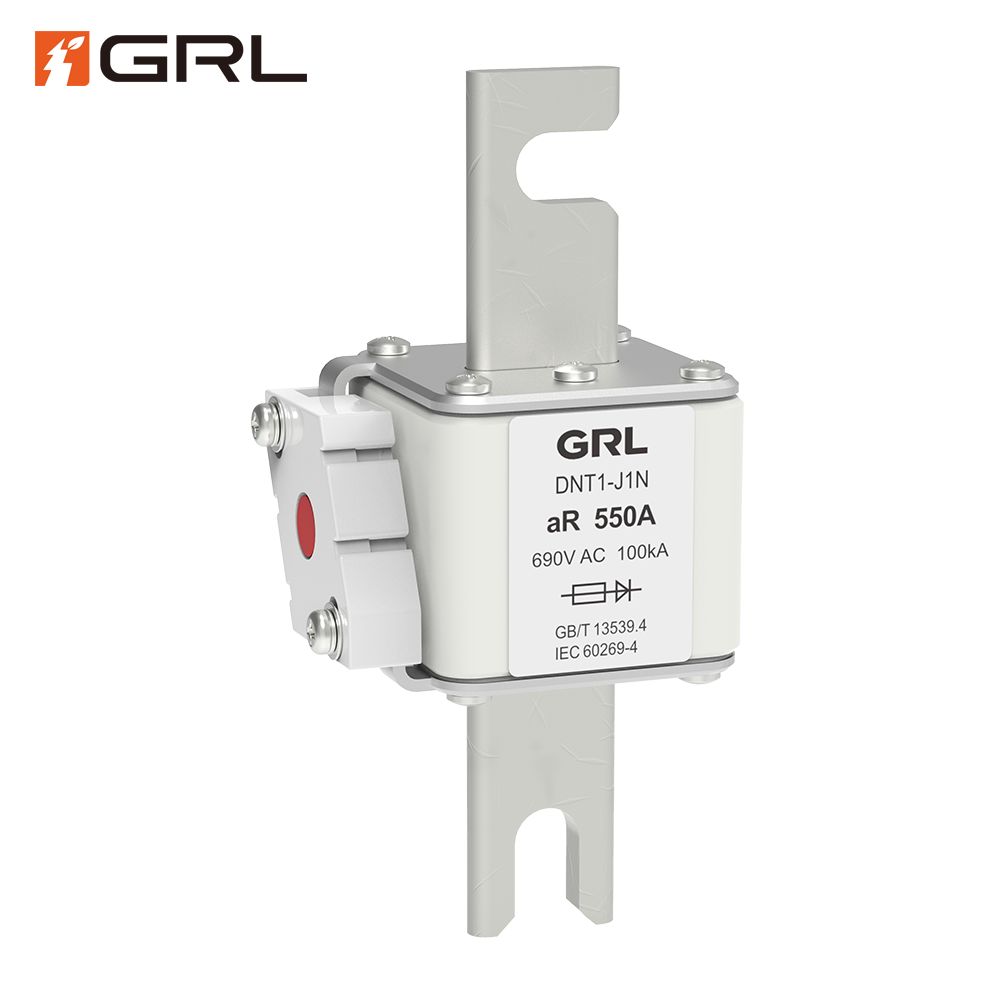

The GRL DNT1-J1N is housed in a robust, high-strength ceramic Square Body Fuse casing, designed for superior thermal and mechanical stability under fault conditions.
- Ultra-Low $I^2t$ Value: This is the most crucial metric. Our specially constructed fuse element is made from high-purity silver, designed to melt and clear a fault in microseconds. This results in an Extremely Low $I^2t$ Value (Let-Through Energy), which is the total heat energy allowed through during the fault. Why is this important? Semiconductors like IGBTs have virtually no overcurrent withstand capability; minimizing $I^2t$ is the only way to prevent their thermal destruction and rupture.
- High Interrupting Capacity (100kA): The DNT1-J1N is tested and rated to safely interrupt fault currents up to 100kA, providing robust Short-Circuit Protection even in heavy industrial and utility-scale environments.
- Arc-Quenching Technology: The body is filled with granular quartz sand, which rapidly extinguishes the arc formed during interruption, limiting overvoltage transients and preventing collateral damage to the adjacent Power Electronics.
- Bolted Connection: The Bolted Semiconductor Fuse design ensures low-resistance contact with busbars or fuse bases, minimizing power loss and ensuring a secure connection against vibration, a key factor in maximizing system reliability.
DNT1-J1N Semiconductor Fuse Advantages
Choosing the GRL DNT1-J1N for your Industrial Automation Fuse needs offers distinct advantages that directly impact your bottom line:
- Maximum Device Protection: Provides the fastest reaction time available, guaranteeing best-in-class IGBT Protection and extending the operational life of expensive modules.
- Minimized Collateral Damage: By clearing faults instantly, the DNT1-J1N prevents destructive module rupture, significantly reducing the cost and complexity of post-fault repair.
- Superior Energy Efficiency: The low resistance design minimizes steady-state power loss, contributing to system efficiency and reducing operating temperatures in your Power Conversion equipment.
- Optimized Footprint: The compact Square Body Fuse design is space-efficient, allowing for higher power density in control cabinets and enclosures.
DNT1-J1N Semiconductor Fuse Applications
The DNT1-J1N Series is the go-to solution for high-voltage power protection across several high-growth, demanding sectors:
- Industrial Automation & Drives: Essential VFD Protection for Variable Frequency Drives (VFDs), soft starters, and industrial rectifiers, ensuring precise motor control and production uptime.
- Renewable Energy: Integrated Inverter Protection and Rectifier Protection within large-scale Solar (PV) and wind turbine converters, safeguarding the delicate power stack required for efficient energy injection into the grid.
- E-Mobility Infrastructure: Critical component for EV Charging Protection in high-power DC fast-charging stations, protecting the complex Power Electronics used to convert utility power for electric vehicles.
- Power Quality and Storage: Integrated into Energy Storage Systems (ESS) and large Uninterruptible Power Supply (UPS) systems, where precise, high-speed fuse operation is required for transient management and DC bus protection.
DNT1-J1N Semiconductor Fuse FAQs
Q: What is the difference between an aR fuse and a standard fuse?
A: This is a common question. A standard fuse (gG or gL class) is designed primarily to protect cables from overload and fire hazards. The DNT1-J1N is an aR Fuse, which is an Ultra-Rapid Fuse designed exclusively for Short-Circuit Protection of Semiconductor Fuse devices. It sacrifices overload protection to achieve microsecond-level fault clearing, which is necessary because components like IGBTs cannot withstand even brief overcurrents.
Q: Why is the I2t value so important for IGBT protection?
A: The I2t value (Amp-squared seconds) represents the heat energy generated during a fault. Since IGBTs and other semiconductors are highly susceptible to thermal damage, the fuse must clear the fault before this energy reaches the component’s maximum tolerance limit. The DNT1-J1N is optimized for an Extremely Low I2t Value to ensure the survival of your power module.
Q: Does this fuse require a separate fuse holder?
A: The DNT1-J1N is a Square Body Fuse with bolted tags, meaning it is designed to be directly bolted onto busbars or a dedicated fuse base/clip for optimal contact and minimal inductance, which is vital for High-Speed Fuse performance.
Q: Can this fuse be used for DC circuits?
A: While the primary rating is AC 690V, many Ultra-Rapid Fuses also carry a DC rating. Please consult the DNT1-J1N datasheet for the specific DC voltage and current ratings that apply, especially for Energy Storage Systems (ESS) applications.
