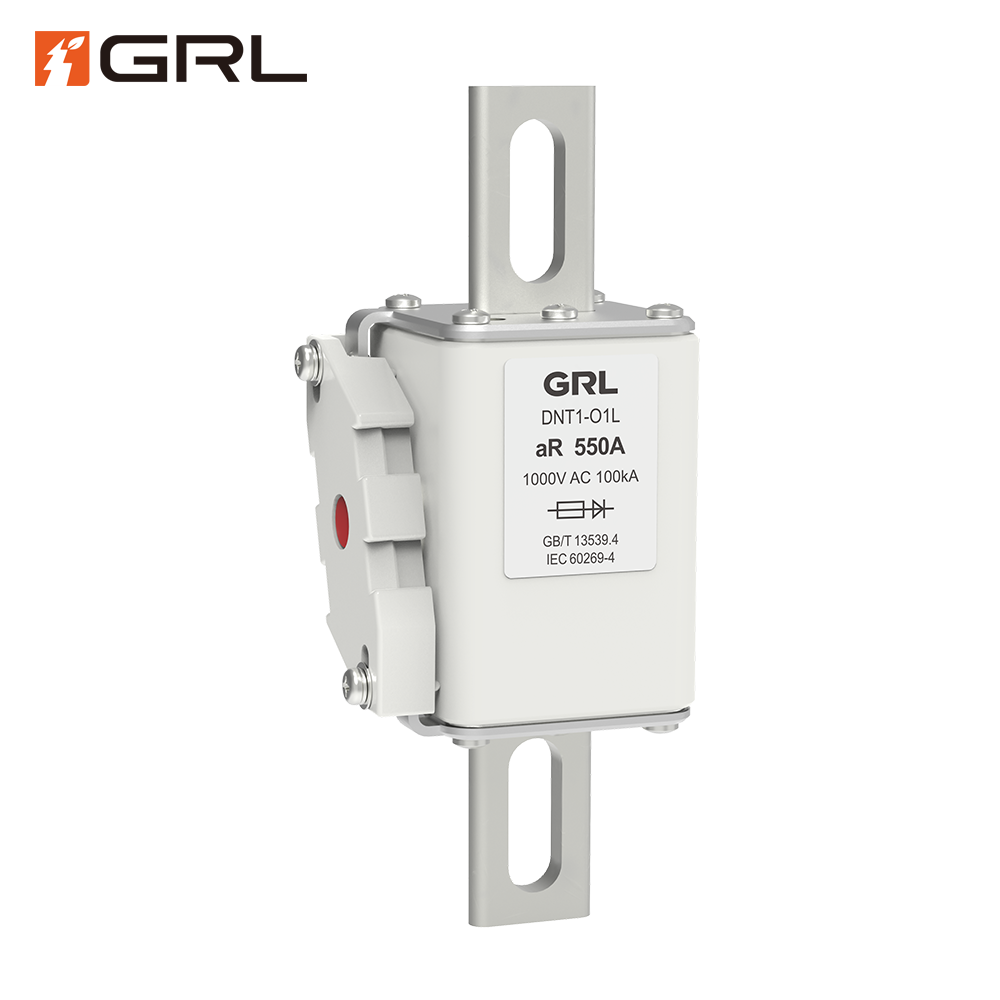

DNT1-O1L Semiconductor Fuse Overview
The backbone of modern Power Electronics is the sensitive power semiconductor device. In today’s High-Power Systems, protecting components like IGBTs (Insulated Gate Bipolar Transistors) and Thyristors is non-negotiable. Introducing the GRL DNT1-O1L Series, a line of premium Ultra-Rapid Fuses engineered to provide uncompromising Short-Circuit Protection in volatile 1000V AC environments.
As a dedicated aR Fuse, the DNT1-O1L is characterized by its exceptionally fast response to fault conditions, delivering a supreme level of defense far exceeding that of a standard AC Protecting Fuse. This series is your ultimate safeguard against catastrophic downtime, ensuring optimal System Reliability across demanding industrial applications.
DNT1-O1L Semiconductor Fuse Features
The superior protection offered by the DNT1-O1L series is a direct result of its advanced structure. The fuse element, typically constructed from pure silver, is precisely calibrated and embedded in a special arc-quenching medium—usually high-ppurity quartz sand.
This meticulously engineered internal design facilitates the core function of the fuse: Current Limiting. When an excessive fault current occurs, the unique shape and material of the element ensure the current is forced to zero extremely rapidly, preventing the fault from reaching its destructive peak. This action is critical because a severe short circuit can destroy an IGBT in just a few milliseconds. The DNT1-O1L is a true Fast-Acting Fuse, designed to clear the fault in a fraction of that time.
DNT1-O1L Semiconductor Fuse Advantages
Asset ProtectionMaximum safeguard for high-value power semiconductor devices, minimizing replacement costs and preventing cascading failures.Current Limiting ActionAchieves exceptionally Low I^2t Value, drastically reducing the destructive thermal energy during a fault condition.Operational UptimeBy protecting sensitive components, the fuse maximizes System Reliability and drastically reduces unscheduled equipment downtime and maintenance costs.Voltage PerformanceOptimized for demanding High Voltage Fuse applications up to 1000V AC, providing full-range protection.Standard ComplianceFully compliant with IEC 60269-4 for assured quality and global interoperability.
DNT1-O1L Semiconductor Fuse Applications
The GRL DNT1-O1L Semiconductor Protection Fuse is indispensable in any system relying on high-power switching and conversion technology. Its Ultra-Rapid Fuse characteristics make it the first line of defense in:
- Industrial Automation: Essential for VFD Protection (Variable Frequency Drives), soft starters, and industrial inverters.
- Renewable Energy: Critical safety component for high-power inverters used in large-scale solar (PV) and wind power generation, supporting Energy Efficiency and grid stability.
- Power Conversion & Distribution: Protection for High-Power Systems including high-current rectifiers, UPS systems, and specialized Rectifier Protection circuits.
- Rail & Traction: Used in on-board and trackside power systems, including Traction Converters and auxiliary power supplies.
DNT1-O1L Semiconductor Fuse FAQs
Q: What is the main difference between an aR fuse and a standard gG/gL fuse?
A: The key difference is speed and purpose. An aR fuse (Ultra-Rapid Fuse) is designed for partial-range breaking capacity—specifically for extremely fast Short-Circuit Protection of Semiconductor Devices. A gG/gL fuse is a general-purpose fuse designed to protect cables and general equipment against both overload and short-circuit faults, and it is too slow to prevent damage to sensitive electronics like IGBTs.
Q: Does the GRL DNT1-O1L series cover both AC and DC applications?
A: The DNT1-O1L series is primarily rated for 1000V AC systems and is specified under the IEC 60269-4 standard for AC use. While the principle of operation is similar, it is crucial to consult the complete technical data sheet or contact a GRL specialist for DC rating and selection guidance to ensure proper application.
