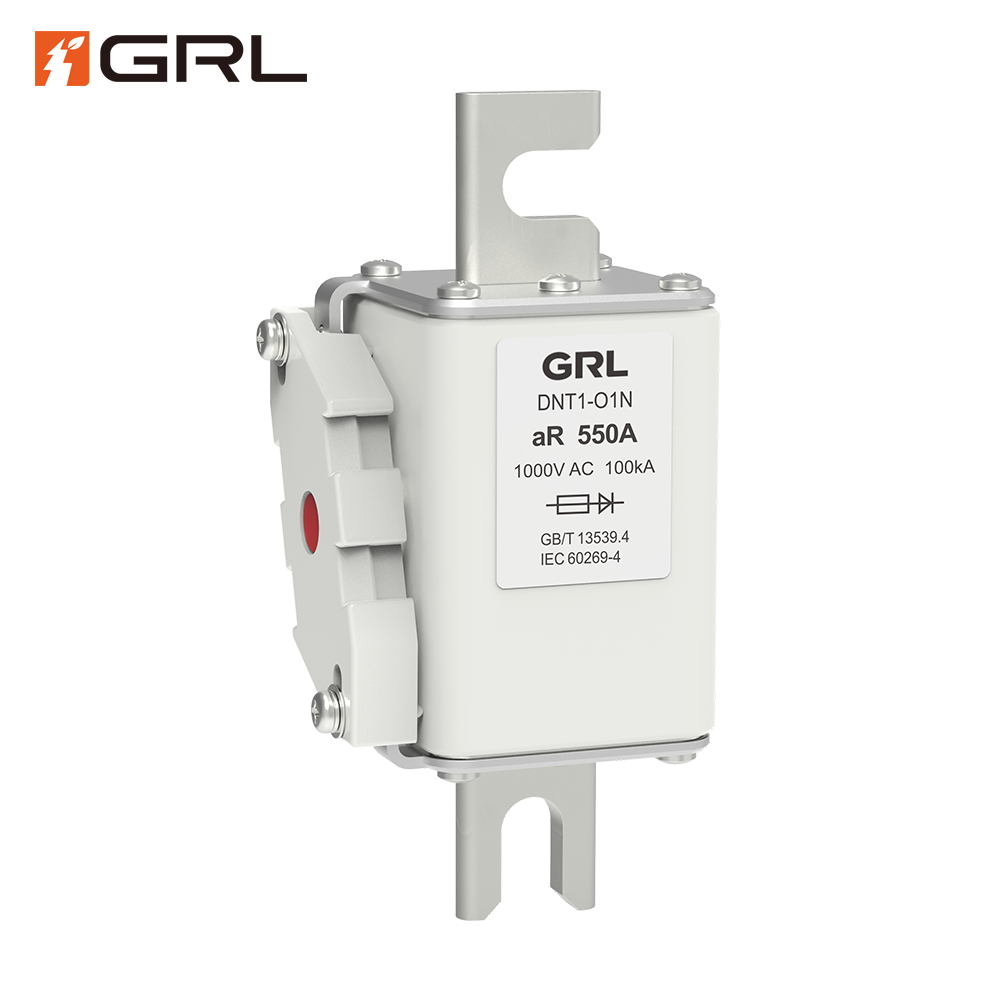

DNT1-O1N Semiconductor Fuse Overview
The GRL DNT1-O1N Series defines the benchmark for Ultra-Rapid Semiconductor Protection Fuses in demanding high-power applications. Meticulously engineered as an aR Fuse, this series is specifically optimized for short-circuit protection of sensitive power semiconductors, such as IGBTs, Thyristors, and MOSFETs, operating in AC 1000V industrial systems.
In the world of Industrial Power Conversion—where speed and precision are paramount—the DNT1-O1N is an essential component for achieving System Reliability and minimizing costly downtime. By guaranteeing an Extremely Low I^2t Value (let-through energy), the fuse acts with current-limiting speed, preventing catastrophic damage to high-value power modules during major fault events. Whether protecting Variable Frequency Drives (VFDs), UPS Systems, or high-speed Traction Converters, the DNT1-O1N ensures the immediate isolation of faults, safeguarding your investment in modern, high-efficiency electrical infrastructure. For engineers seeking reliable High-Speed Fuse technology with a robust High Interrupting Capacity (HIC), the GRL DNT1-O1N is the definitive choice for Power Electronics Safety.
DNT1-O1N Semiconductor Fuse Features
The GRL DNT1-O1N is designed with features that make it a leader in Semiconductor Protection Fuse technology:
- aR Protection Category: Classification as an aR Fuse means it is an Ultra-Rapid Fuse primarily intended for protecting semiconductors from short-circuit currents, offering faster action than general-purpose industrial fuses (gG/gL).
- Extremely Low I^2t Value: This is the most critical characteristic. By severely limiting the thermal energy (I^2t) and peak let-through current during a fault, the fuse protects sensitive gate structures and junctions of Power Semiconductor devices, such as IGBT modules, from thermal stress and failure.
- High Interrupting Capacity (HIC): With a robust 100kA breaking capacity, the DNT1-O1N can safely and reliably clear massive fault currents encountered in large Industrial Power Conversion systems, ensuring arc containment and overall system integrity.
- Optimized for AC 1000V: The internal structure is specifically calibrated to handle the high-voltage AC environment, ensuring safe and reliable arc quenching upon fault detection.
- Visible Indicator/Striker: An optional indicator pin simplifies maintenance by providing immediate visual confirmation that the fuse has operated, facilitating quick fault identification and replacement, thus reducing Minimized Downtime.
DNT1-O1N Semiconductor Fuse Advantages
Selecting the DNT1-O1N series is a strategic decision to enhance the longevity and performance of your electrical assets:
- Superior IGBT/Thyristor Protection: Guarantees the absolute fastest response to short circuits, delivering unparalleled Power Module Protection that significantly extends the lifespan of sensitive and costly Power Electronics.
- Maximized System Uptime: The ultra-rapid, Current Limiting Fuse action isolates faults instantly, preventing cascade failures across the electrical system and ensuring high Electrical System Reliability.
- Global Compliance: Conforming to both IEC 60269-4 and GB/T standards ensures the fuse is suitable for global deployment and simplifies regulatory approval for internationally distributed equipment.
- Optimized for Medium Voltage: Provides robust, reliable protection in growing Medium Voltage Industrial sectors transitioning to higher efficiency 1000V systems.
DNT1-O1N Semiconductor Fuse Applications
DNT1-O1N Semiconductor Fuse FAQs
Q: What exactly is an ‘aR Fuse,’ and how is it different from a ‘gR Fuse’?
A: The ‘aR’ classification means the fuse is an Ultra-Rapid Fuse designed for Short-Circuit Protection of semiconductors only. It is not rated to handle continuous, low-level overloads. A ‘gR’ fuse, on the other hand, is a full-range Semiconductor Fuse (g for full-range, R for semiconductor) that can interrupt both low-level overloads and short circuits. The DNT1-O1N’s ‘aR’ characteristic makes it specialized for the highest-speed IGBT Protection.
Q: Why is the I^2t value more important than the current rating for this fuse?
A: For Power Semiconductor Protection, the Extremely Low I^2t Value is the single most important parameter. I^2t represents the total thermal energy the fuse lets through during the fault clearing process. Since semiconductors like IGBTs have extremely low thermal tolerance, the fuse must clear the fault faster than the component’s thermal withstand capability. By having a very low $I^2t$, the DNT1-O1N ensures the fault energy remains below the threshold required to damage the sensitive Power Module Protection components, regardless of the steady-state current.
Q: Can I use the DNT1-O1N in a DC 1000V application?
A: The DNT1-O1N is specifically rated and designed for AC 1000V and manufactured to AC standards (IEC 60269-4). While some features overlap, interrupting a DC Fault Clearing arc is fundamentally more challenging than an AC arc (which naturally crosses zero). For dedicated DC protection, especially in Renewable Energy Systems like solar PV, a fuse explicitly rated for DC 1000V should always be used to ensure regulatory compliance and maximum Electrical System Reliability.
