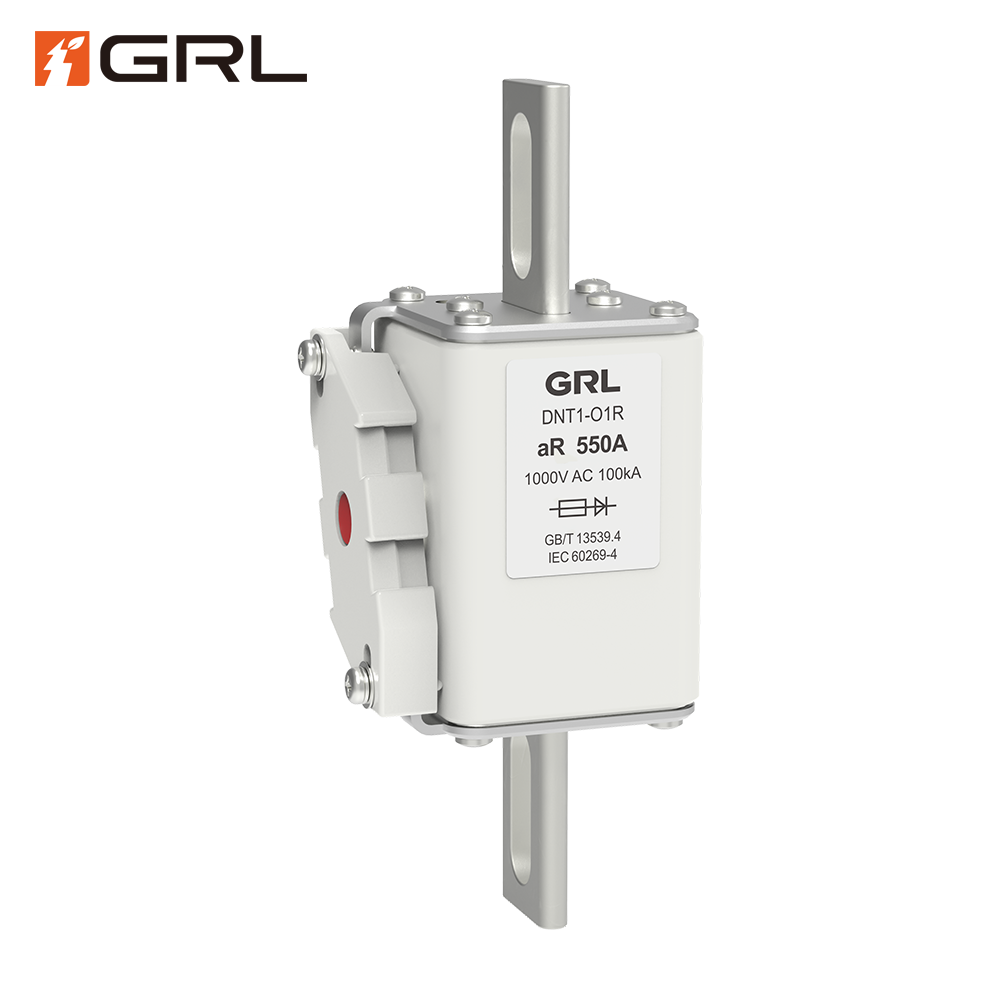

DNT1-O1R Semiconductor Fuse Overview
The GRL DNT1-O1R Series is an advanced line of ultra-rapid aR Semiconductor Fuses meticulously engineered to provide superior protection in demanding high-power AC 1000V applications. In modern industrial control systems, the longevity and reliability of expensive power modules like IGBTs (Insulated Gate Bipolar Transistors) and Thyristors are paramount. The DNT1-O1R fuse links are specifically designed to clear massive fault currents faster than any component can fail, ensuring maximum System Reliability and minimizing costly downtime.
These High-Speed Fuse Links are essential components in systems requiring immediate Short-Circuit Protection, offering an operational current range from 160A to 1500A. By complying strictly with the IEC 60269-4 standard, the DNT1-O1R delivers the ultimate defense layer for sensitive Power Electronics Protection across a range of high-voltage industrial applications.
DNT1-O1R Semiconductor Fuse Features
The robust construction of the DNT1-O1R fuse links is key to their performance and longevity in harsh environments.
Optimized Construction for High Performance
- Insulating Body: Crafted from high-density ceramic material, ensuring excellent insulation and mechanical stability under high thermal and current stress.
- Low Power Loss: Proprietary silver-plated connection blades and an optimized element design minimize the total wattage lost as heat, thereby improving energy efficiency and reducing the temperature rise within enclosed cabinets.
- Sealed Design: The internal elements are securely housed, protecting the fuse from environmental contaminants, ensuring consistent electrical performance and long-term service life.
DNT1-O1R Semiconductor Fuse Advantages
Choosing the GRL DNT1-O1R means investing in uncompromising safety and maximized system uptime.
- Extremely Low I^2t Value: This is the most crucial measure of a Semiconductor Fuse. The DNT1-O1R is engineered for the lowest possible I^2t let-through energy, drastically limiting the thermal stress on the protected power semiconductor device during a fault. Ask an Engineer: “What is an aR fuse’s most important feature?” The answer is always its low I^2t value for fault clearance.
- Guaranteed Component Integrity: By providing instant IGBT Protection and Thyristor Protection, the fuse acts as the primary defense, saving the most expensive components in the system from electrical faults.
- Maximized Uptime: The Ultra-Rapid Fuse action prevents cascade failure across large systems, allowing for faster fault isolation and reducing overall system downtime and maintenance costs.
- Compatibility and Versatility: Available across a wide current spectrum (160A to 1500A), the DNT1-O1R is the versatile choice for High-Power Rectifier Fuse applications and various Medium Voltage Fuse replacements.
DNT1-O1R Semiconductor Fuse Applications
The DNT1-O1R series is the protection solution of choice for the most critical power conversion and industrial processes globally.
- Variable Frequency Drives (VFDs) and Motor Soft Starters: Protecting the input and output rectifier/inverter stages, which rely heavily on high-value IGBTs and thyristors. Essential for VFD Protection and overall motor control reliability.
- Uninterruptible Power Supplies (UPS Systems): Securing the critical inverter and rectifier sections within large-scale commercial and Data Center UPS System Protection installations, where power continuity is non-negotiable.
- High-Power Rectifiers & Converters: Essential in Industrial Process Control, electroplating, and chemical plants where precise and rapid power regulation is required. This is a core Power Converter Protection application.
- Rail Transport Systems (Traction Converters): Providing robust Traction Converter and auxiliary converter protection against high short-circuit currents for reliable performance in rail and metro systems.
- High-Voltage Renewable Energy Inverters: Used in the AC output stages of high-capacity Wind Power and solar inverters to protect against grid-side faults.
DNT1-O1R Semiconductor Fuse FAQs
Q: Why should I use the DNT1-O1R aR Fuse instead of a standard fuse?
A: Standard fuses are not fast enough to protect semiconductor components like IGBTs, which fail in milliseconds. The DNT1-O1R is an aR fuse (a = partial-range breaking, R = semiconductor protection), meaning it is specifically designed to clear faults in under 5 milliseconds. This Ultra-Rapid Fuse characteristic is non-negotiable for IGBT Protection in high-value systems.
Q: What is the significance of the Extremely Low I^2t Value?
A: The I^2t value represents the thermal energy let-through by the fuse before the fault is completely cleared. An Extremely Low I^2t Value is vital because it means the fuse limits the fault energy exposure to the minimum required to damage the silicon, effectively saving the entire power electronics stack from destruction during a short circuit.
Q: Is the DNT1-O1R suitable for AC 1000V Busbar Protection?
A: Yes. Given its AC 1000V rating, 100kA High Breaking Capacity, and high current range (up to 1500A), the DNT1-O1R is an excellent choice for protecting high-power Busbar Protection sections and main feeders connected to large Power Converters and High-Power Rectifiers.
Q: How does this fuse series contribute to System Reliability?
A: By providing rapid, non-degrading Short-Circuit Protection, the DNT1-O1R prevents catastrophic failure modes. This stability translates directly into enhanced System Reliability, reduced maintenance cycles, and consistent performance in all your high-voltage equipment.
