DNT1-R1J Semiconductor Fuse Overview
In today’s rapidly evolving Power Electronics landscape, Power Semiconductor Devices—such as advanced IGBT Modules (Insulated Gate Bipolar Transistors) and Thyristors—form the core of high-efficiency power conversion systems. However, these sensitive devices are highly vulnerable to sudden Overcurrent Faults, particularly Short-Circuit Faults. Traditional protection solutions often react too slowly, failing to interrupt the fault current before permanent damage is inflicted upon the semiconductor components.
GRL ELECTRIC proudly presents the DNT1-R1J Fuse Link, an Ultra-Rapid Fuse specifically engineered to provide precise protection for these critical components. As a distinguished product within the DNT series, the DNT1-R1J falls under the aR Fuse Link protection category, meaning it specializes in Short-Circuit Protection. It boasts an industry-leading, extremely Low I²t (melting energy integral), enabling it to respond and interrupt a dangerous Fault Current in microseconds, thereby minimizing damage to expensive Semiconductor Components. Choosing the GRL DNT1-R1J means equipping your essential systems with the most advanced and reliable “electronic safety barrier.”
DNT1-R1J Semiconductor Fuse Features

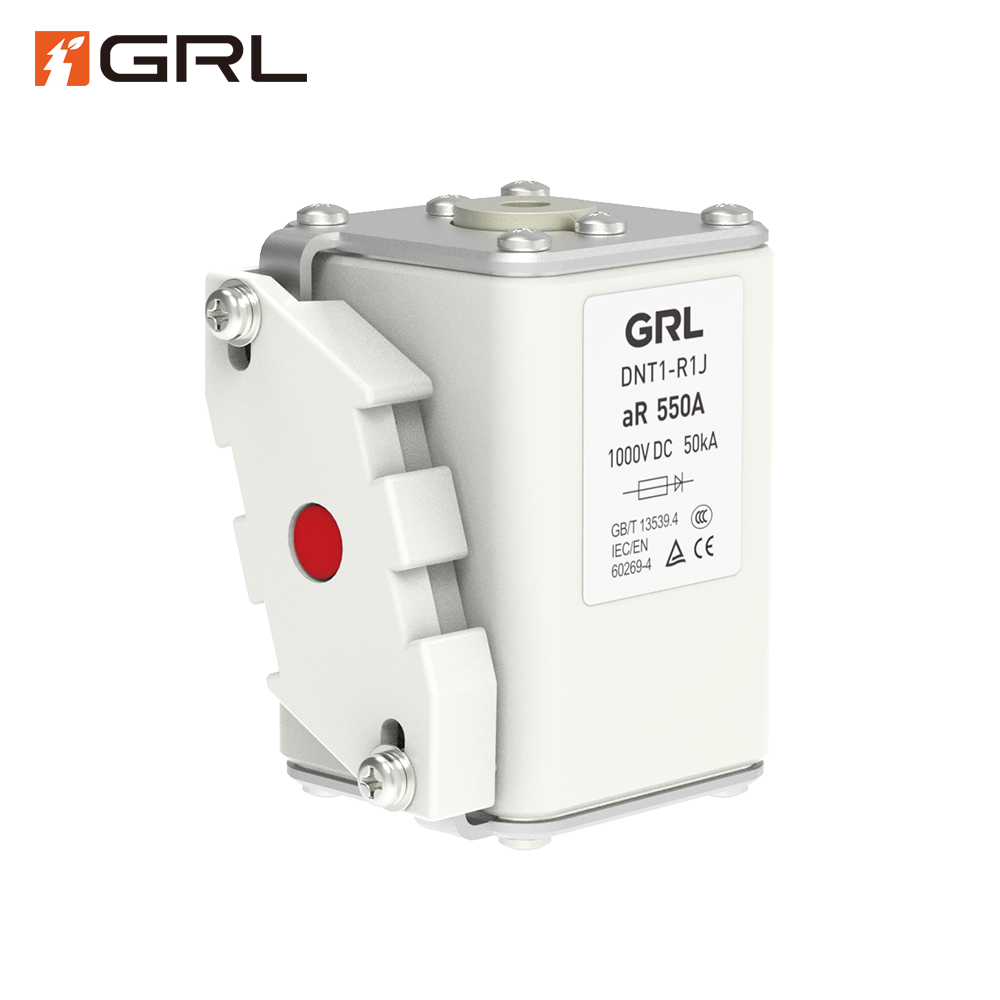

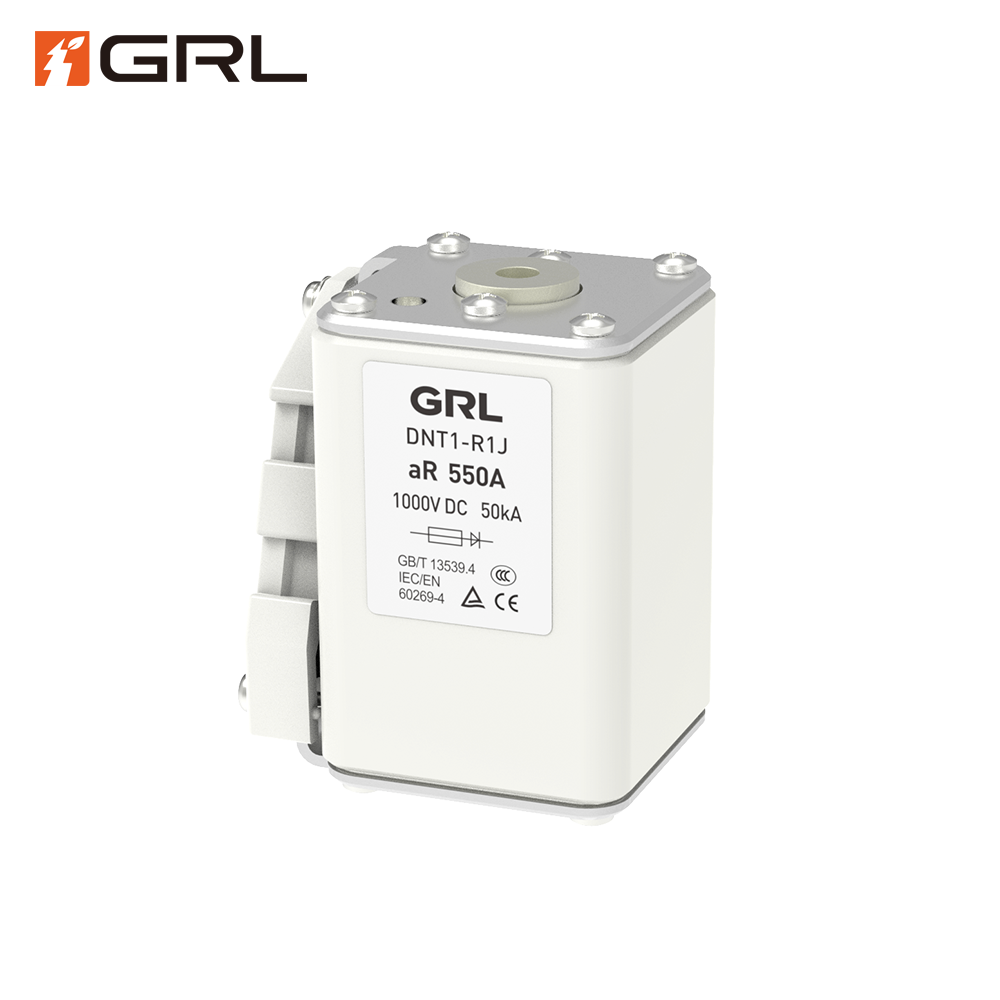

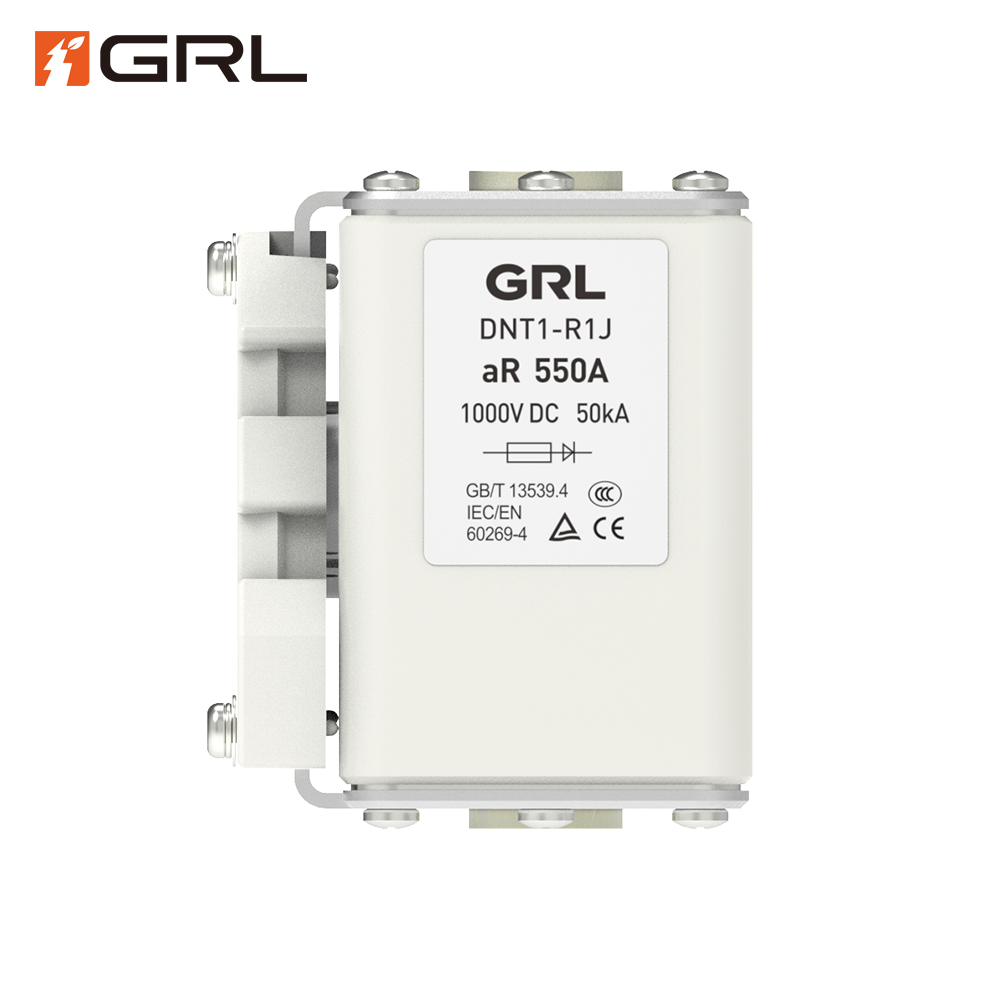

The DNT1-R1J incorporates an optimized Blade Type Fuse design, facilitating quick installation and replacement while ensuring robust electrical connections.
- High-Performance Fusible Element: The internal fusible element is precisely manufactured from pure silver or silver-plated copper. Its unique cross-sectional design ensures an extremely fast melting time under overcurrent conditions, achieving Ultra-Rapid response within milliseconds.
- Efficient Arc-Quenching Medium: Filled with high-purity quartz sand as the arc-extinguishing medium, it effectively absorbs arc energy and quenches the arc rapidly, ensuring an exceptionally high Breaking Capacity.
- Low I²t (Energy Let-Through): This is the core technological advantage of the DNT1-R1J. Through meticulous design, it minimizes the energy integral (I²t) during a fault, thereby maximally protecting downstream Power Semiconductor Modules from overheating and mechanical shock.
DNT1-R1J Semiconductor Fuse Advantages
Choosing the DNT1-R1J is an investment in long-term operational stability and cost reduction.
- Guaranteed Component Investment Protection: By providing an extremely Low I²t Fuse performance, the DNT1-R1J acts as the final line of defense, reliably protecting expensive power stacks, converters, and Thyristor protection circuits from destructive short-circuit currents.
- Maximized System Uptime: Rapid isolation of faults, combined with a High Breaking Capacity Fuse rating of up to 100kA, prevents catastrophic system failure, dramatically reducing unscheduled downtime and maintenance costs.
- Future-Proof High-Voltage Capability: With a robust AC 1250V and DC 1000V Fuse rating, this product is perfectly positioned for next-generation systems in medium-voltage and high-power applications, including large-scale industrial drive systems and sophisticated Solar Power Inverter Fuse applications.
- Compliance and Safety: Conforming to international standards like IEC 60269-4, the GRL Fuse DNT1-R1J is a certified, reliable electrical safety solution.
DNT1-R1J Semiconductor Fuse Applications
The DNT1-R1J Ultra-Rapid Semiconductor Protection Fuse is a must-have for any system requiring superior, high-speed circuit protection. Key application areas include:
- Variable Frequency Drives (VFDs): Essential VFD protection for motor control systems in heavy industrial machinery.
- Renewable Energy Systems: Protecting converters, inverters, and battery storage in wind and solar power inverter fuse systems.
- EV Charging Stations: Providing reliable, high-speed fuse protection for high-current, DC charging infrastructure.
- DC Common Bus Systems: Safeguarding power distribution and protection modules within utility and power distribution networks.
- Uninterruptible Power Supplies (UPS): Protecting the power stack of industrial and commercial UPS systems.
DNT1-R1J Semiconductor Fuse FAQs
Q: Can the DNT1-R1J be used for general-purpose overload protection?
A: The DNT1-R1J is an aR-class fuse, meaning it is specifically optimized for ultra-rapid short-circuit protection where fault currents are high. While it handles currents slightly above its rating for short periods, for sustained overload protection, it should be coordinated with another protective device (like a circuit breaker) that handles overcurrents to form a complete circuit protection system.
Q: How do I select the correct fuse for my IGBT module?
A: Fuse selection is based on I²t coordination. The selected fuse’s clearing I²t value must be significantly lower (typically by a margin) than the withstand I²t of the semiconductor device to ensure the component receives full protection against short-circuit events.
Q: What is the main benefit of the Square Body Fuse design?
A: The Square Body Fuse design allows for high current-carrying capacity, superior heat dissipation, and the internal volume needed for the patented fuse element, all while providing the mechanical strength required for industrial environments.
