DNT1-R1J Semiconductor Fuse Overview

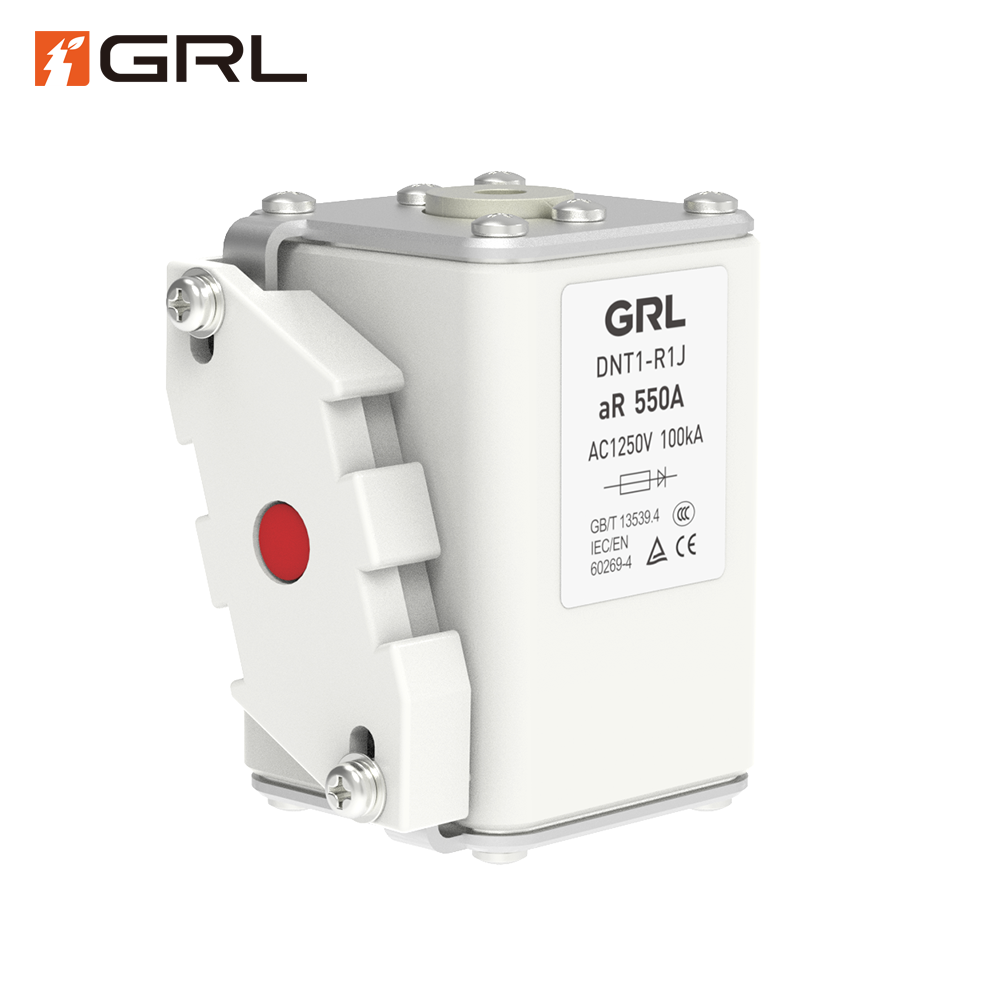

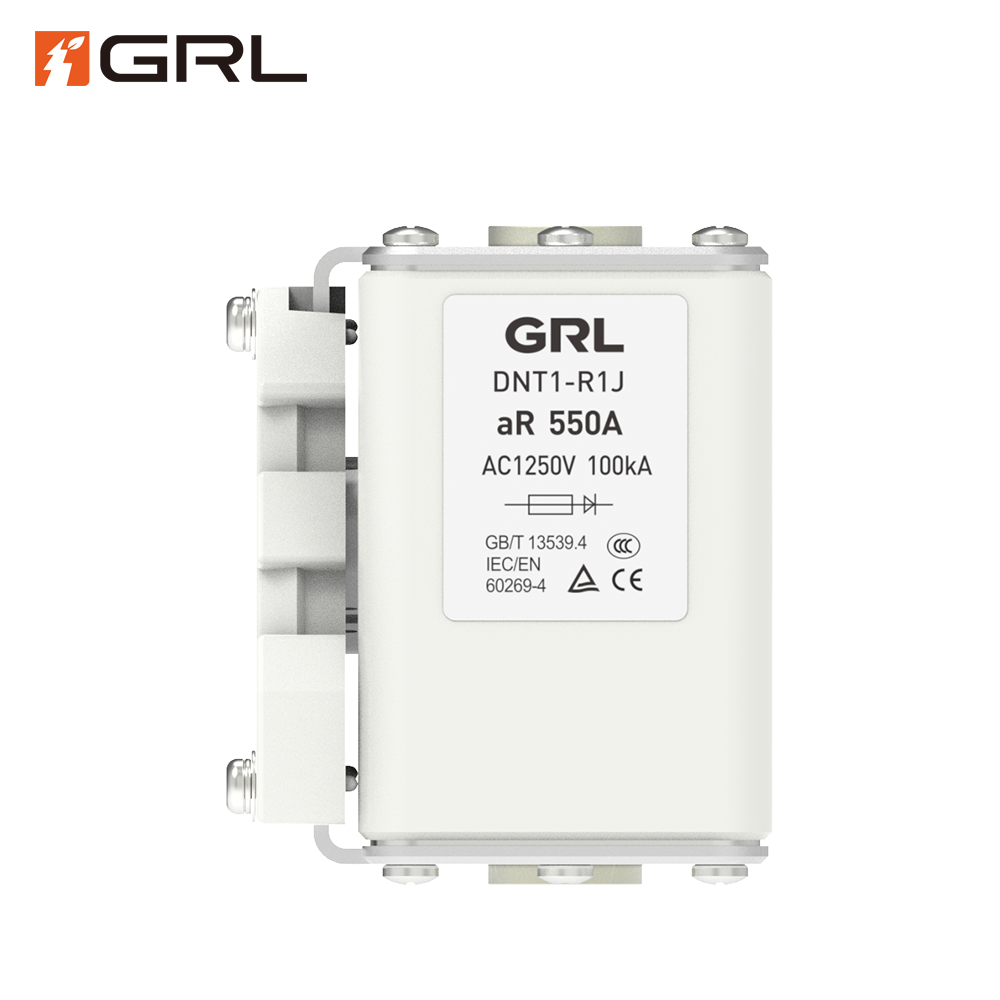

The GRL DNT1-R1J Semiconductor Fuse Link represents the pinnacle of power electronics protection for high-voltage AC systems. Engineered as a high-speed aR protection device, the DNT1-R1J is specifically rated for operation up to AC 1250V, positioning it as the indispensable safety component in medium-voltage Industrial Inverters, large VFDs, and advanced power conversion architectures.In modern systems, where high-cost IGBTs and Thyristors switch thousands of times per second, the time available to clear a fault is measured in microseconds. The DNT1-R1J is designed to perform this critical, ultra-rapid protection task, ensuring that fault currents are interrupted before they can cause catastrophic thermal damage to sensitive silicon. Choosing the DNT1-R1J is choosing component longevity and maximized system uptime.
DNT1-R1J Semiconductor Fuse Features
The DNT1-R1J is built on a foundation of reliability and precision engineering:
- Rugged Square Ceramic Body: The ceramic construction offers superior mechanical strength and excellent resistance to thermal shock, making it highly suitable for harsh industrial environments.
- R-Type Bolt-Down Fuse: The secure Bolt-down fuse termination ensures a stable, low-resistance connection that can withstand severe vibration (critical for applications like rail) and facilitates optimal heat transfer for long-term reliability.
- Precision Element Design: The internal notched element is carefully calibrated to achieve the fastest possible melting time. This design is what enables the DNT1-R1J to act as a true current limiting fuse during a short circuit. (A common question: How does it handle inrush currents? The fuse is engineered with a specific I2t tolerance profile to ride through normal inrush currents, like those from motor startup or capacitor charging, while immediately responding to destructive fault currents.)
DNT1-R1J Semiconductor Fuse Advantages
The definitive measure of a high-speed fuse is its ability to limit the energy let-through. The DNT1-R1J excels in this area:
- Ultimate IGBT Protection: The exceptionally low I2t fuse performance ensures that the fault current is cut off well before the energy impulse reaches the damaging threshold of the protected IGBTs or Thyristors. This translates directly to reduced failure rates and component longevity.
- Highest Voltage Integrity: The AC 1250V Fuse rating provides essential clearance above standard 690V/1000V applications, offering an extra margin of safety and insulation stability in increasingly high-powered systems.
- Superior Fault Isolation: The 100kA breaking capacity ensures that the fuse safely contains the high energy of a fault without exploding or arcing, effectively isolating the problem and maintaining system uptime.
- Harmonic Current Mitigation: The low resistance and ultra-rapid response characteristics of the fuse help systems better manage harmonic current mitigation often present in converter stages, reducing stress on downstream components.
DNT1-R1J Semiconductor Fuse Applications
The high-voltage DNT1-R1J Semiconductor Fuse Link is indispensable in demanding AC power conversion segments:
- Variable Frequency Drives (VFDs): Essential VFD protection for the rectifier and inverter stages of large industrial motor drives, compressors, and pumps.
- Rail Traction Converters: Providing reliable semiconductor equipment protection for the high-voltage AC input lines and traction power circuits in electric trains and metros.
- Industrial Inverters & UPS: Securing large-scale medium-voltage Industrial Inverters and high-capacity UPS systems in sectors like data centers and heavy manufacturing.
- Renewable Energy Grid Integration: Protection of converters and control systems in large wind turbine systems and high-voltage photovoltaic grid tie installations, where high voltage fuse integrity is critical .
DNT1-R1J Semiconductor Fuse FAQs
1. What is the GRL DNT1-R1J primarily designed to protect, and what is its main voltage rating?
Answer: The DNT1-R1J is a dedicated aR Semiconductor Fuse Link designed for the instantaneous short-circuit protection of high-cost power electronic components, such as IGBTs, Thyristors, and Diodes. Its main rating is AC 1250V, making it suitable for medium-voltage industrial and renewable energy systems.
2. What does the “aR” classification signify regarding the DNT1-R1J’s performance?
Answer: The “aR” classification (short-circuit protection for semiconductors) means the fuse provides an ultra-rapid response with the fastest possible operating speed. This performance is quantified by its extremely low pre-arcing time and ability to limit the fault current before it reaches a destructive peak.
3. Why is the 1300V AC rating critical for modern industrial applications?
Answer: The AC 1250V rating is crucial for modern high-power systems that operate at or above 1000V. It provides the necessary voltage overhead and insulation stability for applications like large-scale VFDs and rail traction converters, ensuring reliable AC fault protection even under severe line conditions.
