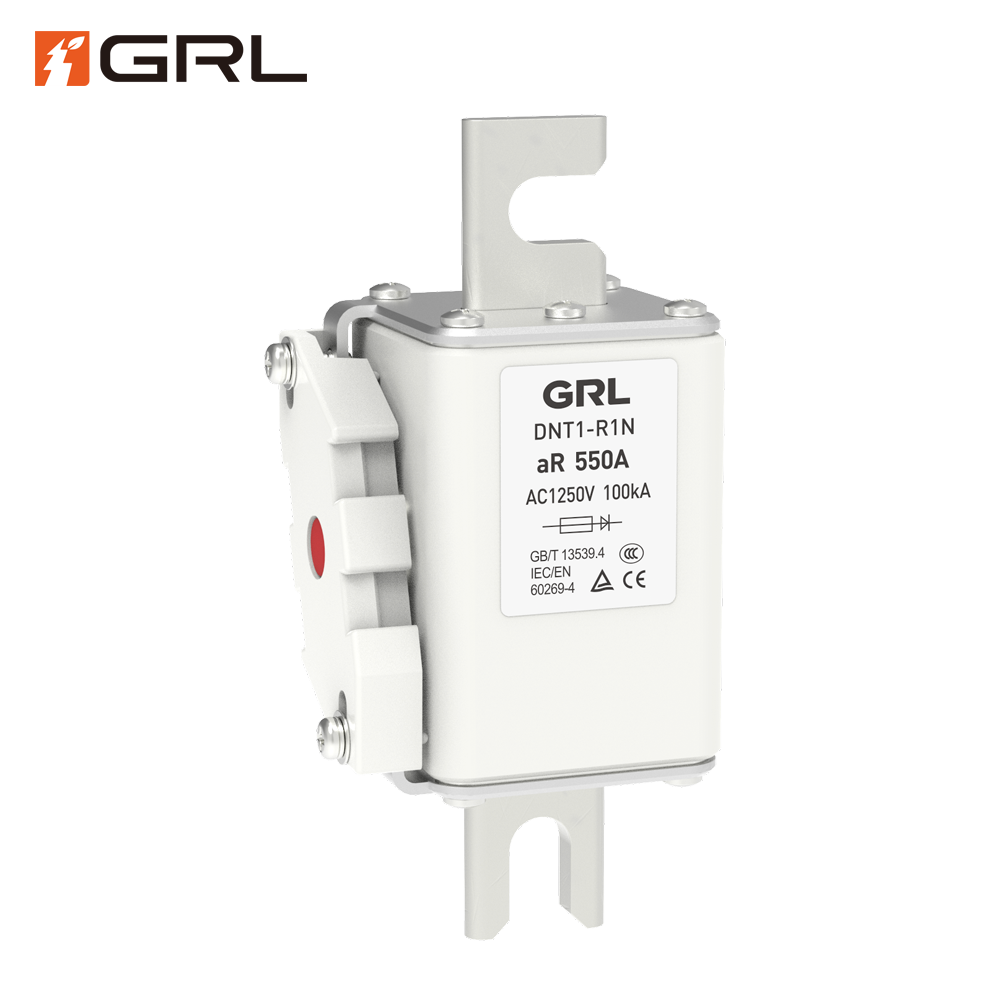

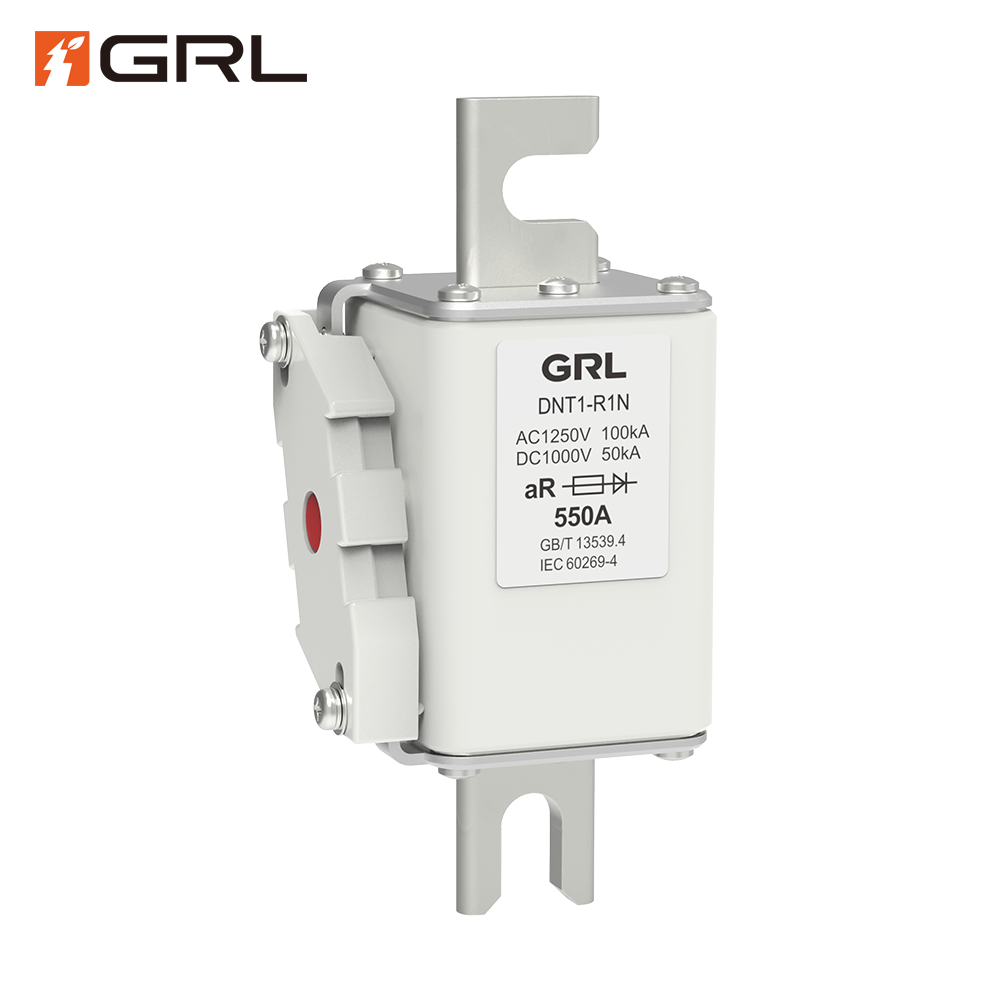

DNT1-R1N Semiconductor Fuse Overview
The GRL DNT1-R1N Semiconductor Fuse Link is engineered for the future of medium-voltage power conversion. As an essential aR Fuse, the DNT1-R1N provides ultra-rapid protection tailored for the most sensitive and expensive components in your system. Rated for demanding AC 1000V applications, this High-Speed Fuse is specifically designed to minimize the destructive energy associated with short circuits, guaranteeing IGBT protection and significantly boosting system reliability across critical industrial sectors.In modern applications like large Variable Frequency Drives (VFD) and high-power Renewable Energy systems, nanoseconds matter. The DNT1-R1N acts as the ultimate sentinel, operating as a true Current Limiting Fuse to instantly isolate faults, preserving your investments in power electronics protection and maximizing operational uptime.
DNT1-R1N Semiconductor Fuse Features
The GRL DNT1-R1N is constructed with meticulous precision to deliver its unmatched speed:
- Premium Ceramic Body: Encapsulated in a rugged, high-quality ceramic body filled with highly purified quartz sand. This construction provides excellent thermal dissipation and mechanical strength, making it durable for Industrial Converters and harsh operating conditions.
- Precision Silver Elements: The internal pure silver melting elements are precisely calibrated with a unique notched geometry. This design ensures that the fuse melts and clears the fault faster than the silicon device’s natural failure time, a non-negotiable requirement for Component Longevity.
- aR Classification: This classification confirms the fuse is a partial-range breaking capacity device, focusing solely on immediate short-circuit clearing. (A common question is: Can I use an aR fuse for overload protection? No, an aR fuse only provides short-circuit protection; an associated protective device must be used for clearing small overloads.)
DNT1-R1N Semiconductor Fuse Advantages
The DNT1-R1N’s key selling point is its superior let-through energy performance, quantified by its Low I2t Value:

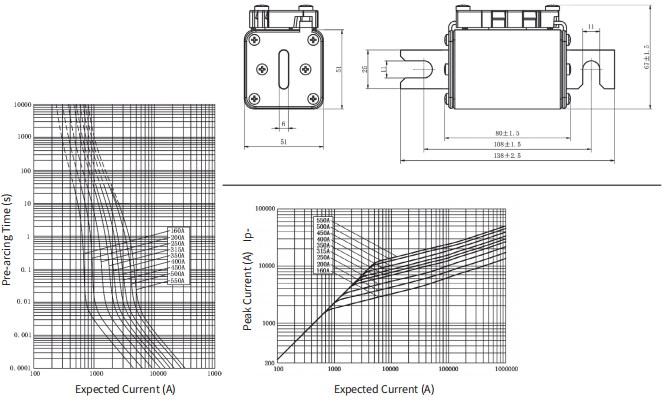

- Microsecond Response: The DNT1-R1N operates in the critical zone of the time-current curve, ensuring the destructive fault current is limited before it reaches the peak, preventing the catastrophic thermal runaway that destroys IGBTs.
- Reliability in AC 1000V Systems: With an AC 1000V Fuse rating, this component provides the necessary voltage margin for robust performance in demanding Medium Voltage Fuse applications, minimizing nuisance tripping and maximizing System Reliability.
- Vibration and Shock Resistance: The robust Bolt-Down Fuse terminals ensure stable electrical contact and reliable operation, critical for Rail Traction equipment subjected to constant movement and shock.
- Global Compliance: Compliance with IEC 60269-4 simplifies system design and certification for equipment destined for the international market.
DNT1-R1N Semiconductor Fuse Applications
The GRL DNT1-R1N Semiconductor Fuse is the foundation of circuit protection in high-performance AC 1000V systems
DNT1-R1N Semiconductor Fuse FAQs
1. What types of faults does the DNT1-R1N protect against?
The GRL DNT1-R1N (as an aR fuse) is designed only for short-circuit protection—that is, extremely high fault currents. It is not designed to clear low-level overloads. The fuse melts instantaneously when a severe fault occurs, utilizing its Ultra-Rapid Fuse speed to protect semiconductors.
2. Why should I choose the DNT1-R1N over a standard 1000V gG fuse?
Standard gG fuses are too slow to protect sensitive power semiconductors like IGBTs from a short circuit. The DNT1-R1N’s specialized design and Low I2t Value guarantee it clears the fault much faster, providing the necessary Component Longevity that is impossible to achieve with a general-purpose fuse.
3. What kind of environment can this fuse withstand?
Built with a high-strength ceramic body and utilizing Bolt-Down Fuse connections, the DNT1-R1N is highly resistant to thermal shock, high operating temperatures, and severe mechanical vibration, making it ideal for the demanding Rail Traction and heavy industrial environments.
4. How does the DNT1-R1N’s ultra-low I2t value ensure the protection of sensitive components?
The I2t (let-through energy) value measures the amount of energy passed by the fuse during a fault. The DNT1-R1N’s ultra-low I2t ensures it acts as a current limiting fuse, interrupting the current so quickly that the thermal energy absorbed by the protected IGBT remains below its critical damage threshold, guaranteeing component longevity.
5. What is the difference in function between this aR fuse and a general-purpose (gG) fuse?
A general-purpose (gG) fuse is designed for long-term overload and general short-circuit protection. The DNT1-R1N (aR-class) is designed solely for instantaneous short-circuit protection of semiconductors. Its response speed is orders of magnitude faster than a gG fuse, making it indispensable for protecting delicate power electronics from high-magnitude faults.
