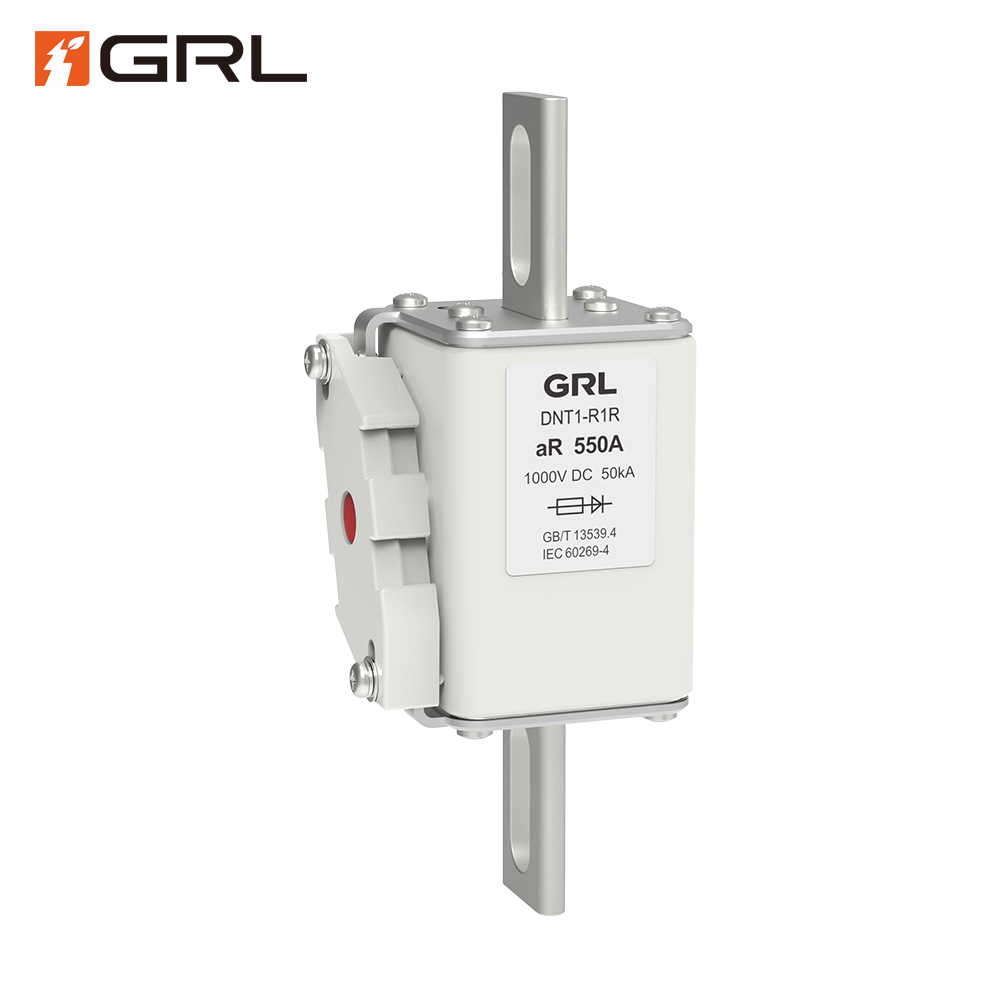

DNT1-R1R Semiconductor Fuse Overview
The GRL DNT1-R1R Semiconductor Fuse Link is the ultimate guardian for power electronics operating in the high-stress environment of AC 1300V systems. Engineered as an Ultra-Rapid Fuse with the stringent aR Fuse classification, the DNT1-R1R is specifically designed to deliver current-limiting protection faster than the inherent damage time of modern silicon devices. This ensures maximum Component Longevity and dramatically enhances System Reliability across critical high-power applications, from Industrial Drives to utility-scale Renewable Energy installations.In the world of Medium Voltage Fuse protection, milliseconds separate flawless operation from catastrophic failure. The DNT1-R1R’s precision engineering and Low I2t Value make it an indispensable choice for protecting expensive components like IGBTs and Thyristors against destructive short-circuit faults.
DNT1-R1R Semiconductor Fuse Features
The DNT1-R1R’s sophisticated design is focused on maximum speed and durability under extreme electrical stress:
- Advanced Arc-Quenching: The high-purity ceramic body is filled with specially treated quartz sand that rapidly absorbs arc energy during an interruption. This swift action is key to achieving its exceptional High Interrupting Capacity (HIC) and maintaining fuse integrity.
- Calibrated Silver Elements: The internal pure silver melting elements feature a proprietary geometry that ensures minimal pre-arcing time. This precise calibration is essential for providing effective IGBT Protection where the allowed fault duration is minuscule.
- What does “aR” mean for this fuse? The “aR” classification signifies that the DNT1-R1R is a partial-range breaking capacity device, designed exclusively for clearing short-circuit currents. It does not provide protection against small, sustained overloads, allowing system engineers to coordinate it perfectly with upstream protective devices.
DNT1-R1R Semiconductor Fuse Advantages
1. Unmatched Current Limiting Capability (Low I2t) The defining feature of the DNT1-R1R is its extremely low I2t value. This metric, which represents the let-through energy during a fault, is minimized to protect semiconductors from thermal breakdown. By acting as a superior Current Limiting Fuse, the DNT1-R1R ensures that the energy passing through the Power Electronics during a fault is insufficient to cause damage.
2. Engineered for High-Stress Environments The robust Bolt-Down Fuse connection provides a mechanically secure and low-resistance termination, crucial for maintaining long-term electrical efficiency and reliability in dynamic, Rail Traction or heavily vibrating industrial settings.
3. Future-Proof Voltage Rating With a 1300V AC Fuse Link rating, the DNT1-R1R offers the necessary voltage margin for new-generation, higher-efficiency High Power Inverters and energy conversion systems, facilitating global design standardization under IEC 60269-4.
DNT1-R1R Semiconductor Fuse Applications
The DNT1-R1R is the required standard for fault protection in critical High Voltage Semiconductor Fuse applications
DNT1-R1R Semiconductor Fuse FAQs
1. Why is the Low I2t Value so important for semiconductor fuses?
The Low I2t Value is the single most critical factor because power semiconductors (like IGBTs) have very little thermal tolerance to short-circuit energy. The low I2t ensures the fuse clears the fault so fast that the destructive heat energy transmitted to the component is insufficient to damage it, directly ensuring Component Longevity.
2. Does the DNT1-R1R provide overload protection?
No. As an aR-class fuse, the GRL DNT1-R1R provides ultra-rapid short-circuit protection only. It is intended to coordinate with other protective devices (like circuit breakers) which handle small, prolonged overloads.
3. Can this 1300V AC Fuse be used in DC systems?
While semiconductor fuses can often be used in DC applications at a reduced current rating, the DNT1-R1R is optimized for AC 1300V systems. For DC applications, consult the technical data sheet or contact GRL directly, as DC fault interruption is more complex and requires careful consideration of the fuse’s breaking capacity curve.
