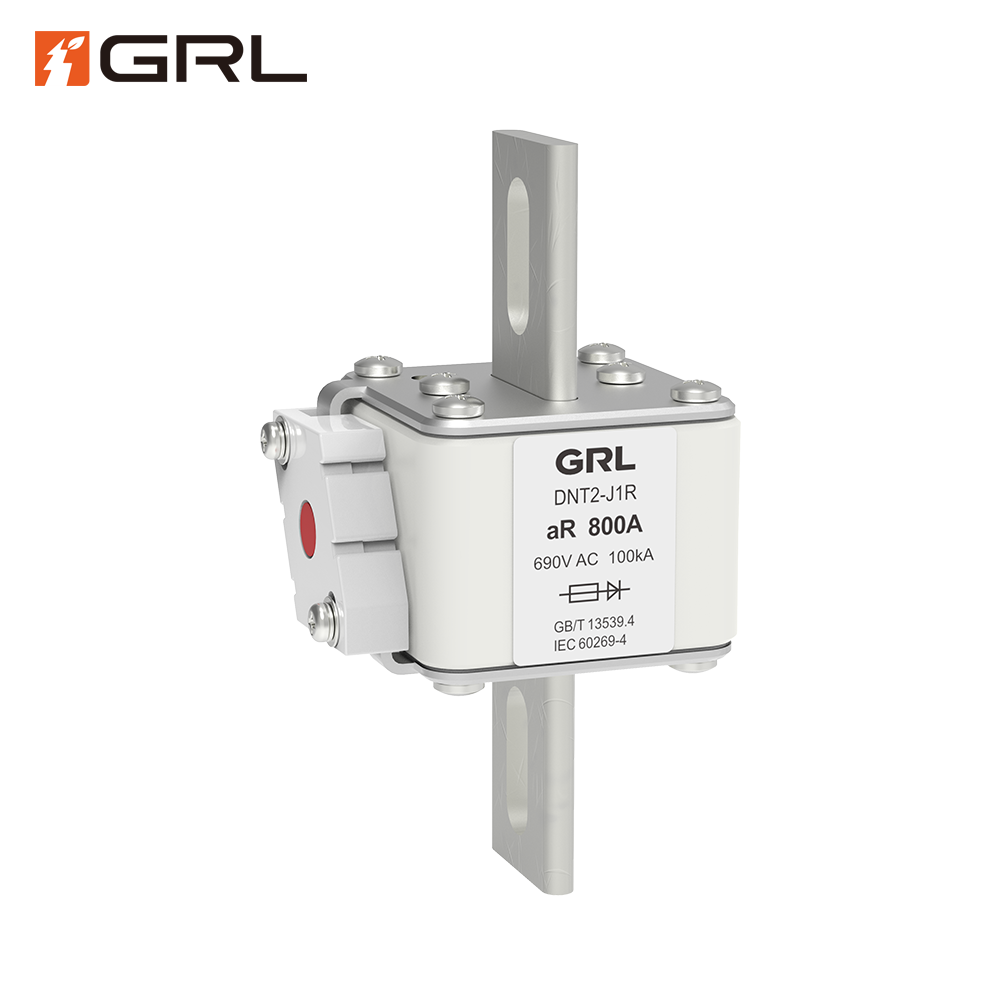

DNT2-J1R Semiconductor Fuse Overview
In high-power conversion circuits, where milliseconds dictate component survival, the DNT2-J1R provides unmatched Current Limiting Fuse action. Its specialized design guarantees ultra-fast Fault Clearing, drastically minimizing the thermal and electrical stress on valuable power modules. This translates directly into substantial Downtime Reduction and ensures maximum System Reliability across critical infrastructure. For engineers seeking the definitive AC 1300V Fuse solution, the DNT2-J1R offers unparalleled peace of mind.
DNT2-J1R Semiconductor Fuse Features
The GRL DNT2-J1R’s robust physical and electrical design is optimized for high-power density environments and rapid fault response.
- Optimized Melt Element Geometry: We utilize advanced metallurgy with highly purified silver melting elements, precisely calibrated to ensure minimal pre-arcing time. This unique geometry is the secret behind the DNT2-J1R’s High-Speed Fuse operation, guaranteeing microsecond-level response to high-magnitude faults.
- Extremely Low I^2t Value: This is the ultimate metric for effective IGBT Protection. By limiting the energy let-through, the fuse ensures that the fault duration is insufficient to push the semiconductor’s junction temperature past its limits, safeguarding against catastrophic module destruction.
- Advanced Arc Quenching: The internal structure, packed with specialized granular quartz sand, is designed to rapidly absorb arc energy. This critical mechanism provides superior Overvoltage Protection, actively suppressing dangerous voltage transients that can damage adjacent circuitry.
- Square Body Fuse & Bolted Tags: The durable ceramic Square Body Fuse form factor provides excellent structural integrity and thermal stability, necessary for continuous operation. The bolted tags ensure low-resistance contact, minimizing power loss and heat generation.
DNT2-J1R Semiconductor Fuse Advantages
Choosing the DNT2-J1R is a strategic investment in your system’s longevity and operational continuity.
- Guaranteed Semiconductor Survival: The Ultra-Rapid speed ensures the fastest possible Fault Clearing for your high-cost Power Electronics, translating directly into reduced replacement costs and extended asset life.
- Future-Proof Protection: Rated for AC 1300V, the fuse is perfectly suited for protecting next-generation systems utilizing high-efficiency SiC Protection devices, supporting the latest technology standards.
- Low Operating Costs: The optimized design results in lower operating temperatures, which contributes to lower overall system cooling demands and improved efficiency.
- Universal Reliability: Full compliance with IEC 60269-4 simplifies procurement and certification for global projects, making it a universal solution for severe Industrial Protection requirements.
DNT2-J1R Semiconductor Fuse FAQs
Q: Why is the I^2t value so critical for IGBT protection?
A: The I^2t value is the amount of thermal energy permitted through the fuse during a fault condition. Since the thermal withstand capability of an IGBT is extremely low—often measured in microseconds—choosing a High-Speed Fuse like the DNT2-J1R with the lowest possible I^2t value is the only reliable way to ensure the fuse opens the circuit before the IGBT’s thermal limits are exceeded. This is the ultimate guarantee of IGBT Protection.
Q: Is the DNT2-J1R suitable for VFD protection at high power levels?
A: Yes. While the AC 1300V Fuse rating is at the high end of the low-voltage spectrum, it is perfectly suited for use in many high-power VFD Protection applications, as well as in rectifier stacks where the AC input voltage or DC link voltage demands robust, high-voltage capable semiconductor protection. Always verify the specific time-current characteristics against your VFD’s fault curves for optimal performance.
Q: Does this fuse offer DC link protection in addition to AC rating?
A: Typically, Ultra-Rapid Fuses rated for high AC voltage also carry a defined DC voltage rating, making them ideal for DC Link Protection in high-power inverters, common in Renewable Energy systems. For the exact certified DC rating of the DNT2-J1R, please consult the official GRL product datasheet.
