DNT2-O1J Semiconductor Fuse Features

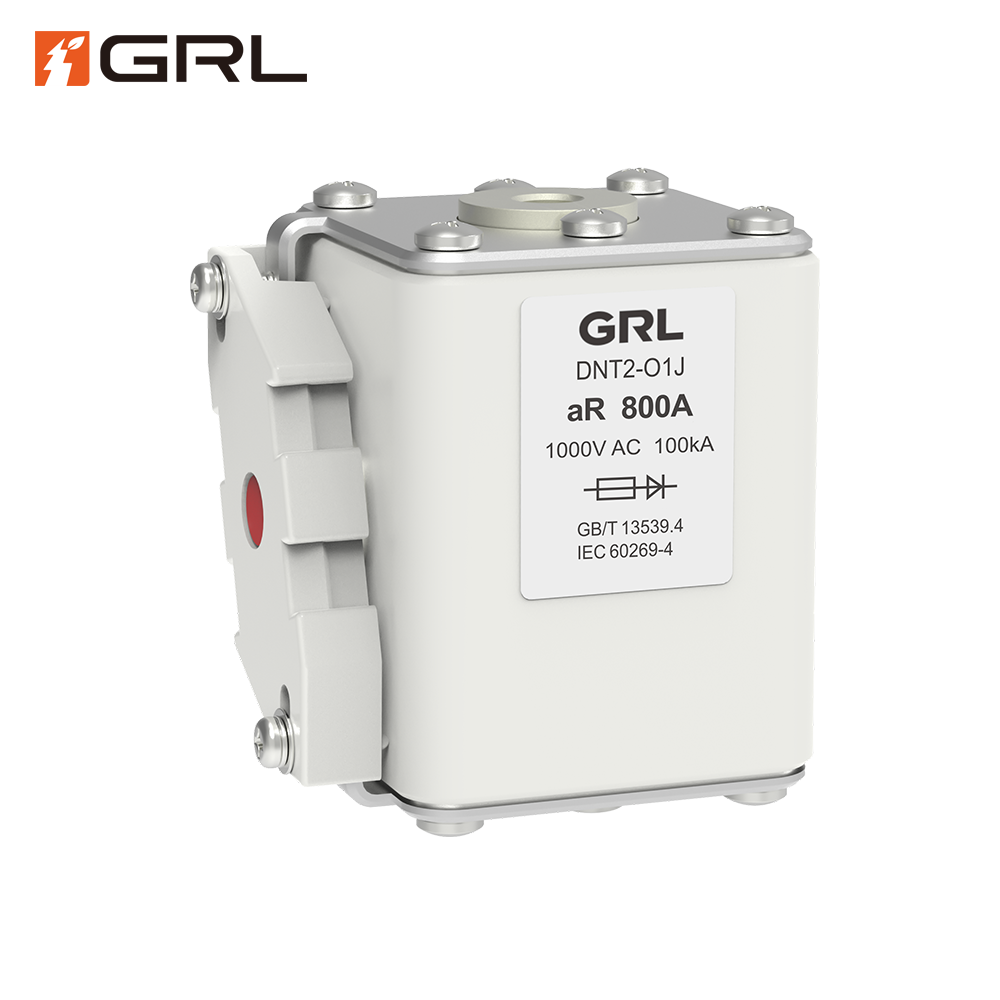

The GRL DNT2-O1J is a precision-engineered High-Speed Fuse built around a robust ceramic body and silver-plated contact terminals to minimize contact resistance.
The Power of Low I²t
The defining characteristic of any quality Ultra-Rapid Fuse is its ability to minimize the total energy passed through the circuit during a fault event. This is measured by the Low I^2t Value (Ampere-squared seconds). The DNT2-O1J is designed with a proprietary element structure that ensures an incredibly rapid arc voltage rise and fault interruption.
- Why is Low I^2t important? The I^2t value represents the heat energy transmitted to the protected device (e.g., the IGBT module) during the fuse’s clearing time. By maintaining a critically low I^2t value, the DNT2-O1J ensures that the damaging thermal energy is kept below the semiconductor’s damage threshold, thus preventing the device from blowing up under a short-circuit fault. This is the essence of true Short-Circuit Protection.
DNT2-O1J Semiconductor Fuse Advantages
Choosing the DNT2-O1J is a strategic decision for system optimization, not just compliance.
- Maximum Downtime Prevention: The Ultra-Rapid response time—often measured in milliseconds—means faults are isolated before they cascade, drastically reducing repair costs and maximizing system uptime. This is crucial for high-power VFD Protection and minimizing lost production.
- Superior Component Defense: Specifically designed for the unique needs of power semiconductor devices, the DNT2-O1J ensures that expensive components like IGBTs are shielded from excessive thermal and mechanical stress during fault conditions.
- Excellent Cycling Capability: Engineered to withstand the rigors of modern power conversion, the fuse element maintains integrity through the normal thermal cycling inherent in high-power Inverter Protection applications, extending its service life.
- Global Compliance: Fully compliant with IEC 60269-4, guaranteeing international usability and quality assurance for demanding Power Electronics applications.
DNT2-O1J Semiconductor Fuse Applications
The GRL DNT2-O1J is the definitive 1000V AC Fuse solution for high-power conversion and distribution systems worldwide.
- Motor Drive Systems: Essential for robust VFD Protection (Variable Frequency Drives) and soft starters, ensuring continuous operation of industrial machinery.
- Renewable Energy Systems: Used in high-voltage AC-side protection for large-scale Solar PV Inverters and wind turbine converters.
- Energy Storage (ESS): Providing critical fault isolation in charging and discharging inverters for Battery Energy Storage Systems.
- Power Conversion: Protection of input and output stages of rectifiers, UPS systems, and Industrial Inverters.
- Industrial DC Networks: While rated AC, it is often utilized for DC Link Protection in the high-current rectifier section of many industrial DC power supplies.
DNT2-O1J Semiconductor Fuse FAQs
Q: Why do I need an “aR” fuse like the DNT2-O1J? Can’t I use a standard gG fuse?
A: No. Standard gG fuses are designed to clear both overload currents and short-circuit currents (full-range protection), but they are too slow to protect delicate power semiconductor devices. The “aR” class means “partial range breaking capacity for the protection of semiconductors.” The DNT2-O1J is specifically optimized to clear only short-circuits with an unmatched speed, delivering a far Low I^2t Value to prevent thermal damage to your IGBTs and Thyristors.
Q: What does 1000V AC mean for my application?
A: The 1000V AC Fuse rating signifies that the fuse can reliably interrupt a short-circuit fault in an AC system with a line-to-line voltage up to 1000V. This high voltage capability is increasingly required in modern, high-efficiency Industrial Automation and Renewable Energy Systems.
Q: How does the DNT2-O1J size relate to my current?
A: The DNT2 model typically corresponds to the middle current range of the DNT-O1J Series (e.g., 350A to 800A). Always consult the full product datasheet to select the exact ampere rating that is coordinated with the I^2t withstand capability of your specific Semiconductor Fuse application for guaranteed System Reliability.
