DNT2-O1N Semiconductor Fuse Overview
In the demanding world of power conversion equipment and industrial drives, the integrity of your sensitive semiconductor components is non-negotiable. The GRL DNT2-O1N Series defines the benchmark for Power Semiconductor Protection, offering a state-of-the-art Ultra-Rapid Fuse engineered specifically for high-voltage, high-current environments.

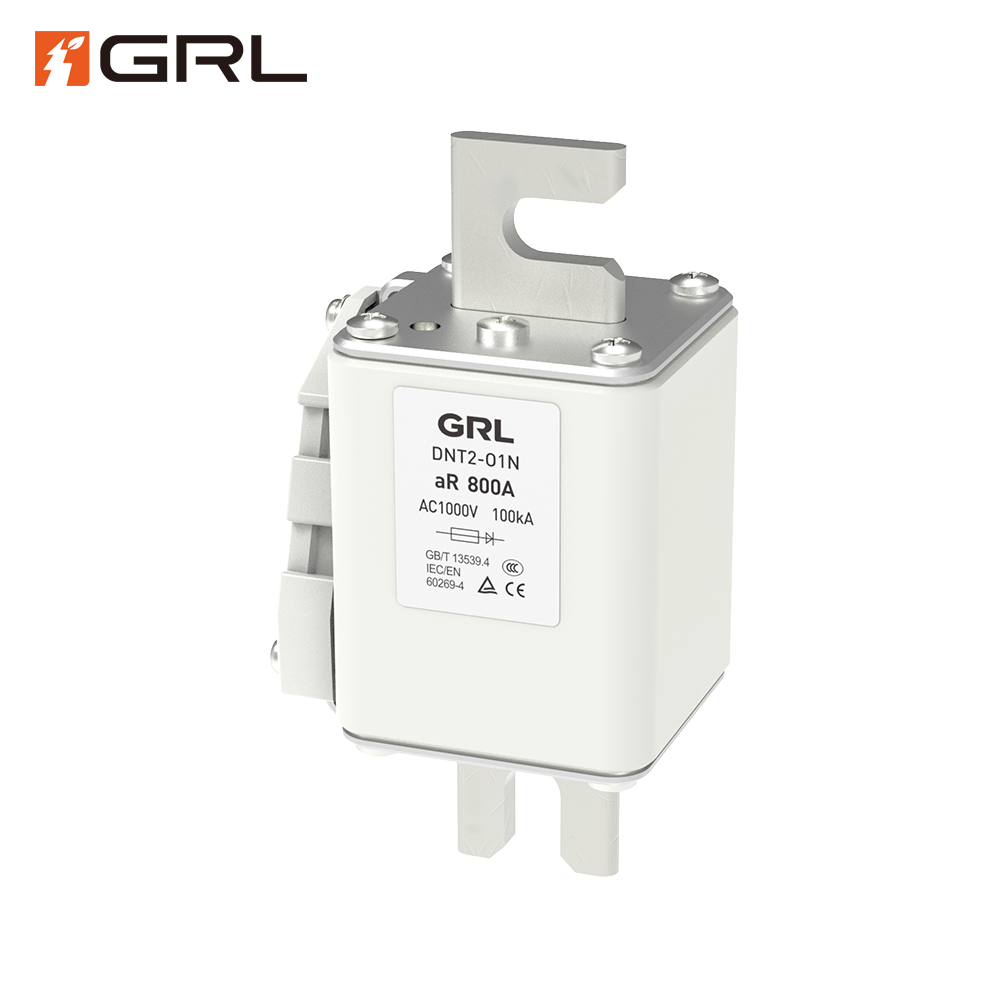

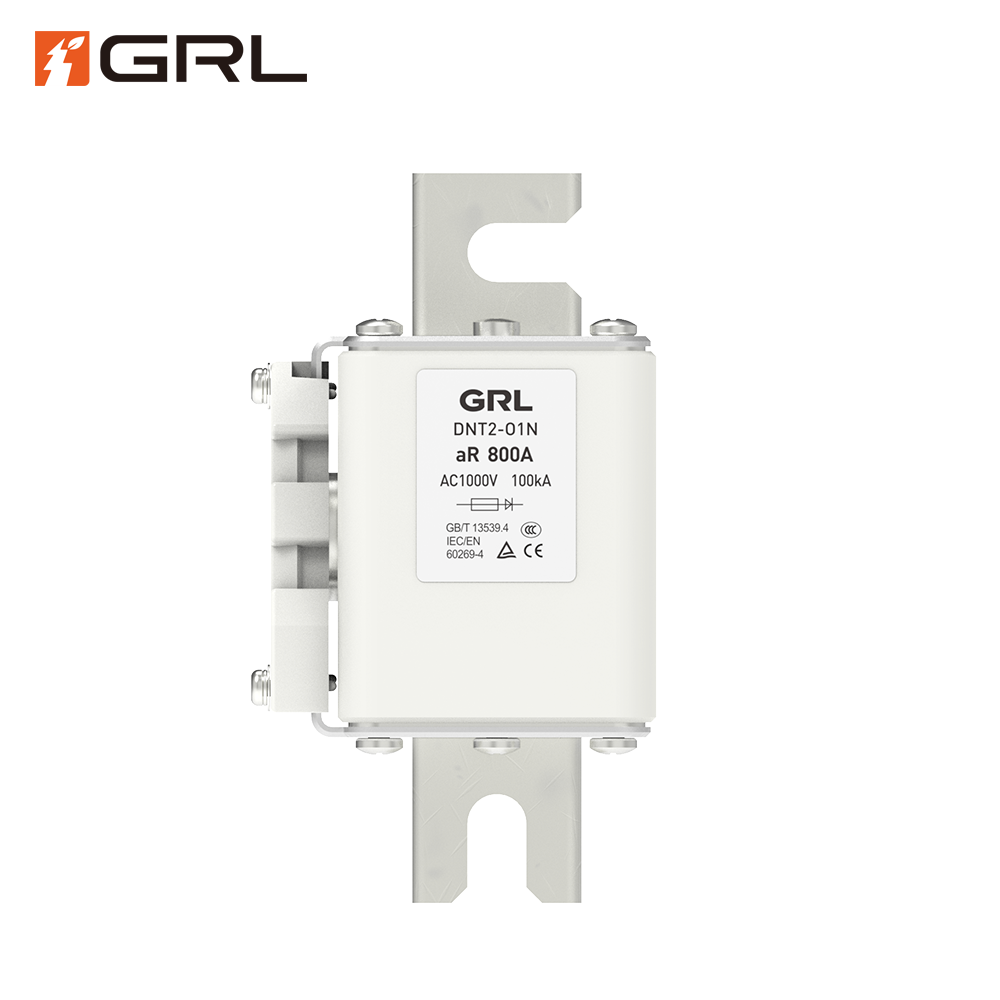

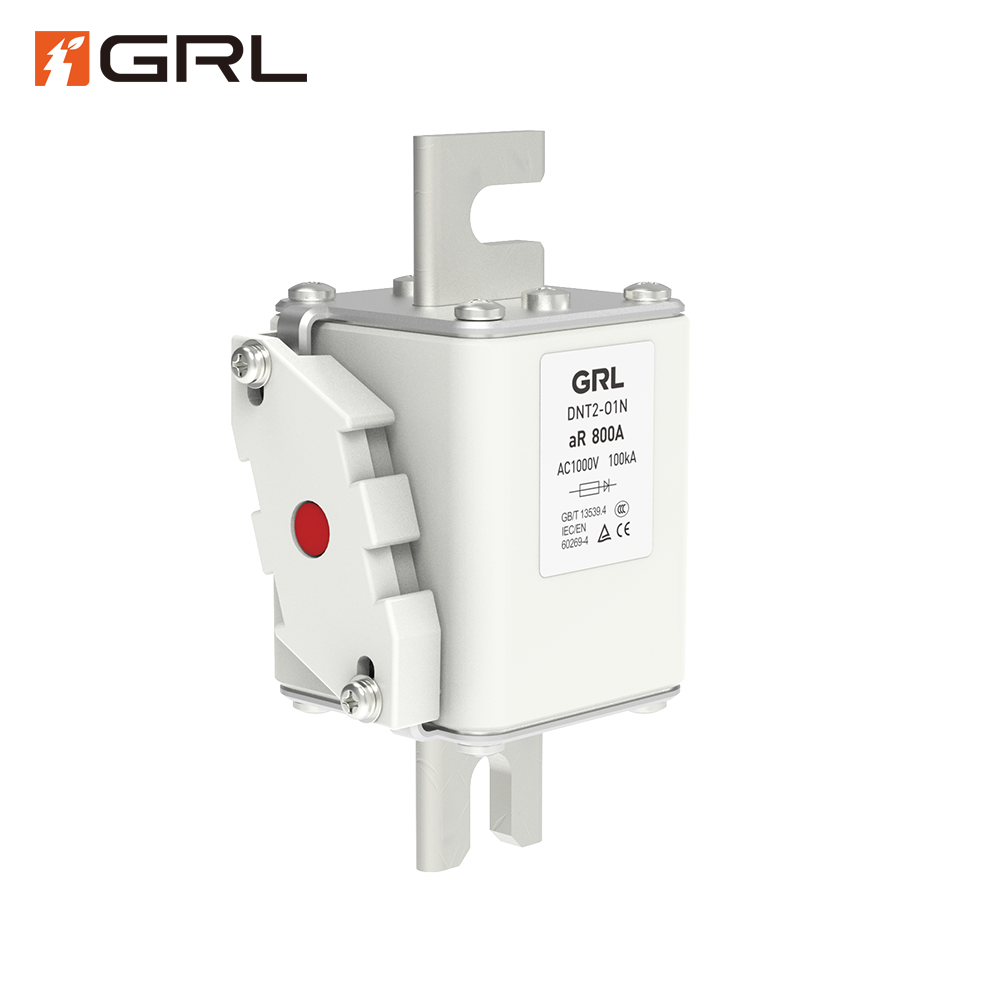

The DNT2-O1N is a robust, square-body 1000V AC aR Fuse designed to act with current-limiting speed, guaranteeing Short-Circuit Protection for valuable devices like IGBTs, Thyristors, and MOSFETs. By delivering an Extremely Low I^2t Value—the single most critical characteristic for semiconductor protection—this High-Speed Fuse ensures that potentially catastrophic fault currents are cleared almost instantaneously, minimizing thermal stress and maximizing your System Reliability. When your application demands uncompromising performance and electrical safety at 1000 Volts, the DNT2-O1N Series is the definitive choice.
DNT2-O1N Semiconductor Fuse Features
The GRL DNT2-O1N fuse link is constructed using advanced material science and precision engineering to achieve its phenomenal speed and protective capability:
- aR Protection Category: The core of the fuse’s identity. The ‘aR’ classification signifies an Ultra-Rapid Fuse intended purely for Short-Circuit Protection of semiconductors, providing a much faster response time compared to general-purpose fuses (gG/gL).
- Square Body Design (DNT): The robust Square Body Fuse form factor ensures excellent mechanical stability and superior heat dissipation, critical for high-current applications.
- High Interrupting Capacity (HIC): With a powerful 100kA breaking capacity, the fuse can safely interrupt massive short-circuit currents prevalent in large industrial systems, fully complying with the rigorous standards of IEC 60269-4 and GB/T 13539.4.
- Precision Fusing Element: Utilizes pure silver elements embedded in high-purity quartz sand. This construction ensures optimal arc-quenching and thermal management, directly contributing to its Low I^2t Value performance.
- N-Type Bolt-Down/Hook Mounting: The ‘N’ designation indicates a mounting style optimized for secure, permanent installation using bolts, ensuring stable electrical contact even under high vibration or thermal cycling.
DNT2-O1N Semiconductor Fuse Advantages
1、Definitive IGBT Protection：Extremely Low I^2t Value and high gPV peak current let-through limitation.Prevents costly damage to expensive power semiconductor devices, minimizing downtime and replacement costs.
2、Superior AC High-Voltage Performance：1000V AC Rated Voltage and 100kA HIC.Provides reliable, compliant protection in modern, high-voltage industrial and Renewable Energy Systems.
3、Global Compliance & Trust：Certified by CE, CCC, and TÜV, meeting IEC 60269-4 standards.Simplifies equipment certification and ensures acceptance across international markets.
4、Enhanced System Lifespan：Precision engineering minimizes power loss (wattage dissipation) and allows for excellent thermal and electrical cycling capability.Contributes to the overall System Reliability and longevity of the protected equipment.
DNT2-O1N Semiconductor Fuse Applications
The GRL DNT2-O1N Semiconductor Fuse series is essential for applications requiring fast and reliable high-voltage protection for power electronic modules:
- Industrial Automation: Protecting the input and DC link circuits of high-power Industrial Inverters and VFD Protection systems for large motors.
- Power Quality: Ensuring the safety of high-current rectifiers and active front-end converters.
- Renewable Energy Systems: Used in the protection circuits of grid-tie inverters for solar and wind power, including high-voltage Energy Storage Systems (ESS).
- Electric Vehicle (EV) Charging: Providing ultra-rapid Short-Circuit Protection in high-power DC EV Charger infrastructure.
- Rail Transportation: Protecting traction converters and auxiliary power supplies.
DNT2-O1N Semiconductor Fuse FAQs
Q: What is the most important factor in a semiconductor fuse like the DNT2-O1N?
A: The most critical factor is the Extremely Low I^2t Value (Amp-squared-seconds). The I^2t value represents the thermal energy let through by the fuse during a fault. Because power semiconductor devices like IGBTs are highly sensitive to thermal spikes, the DNT2-O1N’s low I^2t ensures the fuse clears the fault current before the energy damages the protected component.
Q: Why is the DNT2-O1N an ‘aR’ fuse and not a ‘gR’ fuse?
A: The ‘aR’ classification means the fuse is an Ultra-Rapid Fuse designed only for Short-Circuit Protection (high currents). This specialized design allows it to achieve the fastest possible clearing time needed for sensitive semiconductors. A ‘gR’ fuse is a full-range fuse, meaning it can also interrupt low-level overloads, but its response time is typically slower than a pure ‘aR’ fuse. The DNT2-O1N is optimized purely for high-speed, high-current IGBT Protection.
Q: Can I use this 1000V AC fuse for a 1000V DC system?
A: No. The DNT2-O1N is specifically rated and designed for 1000V AC systems and complies with AC standards (IEC 60269-4). Interrupting a DC arc is fundamentally more challenging than an AC arc (which naturally crosses zero). For dedicated DC protection, especially in Renewable Energy Systems, always select a fuse explicitly rated for the DC voltage to ensure maximum electrical safety and compliance.
