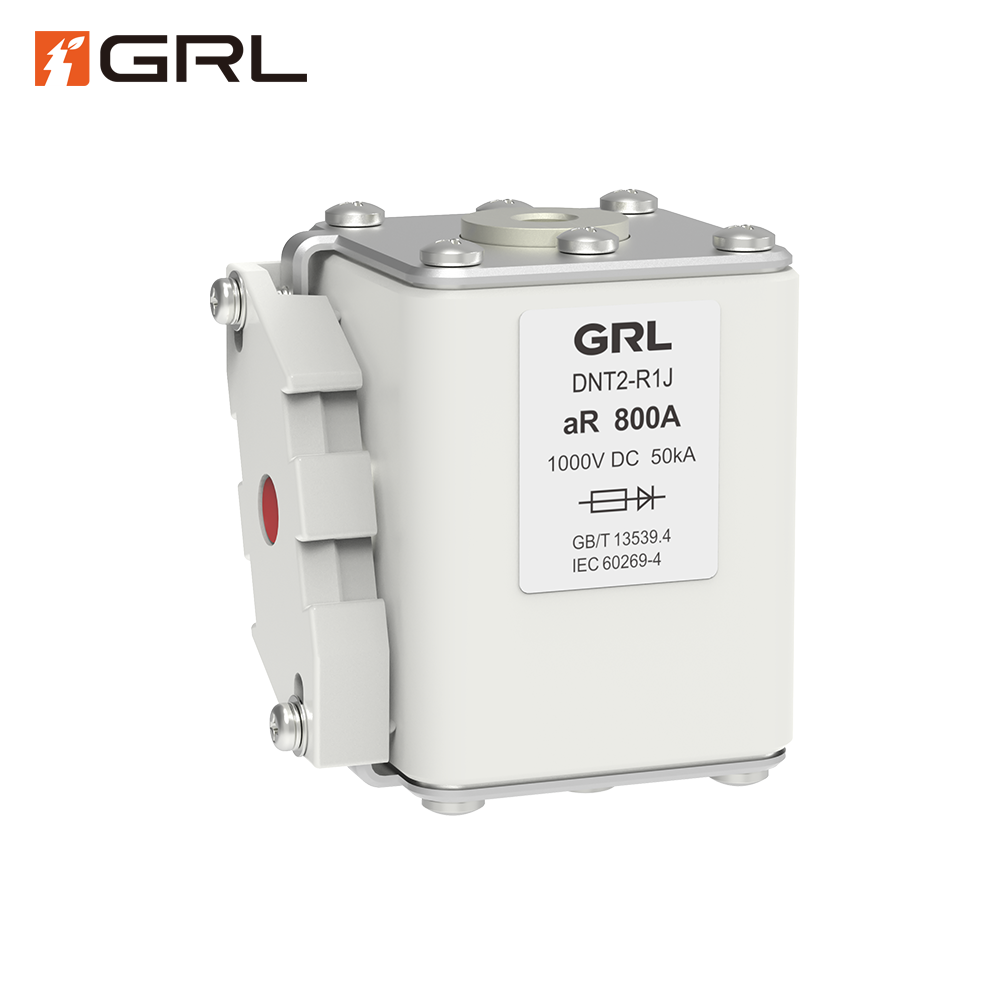

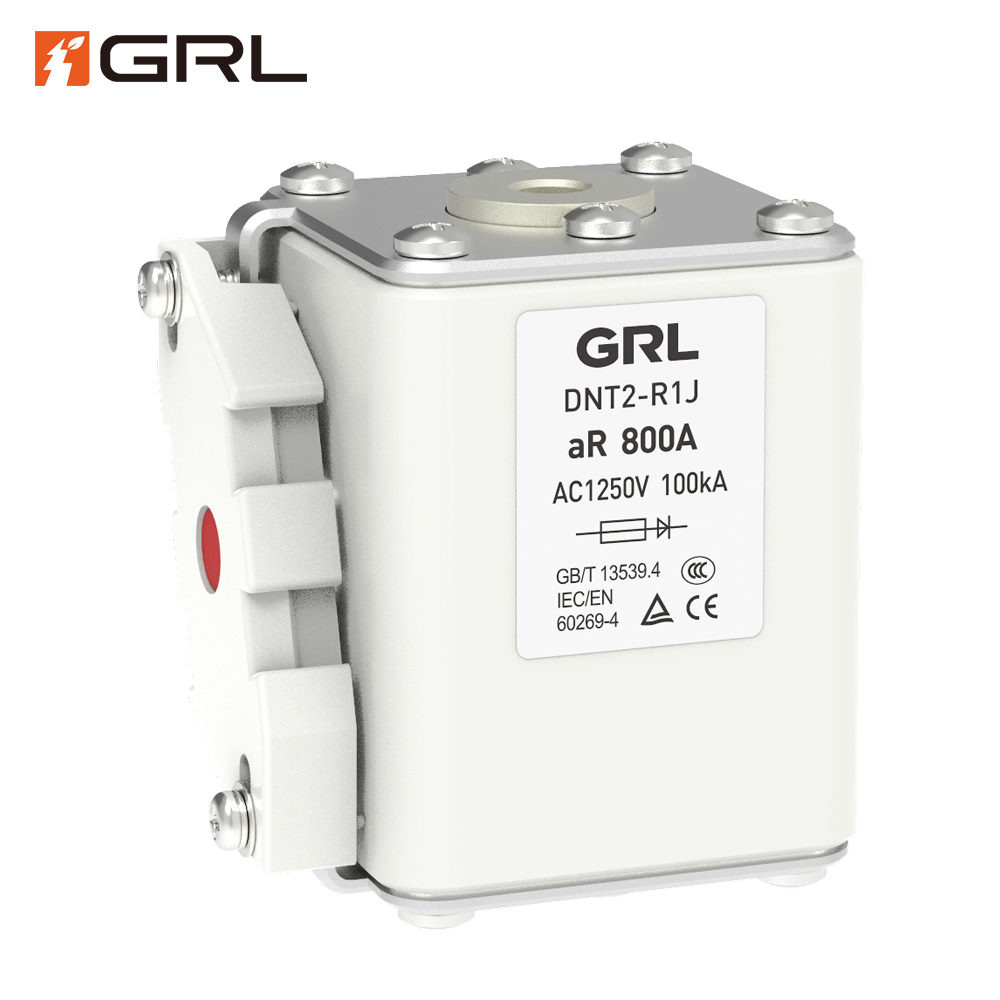

DNT2-R1J Semiconductor Fuse Overview
In today’s demanding world of power conversion, the need for instantaneous and definitive Circuit Protection is paramount. The GRL DNT2-R1J Fuse Link is an elite-class Ultra-Rapid Fuse, specifically engineered by GRL Fuse to provide the highest level of Power Semiconductor Protection for systems operating up to an impressive 1300V AC.
Engineers designing systems around sensitive and expensive components like IGBTs and Thyristors understand that traditional fuses simply aren’t fast enough. The DNT2-R1J is classified as an aR Fuse, meaning it is purpose-built for ultra-fast fault clearance, delivering an Extremely Low I2t Value to ensure fault energy never reaches a destructive level. This high-performance design guarantees system reliability and dramatically extends the operational lifespan of your critical Power Electronics.
DNT2-R1J Semiconductor Fuse Features
The superior performance of the DNT2-R1J comes from its optimized structural design:
- Precision Fuse Element: Utilizing high-purity silver elements with precisely sized necks, the fuse is engineered to vaporize in milliseconds during a short-circuit, providing a truly Fast Acting Fuse response.
- Ceramic Body Construction: The robust ceramic body and high-density quartz sand filling ensure the effective quenching of the high-voltage arc (up to 1300V) and safe containment of fault energy, supporting its 100kA High Interrupting Capacity.
- Current Limiting Action: The GRL DNT2-R1J is a pure Current Limiting Fuse. It initiates the arc and introduces resistance so quickly that the fault current is severely limited, prevented from ever reaching its theoretical peak current.
DNT2-R1J Semiconductor Fuse Advantages
Choosing the DNT2-R1J means investing in the longevity and efficiency of your electrical systems.
- Maximum Asset Protection: The Low I2t Value is your insurance policy. By minimizing the thermal energy let-through, the fuse eliminates the primary cause of damage to sensitive Power Electronics, saving you substantial costs associated with component replacement and downtime.
- Unwavering System Reliability: This 1300V AC Fuse is built for continuous, reliable operation in harsh industrial environments, offering dependable Fault Clearance under the most extreme conditions.
- Optimal System Coordination: The DNT2-R1J simplifies system design by providing a highly defined time-current characteristic, making it easier to coordinate with other protective devices within complex Medium Voltage Industrial Fuse architectures.
- World-Class Compliance: Meeting the stringent IEC 60269-4 standards, the GRL DNT2-R1J is a product you can trust for high-stakes international projects.
DNT2-R1J Semiconductor Fuse Applications
The GRL DNT2-R1J series is essential for protecting semiconductor components across major high-power industries.
- Renewable Energy: Critical Circuit Protection in the DC and AC stages of large High-Voltage Solar Inverter systems and Wind Power Converter stacks.
- Transportation & Mobility: Securing the rectifiers and inverters used in Rail Traction Converter systems, including electric locomotives and high-speed rail, where reliability is essential.
- Industrial Automation: Protecting the input power stages and DC links of high-horsepower Variable Frequency Drive (VFD) Fuse units, soft starters, and UPS systems.
- Power Quality: Used in Static VAR Compensators (SVCs), harmonic filters, and other Power Electronics equipment designed to enhance grid stability.
DNT2-R1J Semiconductor Fuse FAQs
Q: How does the Ultra-Rapid Fuse speed actually protect an IGBT?
A: An IGBT can fail in microseconds when subjected to a high-current surge. The GRL DNT2-R1J melts faster than the IGBT’s own thermal limits can be exceeded. The incredibly low pre-arcing time and subsequent arc voltage work together to achieve the minimal Low I2t Value, interrupting the fault current before it can cause the silicon junction to overheat and fail.
Q: Should I use a fuse with an indicator or striker?
A: Yes, many applications require a remote indication of a blown fuse. The DNT□-R1J series is available with an integrated striker, allowing the fuse to be used in compatible fuse bases or monitoring devices to trigger a microswitch, providing visual or electrical signaling of a fault for immediate maintenance response.
Q: Is the DNT2-R1J Fuse Link suitable for DC applications?
A: The DNT□-R1J series is primarily rated for AC 1300V Fuse applications. While some fuses can be used on DC, the specific DC voltage rating and capability can be significantly different due to the challenge of extinguishing a DC arc. For DC applications, you must refer to the full technical datasheet or contact a GRL Fuse expert to ensure the appropriate fuse selection is made.
