GRL DNT2-R1L Series: Analyzing the Reliability of 1000V DC Ceramic Fuse Links
A Deeper Look at the GRL DNT2-R1L: Engineered for DC Excellence
In the rapidly expanding field of high-power electronics, component reliability is non-negotiable. The GRL DNT2-R1L series ceramic fuse link is not just a standard protective device; it is a meticulously engineered solution designed to function flawlessly within challenging 1000V DC circuits. Operating across a crucial current range of 250A to 800A, this fuse link provides the bedrock of safety for costly power stacks in renewable energy and storage applications.
The Significance of the aR Class and Low I²t
The designation aR-class is central to the DNT2-R1L’s value proposition. This means the fuse is specifically calibrated for ultra-fast performance during short-circuit faults—the most common cause of catastrophic failure in power modules. This speed translates directly into its exceptional current-limiting capability, measured by the I²t value.
The GRL DNT2-R1L achieves a remarkably low I²t. By limiting the total destructive thermal energy passed to the protected component (such as an IGBT or Thyristor), the fuse ensures that the device’s thermal threshold is never breached. This precision I²t matching capability is essential for system longevity, providing protection that simply cannot be matched by slower, general-purpose fuses.
Core Specifications: Power Meets Capacity

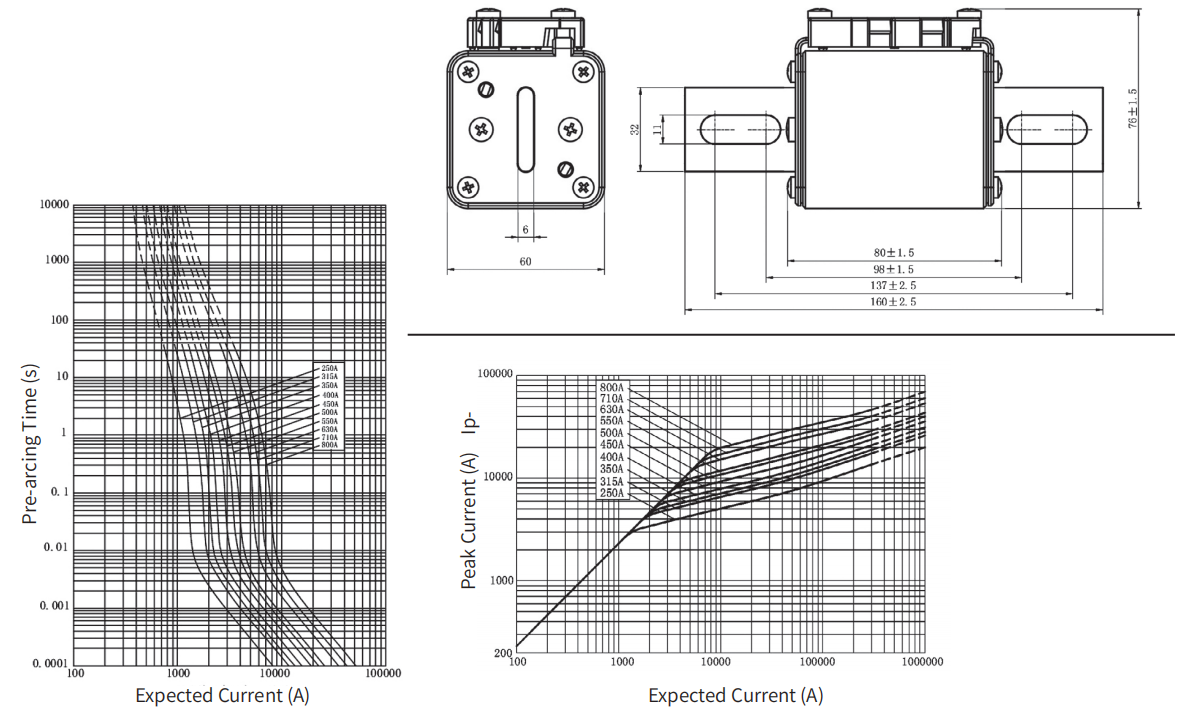

The DNT2-R1L’s technical robustness is confirmed by its key ratings:
-
Model: GRL DNT2-R1L Series
-
Voltage: 1000V DC
-
Current Range: Spanning from 250A up to 800A
-
Interrupting Rating: A reliable 50kA (Low Voltage Fuse classification)
-
Protection Type: aR Ceramic Semiconductor Fuse Links
Reliability Through Ceramic Construction
The choice of a ceramic body is fundamental to the fuse’s performance, particularly in high-current, high-DC-voltage environments:
-
Thermal Management: The high-density ceramic casing offers superior mechanical stability and significantly better thermal dissipation than alternative materials. This is crucial for maintaining cool operation at continuous currents up to 800A and managing the intense heat generated during a fault interruption.
-
Arc Quenching Superiority: In a 1000V DC circuit, where the current never naturally crosses zero, reliable arc extinction is technically challenging. The specialized internal geometry and high-quality filler material within the ceramic body ensure the rapid suppression of the electrical arc, guaranteeing a safe 50kA interrupt.
Essential Applications for the DNT2-R1L
The GRL DNT2-R1L is the preferred choice for engineers building reliable systems where high current flows through sensitive semiconductors:
-
Utility-Scale BESS: Securing the massive DC energy storage circuits.
-
Large Converter Stations: Protecting the DC links in solar and wind power conversion facilities.
-
Industrial High-Power Drives: Providing fast, low I²t protection for powerful Variable Frequency Drives (VFDs).
Ensure Your System Integrity with GRL
Choosing the GRL DNT2-R1L is an investment in unparalleled protection precision and resilience. Contact our GRL specialists today for detailed technical specifications, precise I²t coordination data, and expert support to optimize the protection strategy for your 1000V DC, 250A-800A application.
DNT2-R1L Semiconductor Fuse Applications
The GRL DNT2-R1L series is trusted in critical high-power applications worldwide
