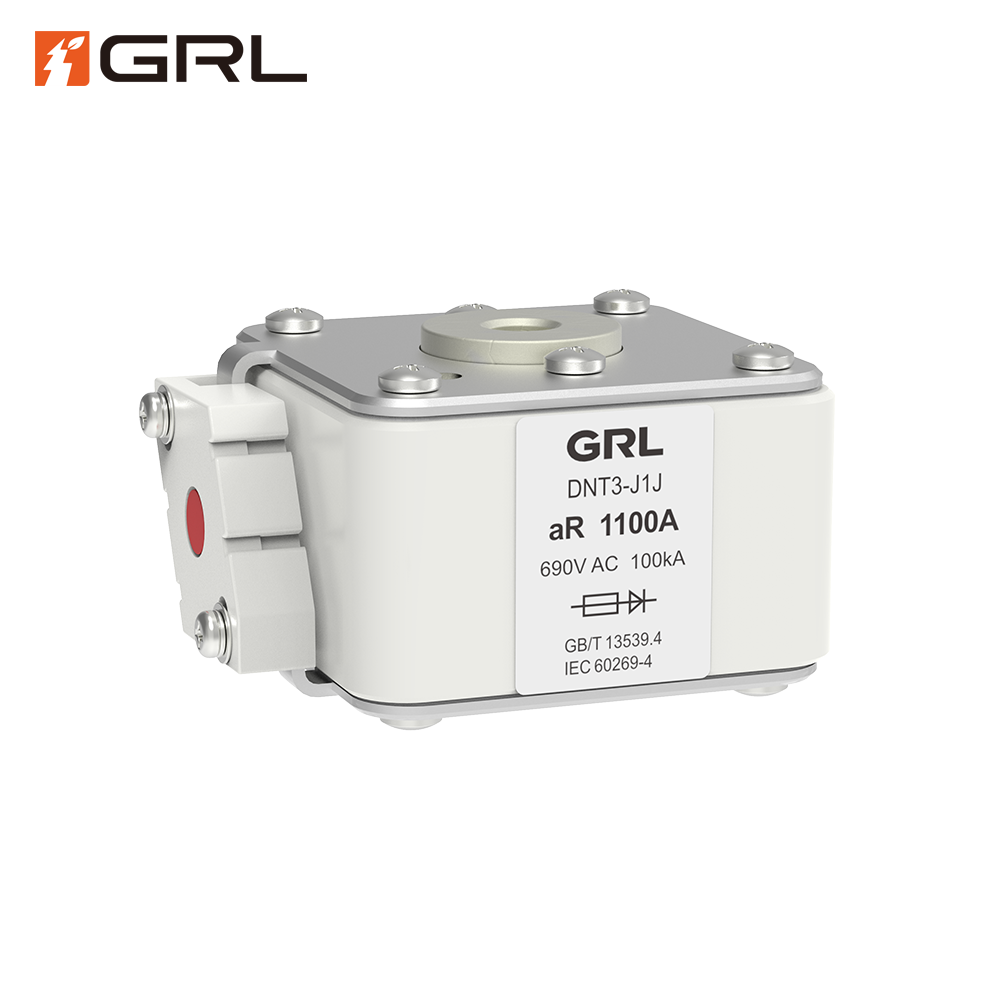

DNT3-J1J Semiconductor Fuse Overview
Specifically designed to safeguard high-value components like IGBTs, advanced SiC Protection (Silicon Carbide) modules, and Thyristors, the DNT3-J1J operates in the essential aR Fuse Class. This means it is purpose-built for the instantaneous and precise interruption of short-circuit faults. In the context of Power Electronics Protection, its defining feature is its Extremely Low I^2t Value. This metric is the engineer’s measure of success, ensuring that the absolute minimum amount of energy is let through during a fault, preventing damage and maximizing System Reliability across your critical assets.
For projects demanding the highest levels of safety and Downtime Reduction—from massive Utility-Scale Solar installations to rapid transit systems—the GRL DNT3-J1J High-Speed Fuse is the definitive Current Limiting Fuse solution.
DNT3-J1J Semiconductor Fuse Features
The DNT3-J1J Fuse leverages proprietary GRL technology to ensure protection in the microsecond range, where modern power semiconductors operate.
- Optimized Silver Melting Elements: The fuse element consists of high-purity silver, precisely shaped to create multiple points of rapid fault interruption. This optimized geometry ensures minimal pre-arcing time and guarantees its superior Current Limiting Fuse capability, crucial for effective IGBT Protection.
- High-Strength Ceramic Square Body Fuse: The rugged, compact ceramic casing is pressure-resistant and provides exceptional thermal dissipation and mechanical stability. This design makes the fuse resilient against high thermal cycling and external mechanical stress, a requirement for Traction Converters and heavy industrial equipment.
- Advanced Quartz Arc Quenching: The internal chamber is packed with chemically purified quartz sand, which rapidly absorbs the arc energy upon operation. This process achieves fast and safe High Breaking Capacity (100kA) and crucially prevents dangerous Overvoltage peaks that could damage neighboring electronic circuits.
- Visual Status Indication: Each Square Body Fuse is equipped with a visual indicator or a striker pin, allowing for remote monitoring and immediate fault detection, which is vital for quick maintenance and maximizing System Reliability.
DNT3-J1J Semiconductor Fuse Advantages
Choosing the GRL DNT3-J1J means investing in the longevity and efficiency of your high-power assets:
- Future-Proof Protection: Designed for DC 1500V, it is perfectly matched to the highest efficiency standards of modern Power Conversion systems, including the latest SiC devices.
- Unmatched Speed: The ultra-rapid action (aR class) ensures that expensive semiconductors are protected from transient faults, significantly reducing component replacement costs and achieving true Downtime Reduction.
- Maximum Energy Efficiency: Featuring a low wattage loss design, the High-Speed Fuse runs cooler under normal load, contributing to the energy savings and extended lifespan of the entire system.
- Guaranteed Compliance: Full adherence to IEC 60269-4 ensures global acceptance and interoperability for large-scale international projects.
DNT3-J1J Semiconductor Fuse Applications
The robust and fast-acting nature of the DNT3-J1J makes it indispensable in the world’s most demanding high-voltage applications:
- Renewable Energy: The definitive Photovoltaic Fuse for large-scale projects. Essential for DC 1500V Solar Inverter Protection, string-level fault isolation, and protecting Battery Energy Storage Systems (BESS).
- Electric Vehicle Infrastructure: The core protection component within Ultra-Fast EV Charging Infrastructure (e.g., 800V and higher DC fast chargers), ensuring the safe and reliable operation of the high-power Power Conversion stack for rapid E-Mobility.
- Rail and Traction: Provides vital High-Speed Fuse protection within Traction Converters and onboard auxiliary power systems in electric trains, where resistance to vibration and absolute safety are mandatory.
- Heavy Industry & Automation: Used in high-power medium voltage drives and large VFD (Variable Frequency Drive) systems, where reliable Semiconductor Protection for industrial motors is mission-critical.
DNT3-J1J Semiconductor Fuse FAQs
Q: Why do I need an Ultra-Rapid fuse like the DNT3-J1J for IGBTs/SiC devices?
A: Modern IGBT and SiC power switches have very little thermal mass and can fail catastrophically in microseconds under short-circuit conditions. Standard fuses are too slow. The DNT3-J1J Ultra-Rapid Fuse is an aR Fuse Class product, meaning it is specifically engineered to operate much faster than the component’s failure time, providing superior SiC Protection by achieving an Extremely Low I^2t Value (let-through energy).
Q: Can this 1500V Fuse be used for both AC and DC systems?
A: Yes. The GRL DNT3-J1J is rated for up to DC 1500V and AC 1500V. Its design, particularly its powerful arc-quenching capability, is optimized to safely interrupt the more difficult-to-extinguish DC fault currents, making it highly versatile for applications like DC Link Protection in inverters and charging stations, as well as high-voltage AC outputs.
Q: What is the benefit of using a Square Body Fuse in high-power applications?
A: The Square Body Fuse format offers superior thermal dissipation and higher current ratings compared to cylindrical designs. Its robust, bolted connection tags ensure extremely low contact resistance, which minimizes power loss (I^2R) and heat generation, thereby contributing directly to the fuse’s longevity and the system’s System Reliability and efficiency.
