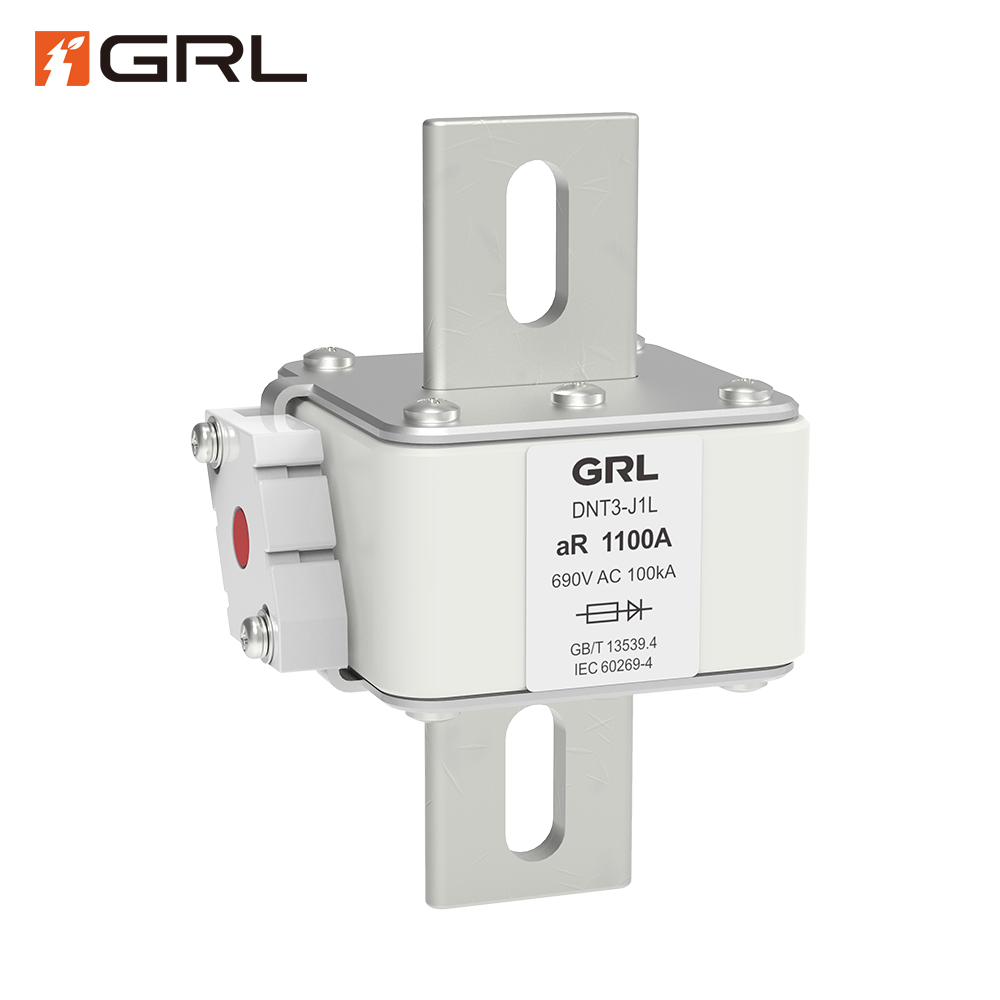

DNT3-J1L Semiconductor Fuse Overview
The GRL DNT3-J1L Series is the premier, purpose-built component for mission-critical Semiconductor Protection in the world’s fastest-growing high-power markets. As a flagship Ultra-Rapid Fuse, the DNT3-J1L is engineered for advanced power systems operating at an industry-leading DC 1500V and AC 1500V—the necessary voltage standard for maximizing energy transfer efficiency in solar and storage applications.
Operating within the strictly defined aR Fuse Class, this device is optimized for the instantaneous clearance of destructive short-circuit faults. It provides essential protection for costly and sensitive components such as IGBTs (Insulated-Gate Bipolar Transistors) and cutting-edge SiC Protection (Silicon Carbide) modules. The performance signature of the DNT3-J1L is its Extremely Low I^2t Value. This technical specification is the ultimate guarantee for engineers, ensuring that the fuse operates quickly enough to restrict let-through energy to the absolute minimum, thereby guaranteeing maximum System Reliability and quantifiable Downtime Reduction. For assets demanding the highest level of Power Electronics Protection, the GRL DNT3-J1L High-Speed Fuse stands as the indispensable Current Limiting Fuse.
DNT3-J1L Semiconductor Fuse Features
The DNT3-J1L Fuse is a masterpiece of electromechanical engineering, leveraging GRL’s proprietary technology to ensure microsecond-range protection:
- Optimized Silver Melting Elements: Internal pure silver elements are precisely shaped to ensure ultra-fast and simultaneous vaporization during a fault, maximizing the fuse’s Current Limiting Fuse performance.
- Robust Ceramic Housing: The high-strength, pressure-resistant ceramic Square Body Fuse casing ensures exceptional thermal stability and mechanical integrity, crucial for resisting shock and vibration in transit and rail applications.
- Advanced Arc Quenching: Chemically purified quartz sand densely packs the fuse chamber. This material rapidly absorbs the arc energy upon fault interruption, ensuring the safe clearance of 100kA faults while effectively preventing destructive Overvoltage spikes.
- Low Wattage Loss Design: Engineered for minimal power dissipation (I^2R) under normal load, the DNT3-J1L runs cooler, increasing operational efficiency and extending the life of surrounding components.
DNT3-J1L Semiconductor Fuse Advantages
Choosing the GRL DNT3-J1L is a strategic decision that fortifies your high-power infrastructure:
- Unbeatable Speed (aR Class): Acts instantaneously to prevent catastrophic failure of highly sensitive semiconductors, leading to significant component cost savings and maximizing Downtime Reduction.
- DC 1500V Future-Proof Protection: Designed to meet the highest voltage standards of today and tomorrow, securing your investment in the evolving landscape of Utility-Scale Solar and E-Mobility.
- Guaranteed Global Compliance: Full adherence to IEC 60269-4 ensures the fuse is readily accepted for large-scale international projects, simplifying specification and procurement.
- Enhanced Operational Efficiency: The low heat loss design improves the cooling requirements of your electrical cabinets, contributing directly to higher System Reliability.
DNT3-J1L Semiconductor Fuse Applications
DNT3-J1L Semiconductor Fuse FAQs
Q: Why is the Extremely Low I^2t Value so critical for SiC and IGBT protection?
A: The I^2t value (Ampere-squared-seconds) is the amount of energy the fuse allows through during a fault before the circuit is interrupted. Power semiconductors like SiC and IGBTs have exceptionally low thermal limits and can be destroyed in microseconds. The GRL DNT3-J1L is engineered as an ultra-fast acting fuse to minimize this value to an absolute minimum, ensuring the fuse blows before the semiconductor is damaged, providing true, reliable SiC Protection.
Q: Is the DNT3-J1L an aR Class or gR Class fuse? What’s the difference?
A: The DNT3-J1L is an aR Fuse Class device, meaning it provides partial-range protection, specifically engineered for extremely fast short-circuit protection of semiconductors. It is the fastest class available in terms of I²t. A gR class fuse provides full-range protection (overload and short-circuit protection). Since the DNT3-J1L is designed purely for short-circuit clearance, other protective devices must be used for overload protection.
Q: Can this 1500V Fuse be used interchangeably for AC and DC applications?
A: Yes. The DNT3-J1L is rated for both DC 1500V and AC 1500V. Interrupting DC current is inherently more difficult because the current does not naturally pass through zero, but the DNT3-J1L’s robust arc-quenching design is specially optimized to safely and rapidly clear these difficult DC faults, making it highly versatile for applications ranging from DC Link Protection to high-voltage AC output stages.
