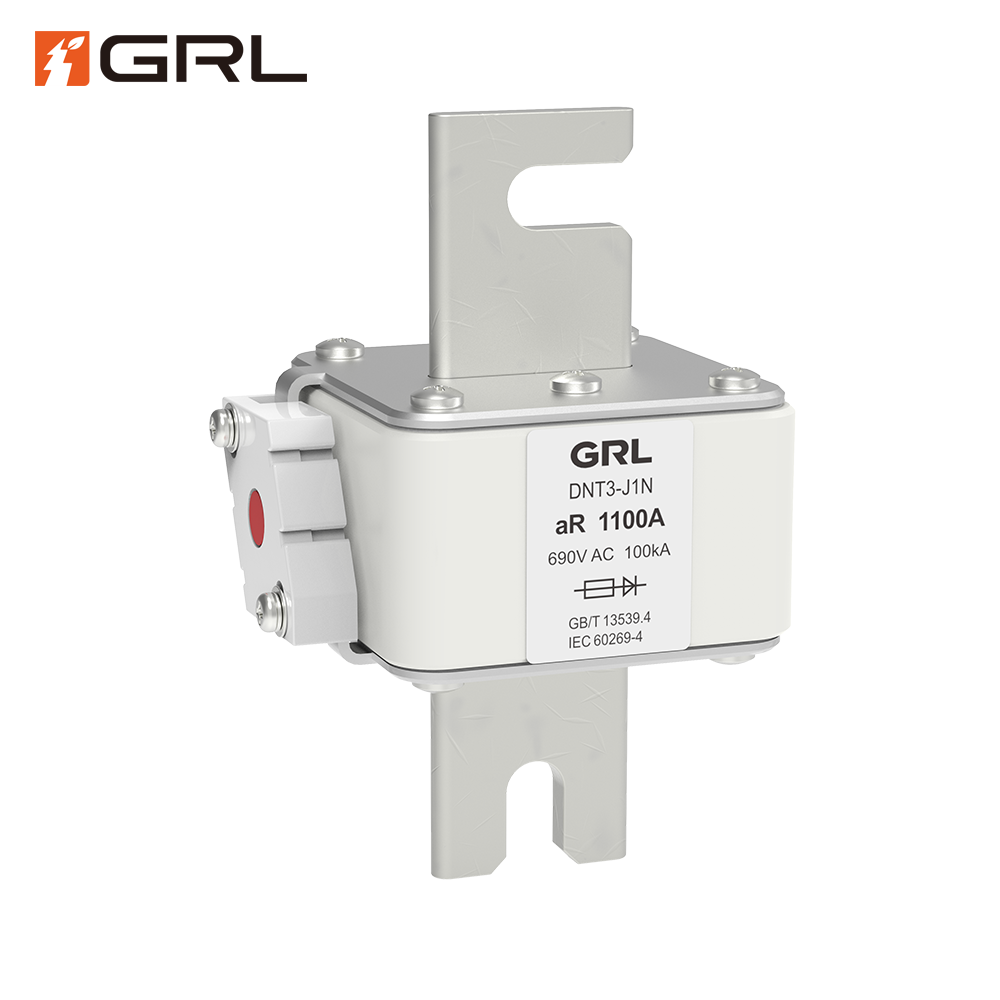

DNT3-J1N Semiconductor Fuse Overview
Specifically designed to safeguard high-value components like IGBTs, advanced SiC Protection (Silicon Carbide) modules, and Thyristors, the DNT3-J1N operates in the essential aR Fuse Class. This means it is purpose-built for the instantaneous and precise interruption of short-circuit faults in 690V AC systems. In the context of Power Electronics Protection, its defining feature is its Extremely Low I2t Value. This metric is the engineer’s measure of success, ensuring that the absolute minimum amount of energy is let through during a fault, preventing damage and maximizing System Reliability across your critical assets. For projects demanding the highest levels of safety and Downtime Reduction—from major industrial facilities to high-power wind energy systems—the GRL DNT3-J1N High-Speed Fuse is the definitive Current Limiting Fuse solution.
DNT3-J1N Semiconductor Fuse Features
The DNT3-J1N Fuse leverages proprietary GRL technology to ensure protection in the microsecond range, where modern power semiconductors operate:
- Optimized Silver Melting Elements: The fuse element consists of high-purity silver, precisely shaped to create multiple points of rapid fault interruption. This optimized geometry ensures minimal pre-arcing time and guarantees its superior Current Limiting Fuse capability, crucial for effective IGBT Protection.
- High-Strength Ceramic Square Body Fuse: The rugged, compact ceramic casing is pressure-resistant and provides exceptional thermal dissipation and mechanical strength. This design makes the fuse resilient against high thermal cycling and external mechanical stress, a requirement for Industrial Drives and Traction Converters.
- Advanced Quartz Arc Quenching: The internal chamber is packed with chemically purified quartz sand, which rapidly absorbs the arc energy upon operation. This process achieves fast and safe High Breaking Capacity (100kA) and crucially prevents dangerous Overvoltage peaks that could damage neighboring electronic circuits.
- Visual Status Indication: Each Square Body Fuse is equipped with a visual indicator or a striker pin, allowing for remote monitoring and immediate fault detection, which is vital for quick maintenance and maximizing System Reliability.
DNT3-J1N Semiconductor Fuse Advantages
Choosing the GRL DNT3-J1N means investing in the longevity and efficiency of your high-power assets:
- Optimized 690V AC Protection: Designed for 690V AC, it is perfectly matched to the highest efficiency standards of modern industrial Power Conversion systems and large motor drives.
- Unmatched Speed: The ultra-rapid action (aR class) ensures that expensive semiconductors are protected from transient faults, significantly reducing component replacement costs and achieving true Downtime Reduction.
- Maximum Energy Efficiency: Featuring a low wattage loss design, the High-Speed Fuse runs cooler under normal load, contributing to the energy savings and extended lifespan of the entire system.
- Guaranteed Compliance: Full adherence to IEC 60269-4 ensures global acceptance and interoperability for large-scale international projects.
DNT3-J1N Semiconductor Fuse Applications
The robust and fast-acting nature of the DNT3-J1N makes it indispensable in the world’s most demanding medium-voltage AC applications:
- Heavy Industry & Automation: Used in high-power Medium Voltage Drives and large VFD (Variable Frequency Drive) systems, where reliable Semiconductor Protection for industrial motors is mission-critical.
- Renewable Energy (Wind Power): Essential for protecting the AC output stages and power converters within wind turbine systems operating at or near 690V to ensure reliable grid integration.
- Rail and Traction: Provides vital High-Speed Fuse protection within Traction Converters and onboard auxiliary power systems in electric trains, where resistance to vibration and absolute safety are mandatory.
- Commercial and Marine Power: Core component for protecting large UPS (Uninterruptible Power Supplies), ship propulsion systems, and power quality equipment in industrial and maritime environments.
DNT3-J1N Semiconductor Fuse FAQs
Q: Why do I need an Ultra-Rapid fuse like the DNT3-J1N for IGBTs/SiC devices?
A: Modern IGBT and SiC power switches have very little thermal mass and can fail catastrophically in microseconds under short-circuit conditions. Standard fuses are too slow. The DNT3-J1N Ultra-Rapid Fuse is an aR Fuse Class product, meaning it is specifically engineered to operate much faster than the component’s failure time, providing superior SiC Protection by achieving an Extremely Low I2t Value (let-through energy).
Q: What is the benefit of using a Square Body Fuse in high-power applications?
A: The Square Body Fuse format offers superior thermal dissipation and higher current ratings compared to cylindrical designs. Its robust, bolted connection tags ensure extremely low contact resistance, which minimizes power loss (I2R) and heat generation, thereby contributing directly to the fuse’s longevity and the system’s System Reliability and efficiency.
