DNT3-O1L Semiconductor Fuse Overview

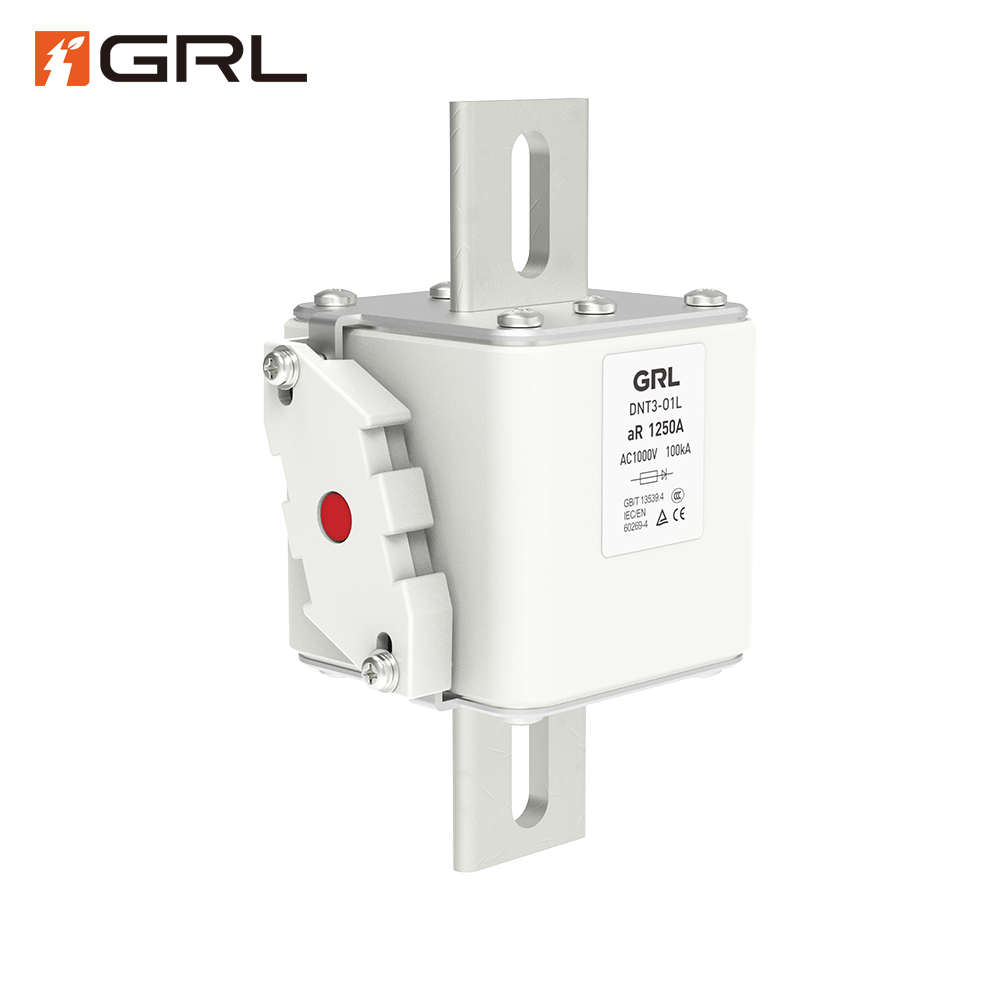

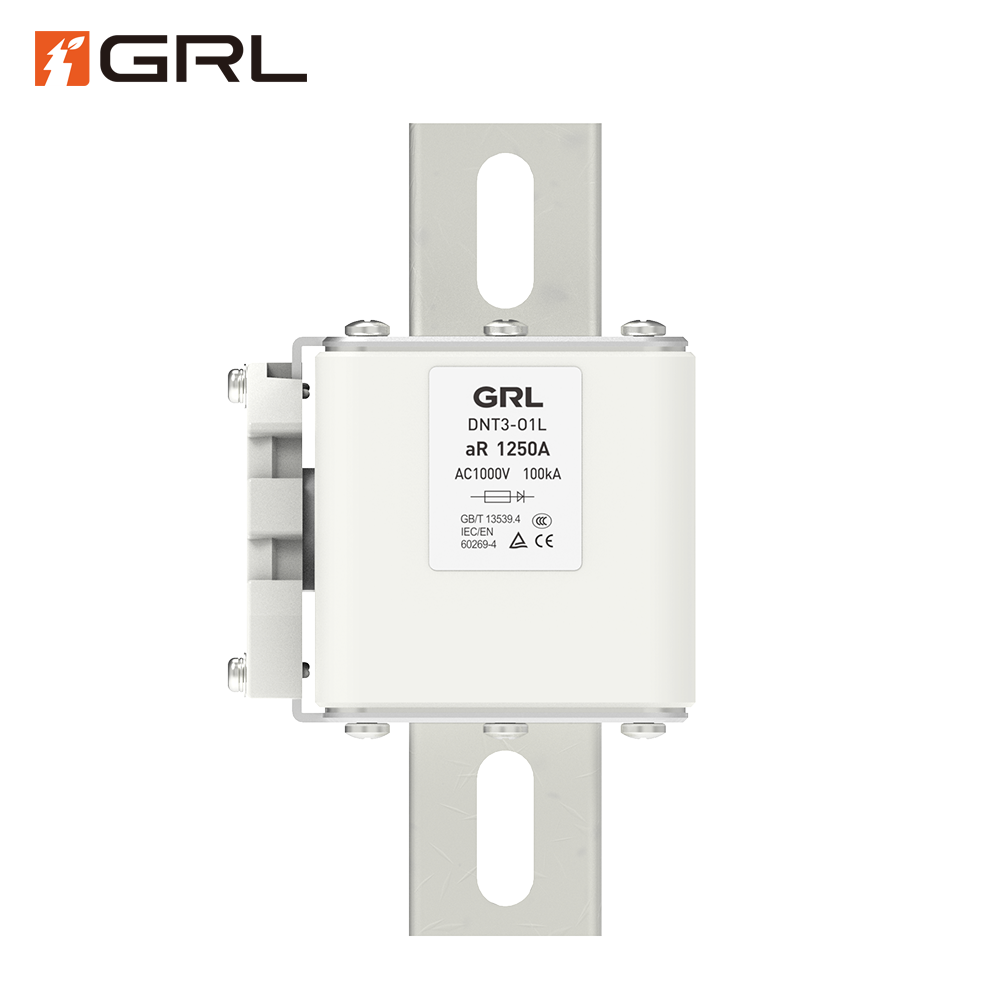

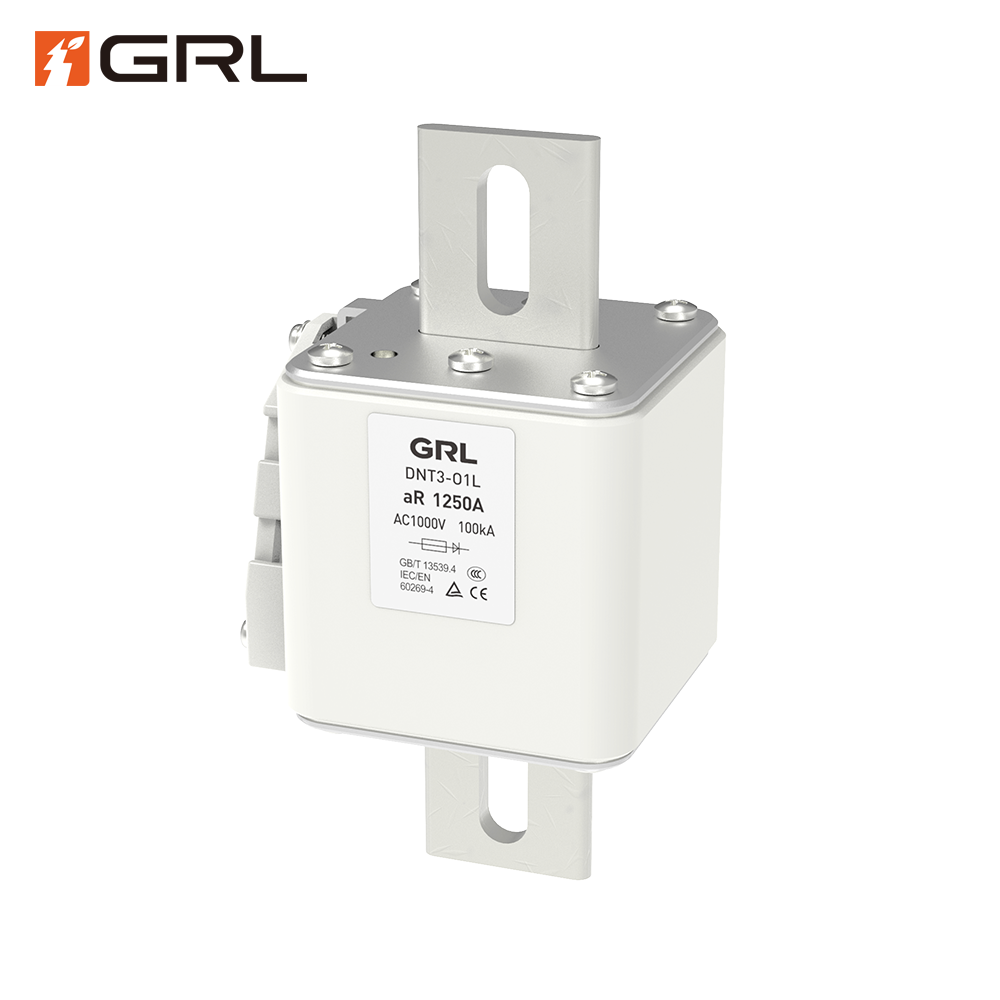

The GRL DNT3-O1L Ultra-Rapid Semiconductor Fuse is a high-performance high-voltage fuse link specifically engineered for advanced circuit protection of sensitive and costly power electronics devices. In today’s demanding high-power applications, such as large-scale renewable energy systems and sophisticated industrial control equipment, the speed and precision of fault interruption are non-negotiable.
The DNT3-O1L is a specialized fast-acting aR fuse designed to provide ultimate short-circuit protection for key semiconductor components like IGBTs, thyristors, and diodes. Operating at a rated voltage of 1000V AC, this fuse is an essential component for system reliability and longevity, conforming strictly to the IEC 60269-4 standard.
DNT3-O1L Semiconductor Fuse Features
The superior protective performance of the DNT3-O1L is founded on its specialized internal construction, designed for minimum energy let-through.
Key Product Features:
- Extremely Low I²t Value: The primary feature is the low I²t (Ampere-squared seconds) value. What is I²t and why is it crucial? It represents the thermal energy let-through during the fuse operation. The low value ensures that in the event of a fault, the fuse clears the current so quickly that the protected semiconductor components do not reach their destructive heat limit.
- Ultra-Rapid Trip Time: Classified as an ultra-rapid fuse, the DNT3-O1L is engineered for lightning-fast operation, making it significantly quicker than general-purpose fuses when clearing fault currents. Every millisecond counts for IGBT protection.
- Controlled Arc Voltage: Special design elements ensure the arc voltage generated during current interruption is kept low, preventing potentially damaging over-voltages from stressing the protected components.
- Robust Construction: Features a ceramic tube with high thermal and mechanical strength, filled with high-purity silica sand for effective arc quenching and stable long-term performance.
DNT3-O1L Semiconductor Fuse Advantages
Selecting the GRL DNT3-O1L fuse is an investment in maximizing equipment lifespan and operational safety.
- Maximum Component Lifespan: By delivering precise, low I²t protection, the fuse effectively prevents thermal and electrical overstress, significantly extending the service life of expensive power electronics modules.
- Operational Safety: The high breaking capacity of 100kA ensures safe interruption of even the highest prospective short-circuit currents in the 1000V AC system, isolating faults reliably.
- Global Interchangeability: The product dimensions often adhere to industry-standard sizes, facilitating replacement and design-in processes in systems using NH-type fuses (Size 3 equivalent).
- Optimized Power Loss: Engineered for low power loss under normal operating conditions, contributing to the overall system efficiency and reduced heat generation in power distribution units.
DNT3-O1L Semiconductor Fuse Applications
The DNT3-O1L Ultra-Rapid Semiconductor Fuse is indispensable in high-power applications requiring reliable overcurrent protection.
- New Energy Sector: Core circuit protection in Photovoltaic (PV) inverters and Energy Storage Systems (ESS), where it safeguards the critical DC/AC power conversion stages.
- Industrial Power: Used extensively in Variable Frequency Drives (motor drives), Soft Starters, Uninterruptible Power Supplies (UPS), and high-current power rectifiers for industrial control.
- Transportation: Provides robust protection for high-voltage power supplies and converters in electric vehicle (EV) charging stations and modern rail transportation systems, where vibration resistance is key.
- Power Distribution: Providing ultimate low I²t protection within advanced power distribution units and switchgear to prevent widespread damage from critical faults.
DNT3-O1L Semiconductor Fuse FAQs
Q: What is the main difference between an aR fuse and a gG fuse?
A: The DNT3-O1L is an aR fuse, which is a partial-range breaking fuse dedicated solely to short-circuit protection for semiconductor components. It offers an extremely fast-acting response to high fault currents. A gG fuse is a general-purpose fuse that provides full-range protection, covering both short-circuit and low-level, prolonged overload conditions, but it is not fast enough to protect semiconductors.
Q: Can this 1000V AC fuse be used in DC circuits?
A: While primarily rated for 1000V AC, the application of any AC fuse in a DC system requires careful consideration. DC current creates a much harder-to-extinguish arc. Users must consult GRL’s technical data to ensure the specific part number’s DC voltage rating and time-current characteristics are suitable for the application to guarantee safe circuit protection.
