DNT3-O1R Semiconductor Fuse Overview

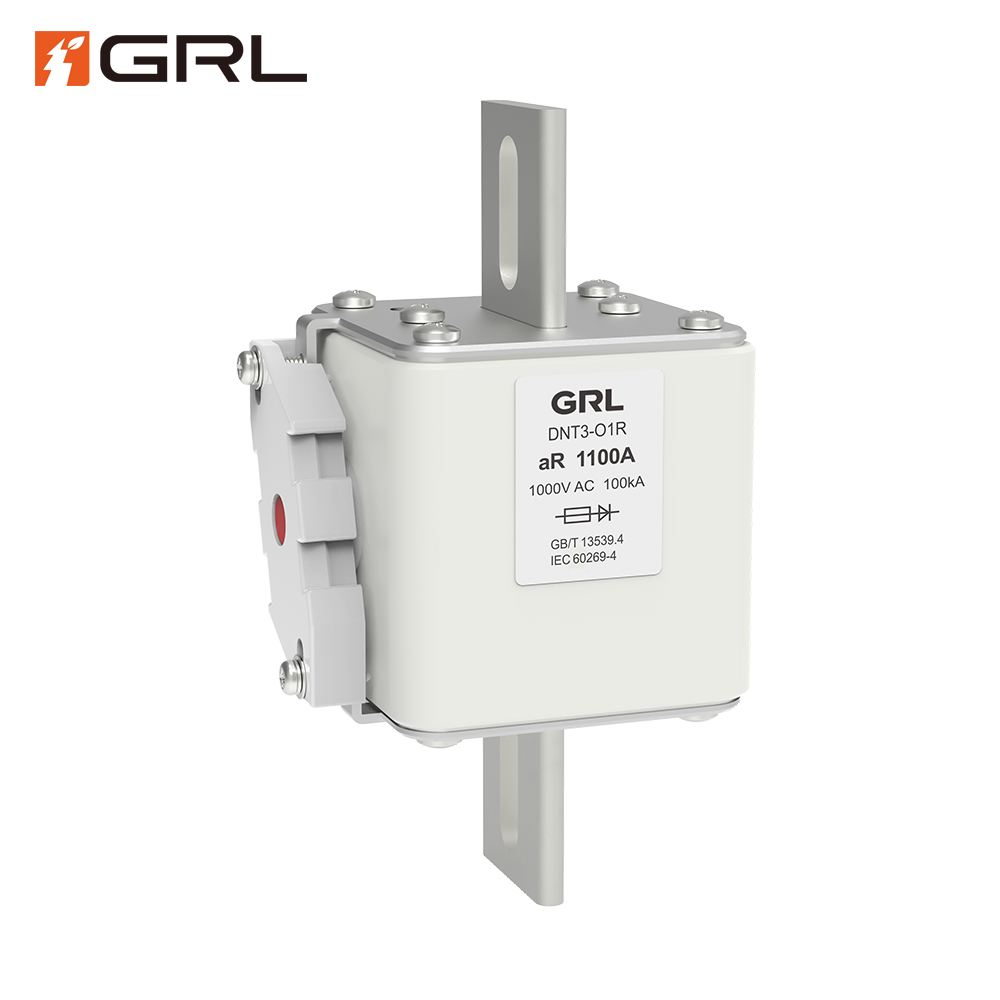

The GRL DNT3-O1R Ultra-Rapid Power Semiconductor Protection Fuse is a high-performance high-voltage fuse engineered to provide unparalleled circuit protection for sensitive and costly power electronics devices. In modern high-power applications, such as new energy systems and industrial control, the speed of fault interruption is critical. The DNT3-O1R is a specialized fast-acting fuse specifically designed to protect semiconductor components like IGBTs (Insulated-Gate Bipolar Transistors), SCRs, and diodes from catastrophic damage caused by short-circuit events.
Operating at a rated voltage of 1000V AC, this fuse belongs to the DNT-O1R series, which sets the benchmark for short-circuit protection reliability in demanding environments.
DNT3-O1R Semiconductor Fuse Features
The exceptional performance of the DNT3-O1R is due to its robust construction and meticulous design. The fuse element, typically made of silver or copper, is carefully shaped and enclosed in a high-strength body. The void is filled with arc-quenching silica sand, which absorbs arc energy and rapidly cools the element during a fault, ensuring superior performance.
Key Product Features:
- Ultra-Rapid Response: Unlike general industrial fuses, the DNT3-O1R is an ultra-rapid fuse with no intentional time-delay, making it ideal for the delicate protection of semiconductors.
- Low I²t Value: Low I²t (Ampere-squared seconds) is the energy let-through value, and a low figure is the most important feature of this fuse. Why is low I²t important? A lower I²t ensures that the amount of heat energy passed through the circuit during the fault interruption process is minimal, preventing secondary damage to the protected semiconductor components.
- High Mechanical Tolerance: The series is designed with a tolerance to current shock and high-intensity mechanical vibration shock, making it suitable for demanding installations like rail transportation and electric vehicles.
- Low Peak Currents (Ipeak): It limits the maximum current that the semiconductor device is exposed to during a short-circuit, further safeguarding the system.
DNT3-O1R Semiconductor Fuse Advantages
Choosing the GRL DNT3-O1R means investing in system longevity and operational safety.
- Maximum Component Protection: Provides dedicated overcurrent protection for valuable power electronics, significantly reducing downtime and replacement costs.
- Exceptional Safety: The high breaking capacity of 100kA ensures the fuse can safely interrupt very high prospective short-circuit currents, even in high-power distribution networks.
- Global Compliance: Conforming to the rigorous IEC 60269-4 standard ensures the fuse meets international performance and safety requirements.
- Seamless Integration: Designed with a Size 3 body, the fuse offers excellent power density, which is essential for compact industrial control and power distribution units.
DNT3-O1R Semiconductor Fuse Applications
DNT3-O1R Semiconductor Fuse FAQs
Q: What is the primary function of an aR fuse?
A: The “aR” designation means the fuse is for “Partial Range Breaking” and is dedicated to short-circuit protection only, not sustained low-level overload protection. It is engineered to operate extremely fast at higher fault currents, making it the ideal fast-acting fuse for protecting semiconductor components.
Q: Does the DNT3-O1R offer overload protection?
A: As an aR fuse, its primary and most effective function is short-circuit protection. While general-purpose fuses (like gG) handle both overloads and short-circuits, the DNT3-O1R’s ultra-rapid characteristics are optimized for the high-current faults that critically endanger power electronics. For overload conditions, complementary protection devices are often used in coordination.
