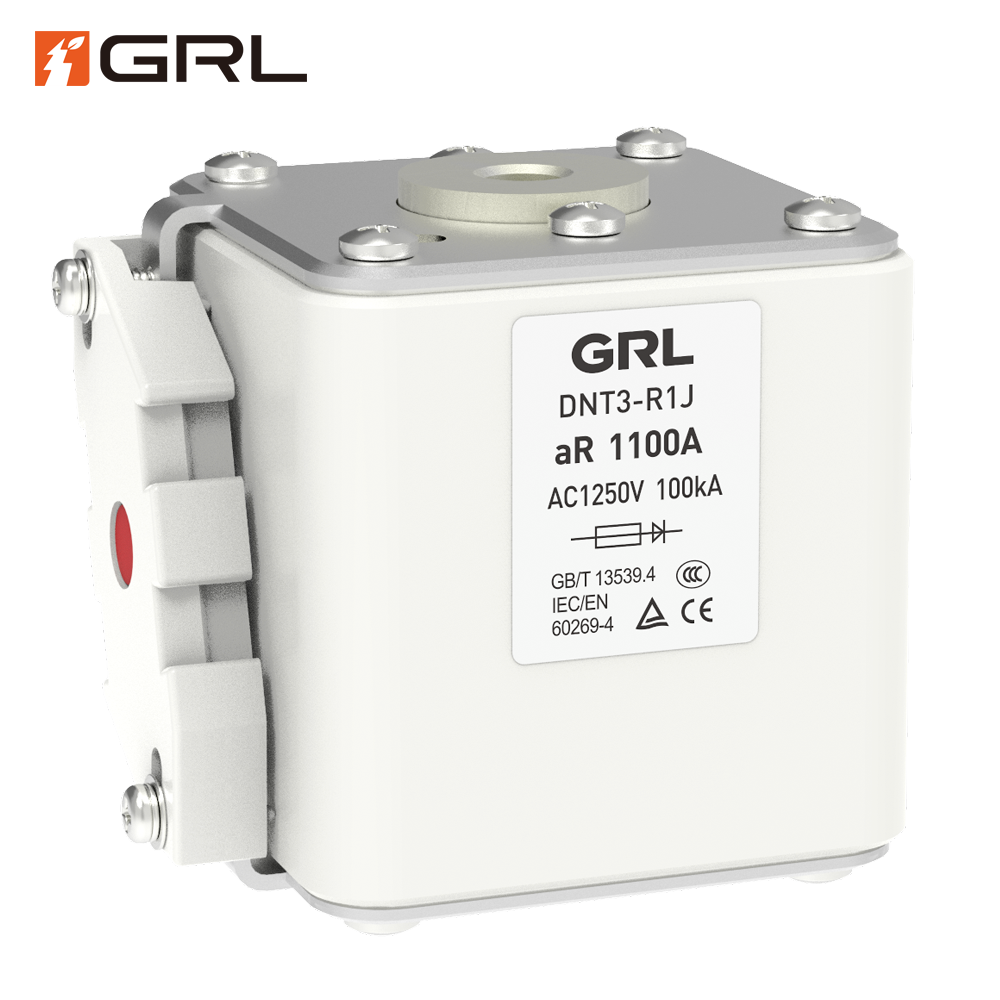

DNT3-R1J Semiconductor Fuse Overview
Introducing the GRL DNT3-R1J Semiconductor Fuse, the robust solution designed to meet the rigorous demands of AC 1300V Fuse applications. Engineered by GRL Fuse, this link is a top-tier Ultra-Rapid Fuse Link, specifically scaled up in a Square Body Fuse size (Size 3) to handle even higher current ratings while maintaining its lightning-fast response.
In high-power systems, effective Power Semiconductor Protection is paramount. The DNT3-R1J operates with a dedicated aR Fuse characteristic, meaning it is purpose-built for instantaneous Short-Circuit Protection. By delivering an Extremely Low $I^2t$ Value, it ensures that the destructive thermal energy during a fault is severely limited, offering absolute defense for expensive devices such as high-kW IGBTs and Thyristors. Rely on the DNT3-R1J to boost System Reliability and maximize the operational lifespan of your critical assets.
DNT3-R1J Semiconductor Fuse Features
The DNT3-R1J Fuse Link achieves its superior performance through meticulously engineered design elements:
- Multi-Point Fusion Technology: Features a complex arrangement of precision-sized pure silver elements designed to ensure simultaneous melting across multiple points. This technique is what gives the fuse its Fast Acting Fuse classification.
- Efficient Arc Quenching: The fuse elements are embedded in high-ppurity, carefully graded quartz sand, which rapidly cools and de-ionizes the arc, ensuring rapid Fault Clearance and safe containment of high-voltage energy.
- Active Current Limiting: This is a definitive Current Limiting Fuse. It generates a high arc voltage immediately upon melting, which actively opposes the fault current surge, preventing the current from ever reaching its prospective peak. FAQ: Why is Current Limiting so important for a Size 3 fuse? Because the DNT3-R1J handles higher currents, the potential fault energy is massive. Current Limiting Fuse action is crucial to minimize the enormous thermal and magnetic forces that would otherwise destroy equipment.
DNT3-R1J Semiconductor Fuse Advantages
The GRL DNT3-R1J provides essential advantages for engineering excellence:
- Absolute Device Protection: The minimal Low $I^2t$ Value guarantees that your investment in high-power Thyristors and IGBTs is secured against thermal runaway during short-circuits.
- High Power Capacity: As a larger Square Body Fuse (Size 3), the DNT3-R1J offers higher current ratings than the DNT2 series while maintaining the critical 1300V AC Fuse rating, ideal for large-scale conversion equipment.
- Unwavering Safety Compliance: Certified under IEC 60269-4, this fuse assures maximum safety and is recognized globally for its robust 100kA High Interrupting Capacity.
DNT3-R1J Semiconductor Fuse Applications
DNT3-R1J Semiconductor Fuse FAQs
Q: How does the DNT3-R1J handle the high heat from continuous current in a Size 3 body?
A: The Square Body Fuse design optimizes heat dissipation. The terminals are precision-machined to ensure a low-resistance connection, minimizing thermal losses. Furthermore, the fuse materials and construction are chosen to withstand the operational thermal cycling associated with continuous, high-current flow without compromising its Ultra-Rapid Fuse performance during a fault.
Q: Can I use this fuse for DC applications?
A: While the DNT3-R1J is primarily an AC 1300V Fuse, it may be suitable for DC applications at a reduced voltage and specialized selection criteria. Extinguishing a DC arc is more challenging. For DC systems, consult the full GRL technical datasheet or contact our engineering team to ensure proper Circuit Protection and voltage derating for your specific DC voltage and current.
