GRL DNT3-R1J: Scaling Protection to 1100A with Reliable 1000V DC, 50kA Performance
Maximizing Power Density Safely

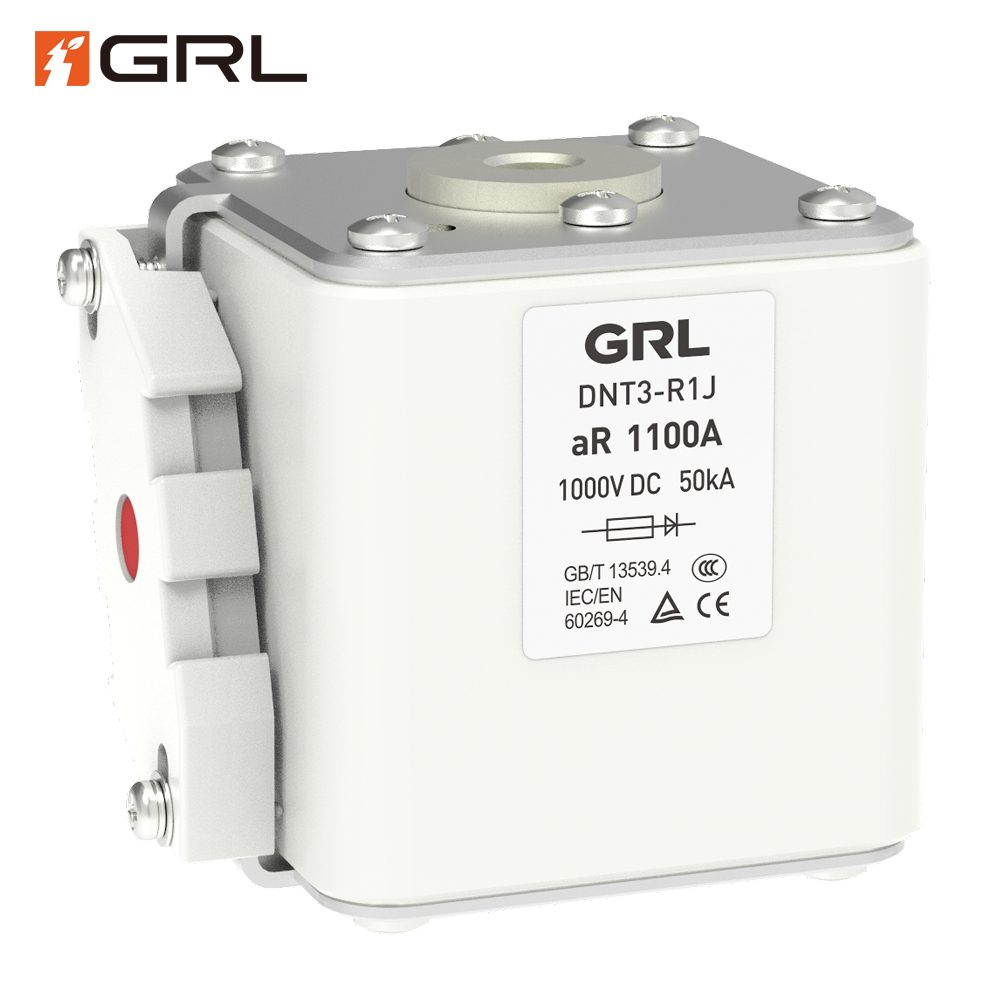

The GRL DNT3-R1J Ceramic Semiconductor Fuse Link is specifically engineered to meet the soaring demands of ultra-high-current DC power electronics. This fuse series scales protection capability, offering a substantial range from 315A up to 1100A, all while maintaining a consistent 1000V DC rating and a robust 50kA interrupting capacity. The DNT3-R1J allows system designers to consolidate protection for massive power stacks and busbars, ensuring that even the highest current modules receive precise, lightning-fast defense.
At the heart of the DNT3-R1J’s effectiveness is its aR-class designation and exceptional control over destructive energy.2 For systems operating near 1100A, the potential for catastrophic thermal damage during a fault is immense. The DNT3-R1J is engineered to deliver the lowest possible I²t value across its entire current range.
Unpacking the DNT3-R1J Specifications
The DNT3-R1J series leverages advanced ceramic construction to provide superior performance under duress:
| Feature | GRL DNT3-R1J Specification | Benefit to Your System |
| Rated Current Range | 315A – 1100A | Covers ultra-high-power DC links and collection buses. |
| Rated Voltage | 1000V DC | Optimized for modern high-voltage battery and grid applications. |
| Interrupting Capacity | 50kA | Guarantees safe and reliable fault clearance in industrial environments. |
| Protection Class | aR (Ultra-Fast) | Essential for protecting sensitive silicon devices. |
Essential Applications for Ultra-High Current DC
The extended current range of the DNT3-R1J makes it ideal for the largest power infrastructure projects:
-
Gigawatt-Scale Storage: Main DC circuit protection for large battery arrays in Battery Energy Storage Systems (BESS).
-
Central Power Converters: Securing the massive DC links in centralized Solar PV and Wind Power inverters rated above 1 MW.
-
High-Current Industrial Rectifiers: Providing essential protection for the input and output stages of high-amperage industrial power supplies.
-
DC Distribution: Protecting critical high-current DC distribution points and sectionalizing buses.
Engineered Reliability: Ceramic and DC Optimization
The ceramic body and internal element design of the DNT3-R1J are critical to sustaining high current and managing 1000V DC:
-
Superior Thermal Stability: The ceramic casing ensures mechanical rigidity and excellent heat dissipation, vital for continuous 1100A operation.
-
Reliable Arc Suppression: The design is optimized for rapid and effective arc quenching in the challenging, zero-crossing-free 1000V DC environment.
Take Control of High-Current Protection
If your project demands reliable, high-speed protection for DC currents up to 1100A at 1000V, the GRL DNT3-R1J is the definitive choice. Contact our GRL specialists today for detailed technical schematics, precise I²t coordination data, and expert consultation to seamlessly integrate this high-capacity fuse into your next generation power system.
