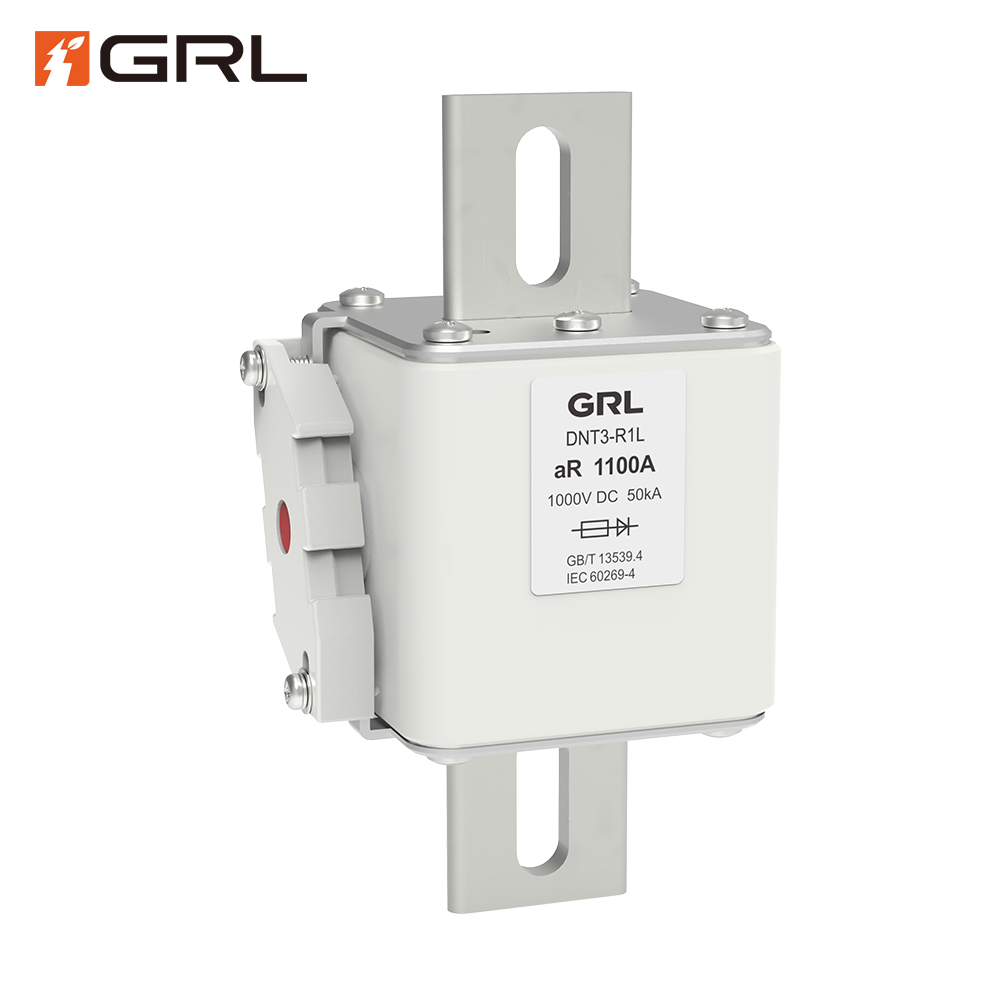

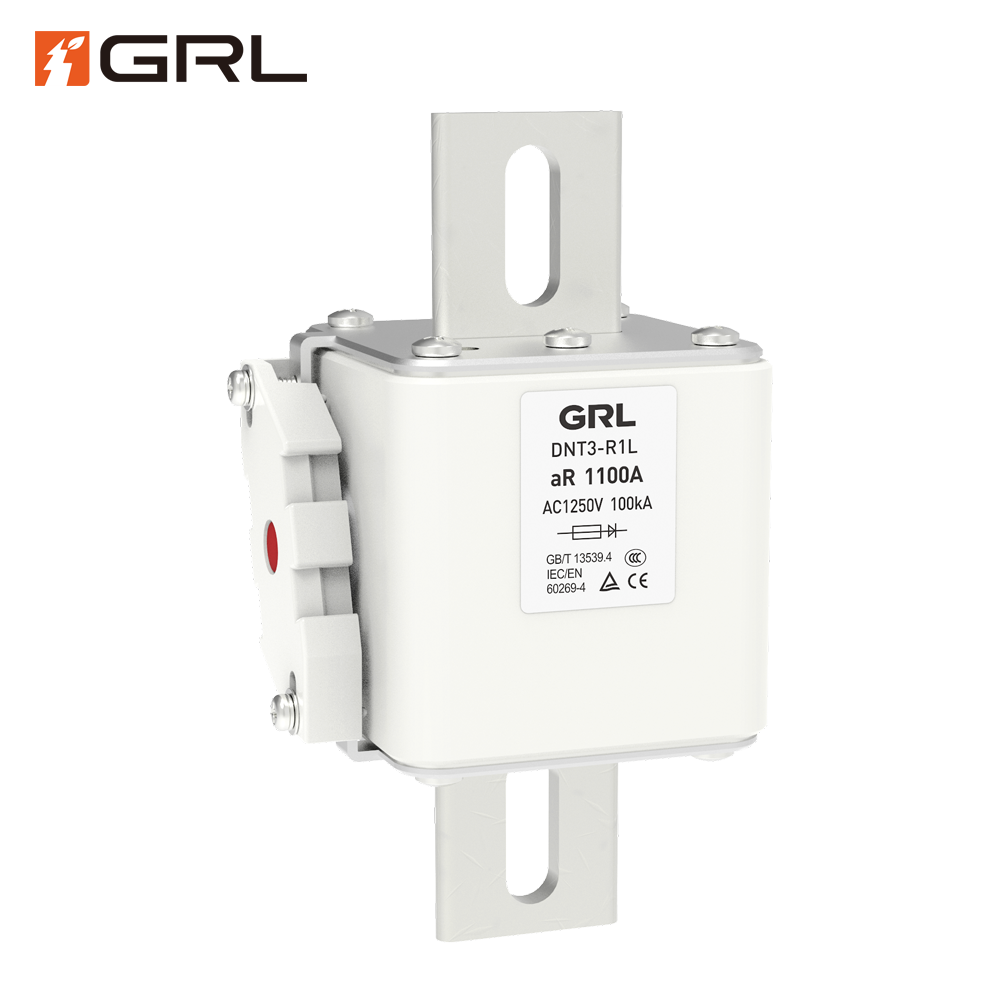

DNT3-R1L Semiconductor Fuse Overview
The GRL DNT3-R1L Semiconductor Fuse stands as a paramount solution in Power Semiconductor Protection, expertly engineered by GRL Fuse to safeguard high-power electronics in rigorous industrial environments. Classified as a high-capacity Size 3 Fuse in the Square Body Fuse family, the DNT3-R1L is explicitly designed for circuits up to AC 1300V Fuse.
As a specialized aR Fuse, its primary function is uncompromising Short-Circuit Protection. The DNT3-R1L achieves this with an Extremely Low $I^2t$ Value, a critical metric that guarantees the fuse clears a fault faster than the thermal withstand limit of protected devices like large IGBTs and Thyristors. By choosing this Ultra-Rapid Fuse Link, you secure unmatched defense against catastrophic failure, dramatically increasing System Reliability and component lifespan in your valuable Power Electronics.
DNT3-R1L Semiconductor Fuse Features
The GRL DNT3-R1L’s speed and reliability are rooted in its advanced design:
- Precision Silver Elements: Multiple pure silver elements are precisely shaped to vaporize in milliseconds upon a fault. This multi-point fusion process ensures a truly Fast Acting Fuse response, which is non-negotiable for silicon protection.
- Robust Ceramic Construction: The high-strength ceramic body and high-purity quartz sand filler ensure effective containment and rapid quenching of the high-voltage arc, validating its 100kA High Interrupting Capacity.
- Definitive Current Limiting Action: The DNT3-R1L is engineered as an active Current Limiting Fuse. It instantly introduces an arc voltage that forces the fault current to collapse, preventing it from reaching the theoretical peak current. FAQ: How does the DNT3-R1L’s Current Limiting Fuse action save my components? By limiting the current’s peak magnitude, the fuse drastically reduces the thermal and electromagnetic stress on your Power Electronics, thereby preventing component explosion and failure.
DNT3-R1L Semiconductor Fuse Advantages
The DNT3-R1L is an investment in safety, efficiency, and longevity for your high-power assets.
- Maximum Asset Longevity: The industry-leading Low $I^2t$ Value minimizes the thermal energy transferred during a fault, providing definitive Thyristor Protection and extending the operational life of your most costly modules.
- High-Capacity Performance: The Size 3 Fuse provides the necessary current handling capability for multi-megawatt converters and drives, all while maintaining the critical AC 1300V Fuse safety rating.
- Safety and Compliance: Full certification to IEC 60269-4 assures engineers of its quality, safety, and compatibility with global protective standards.
DNT3-R1L Semiconductor Fuse Applications
The GRL DNT3-R1L series is the preferred protection choice in the following critical high-power applications:
- Renewable Energy: Protection of central High-Voltage Solar Inverter systems and main converter stacks in large Wind Power Converter substations.
- Industrial Drives: Securing the sensitive semiconductor bridges within high-kW Variable Frequency Drive (VFD) Fuse systems and sophisticated soft starters.
- Transportation: Providing reliable Circuit Protection for the main Rail Traction Converter units and auxiliary power systems in electric mass transit.
- Power Quality: Essential for protecting rectifiers, inverters, and filtering components in large-scale Uninterruptible Power Supplies (UPS) and Static VAR Compensators (SVCs).
DNT3-R1L Semiconductor Fuse FAQs
Q: What exactly does the ‘aR’ protection category mean for the DNT3-R1L fuse?
A: The ‘aR’ classification designates this fuse as an Ultra-Rapid Fuse Link dedicated exclusively to Short-Circuit Protection of semiconductor devices. It is optimized for speed to clear high-current faults in milliseconds. It is not designed to protect against prolonged overloads (like a gG fuse is). Its singular focus on fast fault clearance ensures maximum thermal protection for sensitive components like IGBTs and Thyristors.
Q: How does the Extremely Low I2t Value of the DNT3-R1L directly protect my Power Electronics?
A: I2t (Ampere-squared-seconds) is a measure of the thermal energy let-through by the fuse during a fault. Since semiconductor devices (like IGBTs) have a very low thermal withstand capability, they fail almost instantaneously when exposed to high energy. The DNT3-R1L’s Extremely Low I2t Value guarantees that the fuse melts and opens the circuit faster than the fault energy can cause permanent, catastrophic damage to the silicon junction.
Q: Can I use the AC 1300V Fuse DNT3-R1L in my DC application?
A: The DNT3-R1L is primarily an AC 1300V Fuse. While it may be applied in certain DC circuits, it is essential to consult the specific time-current curves and technical datasheet. Extinguishing a DC arc is significantly more challenging than an AC arc, which naturally extinguishes at the zero crossing. For dedicated DC protection, a substantial voltage derating (reduction) is usually required, or you should select a GRL fuse specifically rated for high-voltage DC.
Q: Why is the Current Limiting Fuse feature so important in a Size 3 Fuse operating at 1300V AC?
A: As a Size 3 Fuse, the DNT3-R1L is used in very high-power systems where the prospective short-circuit current can be massive (up to its 100kA High Interrupting Capacity). The Current Limiting Fuse action is critical because it introduces a high arc voltage instantly upon melting, forcing the current to peak at a fraction of its theoretical prospective value. This prevents the enormous electromagnetic forces and thermal energy that would otherwise destroy the high-current busbars, contacts, and surrounding equipment.
