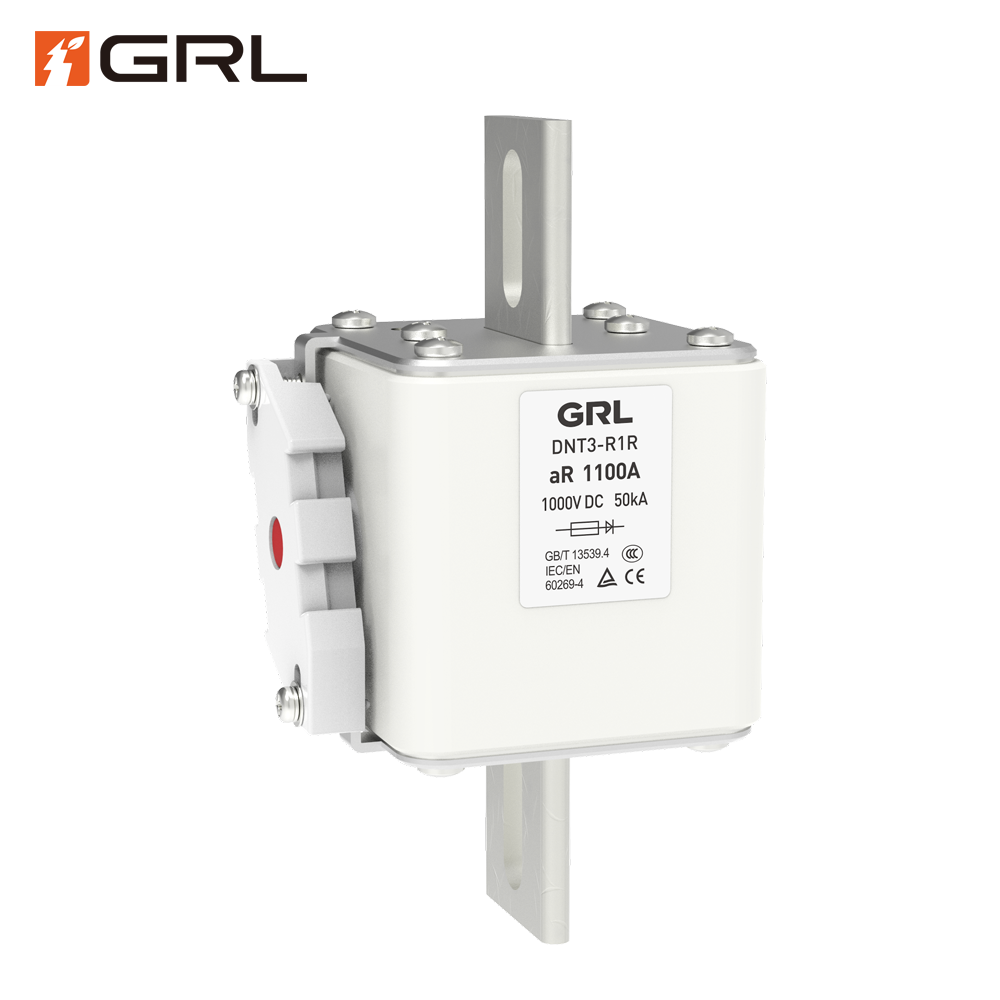

GRL DNT3-R1R aR Ceramic Semiconductor Fuse Links DC 1000V 315A-1100A 50kA Low Voltage Fuses

GRL DNT3-R1R: The Critical Link for 1000V DC Storage and Power Systems (315A–1100A)

Ensuring Operational Integrity in High-Current DC Infrastructure

When designing high-capacity 1000V DC systems, such as large Battery Energy Storage Systems (BESS) or mission-critical DC distribution networks, reliable fault isolation is paramount. The GRL DNT3-R1R Ceramic Semiconductor Fuse Link provides the necessary assurance. This aR-class fuse is specifically designed for quick, decisive action across an elevated current range of 315A to 1100A, ensuring that local short-circuit events are contained before they cascade into system-wide failures.

DNT3-R1R Semiconductor Fuse Technical Parameters

Click to read： How do semiconductor fuse links protect against short-circuit conditions?

Why is an aR-Class Fuse Critical for DC 1000V?

• Precision Semiconductor Protection: The DNT3-R1R is engineered with an ultra-fast response time to protect sensitive power stacks (IGBTs, Thyristors). Its speed is calibrated to the switching frequency of these devices.

• The Power of Low I²t: The most valuable defense is achieved through its minimal I²t (let-through energy) characteristic. By strictly limiting the thermal energy released during a fault, the DNT3-R1R prevents the thermal runaway that would otherwise destroy high-value silicon components operating at currents up to 1100A. This is the key to minimizing system downtime and repair costs.

• DC Arc Management: At 1000V DC, arc extinction is highly challenging. The ceramic construction and specialized element fill ensure that the 50kA interrupting capacity is achieved reliably, safely breaking the circuit despite the lack of a natural zero-crossing point.

Strategic Applications in High-Density DC Systems

The GRL DNT3-R1R is the ideal protection component where high current density meets high reliability requirements:

• Energy Storage Main Disconnects: Essential for securing the primary DC output circuits of large-scale BESS, managing currents up to 1100A.

• Data Center DC Power Distribution: Protection within centralized 1000V DC power infrastructure, ensuring rapid fault clearing on DC buses.

• High-Power DC Converters: Safeguarding the input/output stages of large industrial converters and rectifiers.

• DC Bus Sectionalizing: Used to divide large DC buses into protected zones, limiting the scope of any single fault event.

Simplify Maintenance and Ensure Uptime

The choice of the DNT3-R1R is an engineering decision that supports long-term operational efficiency:

• Standardized Integration: Despite the high performance, the fuse links are designed for seamless integration into standard bolt-down systems, simplifying installation and replacement.

• Longevity: The ceramic casing offers superior thermal stability and mechanical strength, contributing to a longer life expectancy even under continuous high-current operation.

Connect with Our DC Protection Experts

Are you ready to optimize the safety and operational life of your 1000V DC, 315A–1100A power infrastructure? Contact our GRL specialists today for detailed technical documentation, precise I²t coordination curves, and expert guidance on integrating the DNT3-R1R into your most critical systems.
