| Product Item | DNTRS |
| Rated Current | 100A-630A |
| Rated Voltage | AC 400VAC/690V |
| Applications | Industrial Control Cabinets |
| Fuse Sizes | NH00, NH1, NH2, NH3 |
| Rated Frequency | 50/60Hz |
| Rated Insulation Voltage(Ui) | 1000V |
| Rated Impulse Withstand Voltage(Uimp) | 10kV |
| The Default Connection Mode | V-clamp |
| The Other Connection Mode | Screw & Cable Lug |
| Installation of Busbar |
|
| Fixed Way |
|

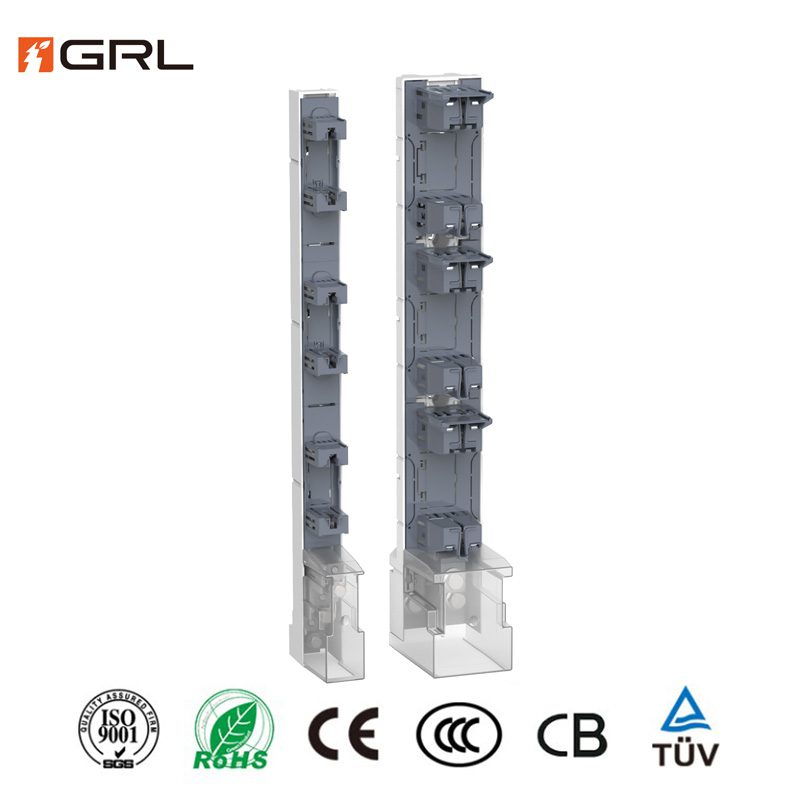

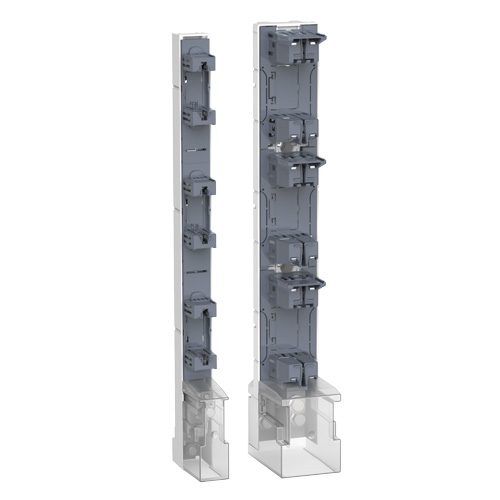

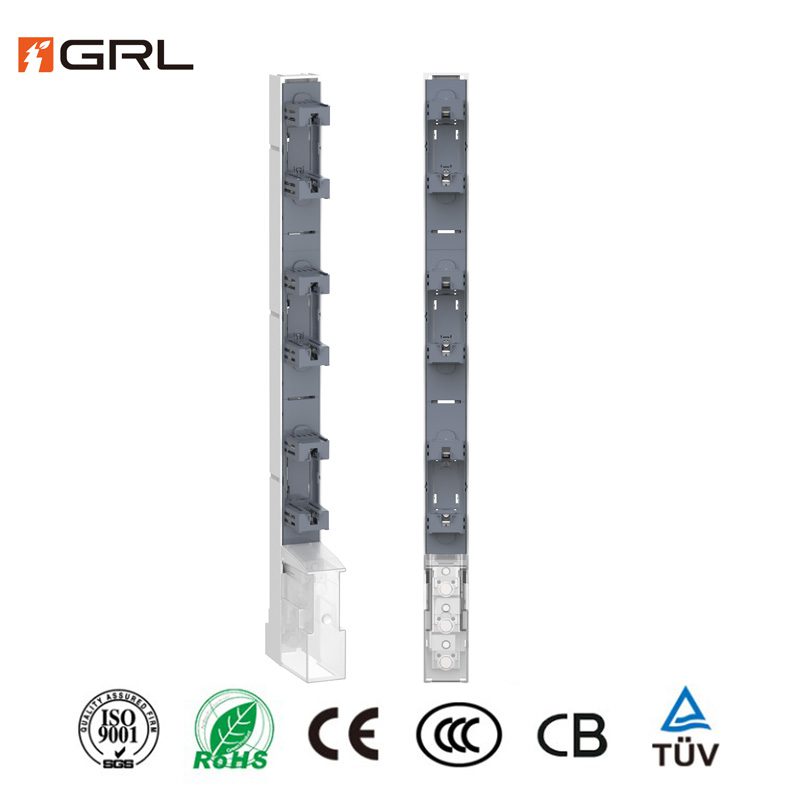

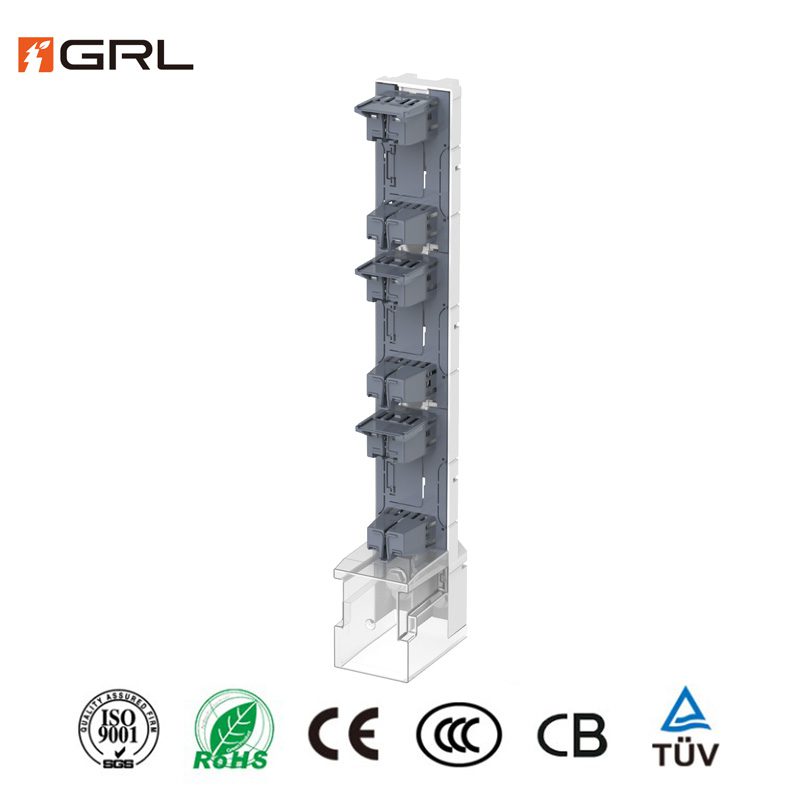

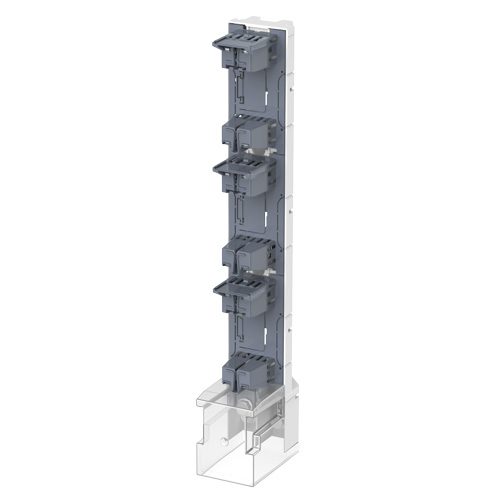

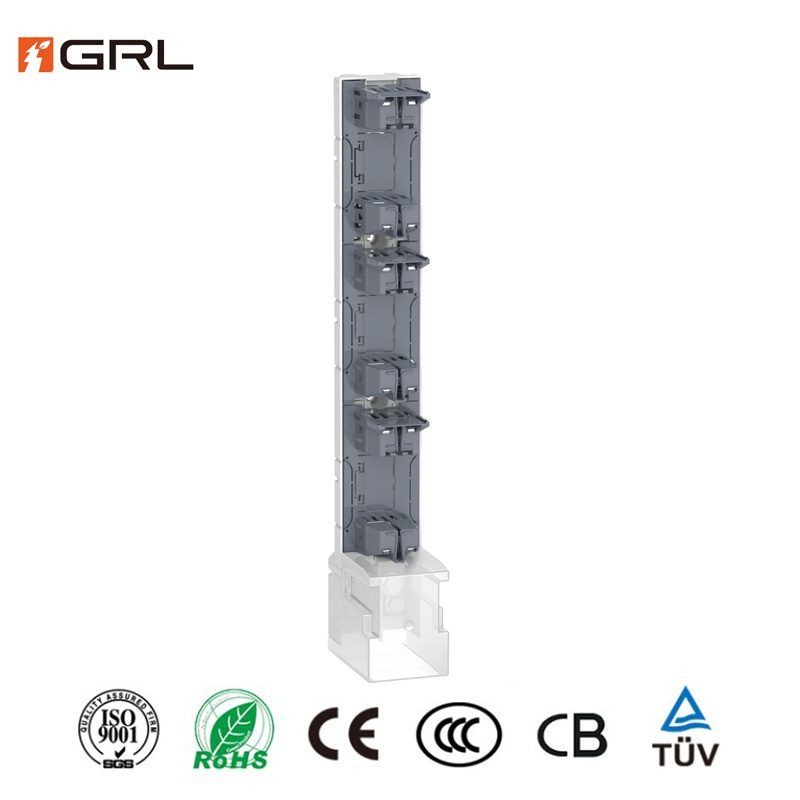

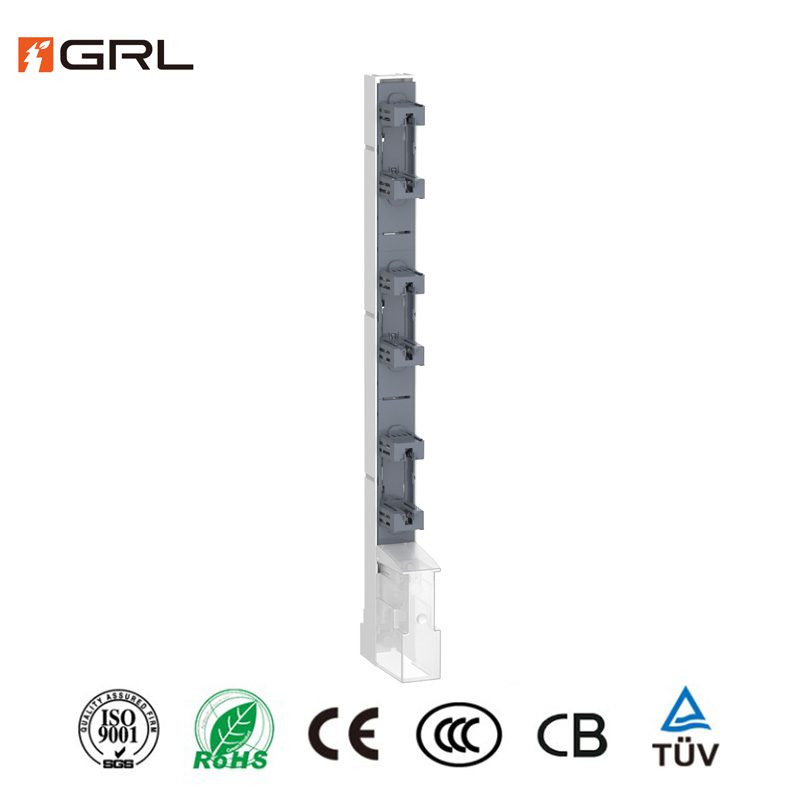

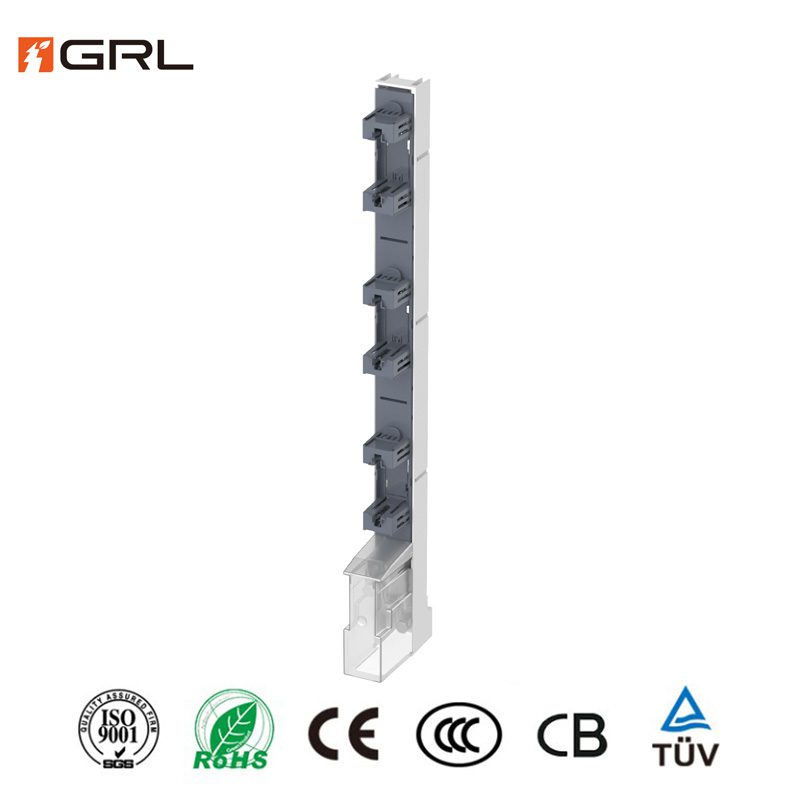

What is DNTRS Vertical Fuse Rail?
DNTRS vertical fuse rails feature unique process engineering. GRL realizes the integration of current transformer and fuse switch. The knife-edge wire entry and arc extinguishing device are used to ensure operator safety.
GRL ertical fuse rails have the following options:
- Optional isolation blade. All-round protection of the fuse core.
- A fuse monitor and signal switch can be installed, with a self-closing fuse monitoring hole.
- It can be used as a primary switch. The instantaneous breaking capacity can reach 100kA.
- The running capacity with load reaches 1.3 times of the rated current
- 100MM or 185MM busbar installation
Futher Details
- Conjoined type can be a three-phase closed offed simultaneously. And the split type can be operated independently.
- Operation safely. While the fuse installed in the handle, it can be used as a contact blade directly.
- It’s beautiful and practical. The whole switch can be disassembled easily and installed in the cabinet fastly.
- Reduce wiring and facilitate increased loop and cabinet utilization.
- Plexiglas base. Flame retardant grade, enclosure protection grade up to IP30.
- The latest product has the highest usage in the market.
- The instantaneous breaking force can reach 100kA.
- The operating capacity with load can reach 1.3 times the rated current.
- Can be used with fuse monitors, signal switches and remote control modules.
