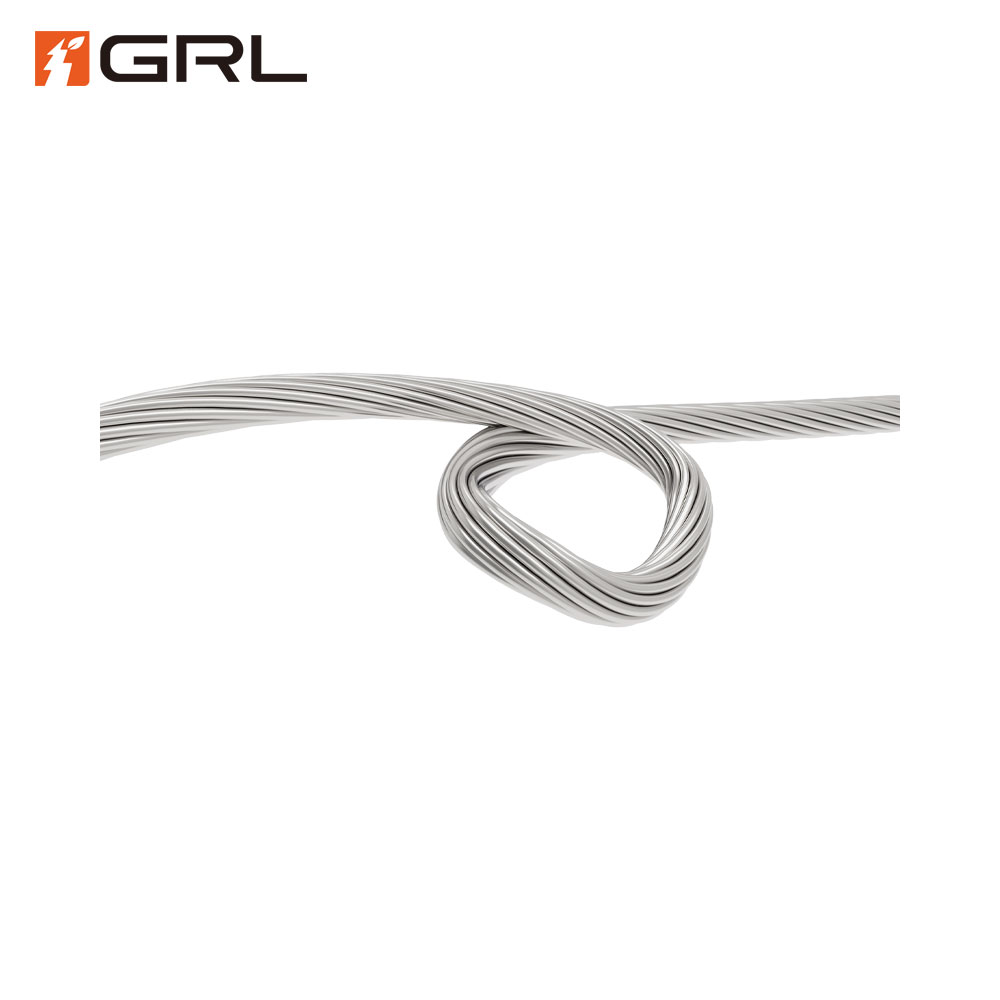

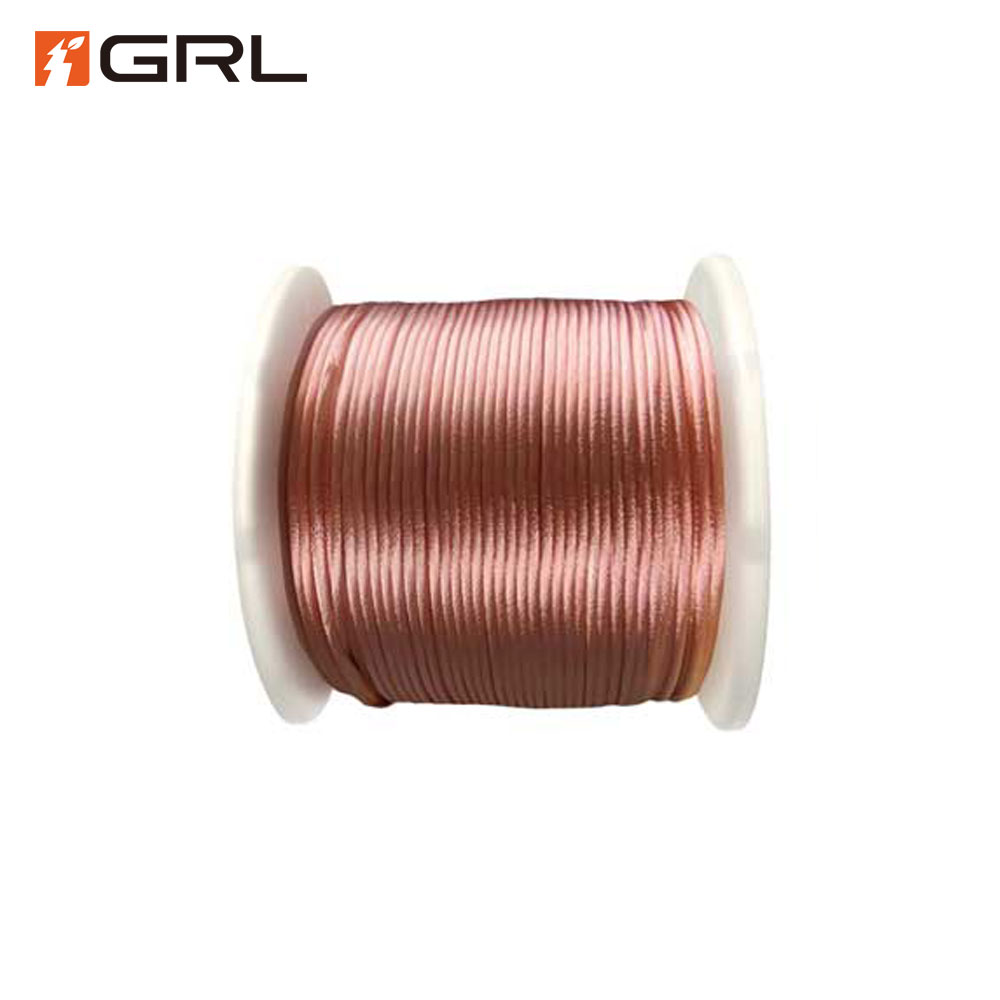

Flexible Copper Stranded Wire GRL Copper Connection

Material:

T2 Copper (Copper Content > 99.95%)

Surface Treatment:

Bare Copper or Tin-Plated

Cross-Sectional Area:

1.5mm² – 2000mm²

Wire Diameter:

Single Wire Diameter ranges from 0.15mm to 1.05mm (AWG30-AWG18)

Packaging:

Coils, spools, or reels to suit customer requirements

Production Standard:

GB/T12970.2-2009

Certification Download PDF Contact Us

Description

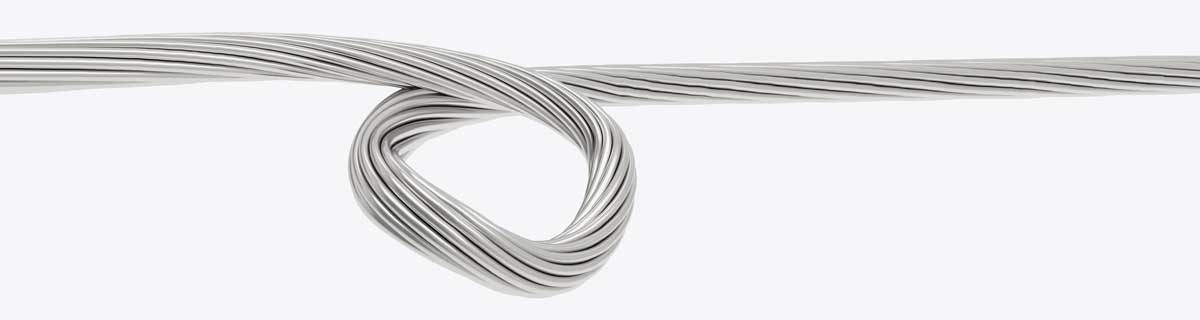

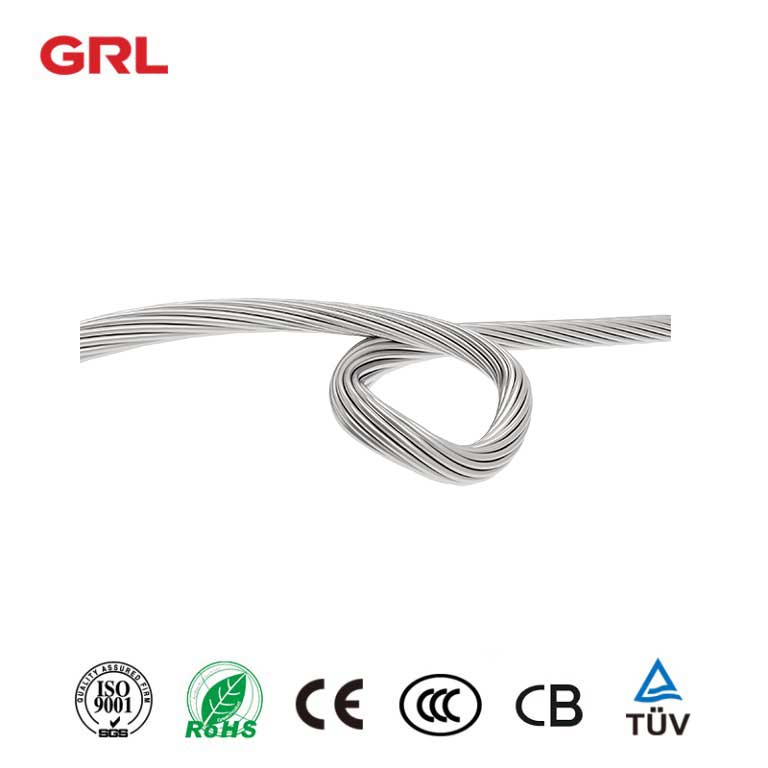

Flexible Copper Stranded Wire Overview

Description

The DNTJR(X) Flexible Copper Stranded Wire series is a versatile and reliable solution for flexible electrical connections. Made from high-purity T2 copper (copper content > 99.95%), it is ideal for electrical installations, switchgear, electric furnaces, and battery connections.

These wires are manufactured according to the GB/T12970.2-2009 national standard, ensuring superior quality and performance in demanding applications. The product is available in bare copper and tin-plated options and meets a wide range of customer requirements with customizable specifications.

Technical Parameter

Material: T2 Copper (Copper Content > 99.95%)
Surface Treatment: Bare Copper or Tin-Plated
Cross-Sectional Area: 1.5mm² – 2000mm²
Wire Diameter: Single Wire Diameter ranges from 0.15mm to 1.05mm (AWG30-AWG18)
Packaging: Coils, spools, or reels to suit customer requirements
Production Standard: GB/T12970.2-2009

Models and Specifications

Product Model	Nominal Cross-Sectional Area (mm²)	Wire Structure	Outer Diameter (mm)	DC Resistance at 20°C (Ω/km)	Weight (kg/km)
DNTJR(X)1-1.6	1.6	32/0.25	1.63	11.5	14.7
DNTJR(X)1-2	2	40/0.25	1.82	9.24	18.3
DNTJR(X)1-4	4	7×7/0.32	2.88	4.64	37.1
DNTJR(X)1-10	10	7×7/0.51	4.59	1.83	94.3
DNTJR(X)1-25	25	19×7/0.49	7.35	0.376	239
DNTJR(X)1-50	50	19×7/0.68	10.2	0.382	459
DNTJR(X)1-120	120	27×12/0.68	17.39	0.157	1119
DNTJR(X)1-400	400	37×19/0.85	29.75	0.0462	3795
