Fuse Holder

GRL Fusible holder Fuse Holder RT18-125 fuse size 22*58


Product model:RT18-125

Description:Fuse switch disconnector, standard structure without null line, standard structure with null line at right

Pole:1P, 1P+N, 2P, 3P, 3P+N

Mounting method:DIN rail installation

Wiring range:4-50mm^2

Fuse size:22*58

Rated operational current Ie:125A(500VAC)/100A(690VAC)

Rated operational voltage Ue:500VAC/690VAC

Rated insulation voltage:800V

Rated impulse withstand current Ipk:6kV

Breaking capacity with fuse:100kA(500VAC)/50kA(690VAC)

Utilization category with fuse:gG

IP:IP20

Reference:IEC 60269-2 GB/T 13539.2

Key words:Fuse holder ,In line Fuse Holder,fusible holder

What is a fuse compartment?

A fuse compartment is a designated space or enclosure within an electrical system or device that houses one or more fuses. It is specifically designed to provide a secure and organized location for fuses, ensuring their proper installation, protection, and easy access for maintenance or replacement.

Here are some key points about fuse compartments:

1.Purpose: The main purpose of a fuse compartment is to contain and protect fuses within an electrical system. Fuses are essential components for overcurrent protection, and the fuse compartment ensures that they are housed in a controlled environment.

2.Location: Fuse compartments can be found in various electrical systems, including electrical distribution panels, circuit breaker panels, control panels, machinery, appliances, and vehicles. The location of the fuse compartment depends on the specific application and design requirements of the electrical system or device.

3.Design and Construction: Fuse compartments are typically designed to be durable, electrically insulated, and provide proper ventilation to dissipate heat generated by the fuses. They may have features such as covers, doors, or hinged enclosures to protect the fuses from dust, moisture, and accidental contact.

4.Fuse Holder Integration: Fuse compartments often include integrated fusible holder or fuse blocks to securely hold and connect the fuses within the compartment. These holders or blocks provide electrical connections and allow for easy installation and replacement of fuses.

5.Labeling and Identification: Fuse compartments are usually labeled or marked to indicate the fuse ratings, circuit identification, or any relevant safety information. Clear labeling helps users identify the appropriate fuse for each circuit and facilitates maintenance and troubleshooting.

6.Safety Considerations: Fuse compartments are designed to promote electrical safety. They ensure proper insulation and containment of the fuses, reducing the risk of electrical shock and preventing unauthorized access to live components.

7.Access and Maintenance: Fuse compartments are designed for easy access during installation, inspection, and maintenance procedures. They may feature removable covers or doors that can be opened to provide access to the fuses, allowing for safe and convenient fuse replacement or testing.

Fuse compartments play a crucial role in organizing and protecting fuses within an electrical system. They help ensure the reliability and safety of the system by providing a dedicated space for fuses and facilitating their proper installation, maintenance, and replacement.

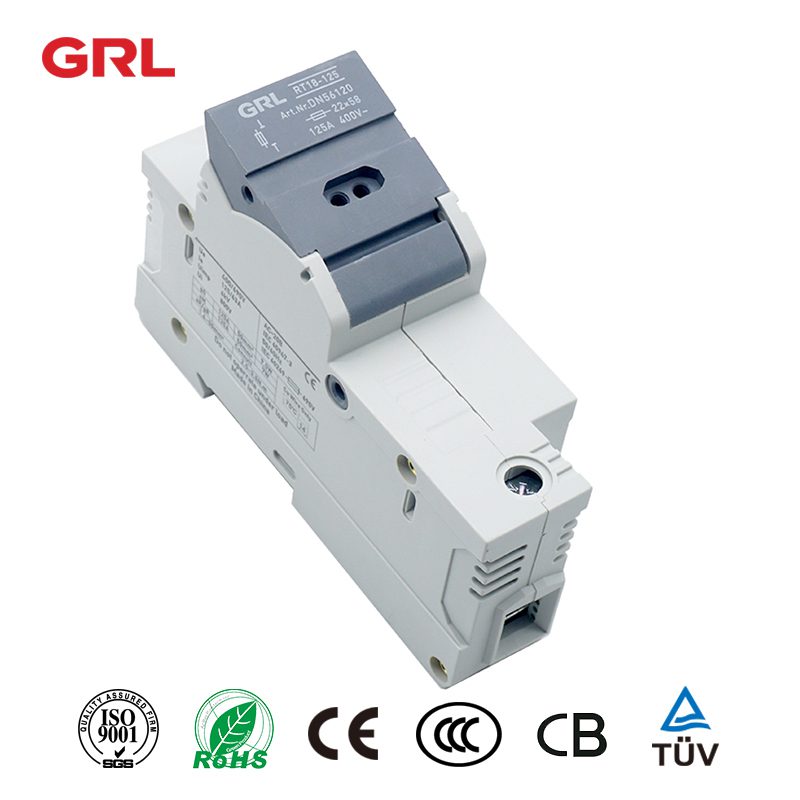

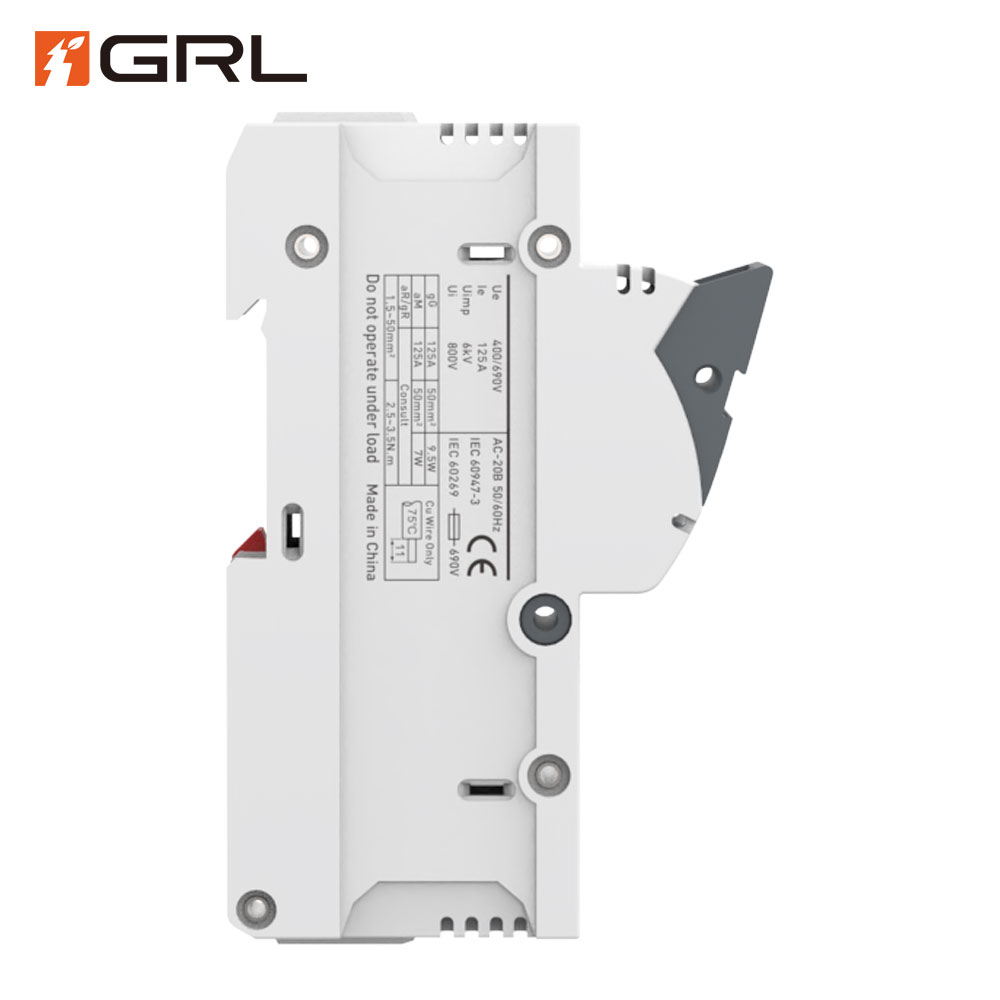

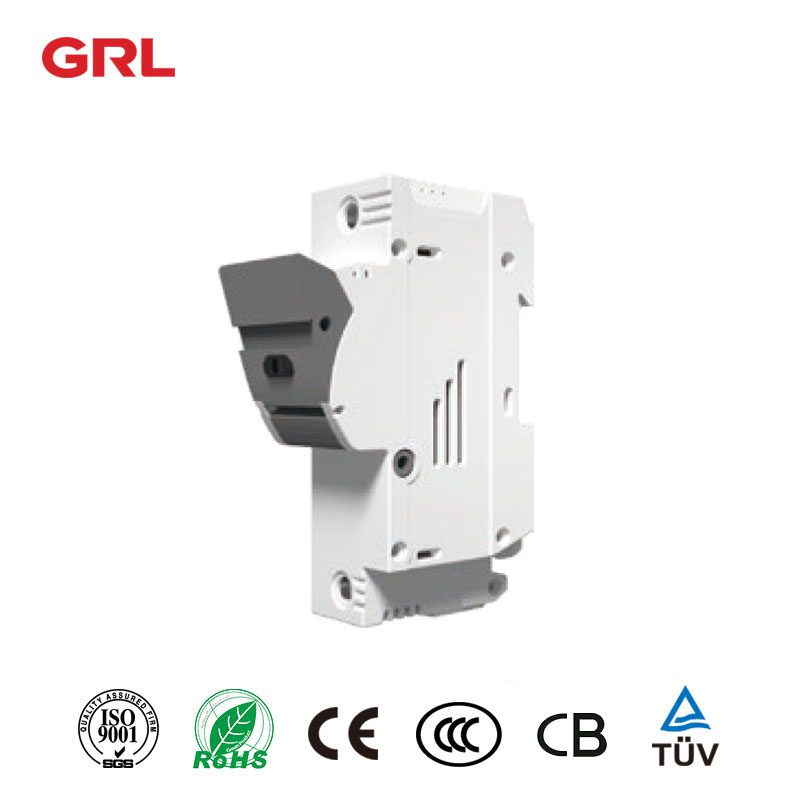

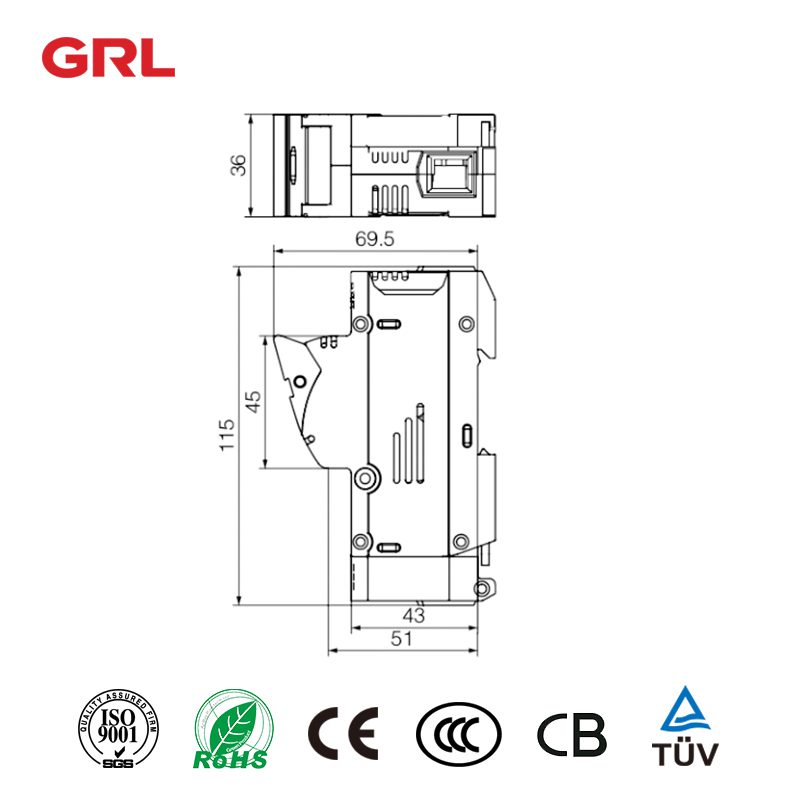

Fusible holder Fuse Holder RT18-125 fuse size 22*58 1P

Fusible holder

Item No.DN56120

Product model RT18-125
Description Fuse switch disconnector ,standard structure without null line
Pole 1P
Mounting method DIN rail installation
Wiring method 4-50mm2
Fuse size 22*58
Rated operational current le 125A(500VAC)/100A(690VAC)
Rated operational voltage Ue 500VAC/690VAC
Rated insulation voltage 800V
Rated impulse withstangd current lpk 6KV
Breaking capacity with fuse 100KA(500VAC)/50KA(690VAC)
Utilization category with fuse gG
LED Indicator voltage 110-690VAC/DC
IP IP20
Reference standard IEC 60269-2  GB/T 13539.2

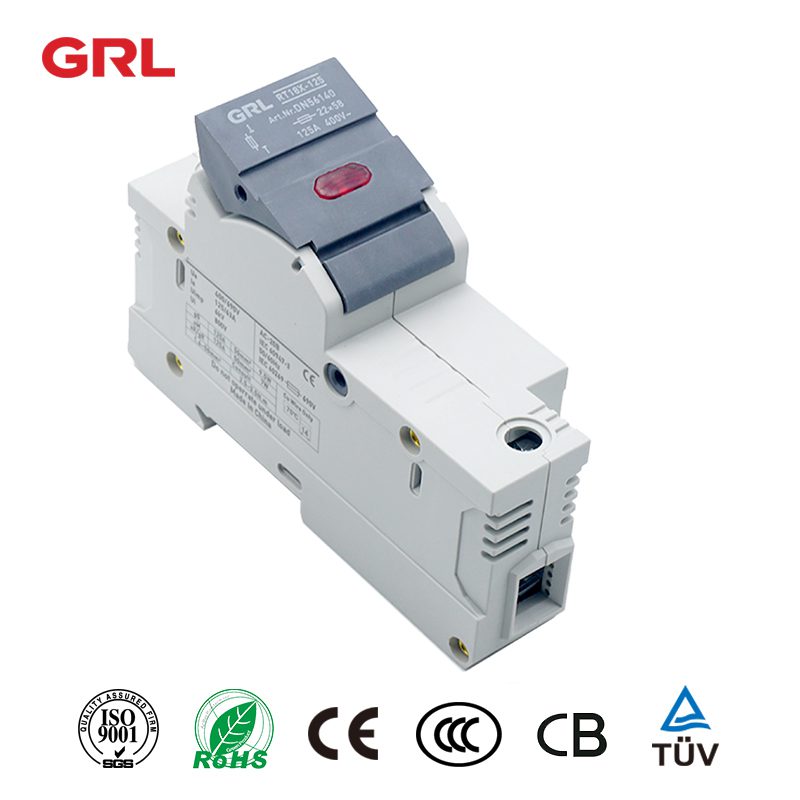

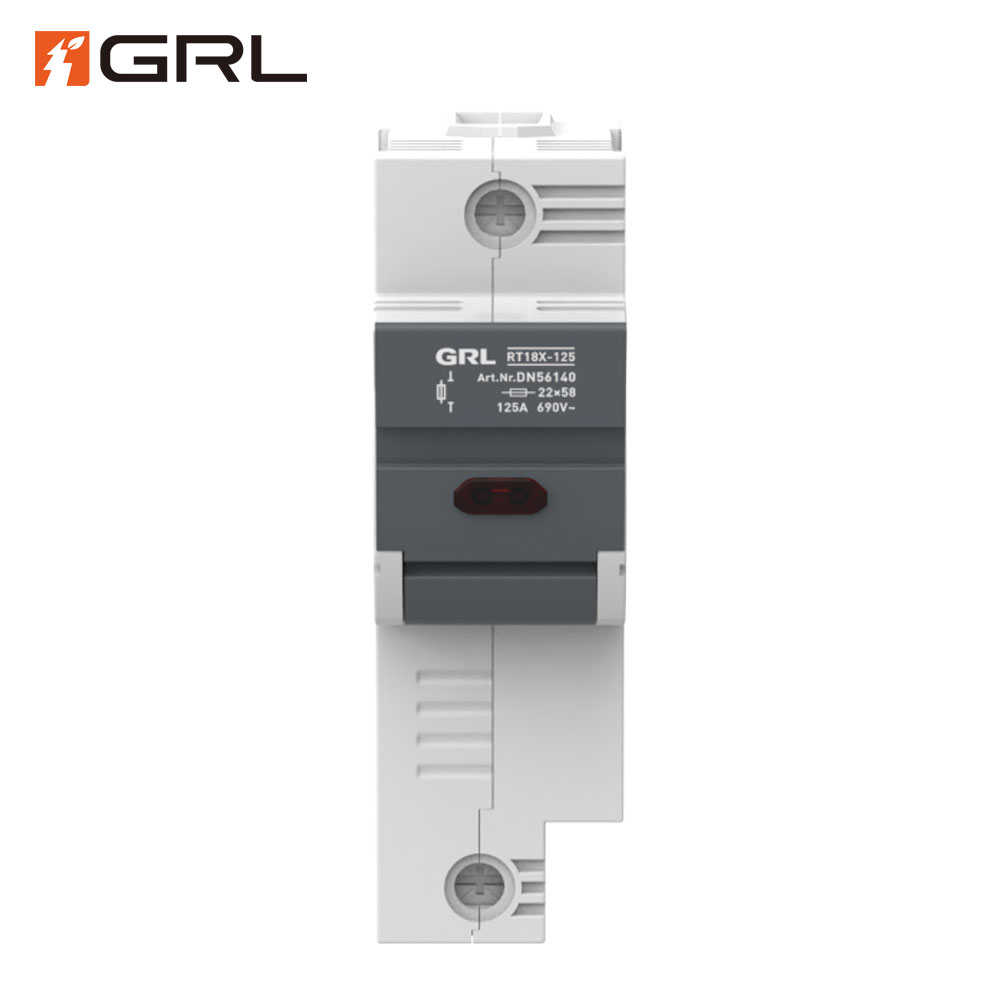

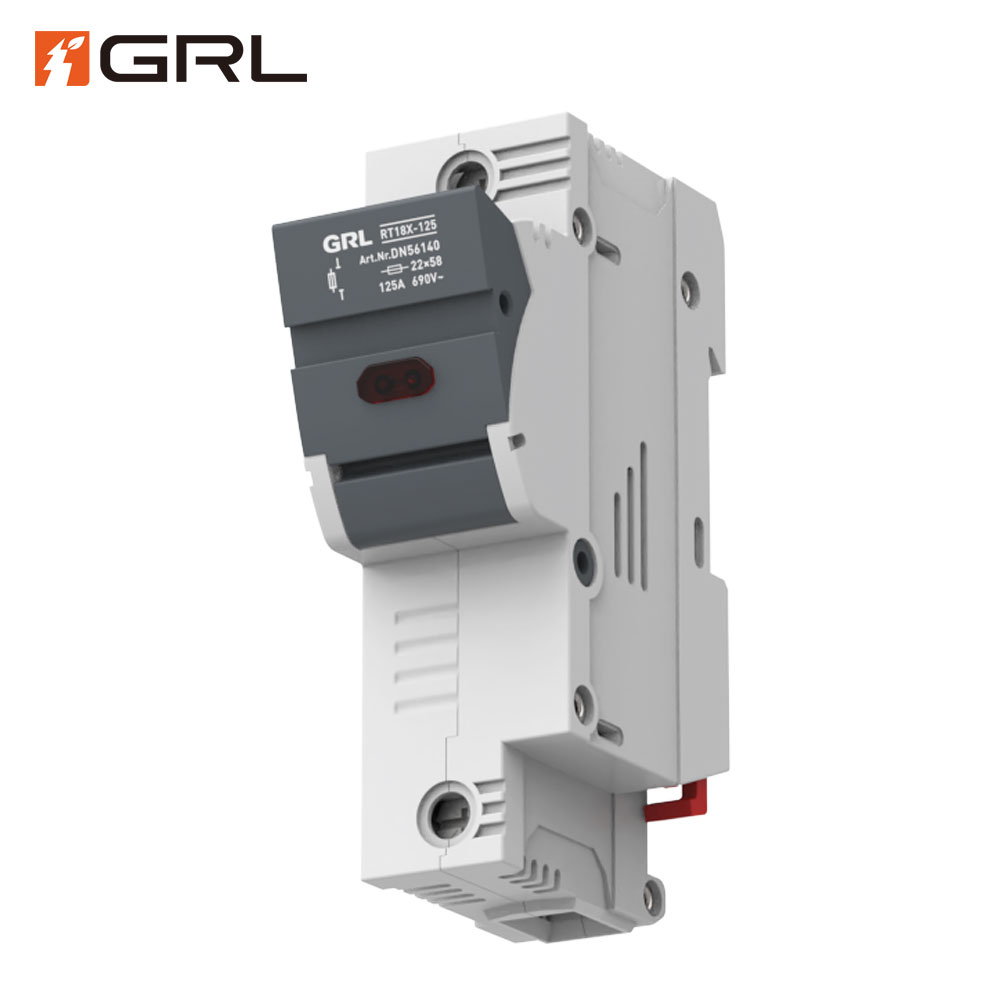

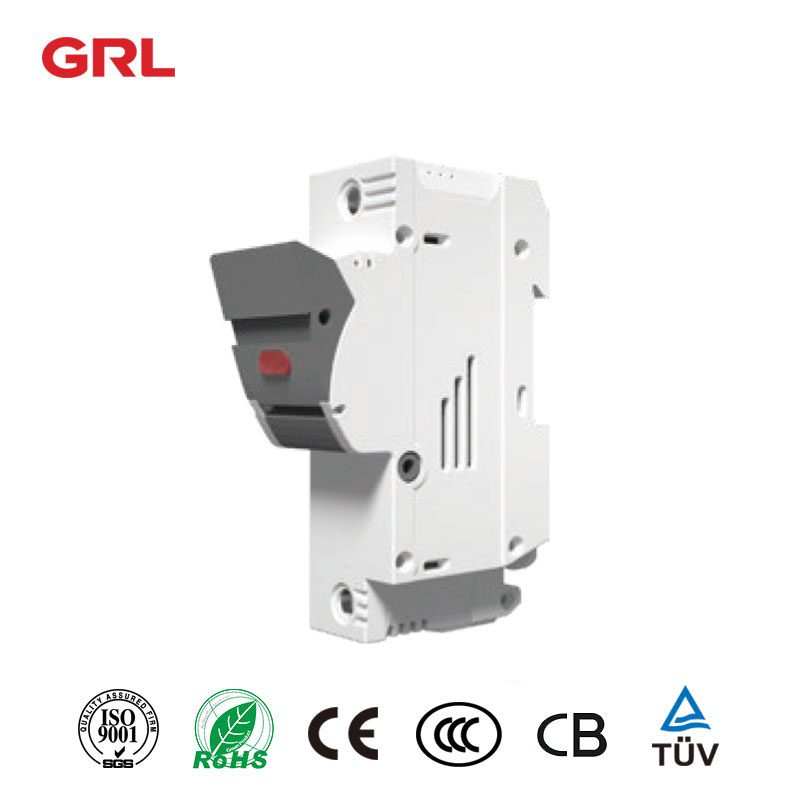

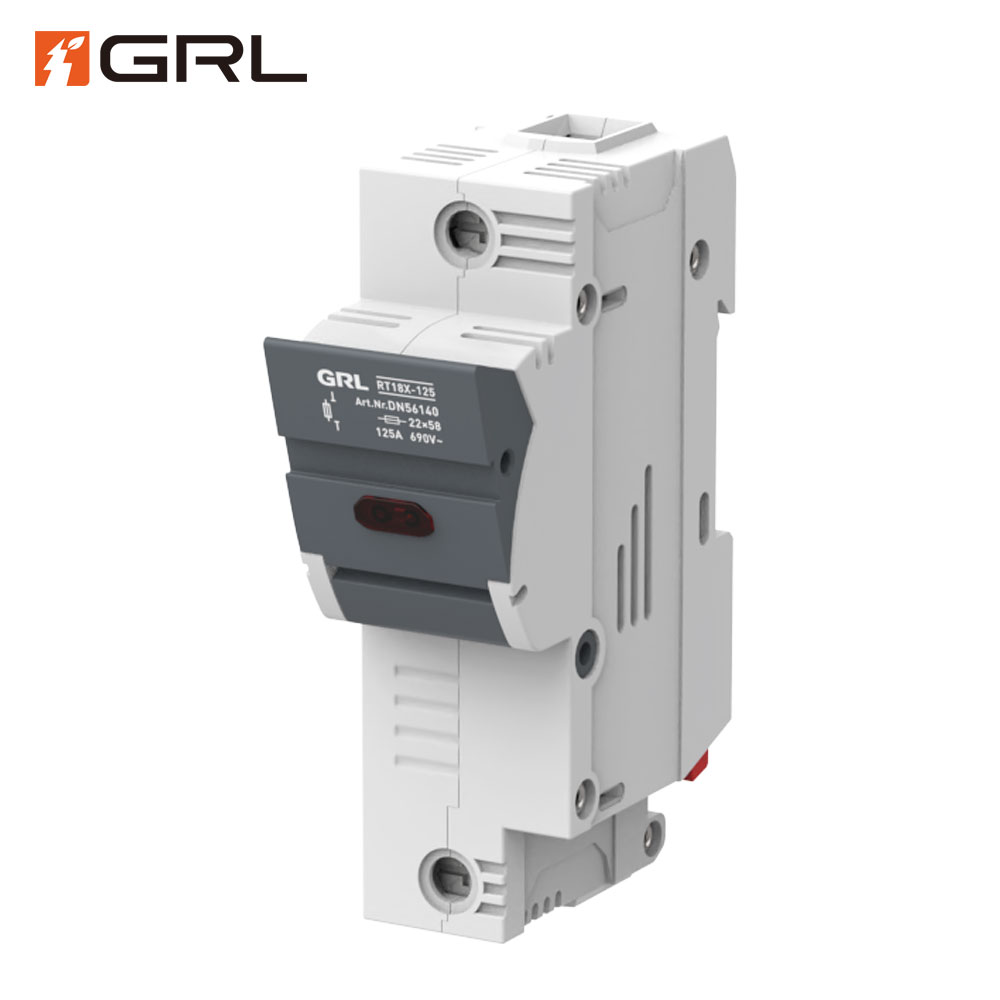

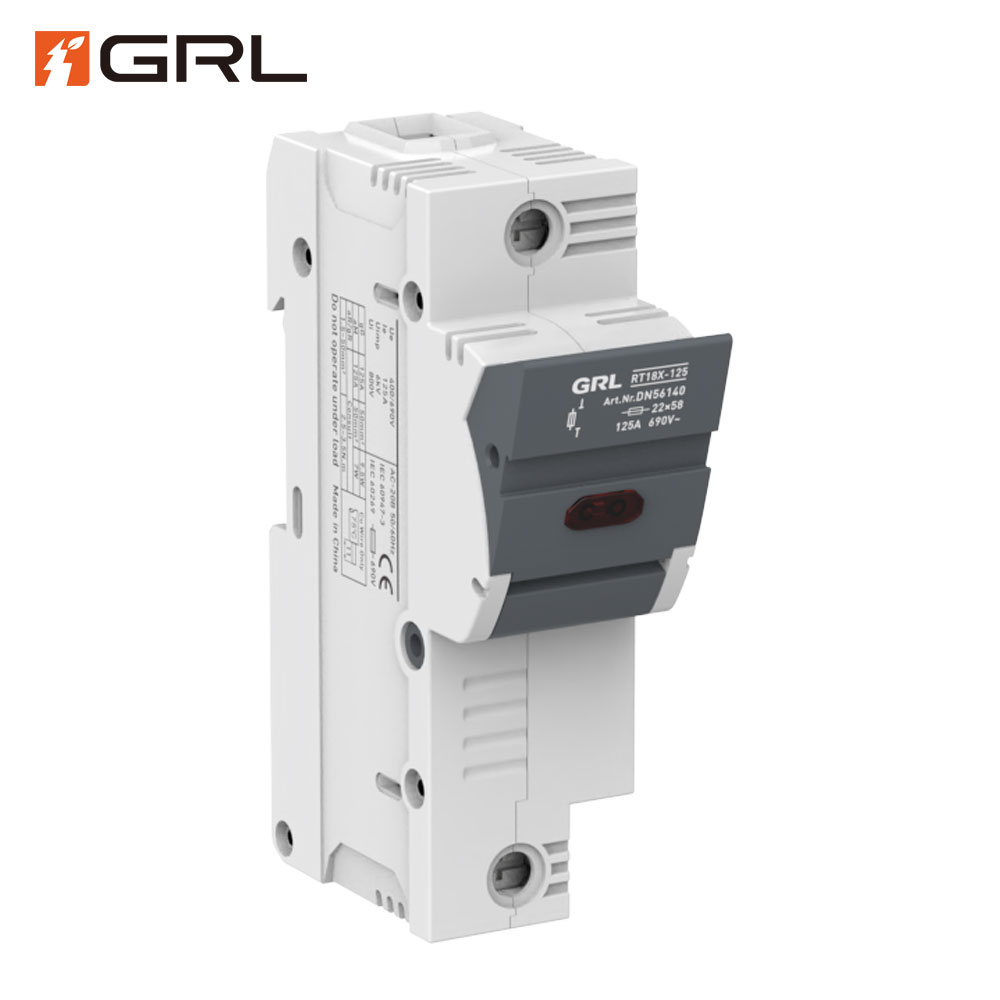

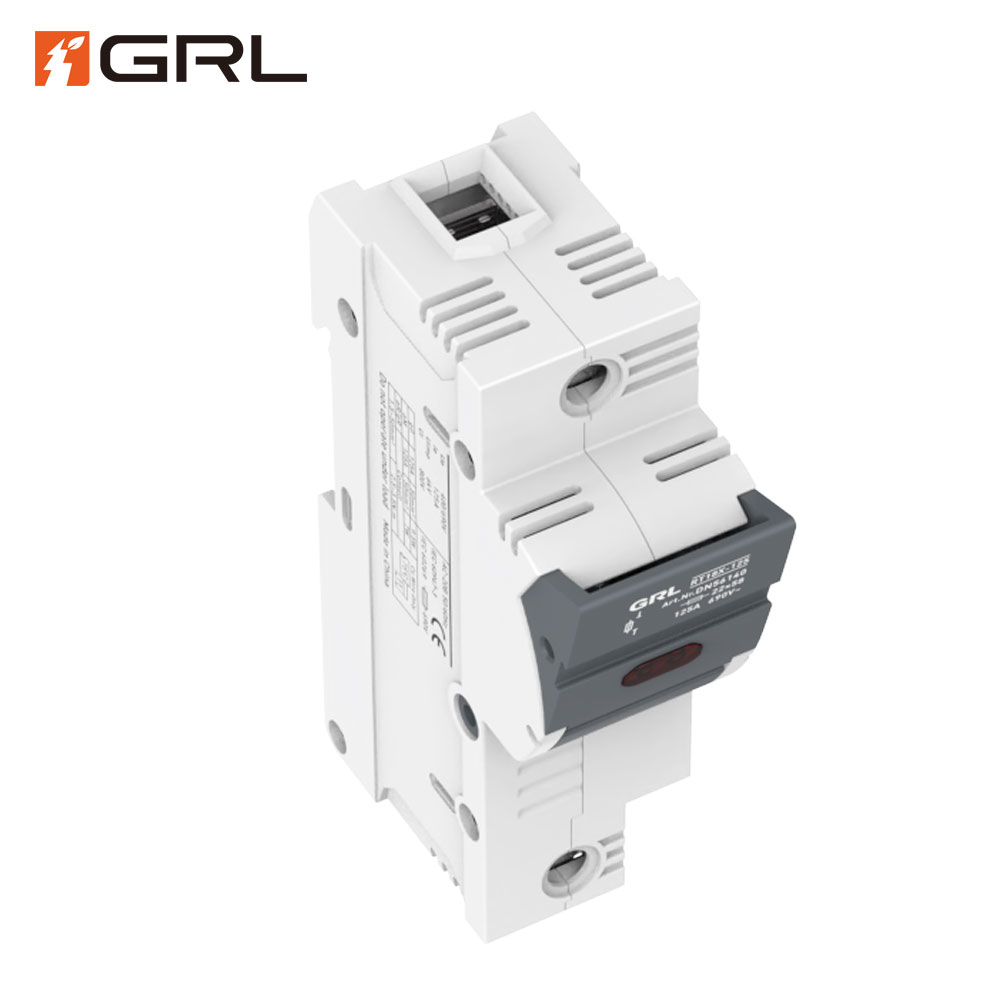

Fusible holder Fuse Holder RT18X-125 with  LED indicator fuse size 22*58

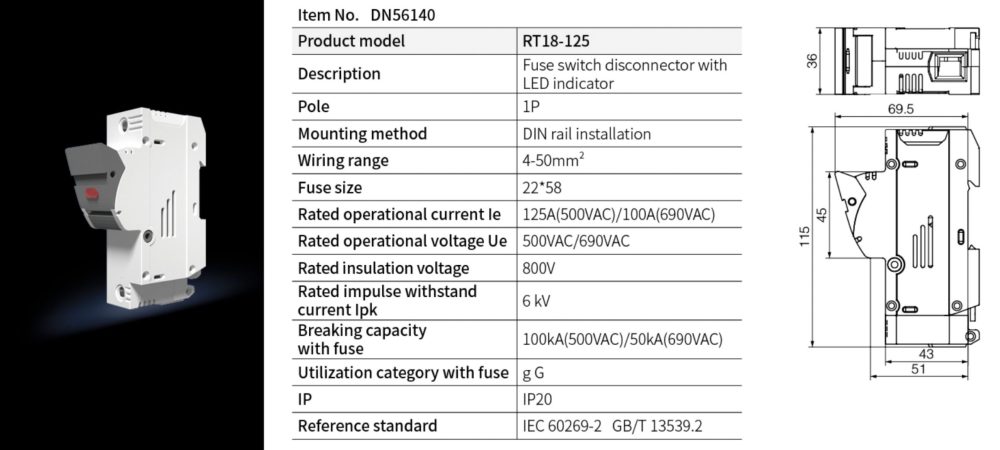

RT Fuse Switch Disconnector fuse size 22*58 1

Item No.DN56140

Product model RT18X-125
Description Fuse switch disconnector with LEDindicator
Pole 1P
Mounting method DIN rail installation
Wiring method 4-50mm2
Fuse size 22*58
Rated operational current le 125A(500VAC)/100A(690VAC)
Rated operational voltage Ue 500VAC/690VAC
Rated insulation voltage 800V
Rated impulse withstangd current lpk 6KV
Breaking capacity with fuse 100KA(500VAC)/50KA(690VAC)
Utilization category with fuse gG
LED Indicator voltage 110-690VAC/DC
IP IP20
Reference standard IEC 60269-2  GB/T 13539.2
