Built for the Demands: Key Features That Define the DNESS3-S8N

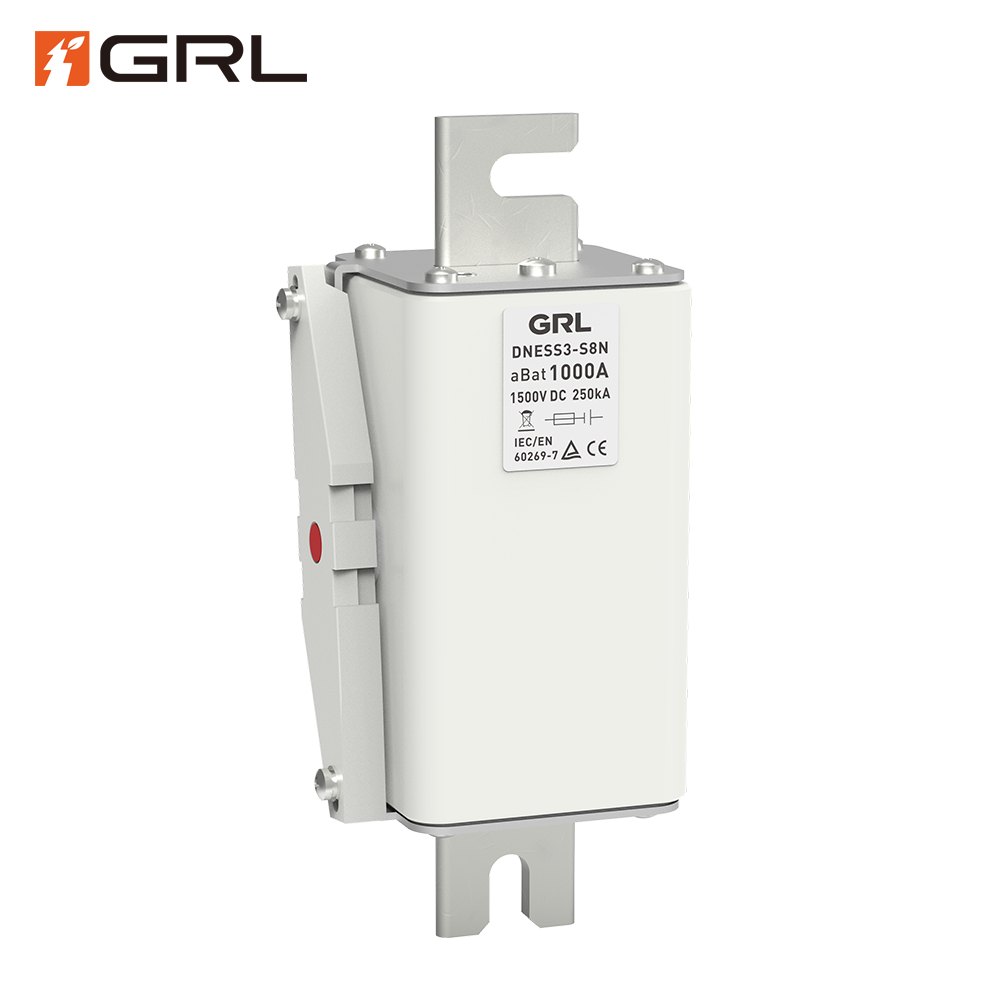

The DNESS3-S8N is no ordinary fuse—it’s a meticulously crafted solution for the high-voltage challenges of ESS. Starting with its rated voltage of DC 1500V, it’s perfectly attuned to the advanced architectures that dominate modern storage, enabling longer strings and reduced cabling for cost-effective builds. The rated current options offer incredible versatility, ranging from 100A for lighter-duty applications to a formidable 1000A for heavy hitters, with precise steps including 125A, 160A, 200A, 250A, 315A, 350A, 400A, 450A, 500A, 550A, 630A, 700A, 800A, 900A. This spectrum ensures you can match the fuse exactly to your system’s load profile, avoiding under- or over-protection pitfalls.
At its core is the aBat protection category, a sophisticated feature optimized for battery environments. It shines in managing partial-range faults—those sneaky overloads from uneven cell balancing or sudden demand spikes—by swiftly isolating issues with minimal arc energy. Backed by a breaking capacity of 250kA, the fuse can handle extreme surges, employing high-grade quartz sand to quench arcs instantaneously and prevent escalation into fires or equipment failures. Compliance with IEC 60269-7 isn’t just a checkbox; it’s assurance of rigorous testing for endurance in cyclic ESS operations, from daily solar charging to emergency grid support.
What truly distinguishes the DNESS3-S8N is its bolt-on contact style, a design choice that caters to diverse installation needs. These threaded terminals allow for secure, torque-controlled fastening directly to busbars or terminals, ideal for scenarios where space is tight or access is limited, such as in modular containerized systems or elevated racks. Unlike other contact types that might require specialized tools or alignments, bolt-on offers straightforward wrench-based installation, reducing setup time and enhancing long-term stability against thermal cycling or minor vibrations from fans and pumps. This makes it particularly suited for ESS in industrial warehouses, remote off-grid sites, or even floating solar platforms where maintenance access is sporadic.
Additional perks include low power dissipation to keep operating temperatures in check, promoting energy efficiency across the system. The fuse’s ceramic body and premium copper internals provide exceptional resistance to environmental stressors like humidity, dust, and temperature extremes, ensuring it performs flawlessly from arctic wind farms to equatorial solar installations. With a focus on low I²t values, it minimizes stress on connected components during faults, extending the lifespan of your entire ESS investment.
Click to download product catalog DNESS3-S8 series Fuse for battery system Protection
