Solar Fuse Link Overview

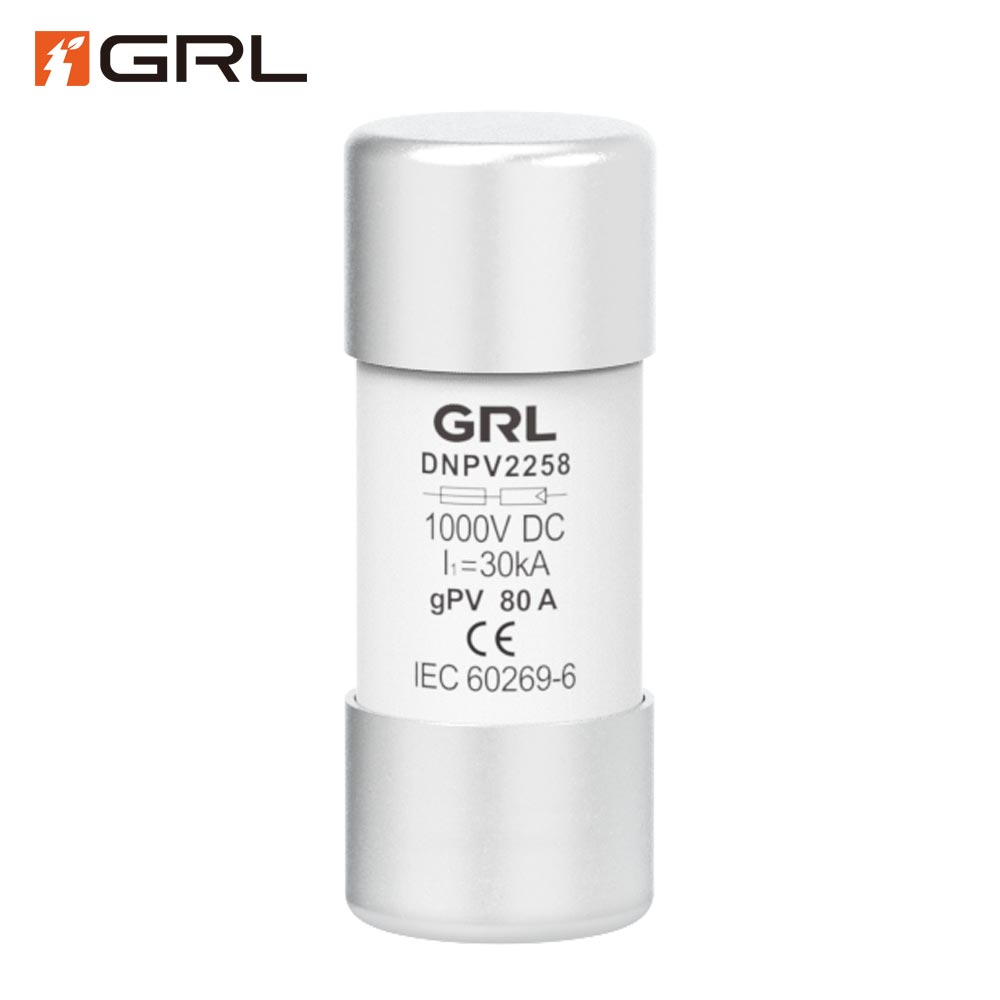

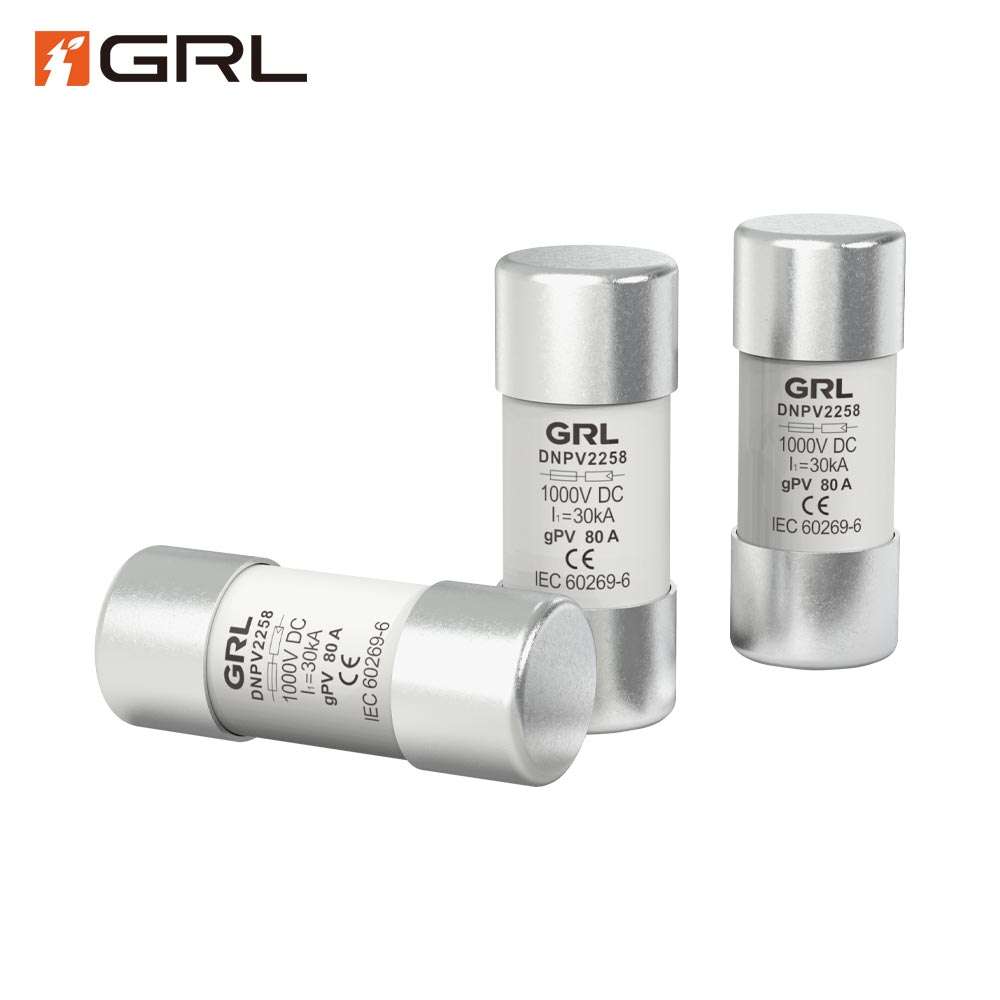

The GRL DNPV2258 is a heavy-duty 22×58 mm DC photovoltaic solar fuse link for large-scale solar applications. It provides short-circuit and overload protection for high-current PV circuits up to 1000 VDC. Rated for 25–80 A, this fuse link is ideal for industrial PV combiner boxes and DC distribution systems where larger current strings are used. Its robust design is tailored for the gPV category, ensuring it meets stringent photovoltaic protection standards. By selectively interrupting only the faulted branch, the DNPV2258 maintains overall system stability in commercial and utility PV installations.
Solar Fuse Link Advantages
Solar Fuse Link Applications
-
Large PV Combiner Boxes: Especially for ground-mounted or utility arrays with high-current strings. Each string (25–80 A) is protected by one fuse, ensuring reliable branch fault isolation.
-
DC Distribution Racks: In utility-scale inverter stations, as branch fuses or main fuses on DC busbars.
-
Commercial & Industrial Solar: Factories, farms, and solar plants where multiple strings are paralleled.
-
Battery Energy Storage: Where high-voltage DC protection is needed (within spec).
-
Renewable Power Plants: Any 1000 VDC application requiring high-current fusing, such as wind farm DC collection networks.
In practice, designers place DNPV2258 fuses in combiner boxes or panels where their high rating is needed. For example, an 80 A DNPV2258 might protect a combiner output combining many module strings. The fuse link’s selective trip nature ensures the faulted circuit is safely isolated
Solar Fuse Link FAQs
1、What does a fuse link do?
It acts as a sacrificial element that melts under overload, opening the circuit to prevent equipment damage. In PV systems, fuse links provide branch-selective protection – only the string with a fault is disconnected.
2、What is a PV fuse?
A PV fuse (also called a solar or gPV fuse) is specifically made for high-voltage DC solar systems. It uses a ceramic body and sand to safely interrupt DC fault currents. This ensures that even without AC zero-crossing, the arc is quenched and the system remains safe.
3、How do you choose the right fuse link?
Match the fuse link’s voltage rating (1000 V DC) and current rating to your circuit. The fuse’s ampere rating should be equal to or slightly above the continuous current of the PV string. Also, ensure the fuse size (22×58 for DNPV2258) fits your holder, and that it’s an IEC gPV-rated fuse for DC use.
4、Is there a difference between AC and DC fuses?
Yes. DC fuses must extinguish a continuous current arc. Solar PV fuses like DNPV2258 are designed for DC: their internal ceramic-sand construction handles DC arcs, unlike a standard AC fuse. Therefore, a DC-rated PV fuse is required for solar applications.
The DNPV2258 fuse link is an essential component for protecting high-power photovoltaic installations, combining GRL’s industrial quality with specialized PV safety design.
