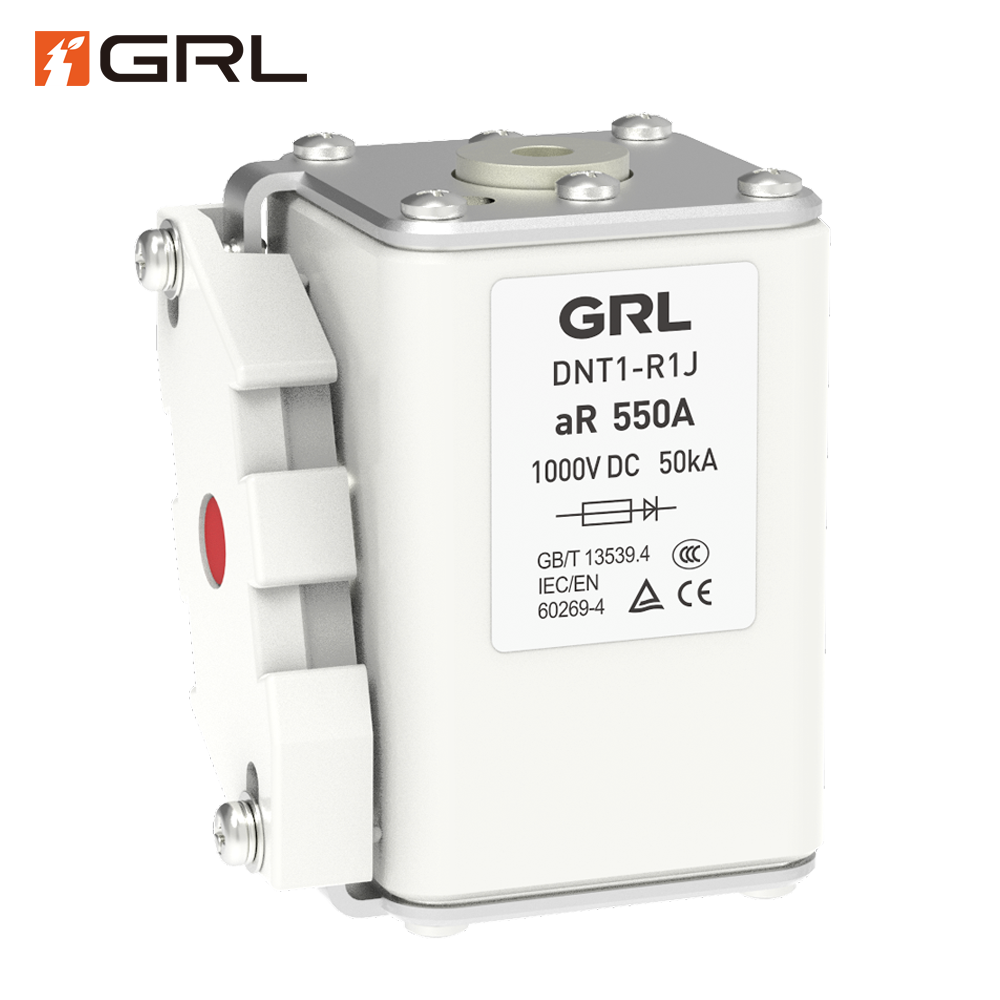

DNT1-R1J Series: The Ultimate aR Class High-Speed Semiconductor Fuse for 1000V DC Systems
The DNT1-R1J series high-speed fuse is engineered to deliver unparalleled protection for the most sensitive and costly power electronic components operating in high-voltage direct current (DC) environments. As a dedicated aR-class semiconductor fuse, the DNT1-R1J combines a formidable 1000V DC rating with a comprehensive current range spanning 160A up to 550A. This design ensures rapid isolation of fault currents, securing devices like IGBTs and thyristors against catastrophic failure caused by short circuits. With an impressive interrupting capacity of 50kA, this fuse offers the robust reliability demanded by modern, high-power applications.
The core value of the DNT1-R1J lies in its exceptional speed and current-limiting performance, which are non-negotiable for effective semiconductor protection.
-
Model: DNT1-R1J Series
-
Protection Class: aR Class – optimized strictly for high-speed, short-circuit protection.
-
Voltage: 1000V DC – specifically designed for high-voltage DC bus and link protection.
-
Current Range: A versatile selection covering 160A, 200A, 250A, 315A, 400A, 500A, and 550A.
-
Breaking Capacity: 50kA – guaranteeing safe and effective fault clearance under severe short-circuit conditions.
The superior design minimizes the let-through energy (I-squared-t) during a fault, which is the most critical metric for preventing thermal runaway and damage to the semiconductor junction. This ultra-low I-squared-t characteristic ensures that the fuse sacrifices itself before the protected device can be harmed.
Comprehensive Applications in Modern Power Electronics
The reliable performance of the DNT1-R1J fuse makes it indispensable across various high-growth and mission-critical sectors:
-
Renewable Energy Systems: Protecting the inverters and converters within large-scale Solar Photovoltaic (PV) plants and Wind Power systems, especially on the DC side.
-
Energy Storage: Essential safety components in Battery Energy Storage Systems (BESS) and high-power DC distribution lines.
-
Electric Mobility Infrastructure: Critical protection within DC Fast Charging stations and vehicle traction systems.
-
Industrial Power Control: Used in Uninterruptible Power Supplies (UPS), high-power Variable Frequency Drives (VFDs), and soft starters where speed is paramount.
-
Semiconductor Device Safeguarding: Direct protection of Power Modules (IGBT/MOSFET) and various types of Thyristors (SCR).
Distinctive Features and Customer Benefits
Choosing the DNT1-R1J means investing in enhanced system uptime and reduced maintenance costs. The features are engineered for seamless integration and maximum efficiency:
-
Optimized for DC: Specialized internal construction ensures stable, arc-free operation and reliable interruption at 1000V DC.
-
Fastest Response Time: As an aR-class fuse, it delivers milliseconds-level protection, a necessity for fast-switching power modules.
-
Reduced Inventory Needs: The comprehensive current range under a single product series simplifies stock management and purchasing across multiple power levels.
-
Reliable Mounting: Utilizes a secure bolt-down contact design for optimal thermal transfer and minimal contact resistance, maximizing efficiency.
-
Longevity and Durability: Built to withstand the harsh thermal and electrical cycling typical of heavy-duty power electronics applications.
Contact Us for Advanced Protection
Secure your high-value power electronic assets with the unparalleled speed and reliability of the DNT1-R1J 1000V DC High-Speed Semiconductor Fuse. Contact our engineering specialists today to receive detailed technical data sheets, gain expert advice on optimal fuse sizing, and request a personalized quote for your protection strategy. We are ready to support your most demanding 1000V DC projects.
