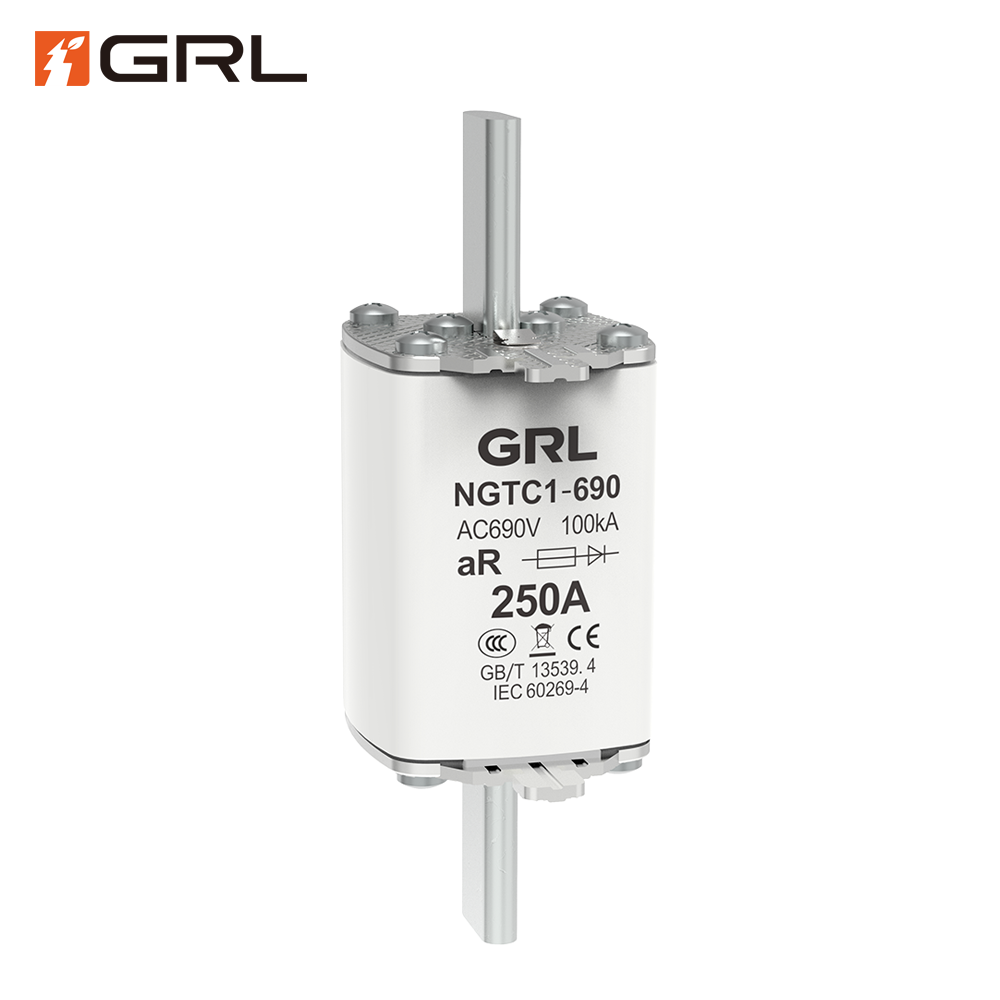

GRL NGTC1 aR Ceramic Fuse Links for Semiconductor AC 400V 690V 1000V 63A-250A Low Voltage Square Fuses

Parameter：

Rated Voltage：

400V AC,690V AC 1000V AC

Current Range：

63~250A

Breaking Capacity：

100kA

Protection Category：

Standards：

GB/T 13539.4 IEC 60269-4

Certifications：

CCC CE TUV

Certification Contact Us

Description

Semiconductor Fuse Link Overview

This series of fuses for semiconductor equipment protection is suitable forAC systems with rated voltages of 400V, 690V, and 1000V. They are used forshort-circuit protection of semiconductor components and their associatedcomplete sets ofequipment.

Semiconductor Fuse Link Technical Parameters

model	size	Rated voltage V	Rated current A	Rated breaking capacity kA
NGTC1-400/63A	1	400	63	100
NGTC1-400/80A			80
NGTC1-400/100A			100
NGTC1-400/125A			125
NGTC1-400/160A			160
NGTC1-400/200A			200
NGTC1-400/250A			250
NGTC1-690/63A	1	690	63	100
NGTC1-690/80A			80
NGTC1-690/100A			100
NGTC1-690/125A			125
NGTC1-690/160A			160
NGTC1-690/200A			200
NGTC1-690/250A			250
NGTC1-1000/63A	1	1000	63	100
NGTC1-1000/80A			80
NGTC1-1000/100A			100
NGTC1-1000/125A			125
NGTC1-1000/160A			160
NGTC1-1000/200A			200
NGTC1-1000/250A			250

The Sentinel of Power Electronics: GRL NGTC1 – A Study in Speed, Standard, and Subtlety

The Paradox of the NH1: Ultra-Rapid “aR” Power in a Classic Shell (63A to 250A)

In the high-stakes world of industrial power conversion—where colossal energy flows through compact, high-frequency switches—the difference between seamless operation and catastrophic failure is often measured in microseconds. The GRL NGTC1 Series High-Speed Fuse (63A to 250A, 400V/690V/1000V AC, 100kA) is not merely a component; it is a declaration of engineering superiority, subtly disguised in the universally accepted NH1 size form factor.

This is the central paradox: the NGTC1 wears the uniform of a generalist (the standard NH1 body, historically dominated by the slower gG class) but houses the highly specialized, lightning-fast “aR” protective intelligence. It is the industrial equivalent of installing a Formula 1 engine into a universally compatible chassis.

1. The Physics of Prevention: Beyond the $I^{2} t$ Number

The core function of the NGTC1 series transcends simple current interruption. It is an act of current limitation. When an IGBT “shoots through” or a serious load fault occurs, the fault current doesn’t just spike—it attempts to climb at a staggering rate ( $d i / d t$ ).

The NGTC1’s aR architecture intercepts this climb with a technical aggression unmatched by any gG fuse:

The Predictive Strike: The pure silver fusing element is engineered with microscopic necks and geometries designed not just to melt, but to instantaneously vaporize under the enormous thermal stress of a short circuit. This ultra-fast reaction is predictive; it begins to create arc resistance before the fault current even reaches its prospective peak.
The Energy Black Hole: The result is an incredibly low $I^{2} t$ let-through value. For the engineer, this number represents the thermal energy bomb that didn’t detonate inside the sensitive semiconductor module. The NGTC1 acts as an energy sink, absorbing and confining the lethal thermal pulse, thereby preserving the structural and electrical integrity of multi-thousand dollar power modules. The value provided is not just the fuse itself, but the guaranteed survival of the asset it protects.

ngtc1 semiconductor fuse link 1

2. High Voltage, High Art: Mastering the Arc at 1000V

The capability to safely and repeatedly interrupt a massive 100kA short circuit at an elevated system voltage of 1000V AC is a testament to sophisticated materials science. High voltage arcs are inherently difficult to manage; they are stable, conductive, and intensely hot.

Within the NGTC1’s ceramic body, the magic lies in its specialized arc-quenching medium:

Engineered Quartz Sand: The internal filler is not merely sand; it is a chemically treated, high-purity quartz granular material optimized for thermal diffusivity. When the silver element vaporizes and the arc forms, the extreme heat causes the quartz to instantly fuse into a highly insulating glass structure.
Containment and Cooling: This vitrified structure rapidly absorbs the arc energy and contains the high-pressure gases generated by the fault, ensuring that the interruption is clean, silent, and contained within the rugged NH1 ceramic casing. This process guarantees safety for the surrounding circuitry and, critically, for the personnel working near the panel.

3. The Unseen Value of Standardization

The conscious decision to house this revolutionary aR technology within the NH1 standard size (from 63A up to 250A) offers profound logistical and economic advantages that extend far beyond the datasheet:

Instant Panel Compatibility: For manufacturers utilizing standard NH equipment (fuse bases, switch-disconnectors, vertical fuse rails), the NGTC1 offers a zero-footprint upgrade. There is no need for new chassis designs, new panel layouts, or costly retooling. It’s a true “plug-and-play” solution for the highest level of protection.
Reduced Inventory Complexity: Maintaining a unified form factor (NH1) simplifies stock keeping. Whether the end-user needs a gG fuse for a cable run or an aR fuse for an inverter bank, the physical interface remains identical, significantly reducing the risk of installation error and streamlining the global supply chain.
Future-Proofing Equipment: As industrial systems continue to push power density and voltage, the NGTC1, supporting up to 1000V AC, ensures that equipment designed today with NH1 bases is already prepared for the voltage demands of tomorrow, eliminating the need for expensive, specialized fuse gear down the line.

The GRL NGTC1 is not a compromise between protection and standardization; it is the synthesis of the two. It delivers the speed required by modern semiconductors while maintaining the dimensional integrity respected by global industrial standards.

Get Quote

ngtc1 semiconductor fuse link 2

Final Call to Action

The decision to choose a semiconductor fuse is the single most important investment in the longevity and safety of your power electronics system. Do not settle for the protection of yesterday. Choose the ultra-rapid sentinel that respects your existing infrastructure while elevating your performance ceiling to 1000V AC.

— Engineering Data Request Disclaimer —

While this article highlights the unique competitive advantages and advanced engineering of the GRL NGTC1 series, accurate selection requires precise data. To ensure proper IGBT protection coordination, detailed technical parameters, including pre-arcing and total clearing $I^{2} t$ curves specific to your load conditions and the full derating schedule for 400V, 690V, and 1000V systems, must be used.

Please contact our technical support team via email immediately for comprehensive application guidance and guaranteed selection accuracy.

Semiconductor Fuse Link FAQs

Q1. Given that the NGTC1 is mechanically identical to a standard NH1 fuse, what stops an installer from accidentally using a slower gG fuse in its place?

This is a critical safety concern. While the mechanical footprint is identical (allowing for ease of integration), the GRL NGTC1 (aR) fuse is specifically designed with visual cues to prevent catastrophic misapplication:

Labeling: The fuse body is clearly and prominently marked with the aR utilization class and the high-voltage ratings (e.g., 1000V AC).
Color Coding/Indicators: (If applicable to GRL’s design) High-speed fuses often employ distinct color codes or specialized indicator mechanisms that differ from standard gG fuses. Engineering Solution: We highly recommend using GRL’s specialized NH1 fuse holders/switch-disconnectors which can be paired with an auxiliary microswitch. This system can be configured to detect and signal a fault, and some advanced systems can even detect a fuse element type mismatch through thermal monitoring, though this requires application-specific setup.

Q2. How is the internal design of the NGTC1 optimized for 1000V AC operation compared to a standard 690V fuse?

Operating at 1000V requires superior internal insulation and arc control:

Ceramic Body Integrity: The NGTC1 utilizes a high-strength, non-porous ceramic body designed to withstand the significantly higher internal pressure and thermal stress generated by extinguishing an arc at 1000V.
Arc Chamber Geometry: The internal structure, including the number of fuse element sections and the strategic positioning of the quartz sand filler, is precisely engineered to quickly elongate and cool the high-voltage arc, ensuring zero external flashover and reliable 100kA interruption up to the maximum rated voltage.

Q3. Why is the NGTC1 rated only for aR (partial range)? Why not a full-range gR or gS fuse for simplified design?

The choice of aR is a deliberate optimization for speed:

Maximum Speed for Semiconductors: aR fuses are generally faster and achieve a lower $I^{2} t$ than their gR (full-range) counterparts. Since the primary goal is protecting highly sensitive, multi-thousand dollar IGBTs from instantaneous short circuits, the maximum possible speed is chosen.
System Design Philosophy: High-power systems like VFDs already incorporate dedicated electronic thermal and overload relays (e.g., in the drive’s control software) to handle low-level, long-duration overloads. The aR fuse acts as the indispensable, specialized back-up protection for catastrophic short circuits, allowing the electronic controls to manage typical overload scenarios.

Q4. Does the ultra-fast reaction of the NGTC1 cause unacceptable voltage transients or arc flash risks during operation?

No, the opposite is true; the NGTC1 reduces system stress:

Current Limitation: The current-limiting characteristic means the fuse begins its protective action so quickly that the fault current is extinguished before it reaches its maximum available peak. This reduction in the current peak minimizes the magnetic forces, mechanical stress, and thermal energy ( $I^{2} t$ ) delivered to the entire circuit, reducing potential collateral damage.
Arc Voltage: While the process of current interruption generates an arc voltage, the NGTC1 is designed to control this voltage. Its total arc voltage is kept well below the dielectric withstand capability of typical 1000V AC system components (e.g., motor winding insulation or VFD bridge components), ensuring the fuse protects the component without destroying the circuit around it.

Q5. How does the NGTC1 (63A-250A) handle the heat generated by normal operation (Watts Loss)?

Since high-speed fuses use very thin elements, they often have higher watts loss (power dissipation) than standard gG fuses, which impacts enclosure temperature:

Heat Management: GRL optimizes the element materials and body design to minimize this intrinsic heat.
Installation Planning: Customers must use the published Watts Loss data (available in the NGTC1 datasheet) for the selected current rating and factor this heat load into their enclosure design. Proper ventilation or forced-air cooling in the immediate vicinity of the NH1 fuse base is crucial to ensure the fuse operates at or below the recommended maximum temperature and maintains its rated service life.

Q6. Can the NGTC1 be used in DC applications, given its 400V/690V/1000V AC ratings?

High-speed AC fuses can often be applied in DC circuits, but with strict limitations:

Voltage Derating: DC circuits sustain the arc much longer than AC circuits (due to the lack of a current zero-crossing). Therefore, a 1000V AC fuse will typically be derated to a significantly lower DC voltage (e.g., 500V DC or 600V DC, depending on the $L / R$ time constant of the DC circuit).
Specific Testing: For optimal DC protection in energy storage or traction applications, consult the GRL technical team. They will provide the specific DC breaking capacity and maximum voltage based on rigorous testing under the expected DC time constant.
