Semiconductor Fuse Overview

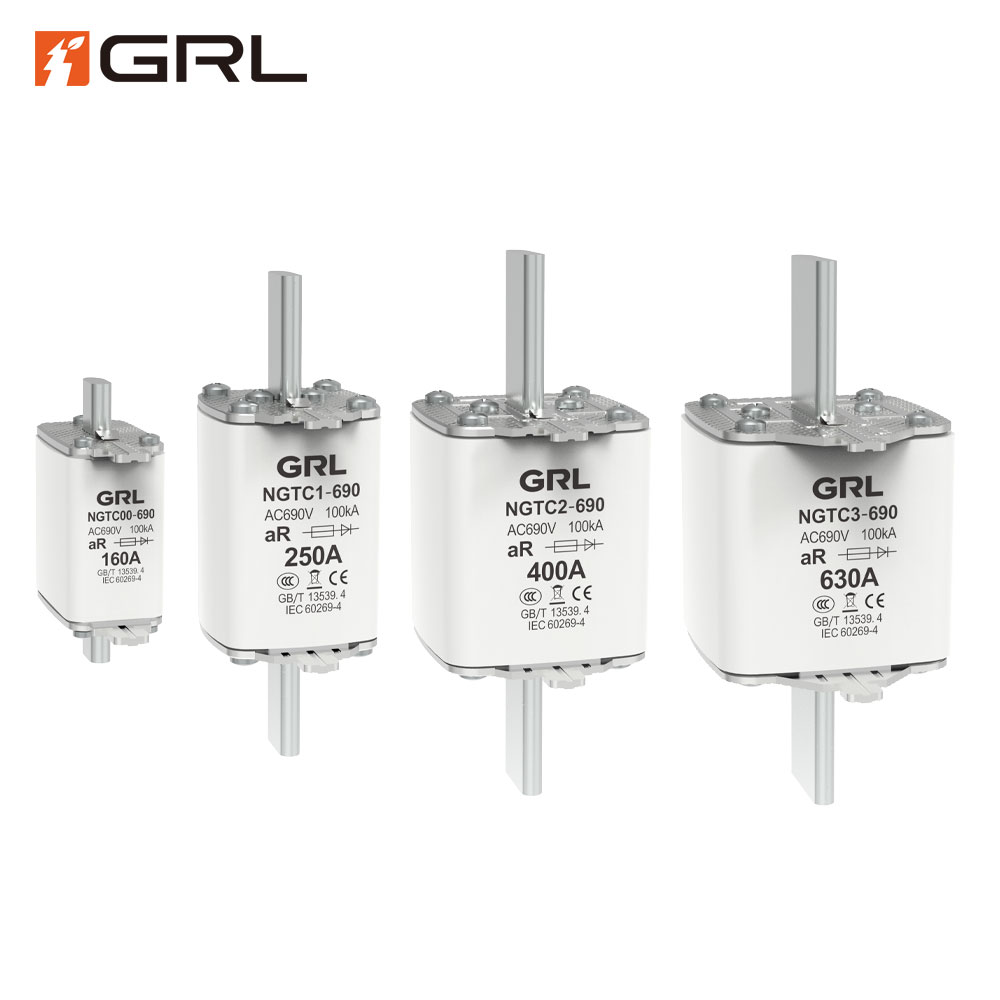

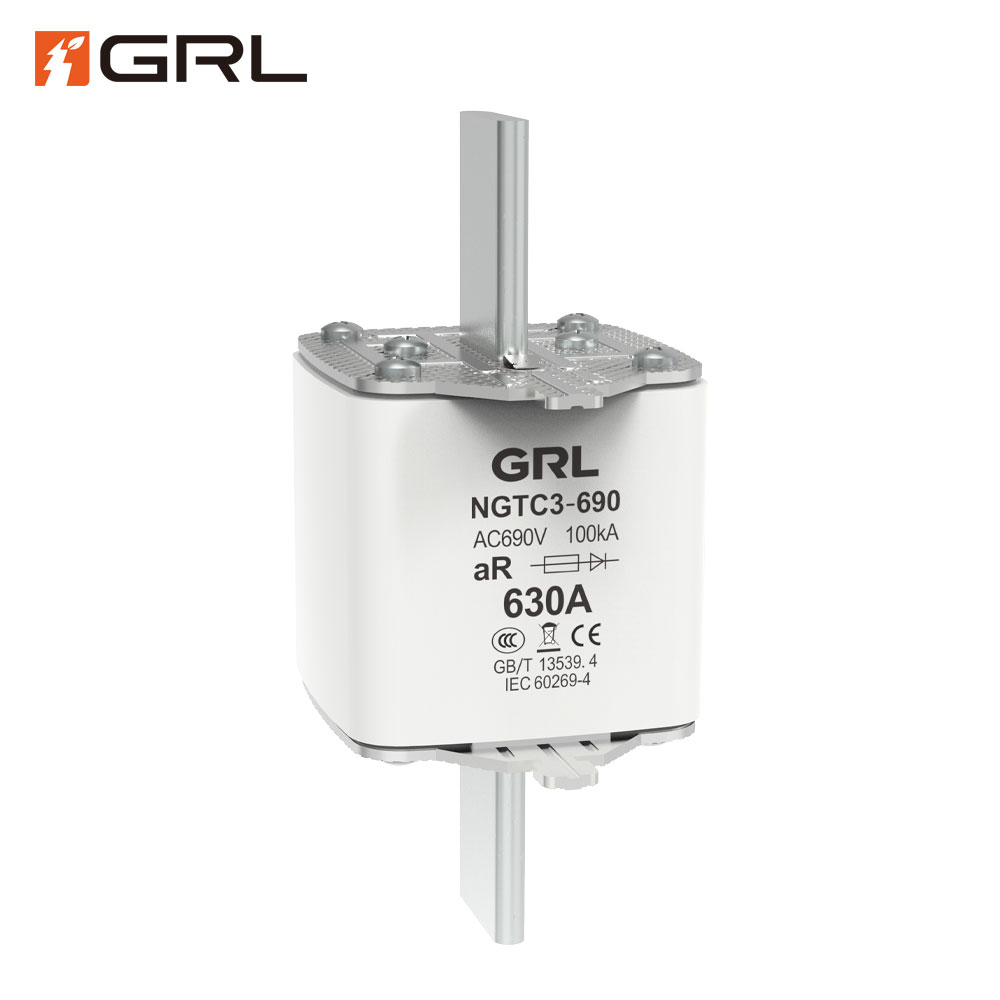

The GRL NGTC3 HRC Semiconductor Fuse is the flagship solution for high-power, high-current applications, providing maximum Power Semiconductor Protection where reliability is paramount. With a robust current rating extending up to 800A, the NGTC3 is purpose-built to defend the largest power stacks, including high-capacity Thyristor Protection and IGBT Protection in power converters, large DC drives, and utility-scale rectifiers. This high-speed, current-limiting fuse guarantees an ultra-rapid response, ensuring that the colossal fault currents inherent in high-power systems are interrupted safely and effectively with a definitive 100kA Breaking Capacity.
Semiconductor Fuse Features
The GRL NGTC3 is engineered for high-stress environments and high-current interruption:
Semiconductor Fuse Advantages
The NGTC3 is designed for scale, safety, and reliability in high-power systems:
- Protecting High-Value Assets: Provides essential Thyristor Protection and IGBT Protection for large power converters and rectification equipment, significantly extending the service life of expensive power stacks.
- Highest Safety Rating: A certified 100kA Breaking Capacity ensures the NGTC3 can safely interrupt the largest fault currents, preventing secondary damage to surrounding equipment and ensuring Electrical Safety Component integrity.
- Broad Voltage and Current Support: Offers seamless compatibility for AC System Protection in 400V, 690V, and 1000V systems, with a current range up to 800A.
- Reliable Operating Conditions: Built to perform reliably under normal working conditions, including ambient air temperatures between and up to 90% relative humidity at20∘C.
Semiconductor Fuse Applications
The NGTC3 series (rated current 200A to 800A) is GRL’s flagship High-Amperage Fuse, designed for the highest current, most critical links in power electronics systems. Its high rating and 1000V AC capability make it the premier aR Fuse choice for heavy industry and renewable energy sectors.
| Industry/Sector | Specific Equipment Applications | Key Protection Focus/Keywords |
| New Energy (Renewables) | Large Utility-Scale Photovoltaic (PV) Inverters, Wind Turbine Power Converters | PV Inverter Protection, Wind Power Converter, New Energy Fuse, Renewable Energy Systems |
| Metallurgy/Electrolysis | Large-Power Industrial Rectification Equipment, Electrolysis Cell Power Supplies | Industrial High-Current Protection, Thyristor Protection, Heavy Industrial Fuse |
| Energy Storage Systems | Battery Energy Storage System (BESS) Power Conversion Systems (PCS) | Energy Storage System Protection, PCS Protection, DC Rapid Protection |
| Heavy Industry | Large-Power AC/DC Motor Drives, High-Capacity Industrial Heating and Control | Large-Power VFD, Motor Drive Protection, IGBT Module Protection |
Semiconductor Fuse FAQs
1、 Where are Semiconductor Fuses primarily used?
Semiconductor fuses are essential in virtually any high-power or high-efficiency electronic system that relies on sensitive power components.
Key application areas include:
- Industrial Drives & Control: Protection for Variable Frequency Drives (VFDs), motor soft starters, and pulse width modulated (PWM) control systems.
- Power Conversion: Central protection in rectifiers (AC-to-DC), inverters (DC-to-AC), and various DC/DC and AC/DC/AC converters.
- Renewable Energy: Critical safety components in large Photovoltaic (PV) inverters and wind turbine converters.
- Energy Storage Systems (ESS): Used in the power conversion systems (PCS) within large Battery Energy Storage Systems.
- Power Quality: Safeguarding components in Uninterruptible Power Supplies (UPS) and large-scale harmonic filtering equipment.
- Transportation: Protection in electric vehicle (EV) charging equipment and railway power systems.
2、What three factors are most critical when selecting a Semiconductor Fuse for an application?
Proper selection is crucial to ensure both protection and reliable operation. The three most critical factors are:
- I²t Coordination: The most important factor is confirming that the fuse’s total clearing I²t value is less than the semiconductor device’s withstand rating. This guarantees the fuse interrupts the fault energy before the protected device is damaged.
- Rated Voltage (UN): The fuse’s rated voltage must be equal to or greater than the maximum operating voltage of the circuit. The voltage rating ensures the fuse can successfully extinguish the internal arc after the element melts without the voltage re-striking across the gap.
- Rated Breaking Capacity (Interrupting Rating): This specifies the maximum fault current (usually given in kA) that the fuse can safely and reliably interrupt without rupturing or sustaining damage. It must be equal to or greater than the maximum prospective short-circuit current expected at the fuse’s location.
3、What do the protection classes aR and gS/gRL mean in the context of semiconductor fuses?
These utilization classes, defined by IEC 60269-4, specify the functional range of the fuse:
| Utilization Class | Name | Protection Range | Primary Function |
| aR | Partial-Range Protection | Short-Circuit Protection only. | Exclusively designed for the immediate short-circuit protection of power semiconductor devices (e.g., IGBTs, SCRs). These fuses cannot reliably interrupt low-level overloads. |
| gS (or gRL) | Full-Range Protection | Overload Protection (gG characteristic) and Short-Circuit Protection (aR characteristic) combined. | A modern designation that offers comprehensive protection for both the semiconductor and the associated wiring and cables against all levels of overcurrent, from minimum fusing current to maximum breaking capacity. |
