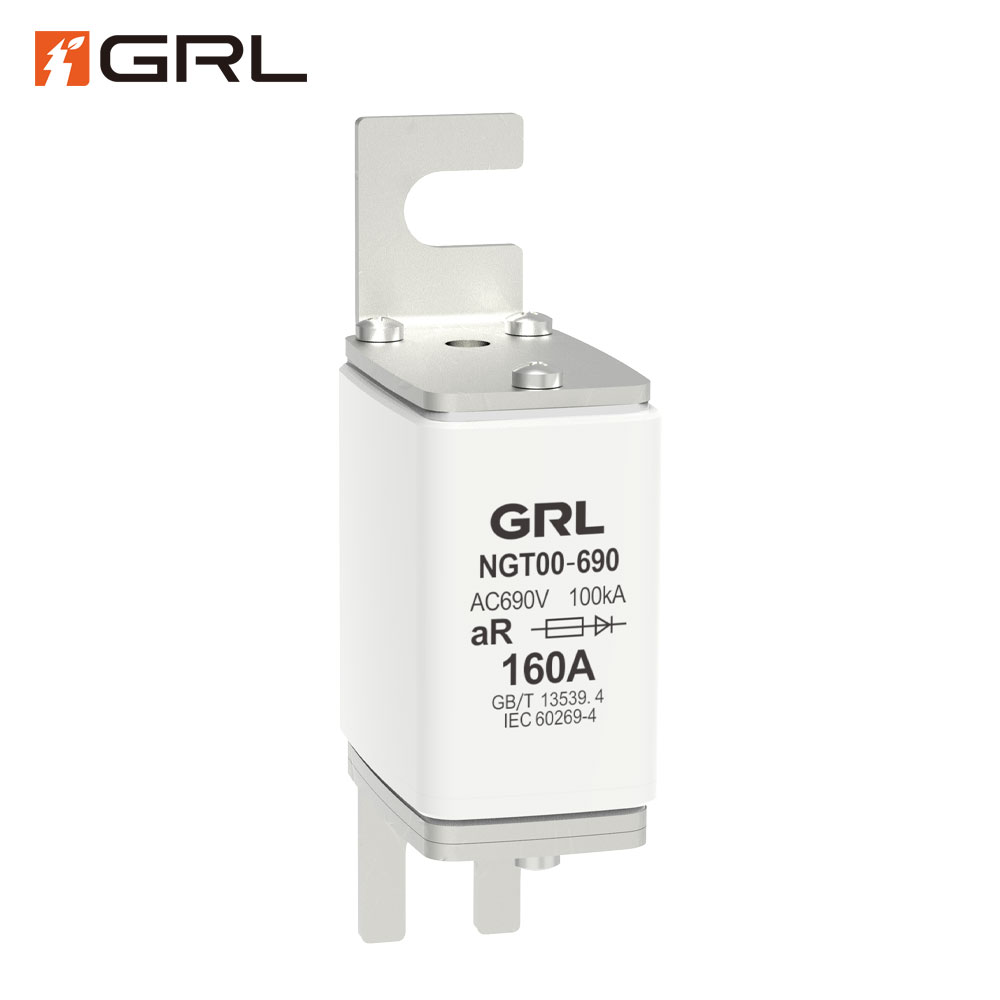

NGT00 Semiconductor Fuse Overview
The GRL NGT00 Semiconductor Fuse is a high-performance, fast-acting fuse link designed to provide reliable short-circuit protection for semiconductor devices and power electronic equipment. Operating within 400V AC, 690V AC, and 800V AC systems, the NGT00 series ensures the safety of sensitive components such as IGBTs, thyristors, and power converters used in industrial and renewable energy systems. With a breaking capacity of 100kA and protection category aR, it offers rapid response to fault conditions while maintaining high endurance under demanding electrical loads.
Engineered for global compliance, the NGT00 fuse conforms to IEC 60269-4 and GB/T 13539.4 standards, and holds CCC, CE, and TUV certifications. It is widely applied in inverters, UPS systems, variable frequency drives (VFDs), and renewable energy power conversion systems, where fast and reliable semiconductor protection is essential.
NGT00 Semiconductor Fuse Features
NGT00 Semiconductor Fuse Advantages
The GRL NGT00 Semiconductor Fuse provides the precision and reliability demanded by modern power electronics. Designed for optimal safety and efficiency, it delivers the following advantages:
1、Fast-Acting Semiconductor Protection
The aR characteristic ensures ultra-fast response to overcurrents, effectively safeguarding IGBTs, diodes, rectifiers, and inverters.
2、High Breaking Capacity (100kA)
Capable of interrupting extremely high fault currents without damage to adjacent equipment.
3、Global Standard Compliance
Certified by CCC, CE, and TUV, meeting international safety and performance standards.
4、Energy Efficiency
Low power loss design reduces heat buildup and increases energy utilization.
5、Easy Installation and Replacement
Standard NH00 bolt mounting simplifies assembly in industrial panels and power systems.
6、Durable and Reliable
Withstands vibration, temperature fluctuations, and mechanical stress common in industrial and transportation applications.
7、Versatile Applications
Compatible with inverter systems, power drives, renewable energy converters, and uninterruptible power supplies (UPS).
These advantages make the NGT00 fuse link an essential component for semiconductor protection in high-performance and safety-critical applications.Get Quote
NGT00 Semiconductor Fuse Applications
NGT00 Semiconductor Fuse FAQs
1、What is the difference between a semiconductor fuse and an HRC fuse?
A semiconductor fuse, such as the GRL NGT00, is designed to react much faster than a standard HRC (High Rupturing Capacity) fuse. Semiconductor fuses protect sensitive electronic components, such as IGBTs and diodes, clearing faults in milliseconds to prevent device damage. HRC fuses, on the other hand, are general-purpose fuses used for broader electrical protection in power distribution systems. In short, a semiconductor fuse is a fast-acting subset of HRC fuses, specifically designed to protect electronic devices rather than general power circuits.
2、 How do I select the right NGT00 fuse rating for my application?
To choose the correct fuse, match its rated voltage and current to your equipment’s operating parameters, ensuring the fuse can handle normal load current while reacting quickly under fault conditions. For semiconductor circuits, select a fuse with an aR protection class, high I²t withstand, and breaking capacity ≥ 100kA for optimal safety. GRL’s technical team can assist with detailed selection based on your system’s specifications.
3、How do I check if an NGT00 fuse has blown?
Disconnect power and use a multimeter to measure continuity across the fuse terminals. A functioning fuse shows near-zero resistance, while a blown fuse shows infinite resistance (open circuit). Always replace a blown fuse with the same model and rating to maintain system integrity.
