1、What is a Semiconductor Fuse, and how does it differ from a Standard Industrial Fuse (gG/gL)?
A Semiconductor Fuse is a highly specialized electrical component designed to protect modern power semiconductor devices (such as IGBTs, Thyristors, MOSFETs, and Diodes) from short-circuit and extreme overcurrent conditions.
The primary difference lies in its operating speed and current-limiting performance:
Standard Fuses (gG/gL): Primarily designed to protect cables and general equipment from overloads and moderate short circuits. They are slower and have a relatively high let-through energy (I²t value). They are often designed to conduct twice their rated current for several seconds before melting.
Semiconductor Fuses (aR/gS): Designed to protect sensitive semiconductors, which can fail almost instantaneously due to thermal energy damage. They are Ultra-Rapid, typically melting in less than 10 milliseconds (ms) when subjected to 5 to 6 times their rated current. They achieve an extremely low I²t value and cut-off current, making them superior at limiting the fault current’s destructive energy.
2、 What are the key characteristics that define an “Ultra-Rapid” fuse, especially the I²t value?
The term “Ultra-Rapid” or “High-Speed” refers to the fuse’s ability to act fast enough to protect semiconductors that have a very low thermal withstand capability.
Fast Clearing Time: The total clearing time (pre-arcing time + arcing time) is minimal, often measured in fractions of a cycle, ensuring the fuse opens before the semiconductor device is permanently damaged.
Low I²t (Energy Let-Through): This is the most critical parameter. I²t (Ampere-squared seconds) represents the heat energy let through by the fuse during a fault. To ensure proper protection, the fuse’s maximum clearing I²t value must be less than the I²t. The withstand capability of the semiconductor component it is protecting. This extreme current-limiting action is what prevents catastrophic failure.
Low Cut-off Current: During a short circuit, the fuse melts and forces the current to drop. The cut-off current is the maximum peak current achieved before the fuse interrupts the circuit. Ultra-Rapid fuses are designed to reach a much lower peak current than the prospective fault current

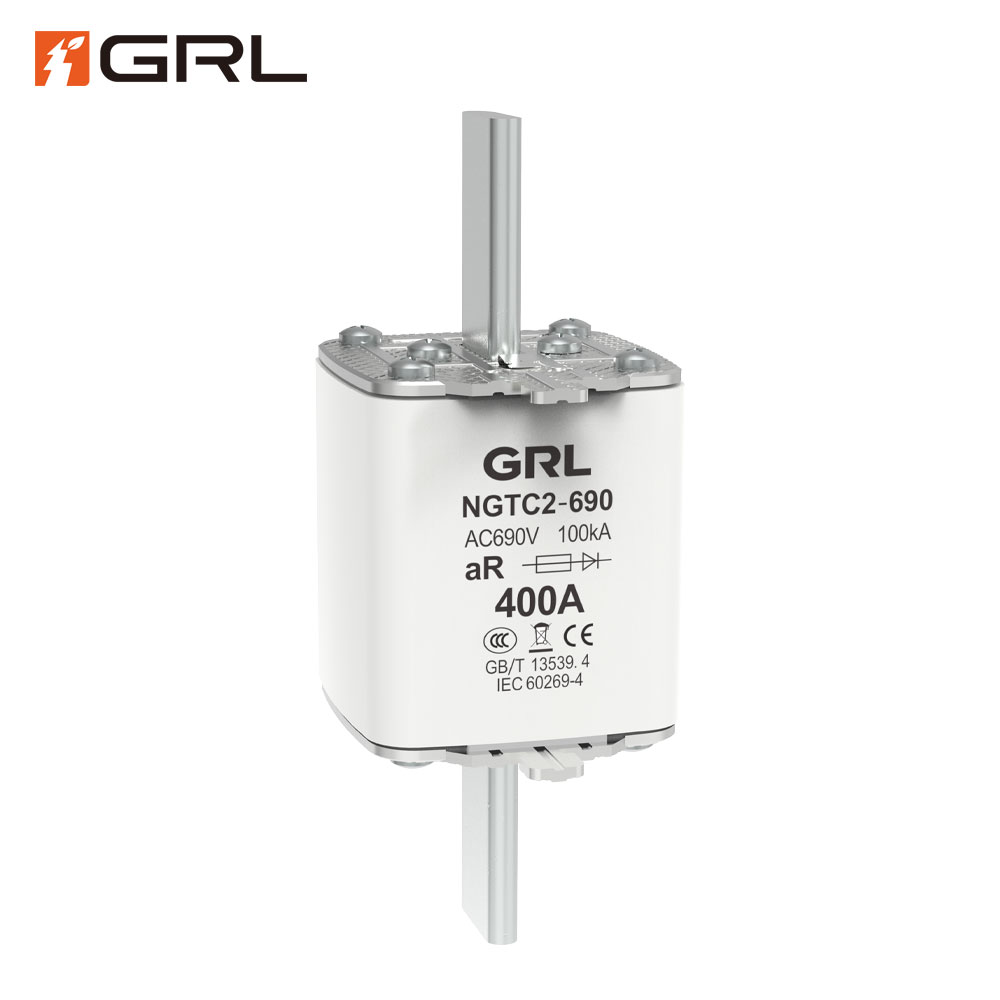

3、What is the altitude limitation for installing the GRL NGTC2 fuse?
According to the normal working conditions, the altitude of the installation site for the NGTC2 Semiconductor Fuse shall not exceed 2000m. For installation at higher altitudes, consultation with a power protection expert is recommended to ensure correct derating.
4、Why is the aR class important for semiconductor protection?
The aR Utilization Class indicates the fuse is an Ultra-Rapid Fuse designed for partial-range breaking capacity—specifically for short-circuit protection. This speed is crucial because semiconductors fail almost instantly when subjected to excessive short-circuit energy (high I²t), a situation only an aR fuse can prevent.
