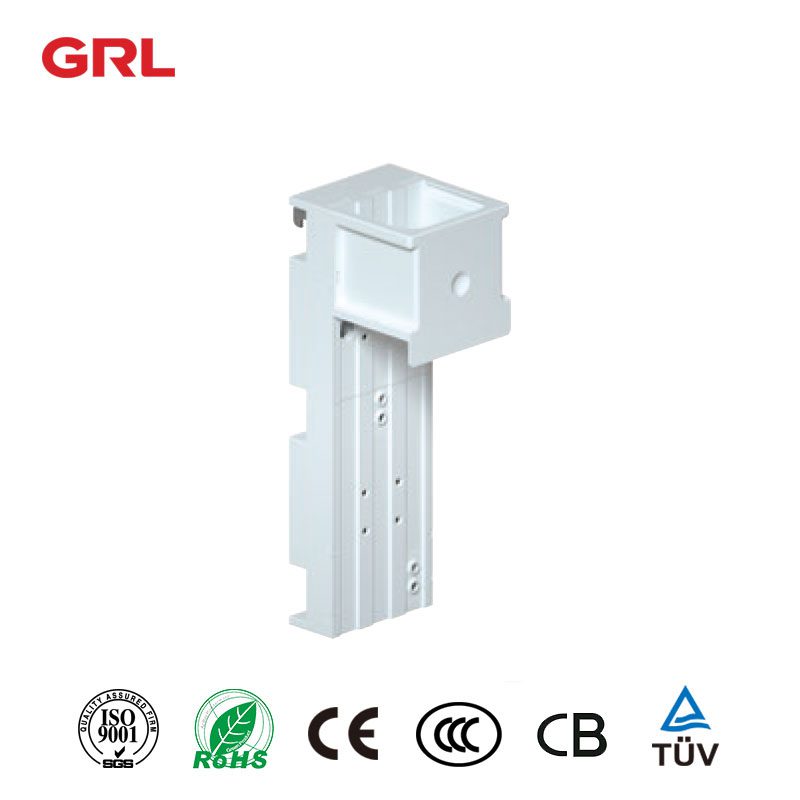

3P 185mm, Power Busbar System, Breaker Adaptor

Modle No.: ZJQ-250, ZJQ-400

Rated Operational Current Ie: 250A, 400A

Rated Operational Voltage Ue: 690V

Rated Iimpulse Withstand Current Ipk: 6KV

Rated Insulation Voltage: 1000V

System: 185mm

For Busbar: 15, 20, 25, 30*10 Flat copper busbar & irregular copper busbar

Accessories: Terminal accessory

Reference Standard: IEC 61439-1, GB/T 7251.1

Special Requirement: Support connection at back side

Key Words: Power Busbar System Breaker Adaptor 250A & 400A 3P 185mm

Description

Power bus system breaker adapters are a reliable and efficient way to power your electrical equipment. This adapter allows you to easily connect your power tool or other appliance to a power source, and its durable construction ensures long-lasting use. With this handy tool, you can easily connect and disconnect wires to get the job done quickly and easily.

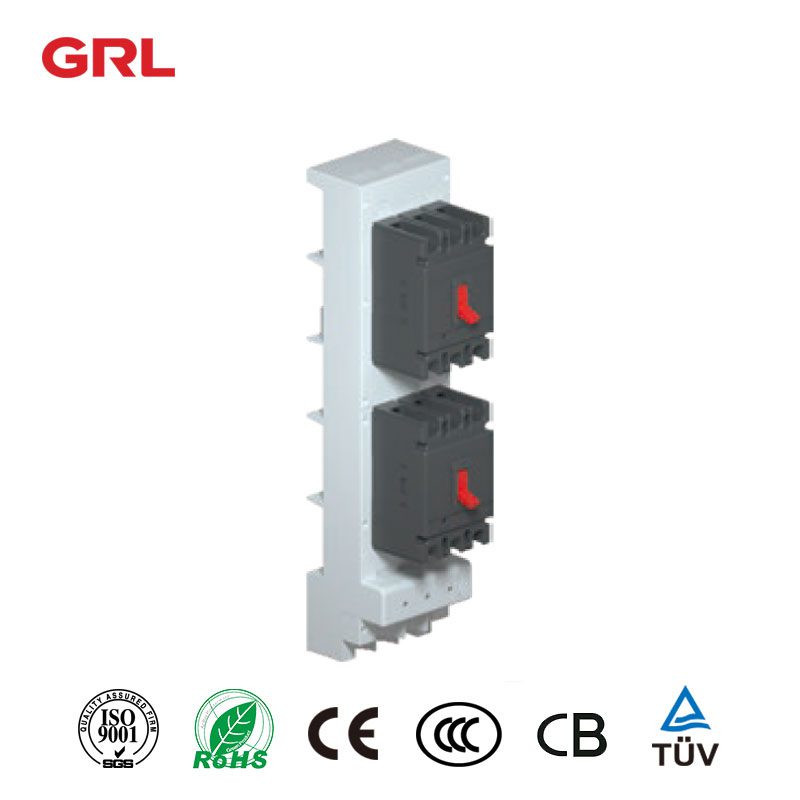

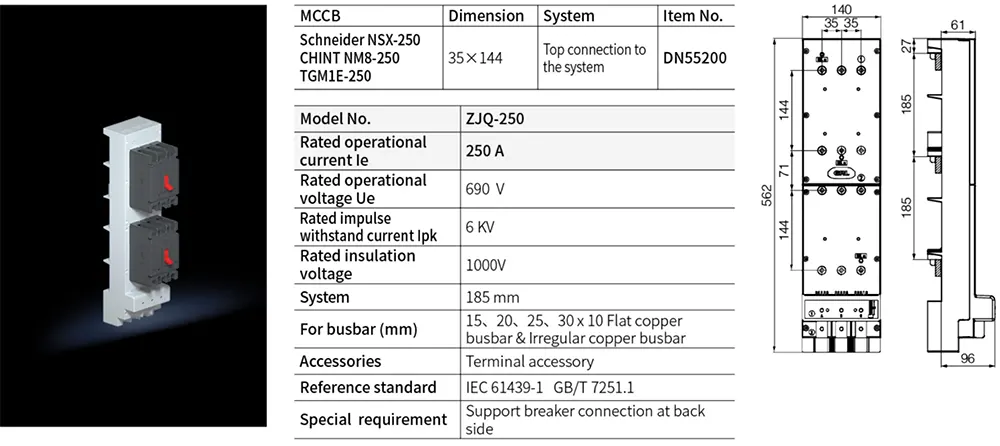

DN55200

Power Busbar System

Breaker Adaptor

250A 3P 185mm

Dimension 35*144

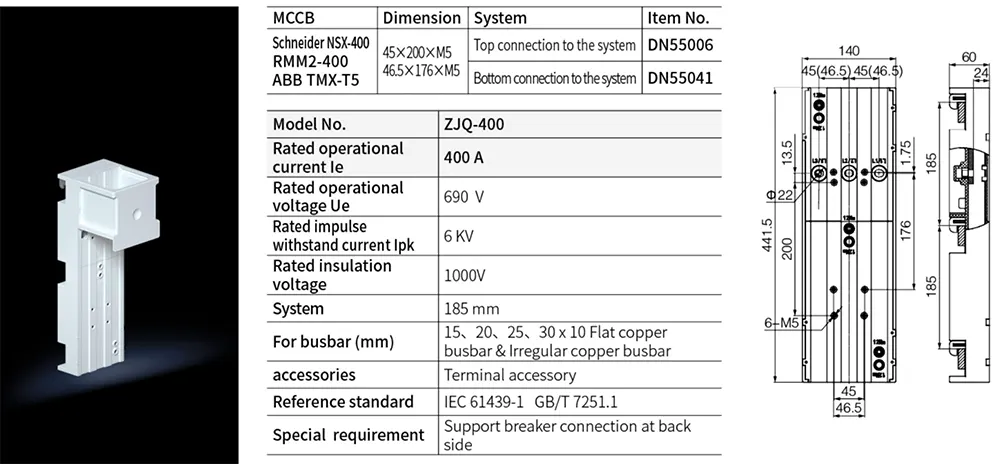

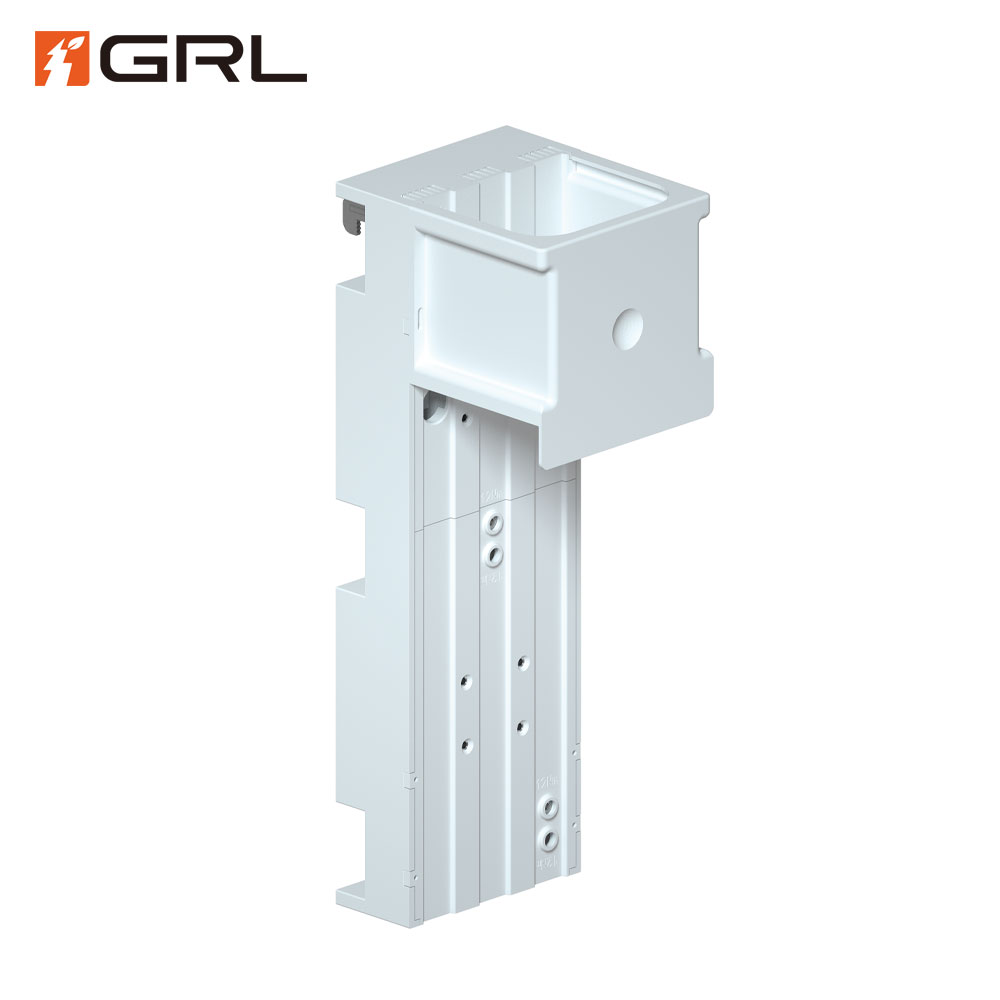

DN55006&DN55041

Busbar Electrical System

Breaker Adaptor

Dimension 45*200*M5, 46.5*176*M5

400A 3P 185mm

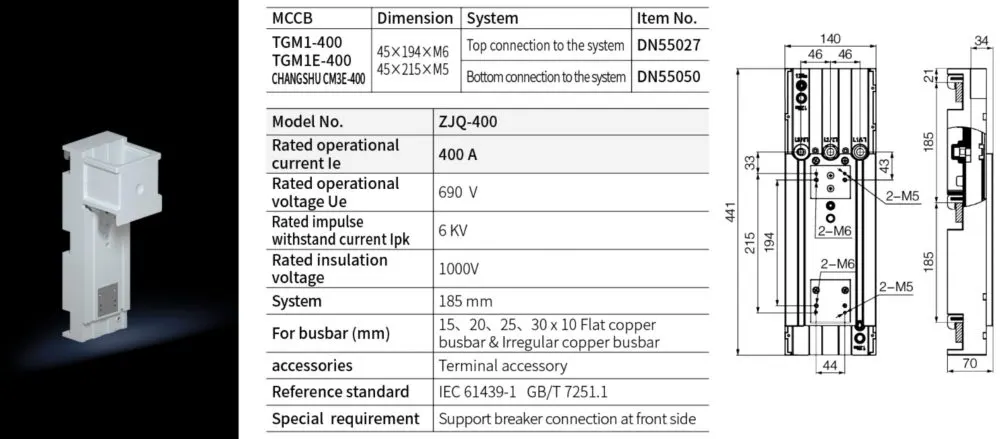

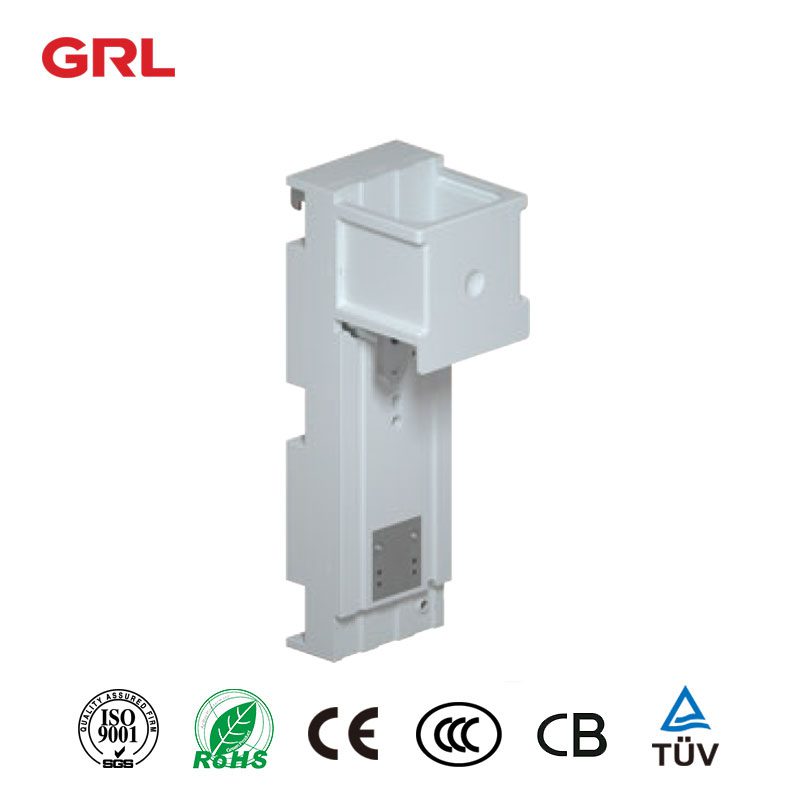

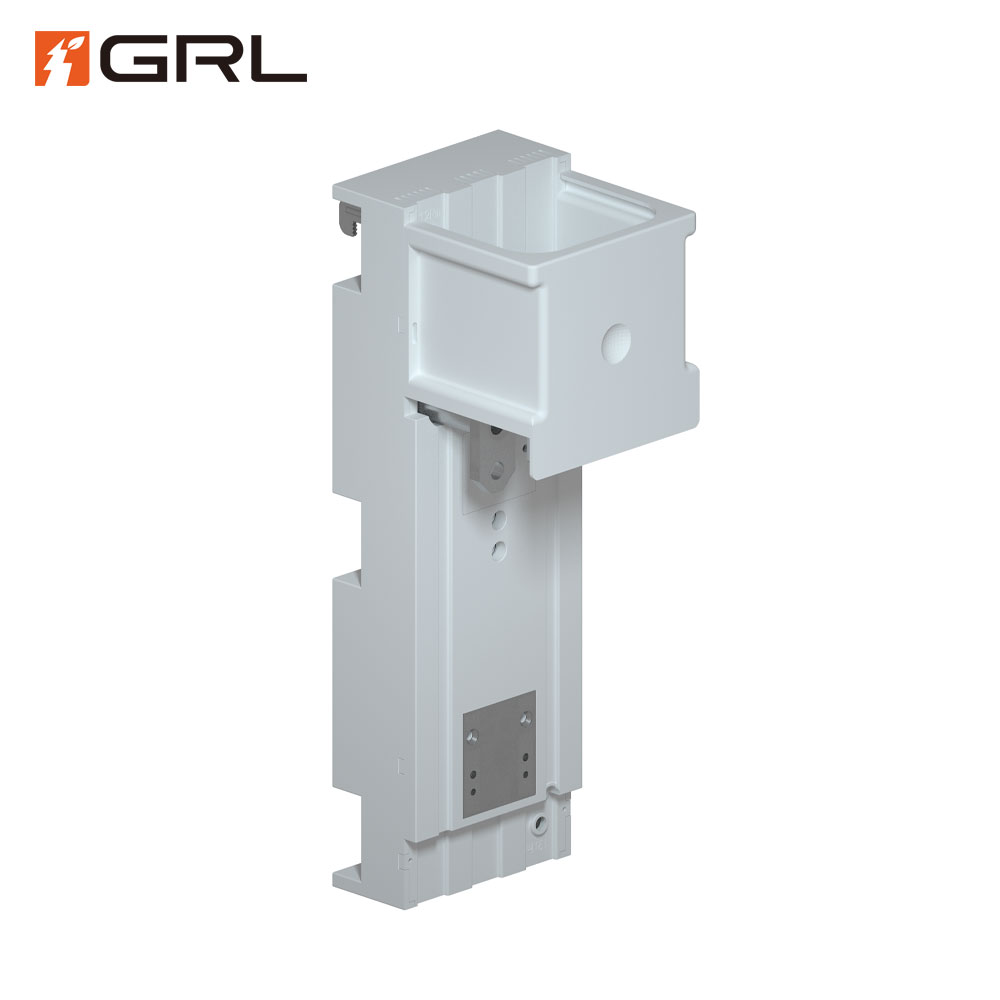

DN55027&DN55050

Breaker Adaptor

400A 3P 185mm

Dimension 45*194*M6, 45*215*M5

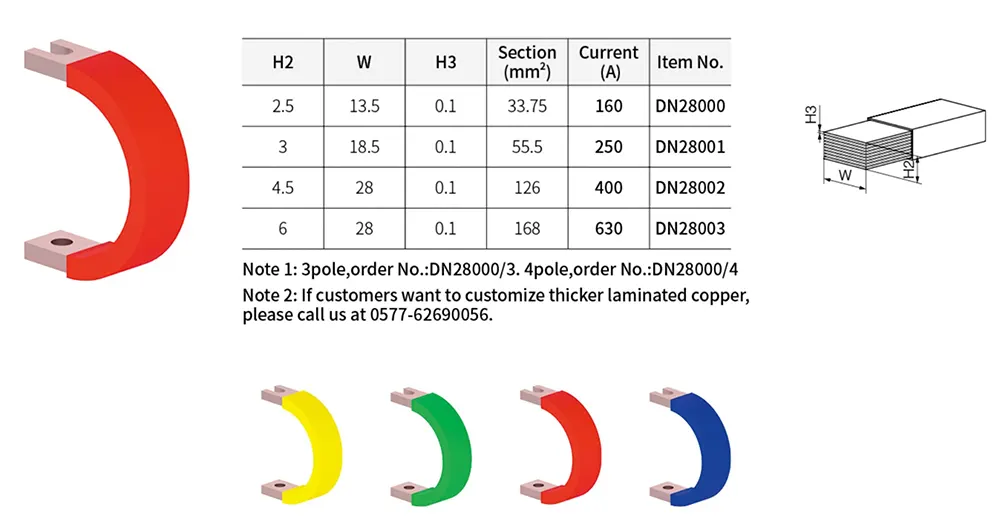

DN28000&DN28001&DN28002&DN28003

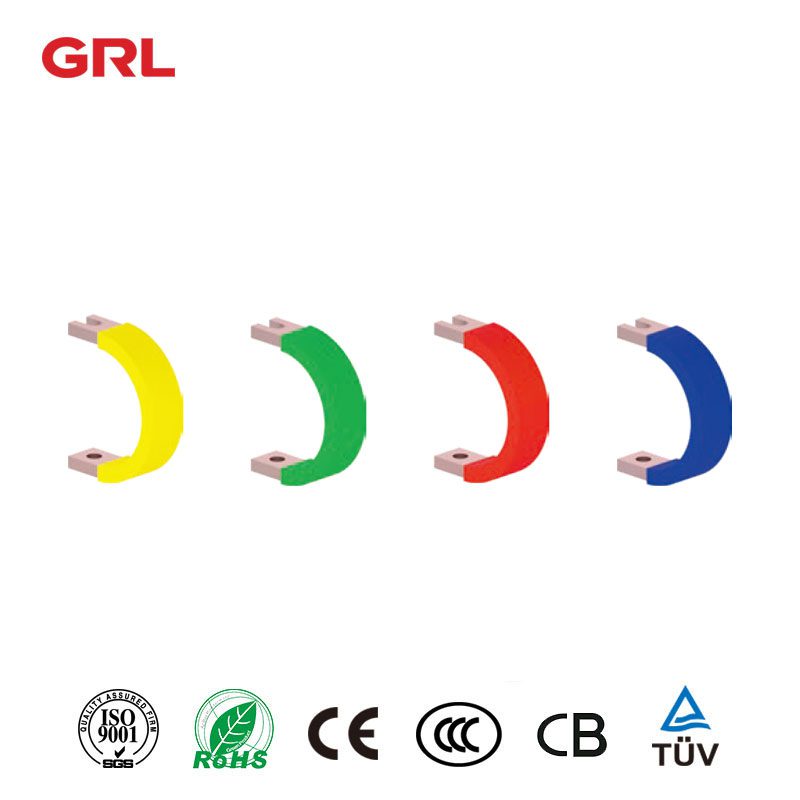

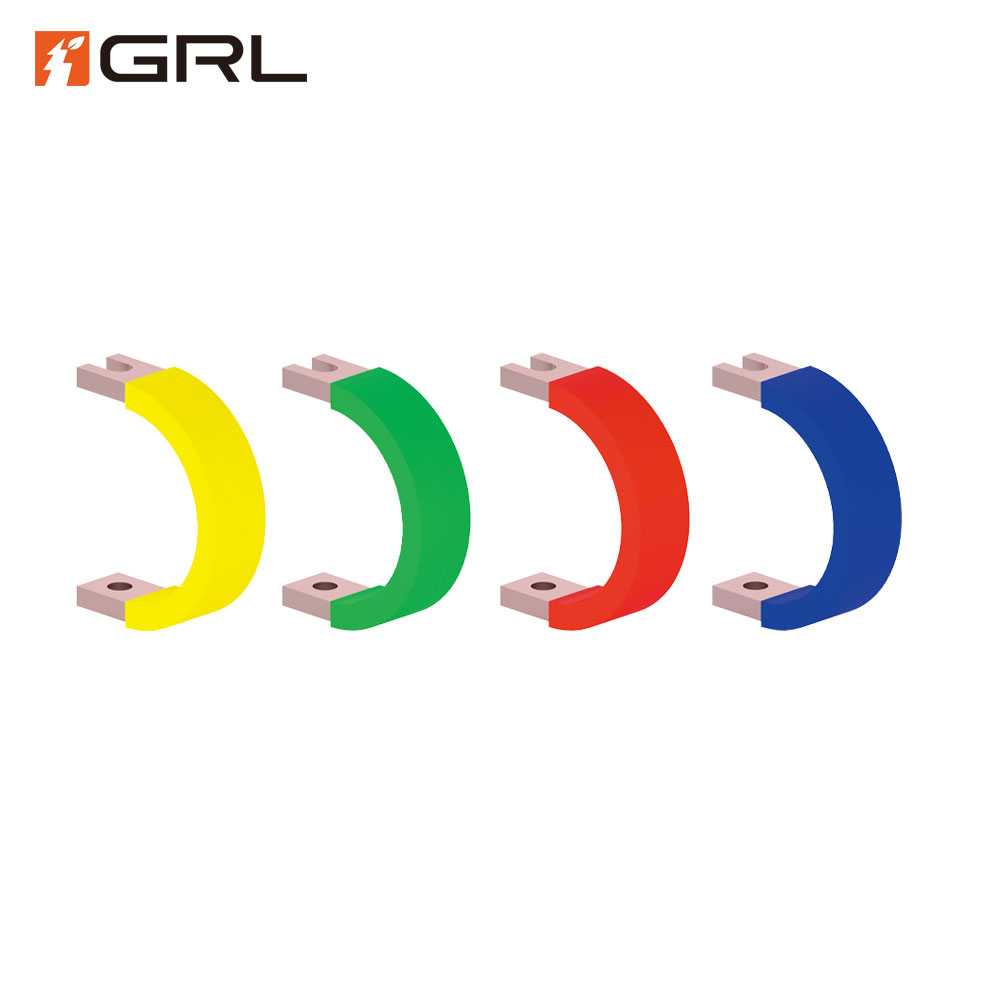

Laminated Copper Connection

Note 1: 3pole for item No.DN28000/3, 4pole for item No.DN28000/4.

Note 2: If customers want to customize thicker laminated copper, please call us at 0577-62690056.

This is a power bus system breaker adapter ideal for use in industrial and commercial environments. It is suitable for three phase 185mm systems and can handle up to 400A rated current. The adapter is also UL listed for safety.
