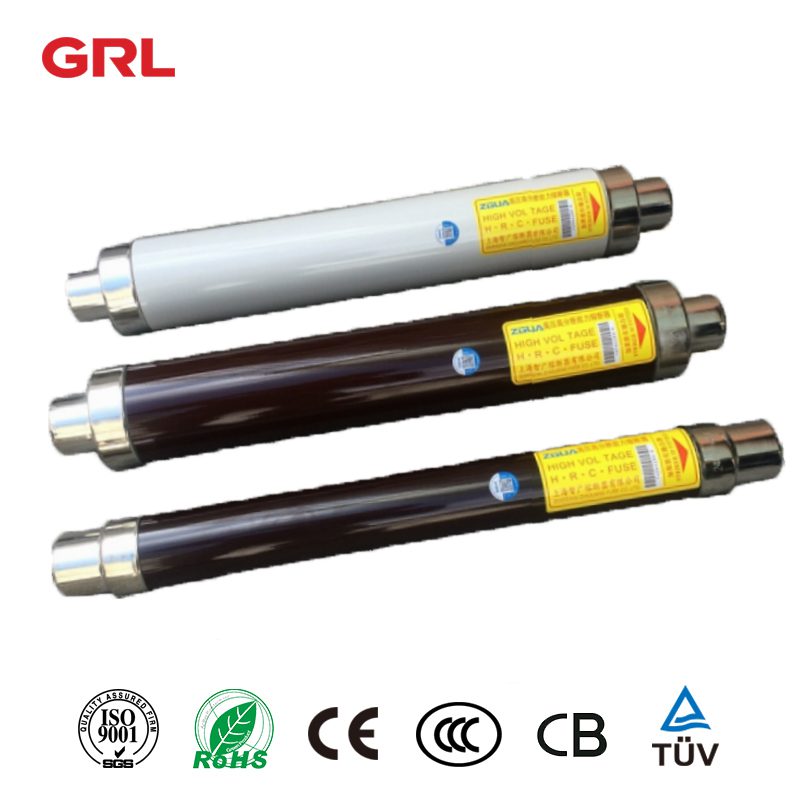

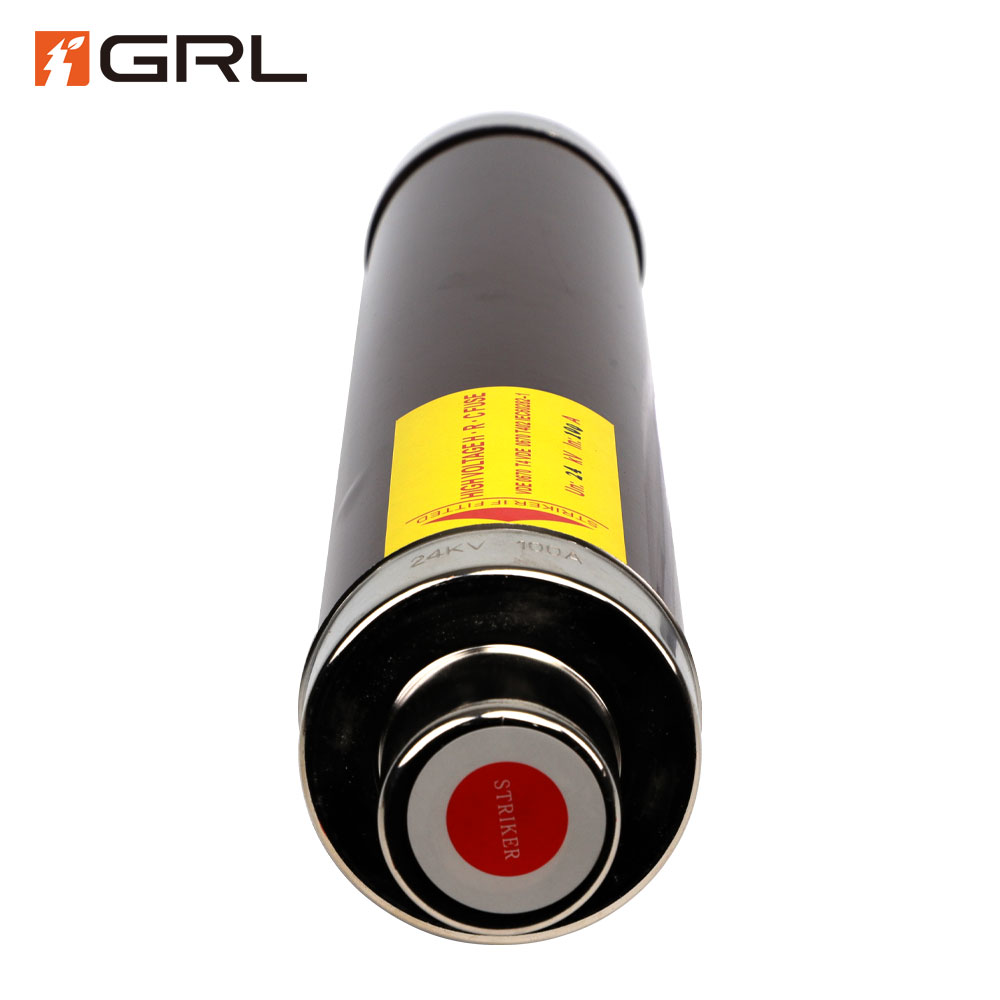

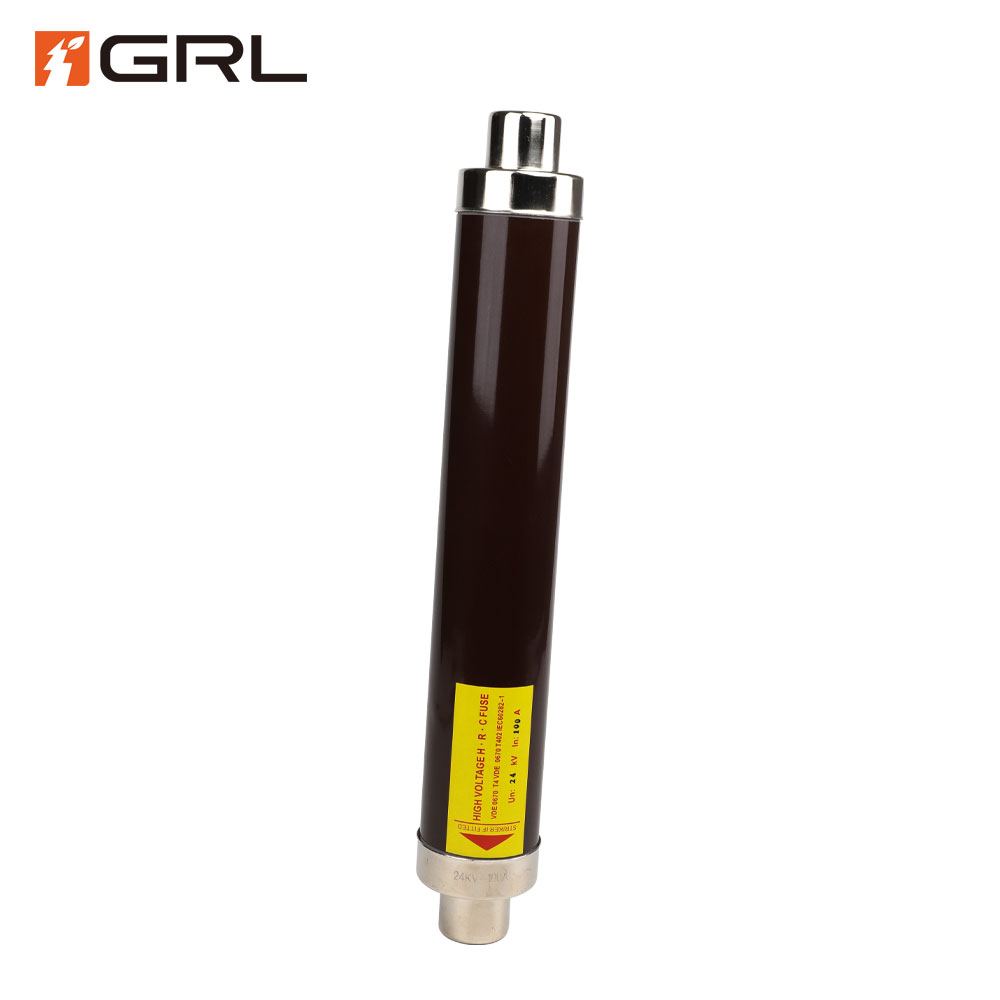

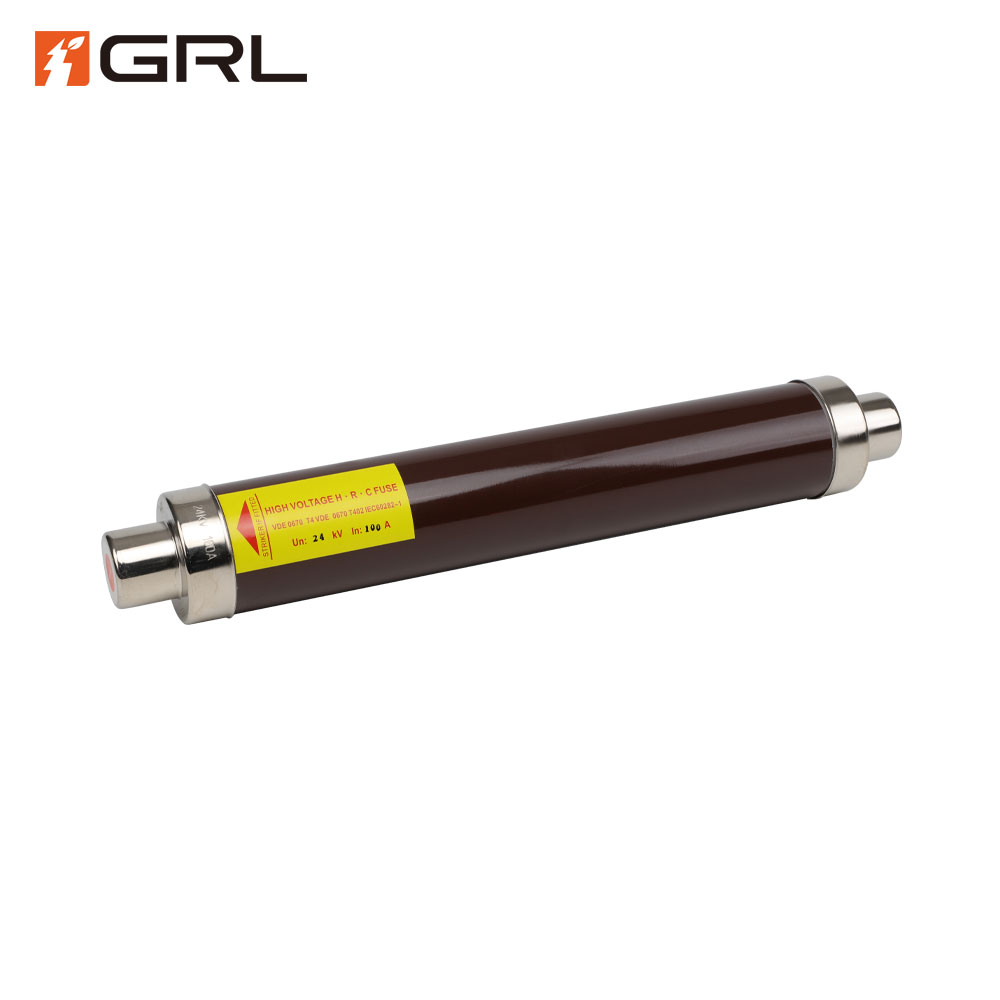

High-voltage limit-current fuse for protection transformer( germany din standard)

Mode:

XRNT-12 、 XRNT-24

Voltage:

12Kv 、24kv

Current:

100A、200A

Email:

[email protected]

Keyword:

protection transformer

Certification Download PDF Contact Us

Description

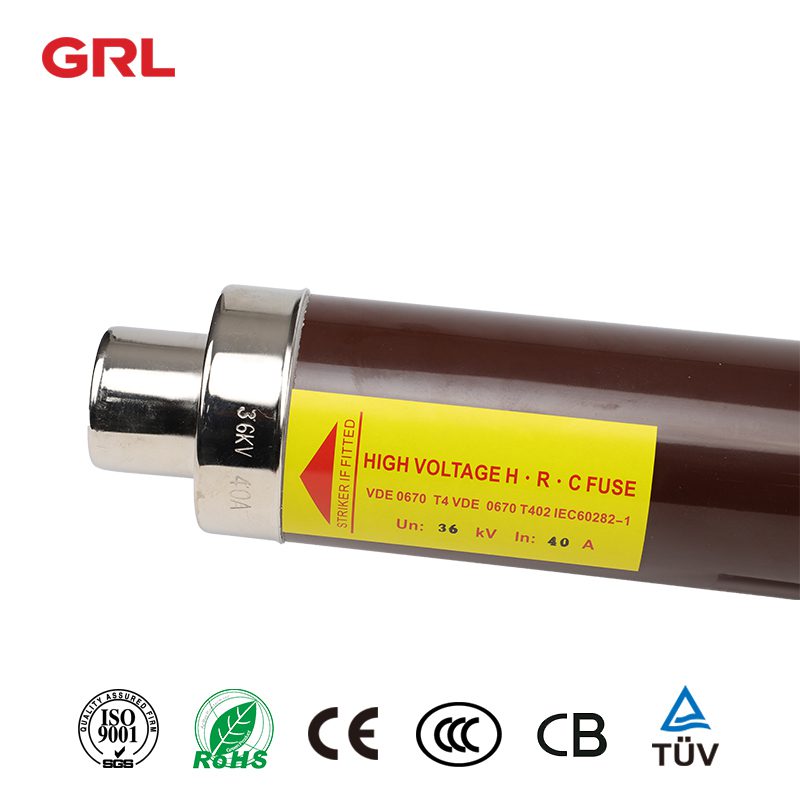

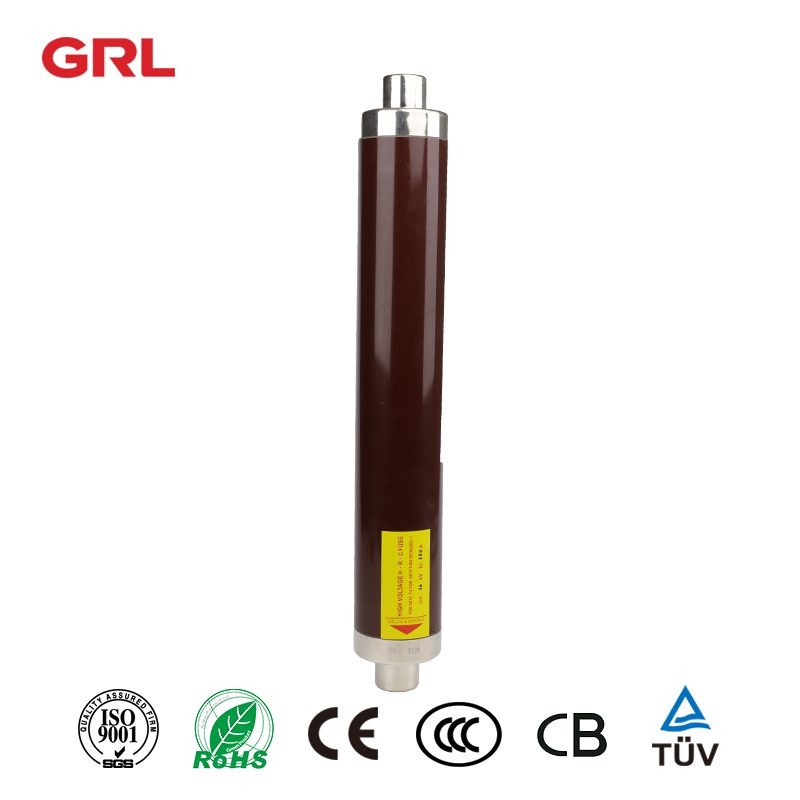

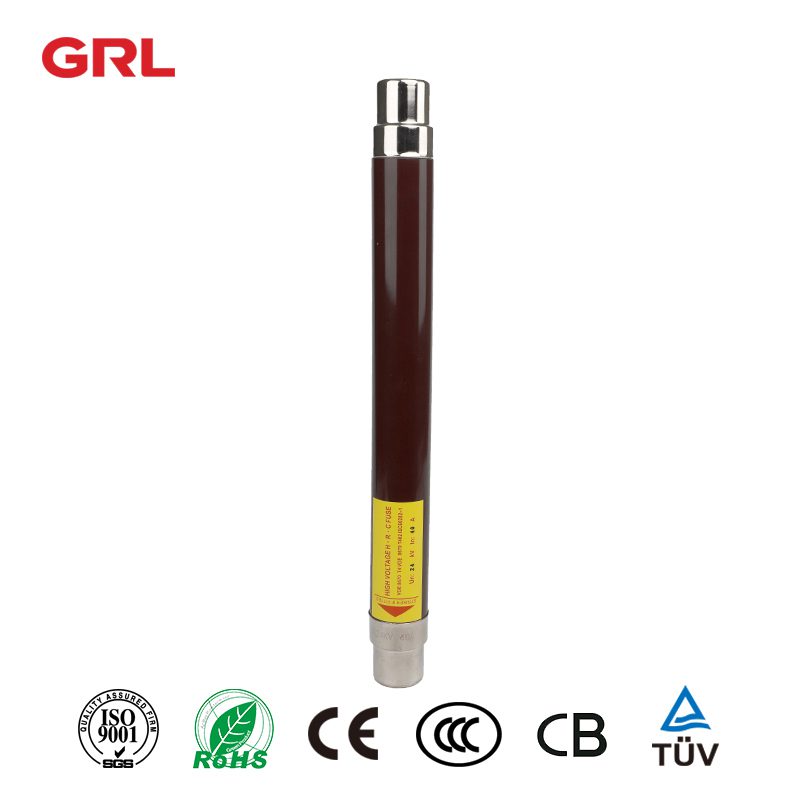

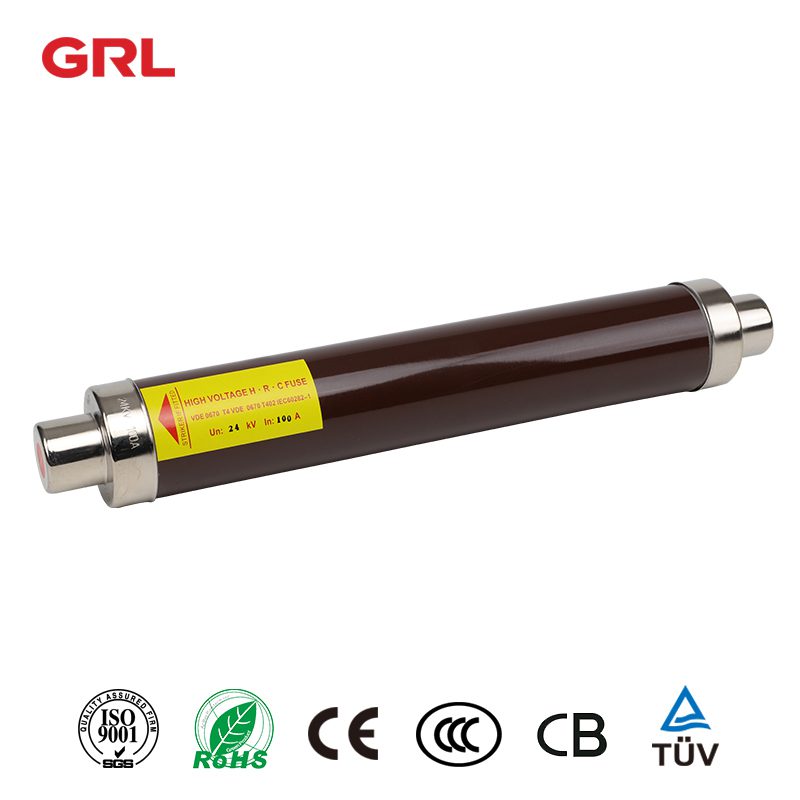

High-voltage limit-current fuse for protection transformer( germany din standard)

It can be used inindoor system of 50HZ and rated voltage of 3.6KV , 7.2KV , 12KV , 24KV , 40.5KV : Used together with other switch facilities such as loading swithes , vacuum contactors , it can protecti electric transformers and other electric facilities against overloading or circuit break .

It is also a necessary accessory for high-voltage switch box , circular circuitcabinet , high / Low voltage top-loading transformer substation.

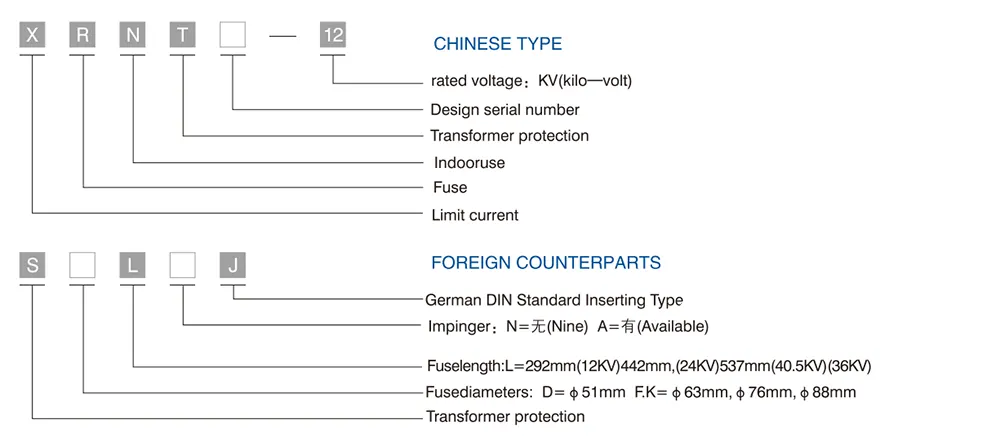

Type instruction

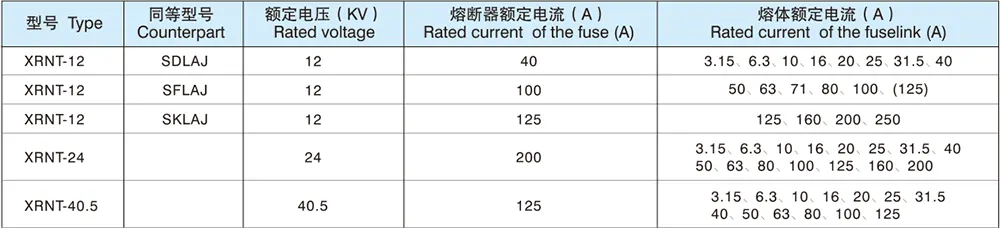

Basic parameters

Type	Counterpart	Rated voltage( KV)	Rated current of the fuse (A)	Rated current of the fuselink (A)
XRNT-12	SDLAJ	12	40	3.15、6.3、10、16、20、25、31.5、40
XRNT-12	SFLAJ	12	100	50、63、71、80、100、(125)
XRNT-12	SKLAJ	12	125	125、160、200、250
XRNT-24		24	200	3.15、6.3、10、16、20、25、31.5、4050、63、80、100、125、160、200
XRNT-40.5		40.5	125	3.15、6.3、10、16、20、25、31.540、50、63、80、100、125

type

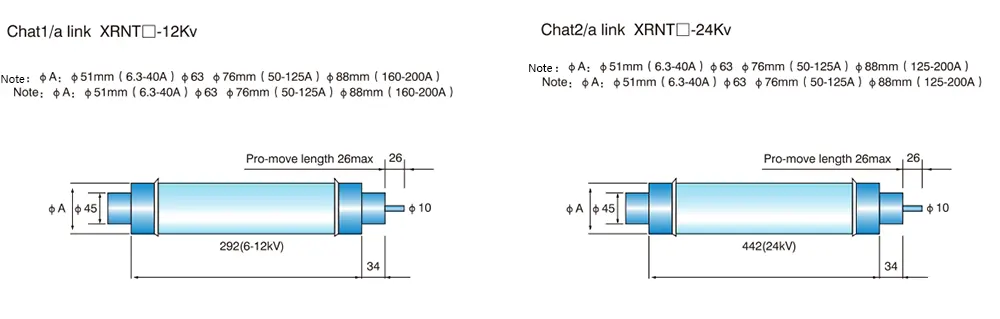

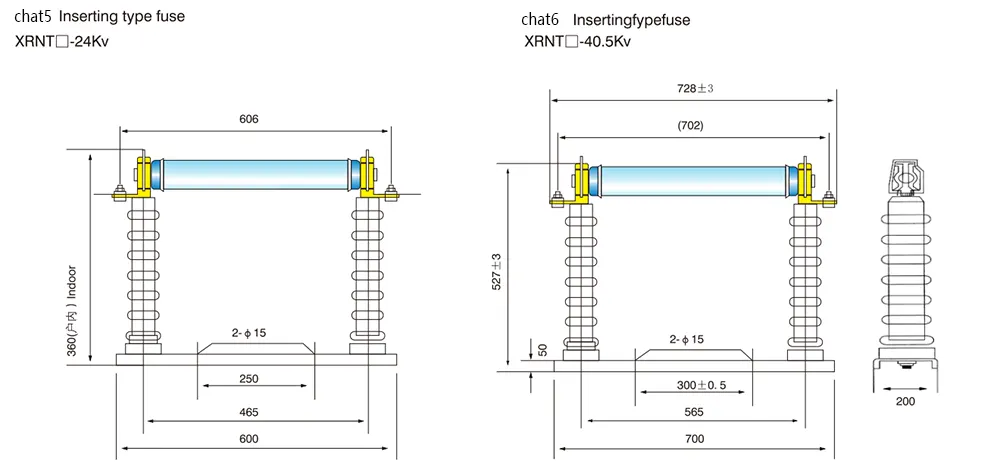

Installation Dimensios

chat6
